| 2 Pin |
|
|
|
|
|
|
|
| WW250-02F |

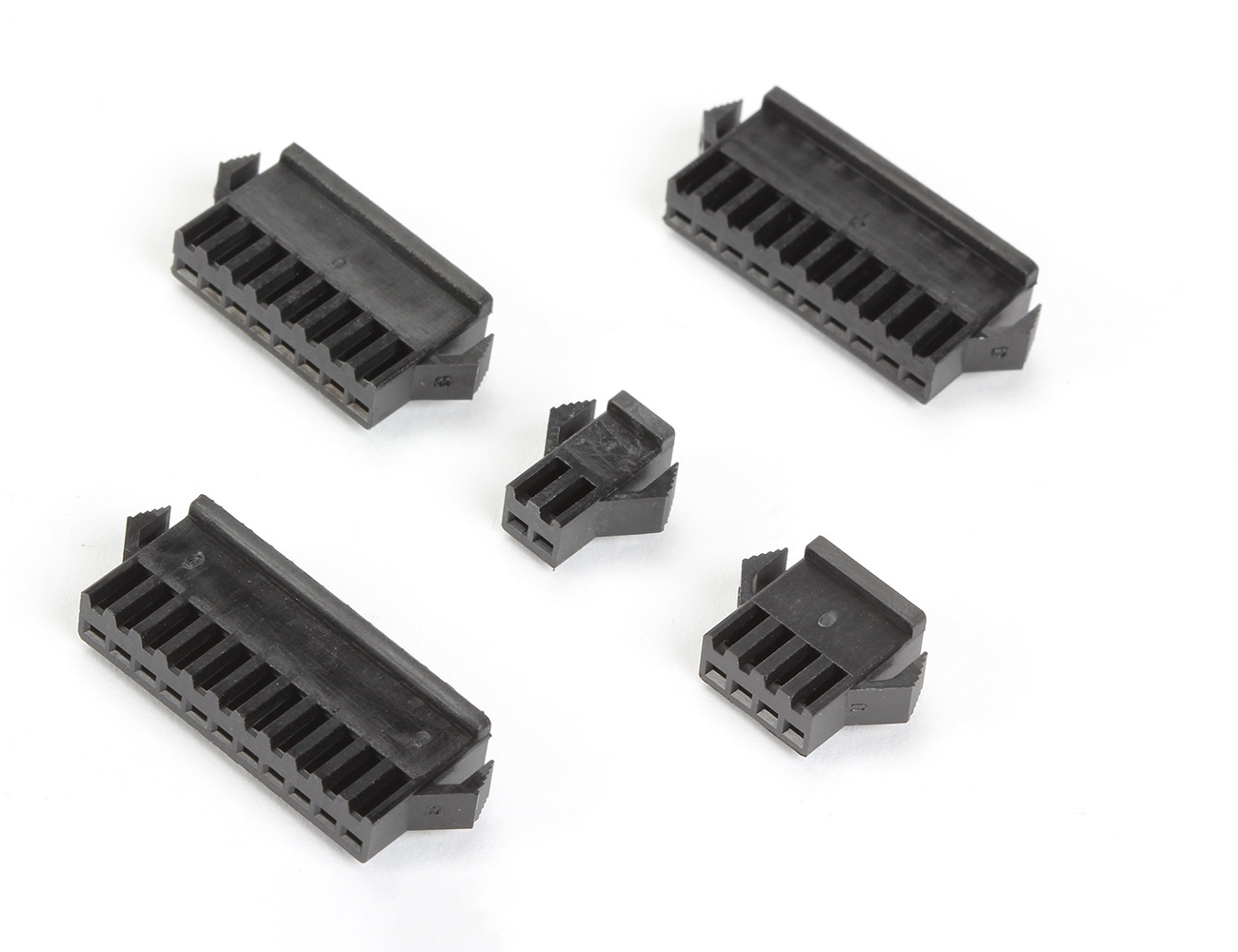

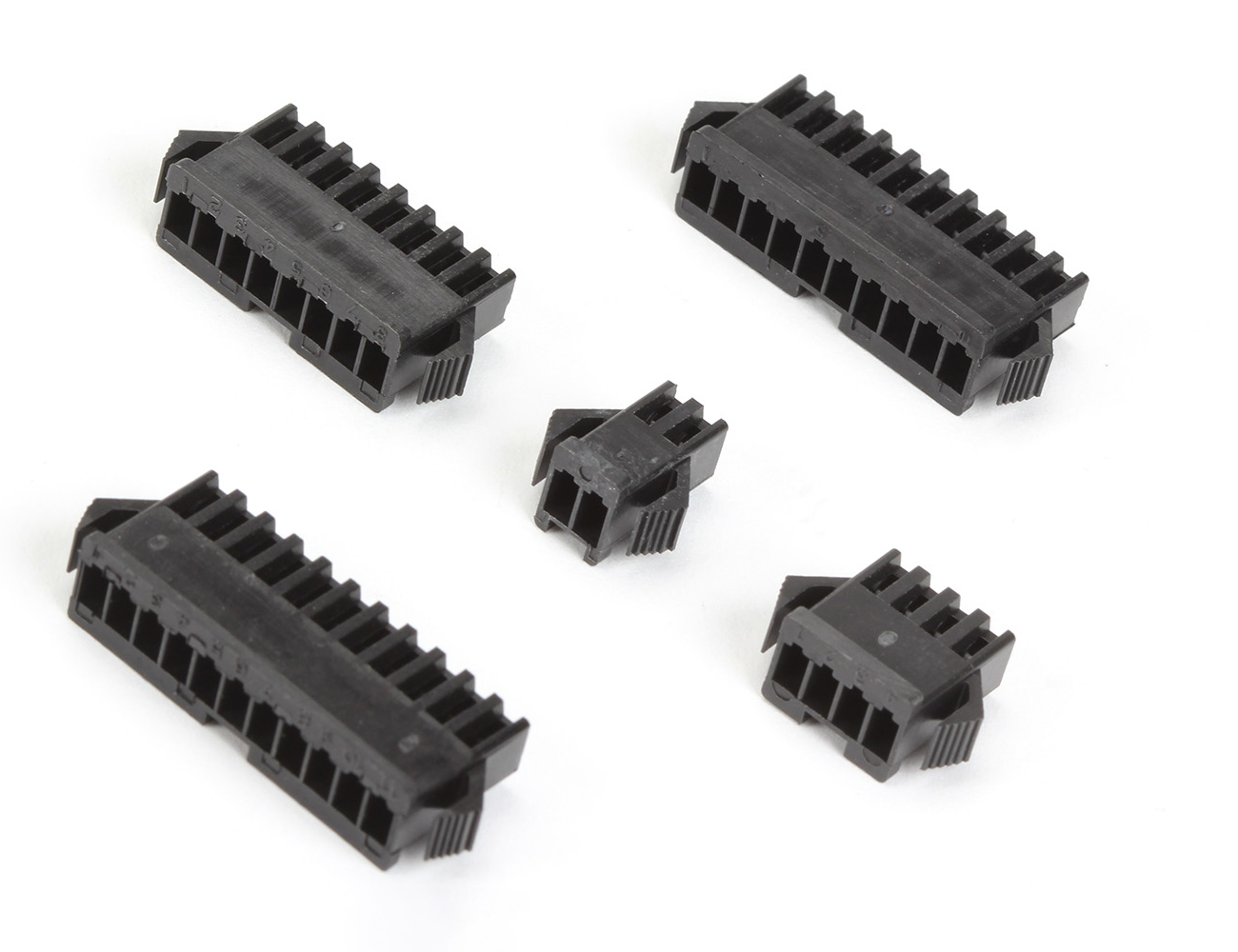

2 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-02M |

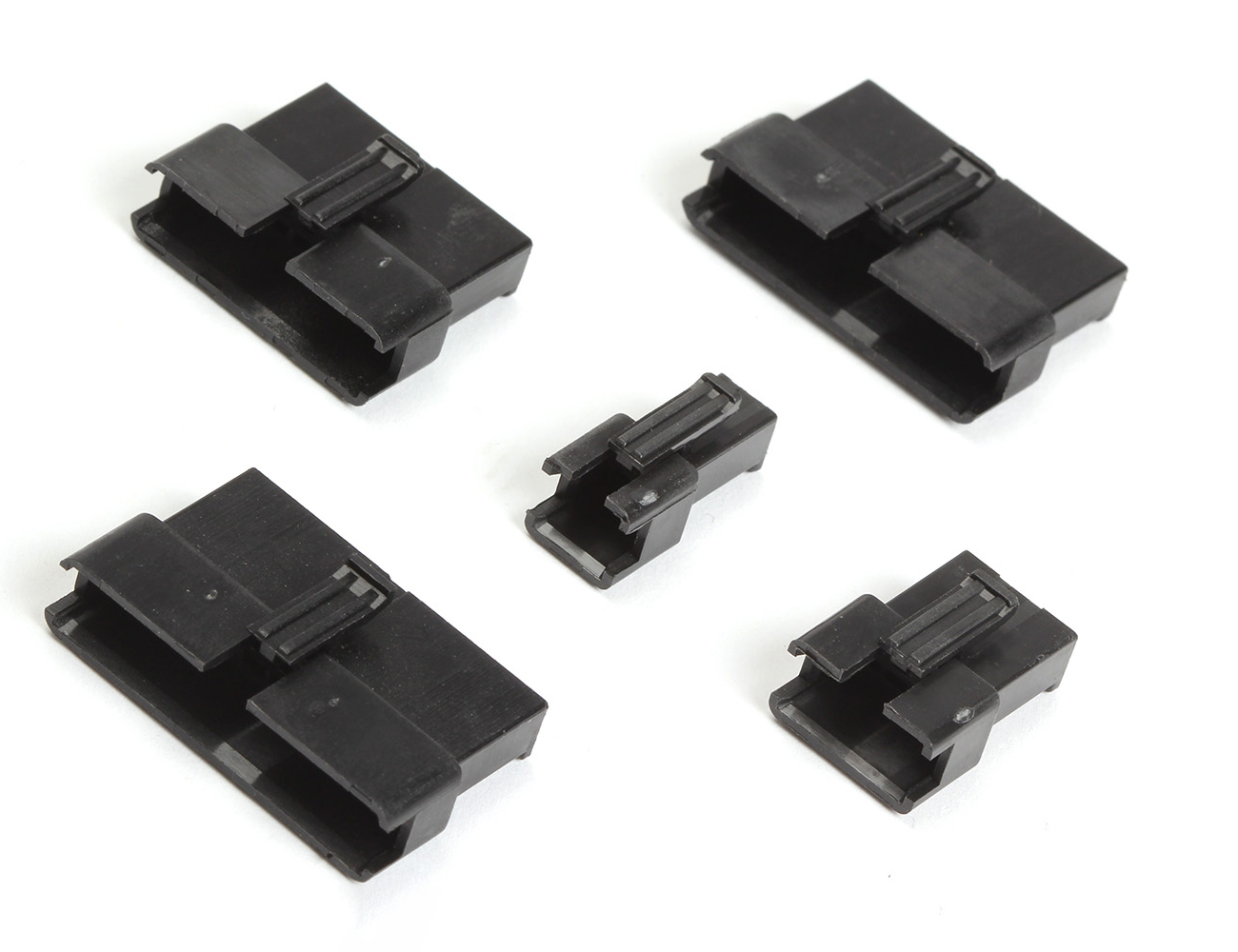

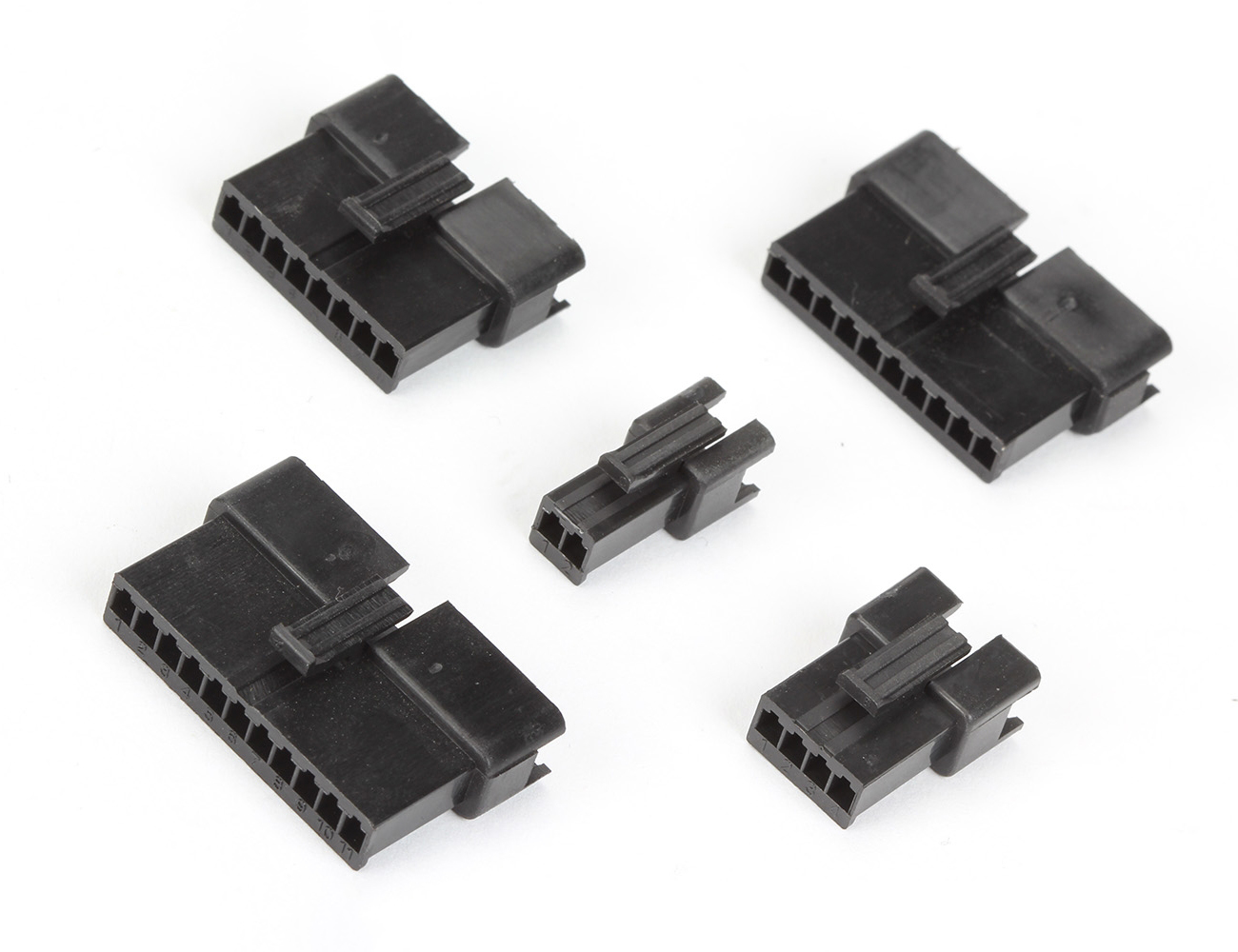

2 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 3 Pin |
|
|
|
|
|
|
|
| WW250-03F |
3 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-03M |
3 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 4 Pin |
|
|
|
|
|
|
|
| WW250-04F |
4 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-04M |
4 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 5 Pin |
|
|
|
|
|
|
|
| WW250-05F |
5 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-05M |
5 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 6 Pin |
|
|
|
|
|
|
|
| WW250-06F |
6 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-06M |
6 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 7 Pin |
|
|
|
|
|
|
|
| WW250-07F |
7 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-07M |
7 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 8 Pin |
|
|
|
|
|
|
|
| WW250-08F |
8 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-08M |
8 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 9 Pin |
|
|
|
|
|
|
|
| WW250-09F |
9 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-09M |
9 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 10 Pin |
|
|
|
|
|
|
|
| WW250-10F |
10 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-10M |
10 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| 11 Pin |
|
|
|
|
|
|
|
| WW250-11F |
11 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| WW250-11M |
11 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 12 Pin |
|
|
|
|
|
|
|
| WW250-12F |
12 Pin 2.50mm Dişi Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| WW250-12M |
12 Pin 2.50mm Erkek Housing |
2.5A |
250V / AC/ DC |
800V / AC / dakika |
Nylon 66 UL94V-0 |
-25°C # +85°C |
|
| Crimp Terminal |
|
|
|
|
|
|
|

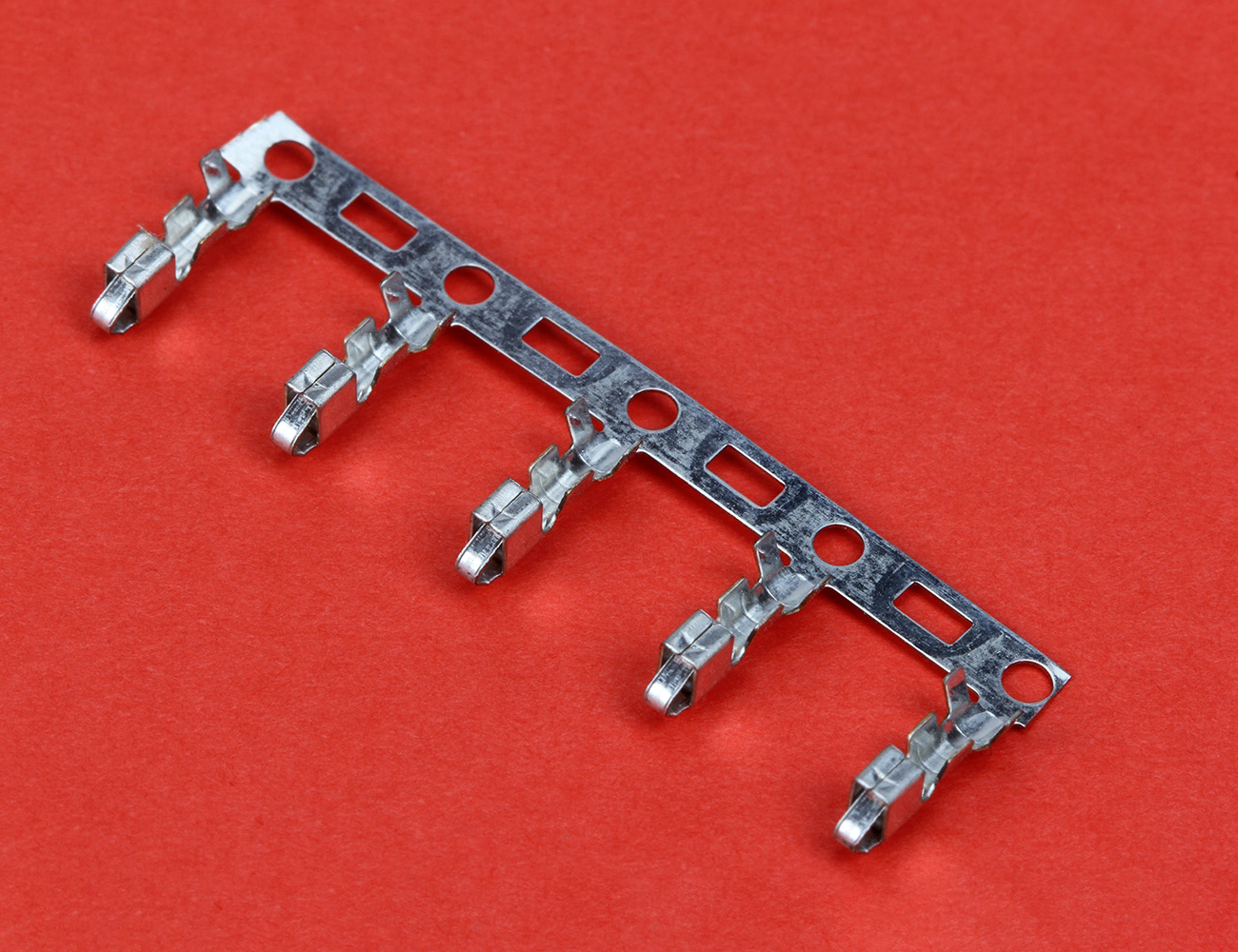

| WW250-FT |
Crimp Terminal Dişi WW250 Serisi Konnektör |
- |
- |
- |
Phosphor Bronze (Kalay Kaplama) |
- |
|

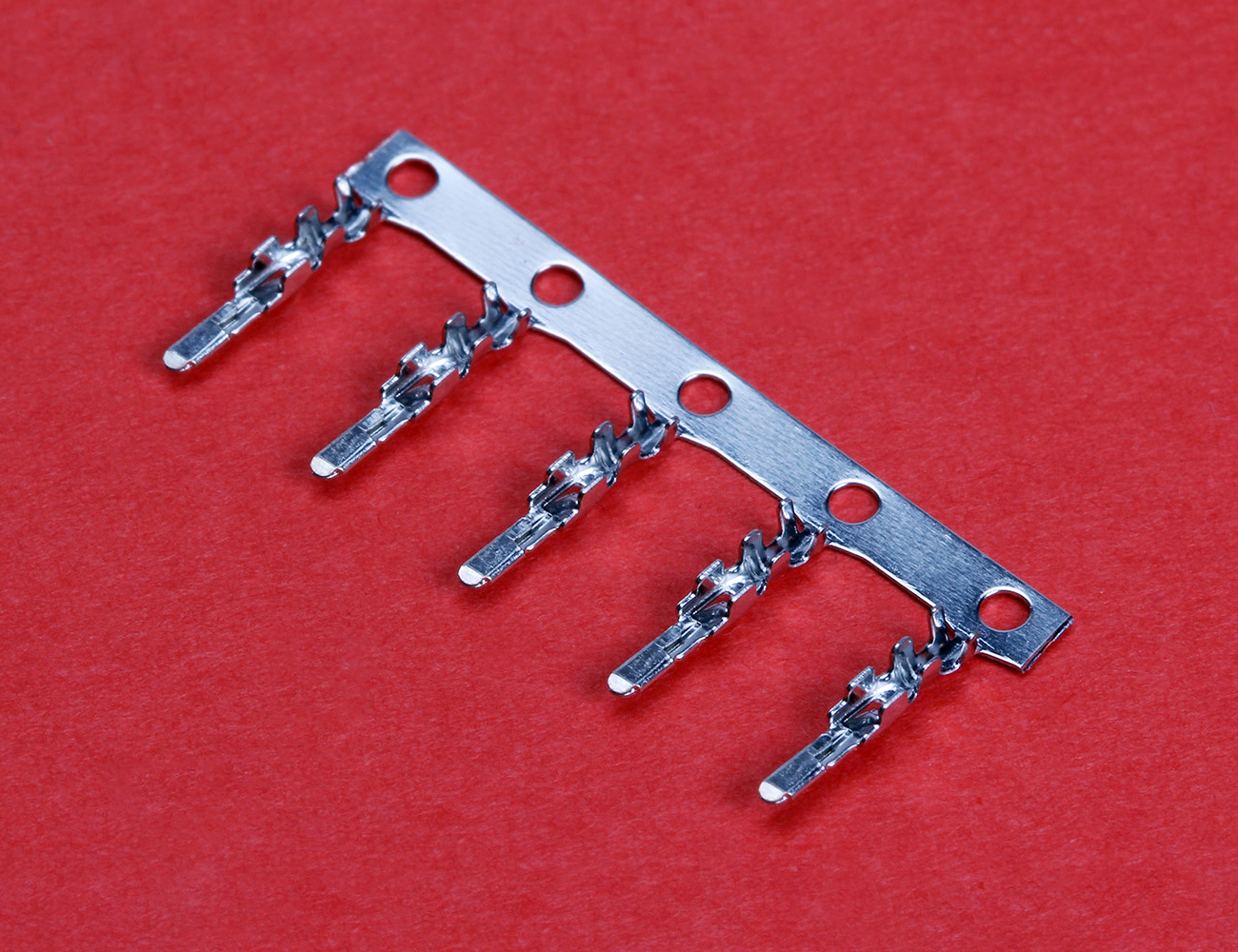

| WW250-MT |
Crimp Terminal Erkek WW250 Serisi Konnektör |
- |
- |
- |
Phosphor Bronze (Kalay Kaplama) |
- |
|
