9500

9500

9500

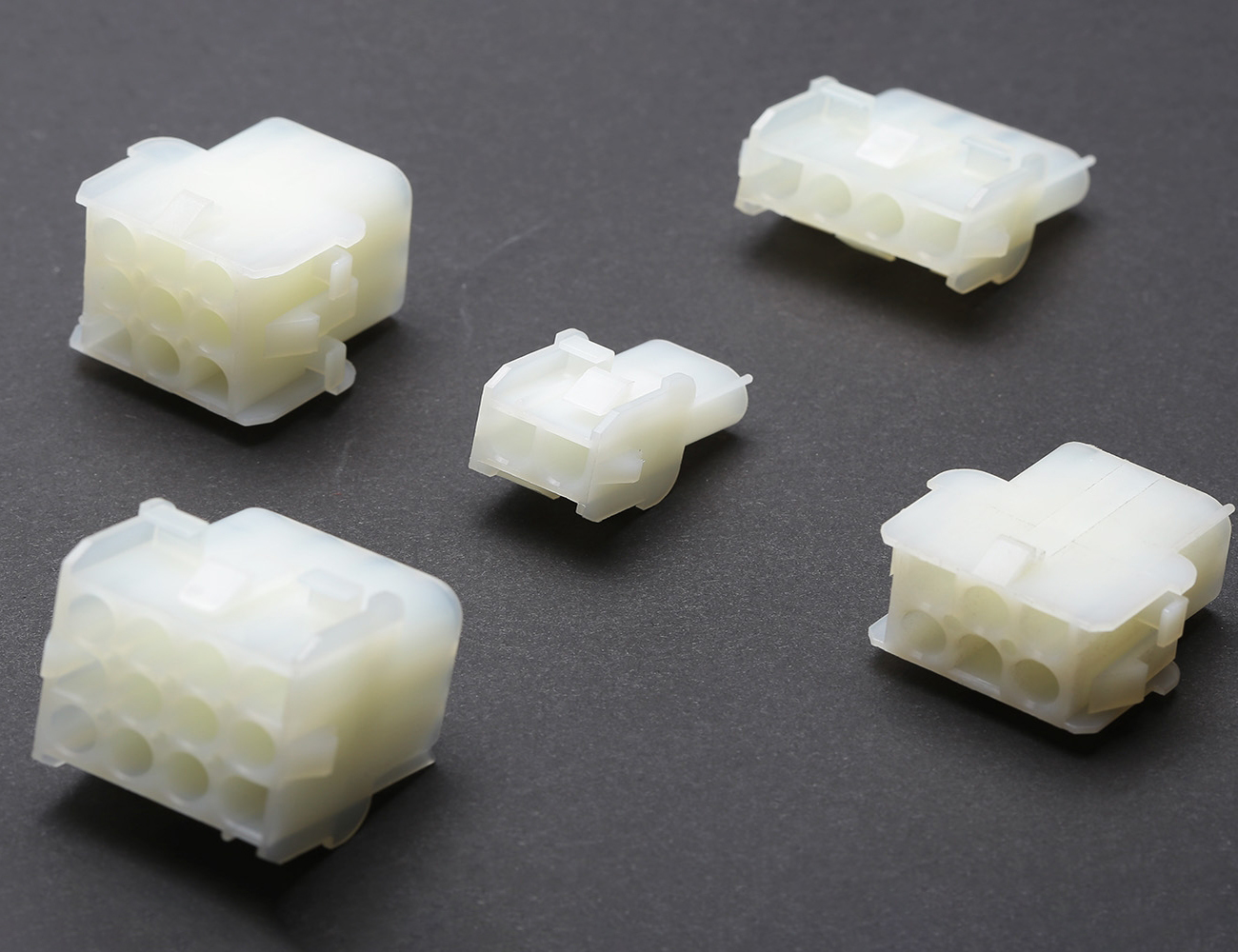

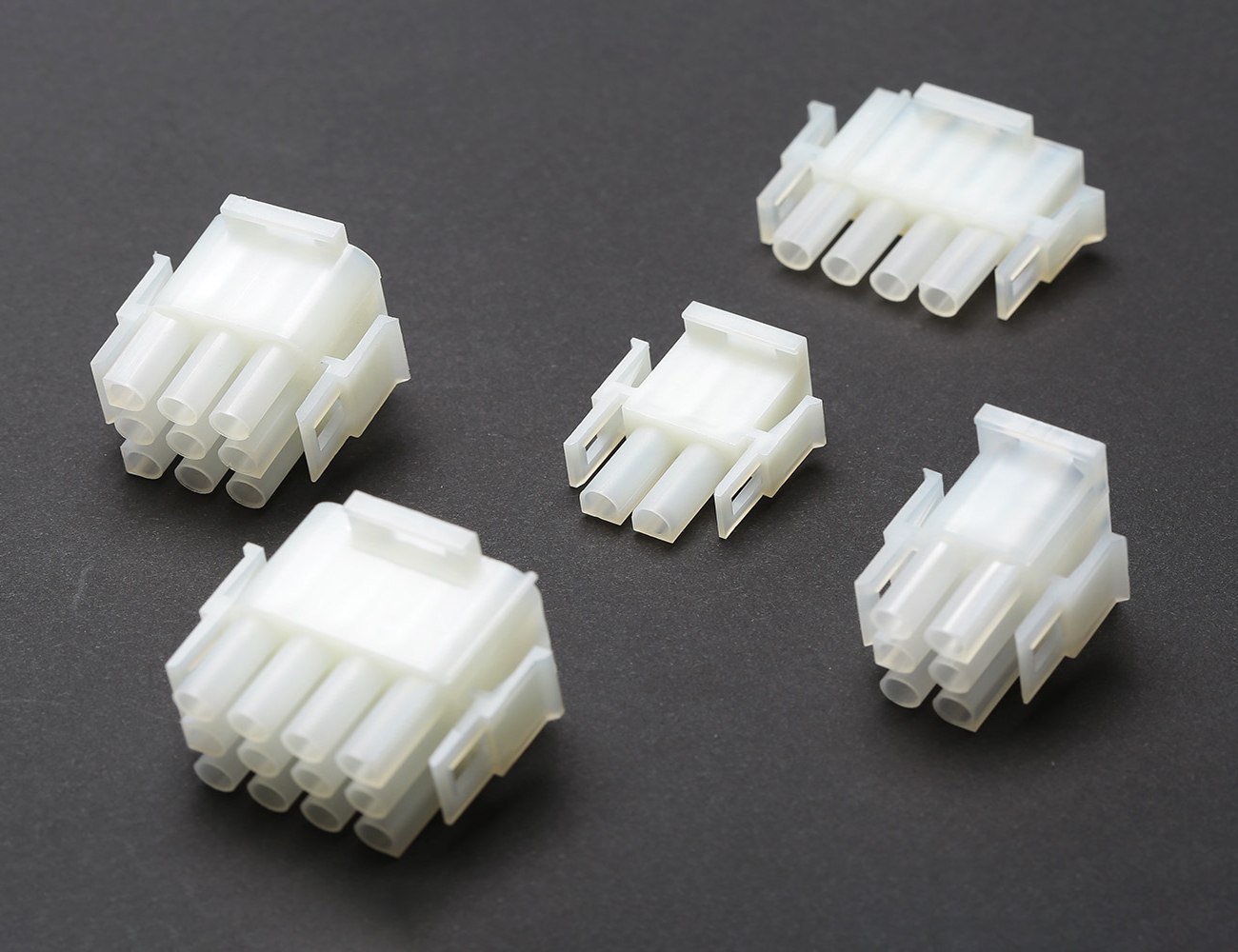

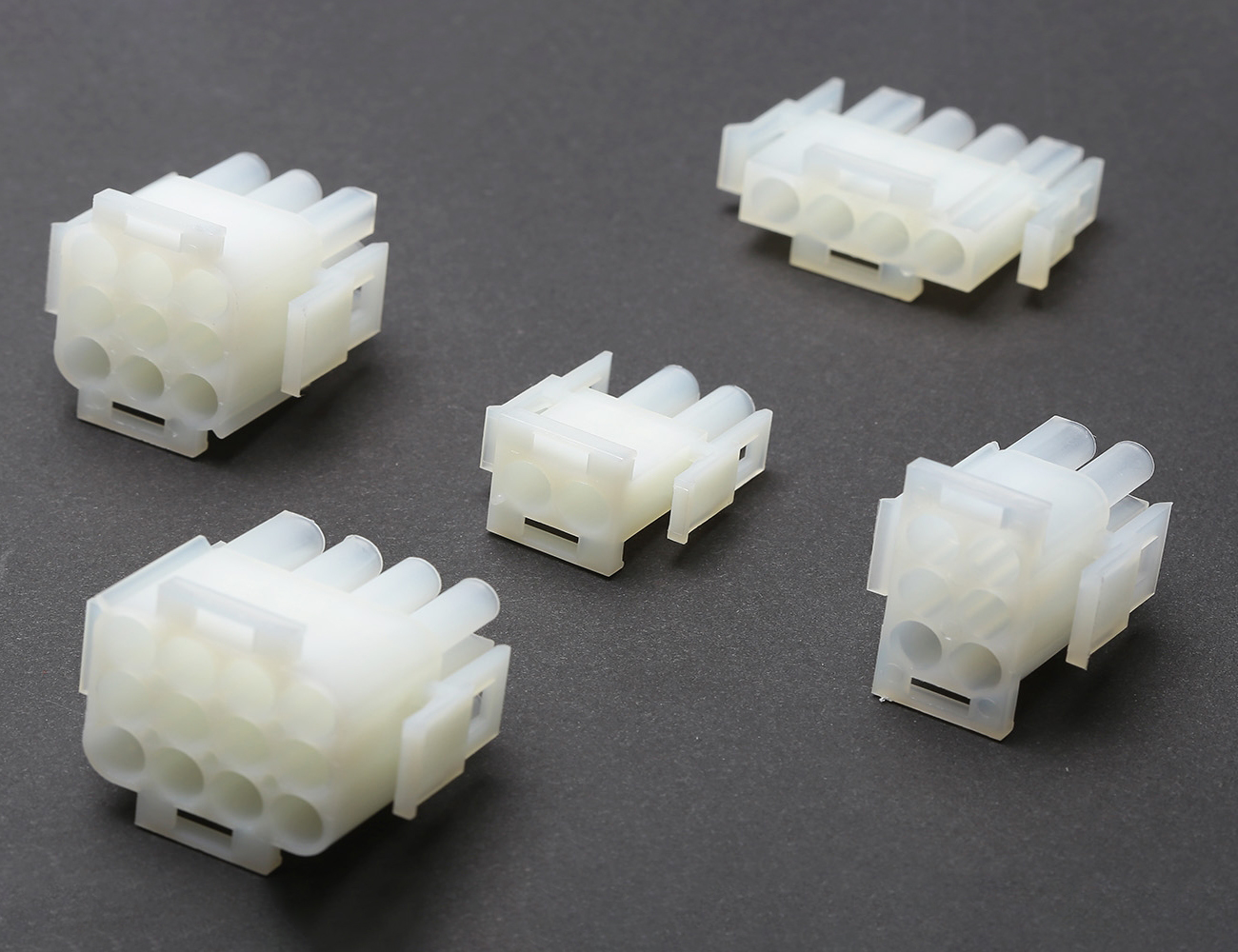

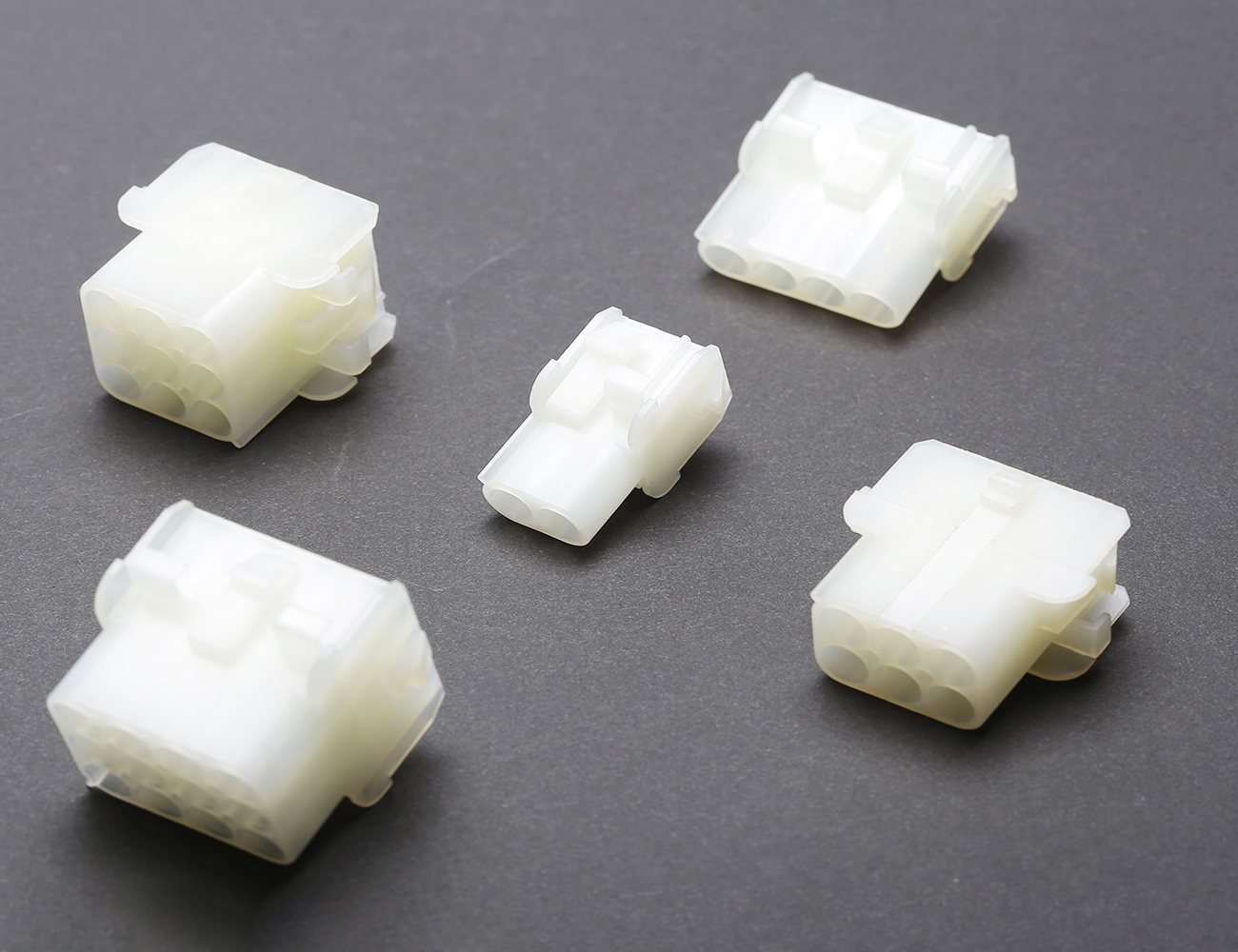

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin
9500-02M 2 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
9500-03F 3 Pin 6.35mm Center Diameter Female 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-03M 3 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
9500-04F 4 Pin 6.35mm Center Diameter Female 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-04M 4 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
9500-05F 5 Pin 6.35mm Center Diameter Female 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-05M 5 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
9500-06F 6 Pin 6.35mm Center Diameter Female 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-06M 6 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
9500-09F 9 Pin 6.35mm Center Diameter Female 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-09M 9 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
9500-12F 12 Pin 6.35mm Center Diameter Female 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-12M 12 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
9500-15F 15 Pin 6.35mm Center Diameter Female 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-15M 15 Pin 6.35mm Center Diameter Male Housing 15A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

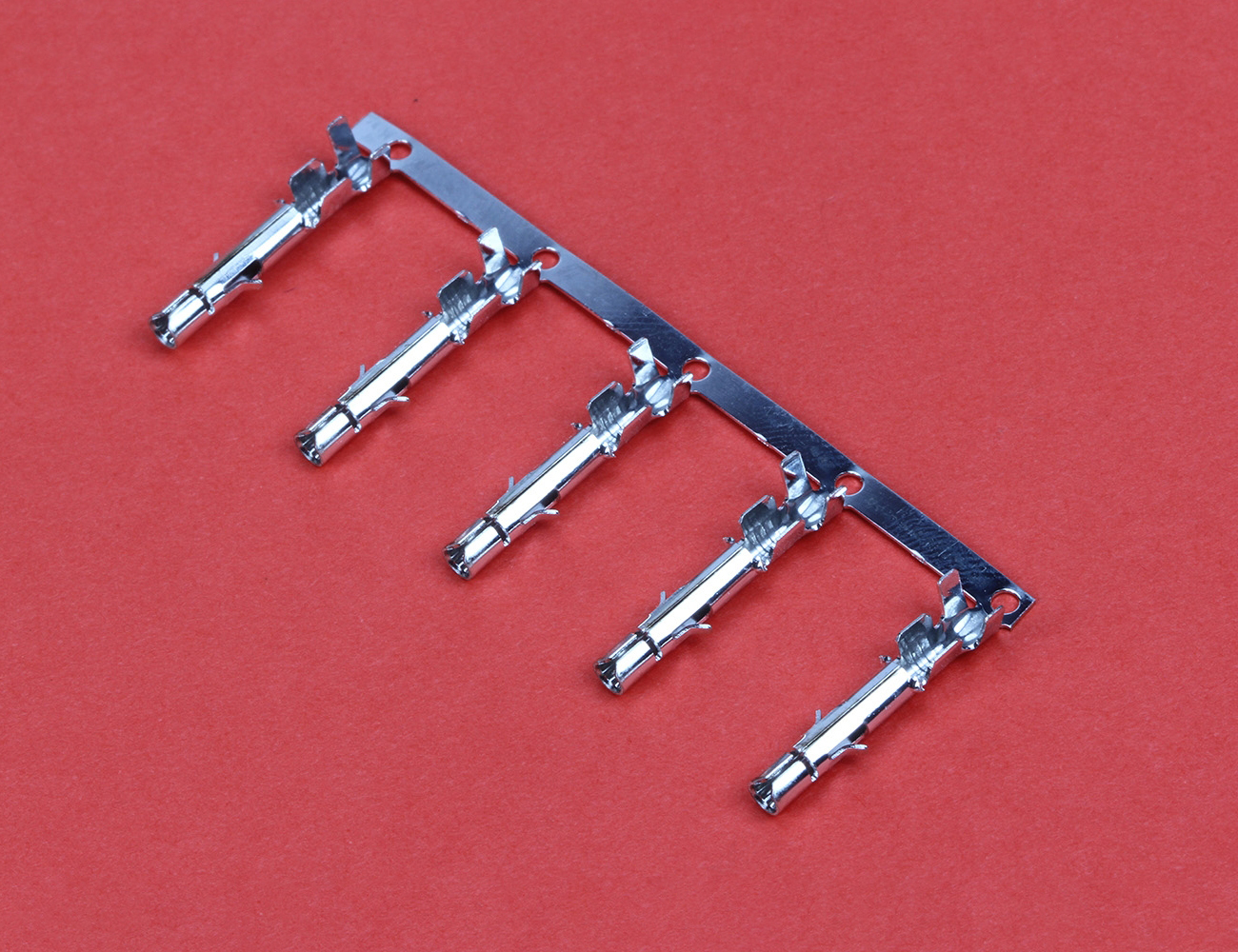

9500-FT Crimp Terminal Female 9500 Series Connector - - - Brass (Tin Plated) -

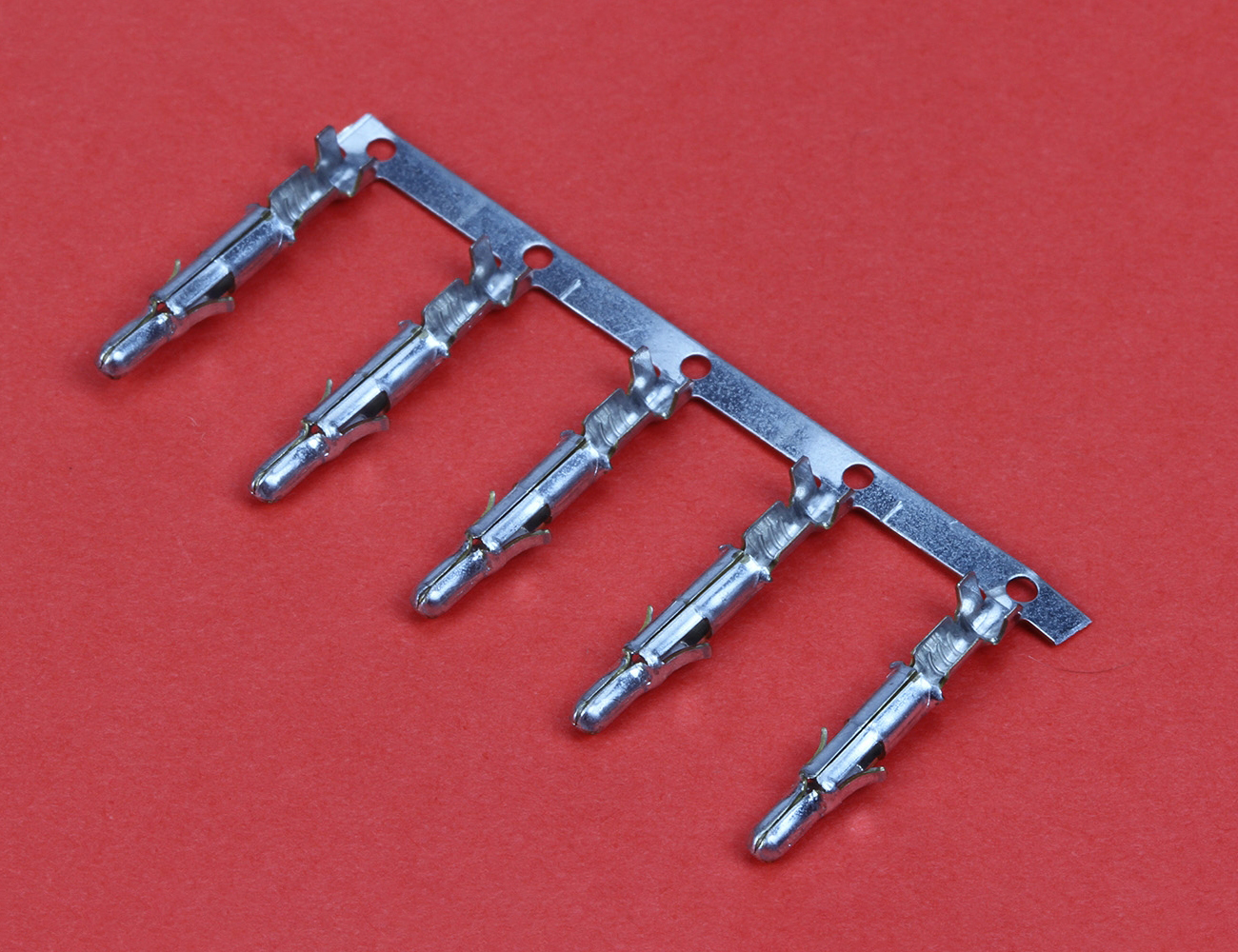

9500-MT Crimp Terminal Male 9500 Series Connector - - - Brass (Tin Plated) -
