Signal 5558 Series

Signal 5558 Series

Signal 5558 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

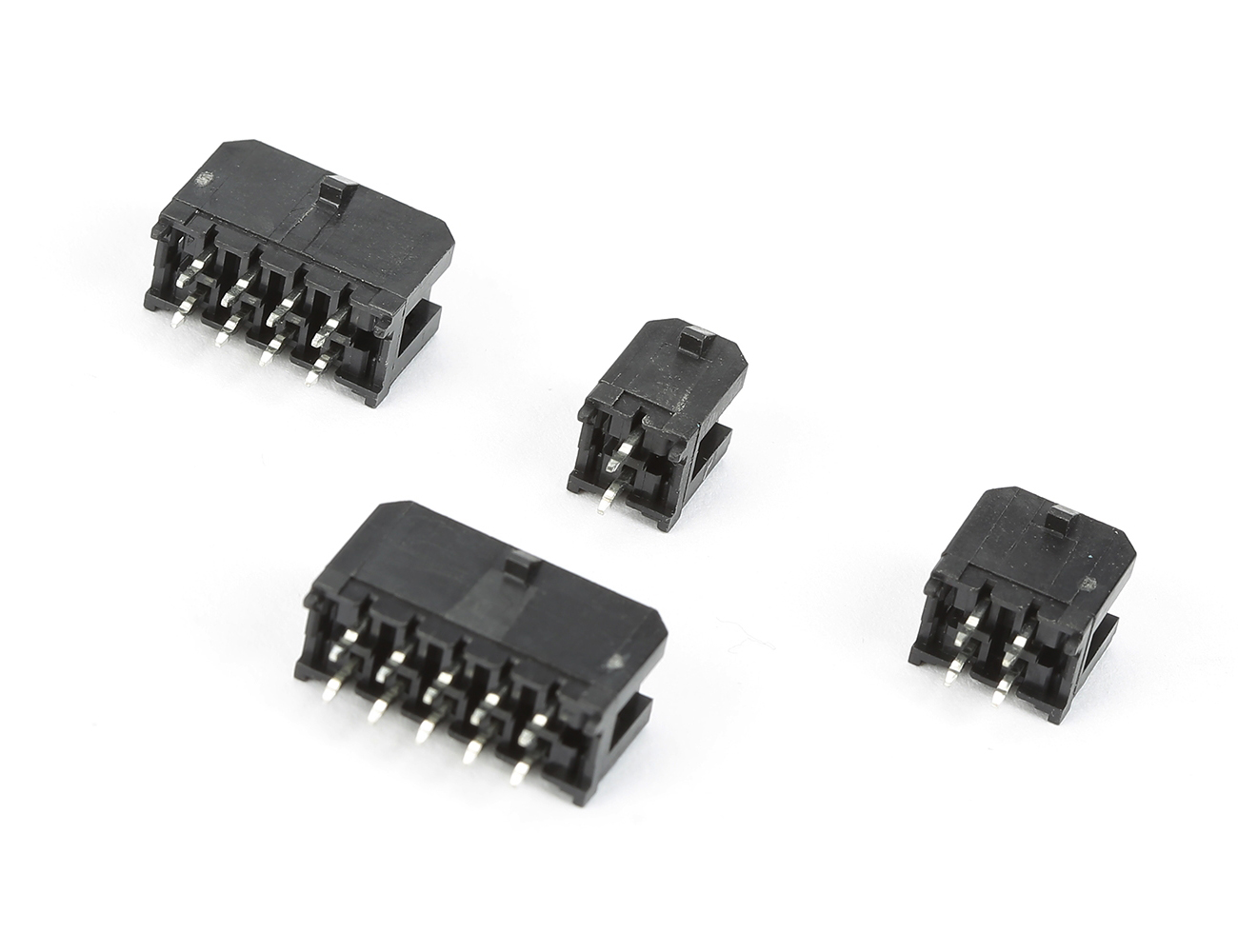

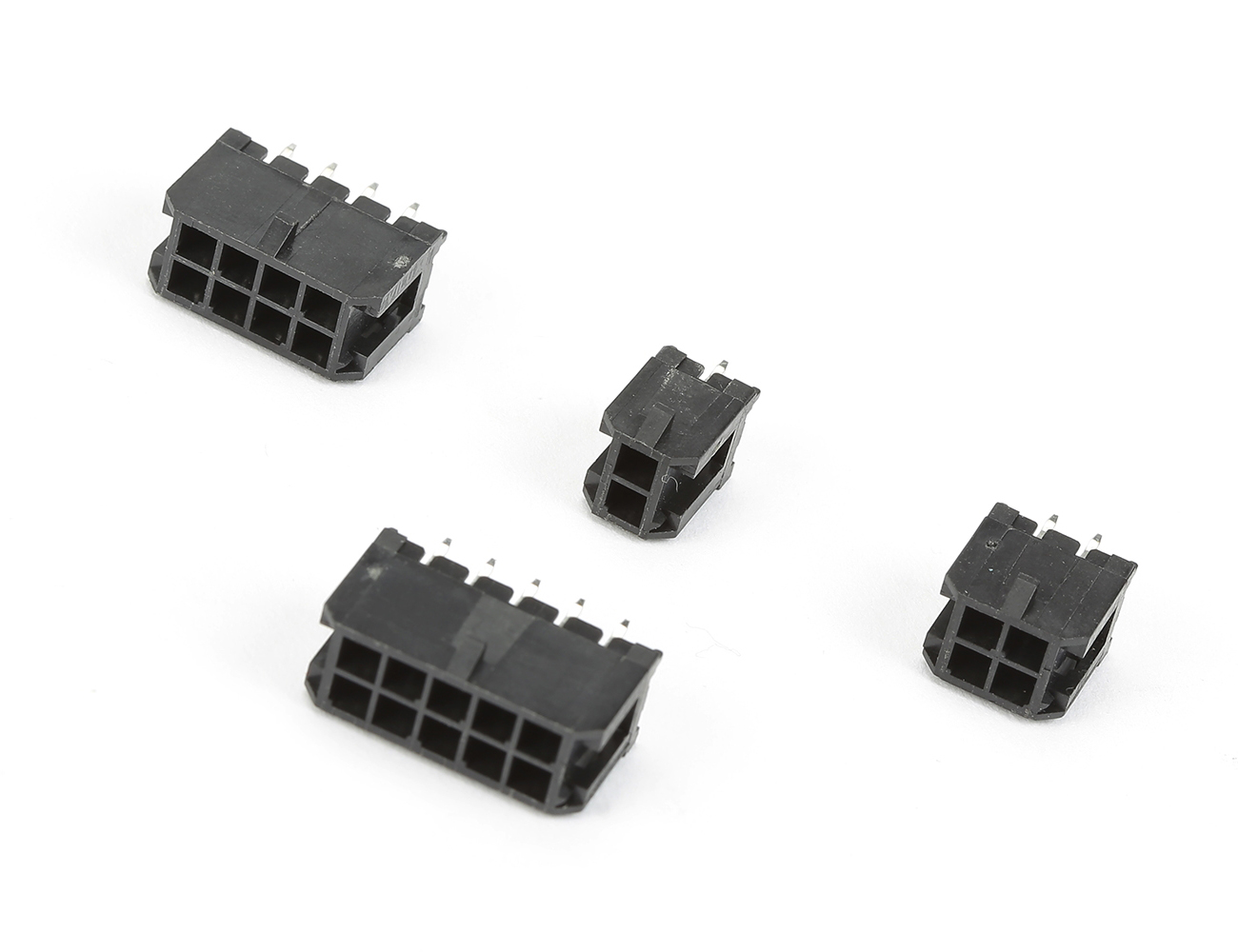

5558-02S 2 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C

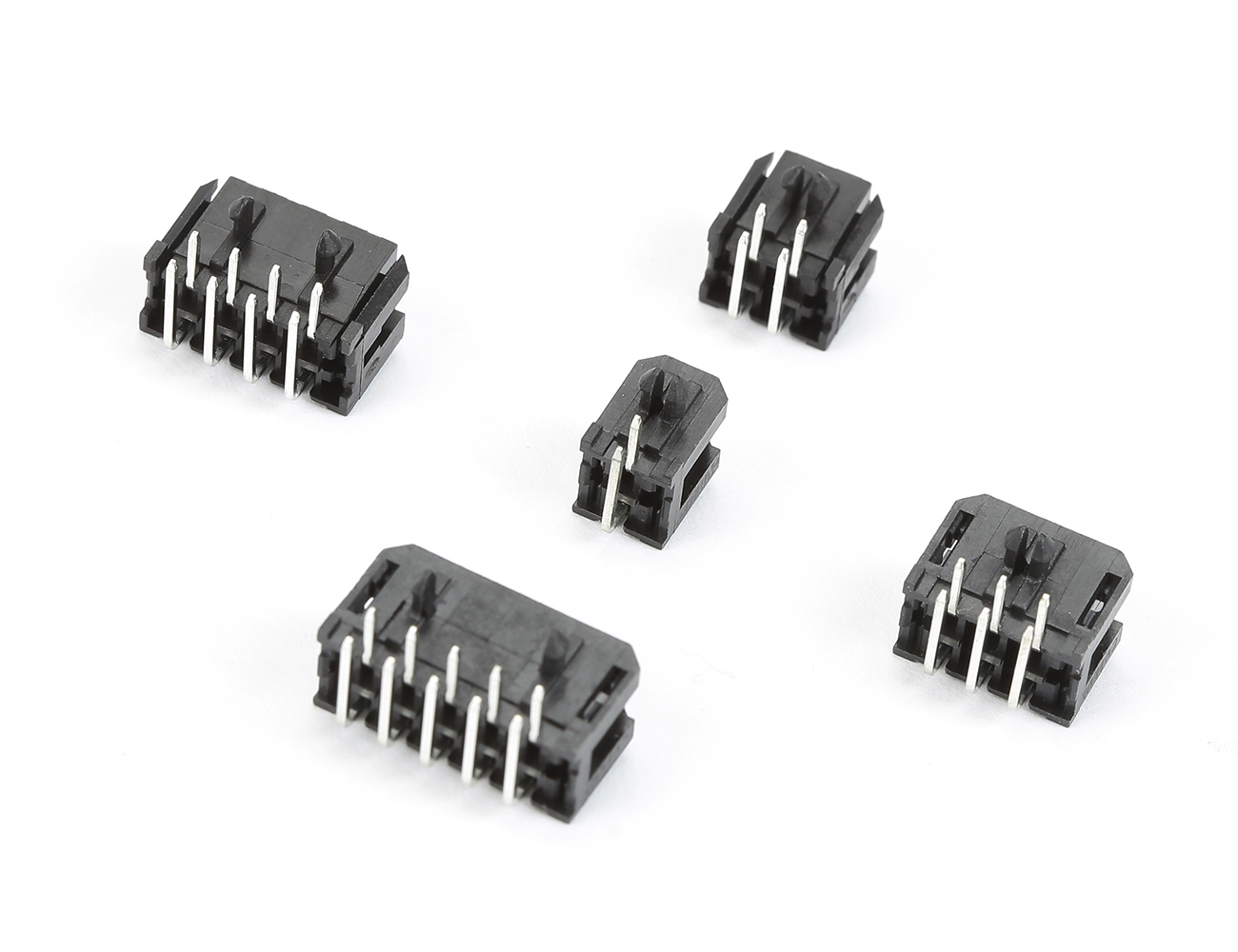

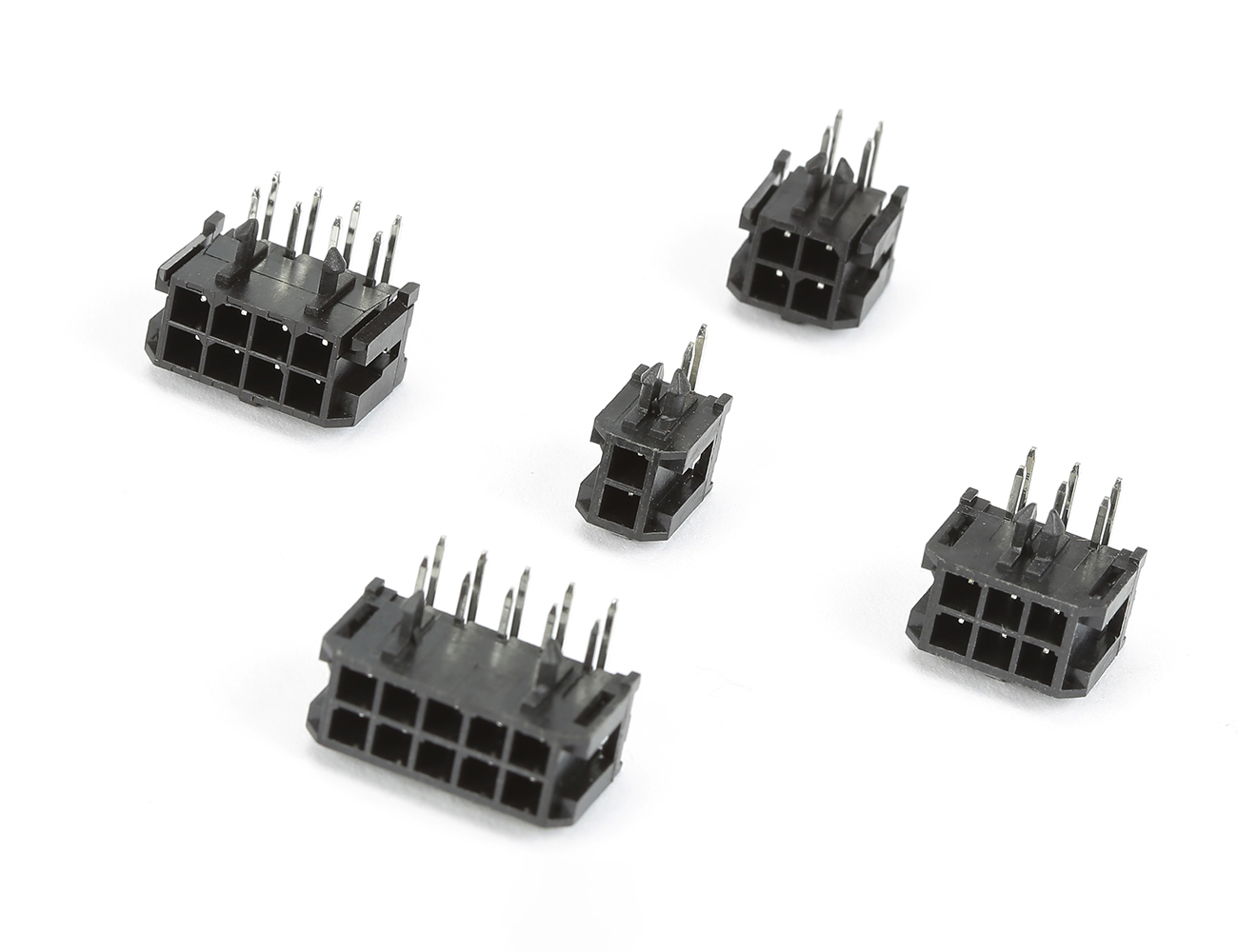

5558-02R 2 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C

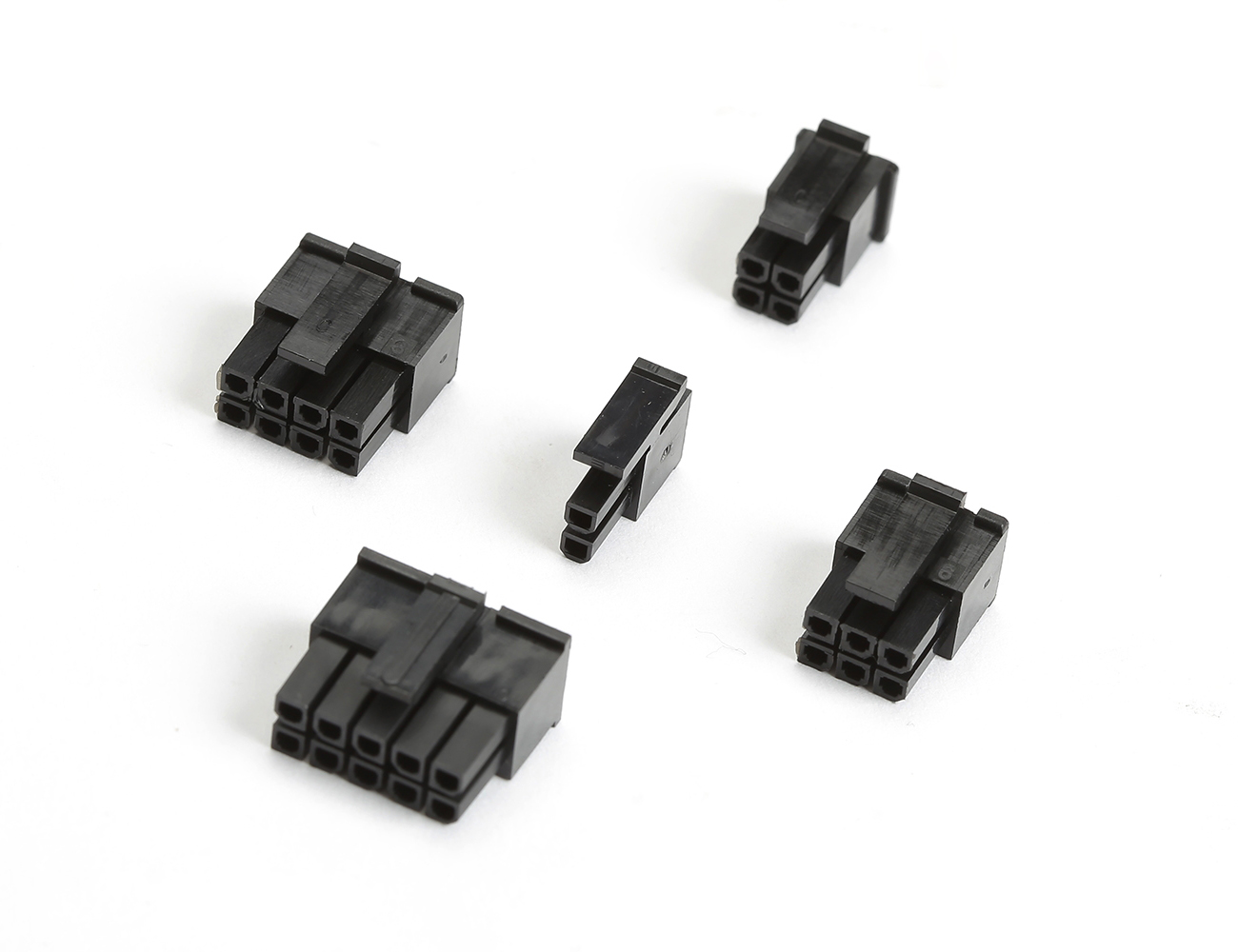

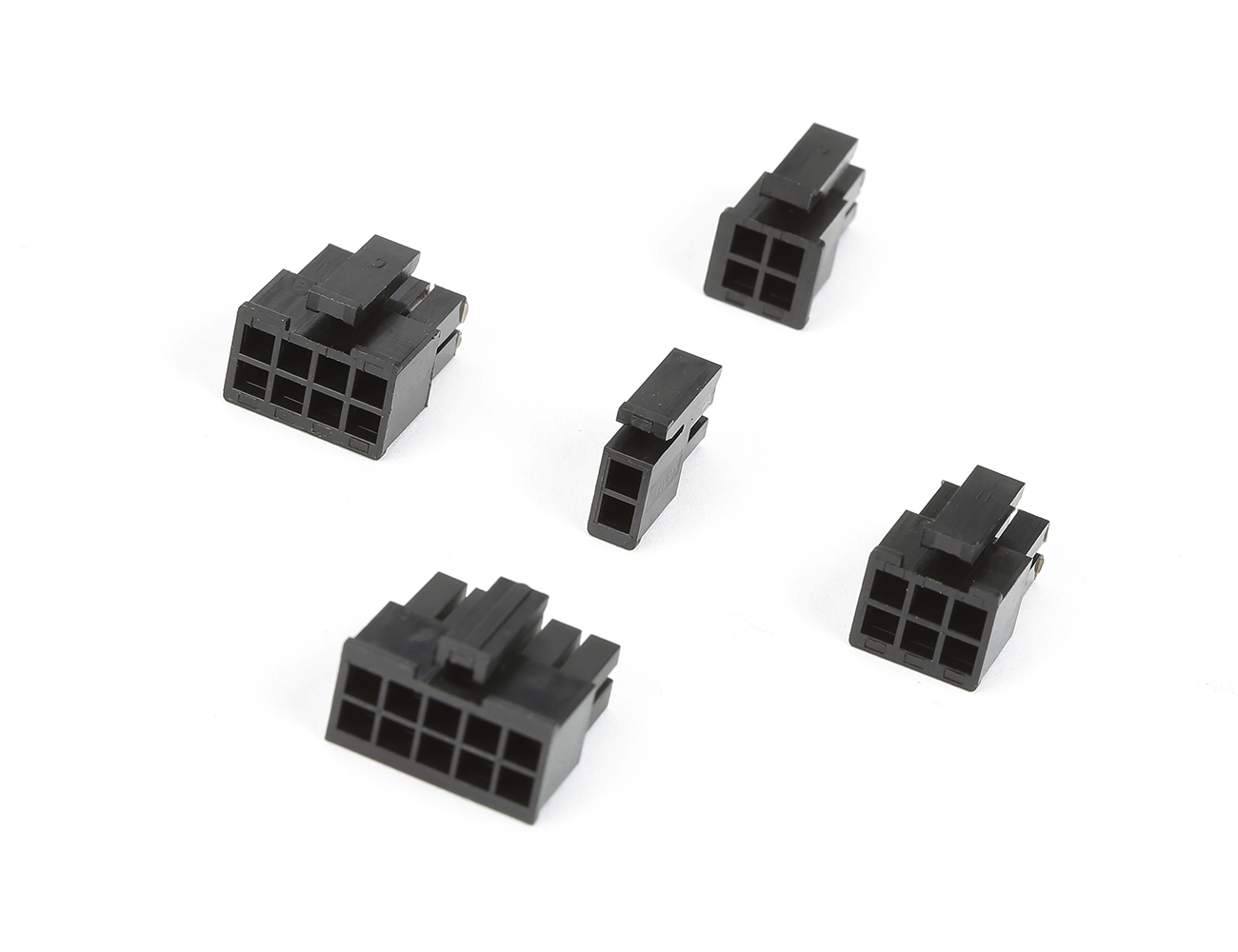

5558-02H 2 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
5558-04S 4 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-04R 4 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-04H 4 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
5558-06S 6 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-06R 6 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-06H 6 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
5558-08S 8 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-08R 8 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-08H 8 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
5558-10S 10 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-10R 10 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-10H 10 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
5558-12S 12 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-12R 12 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-12H 12 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
5558-14S 14 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-14R 14 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-14H 14 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
16 Pin
5558-16S 16 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-16R 16 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-16H 16 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
18 Pin
5558-18S 18 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-18R 18 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-18H 18 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
20 Pin
5558-20S 20 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-20R 20 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-20H 20 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
22 Pin
5558-22S 22 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-22R 22 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-22H 22 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
24 Pin
5558-24S 24 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit 2A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-24R 24 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit 5A 250V 1000VAC @ 60 s Nylon 66 UL94V-0 -25°C ~ +85°C
5558-24H 24 Pin 3.00mm Double Row Female Micro Fit 5A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

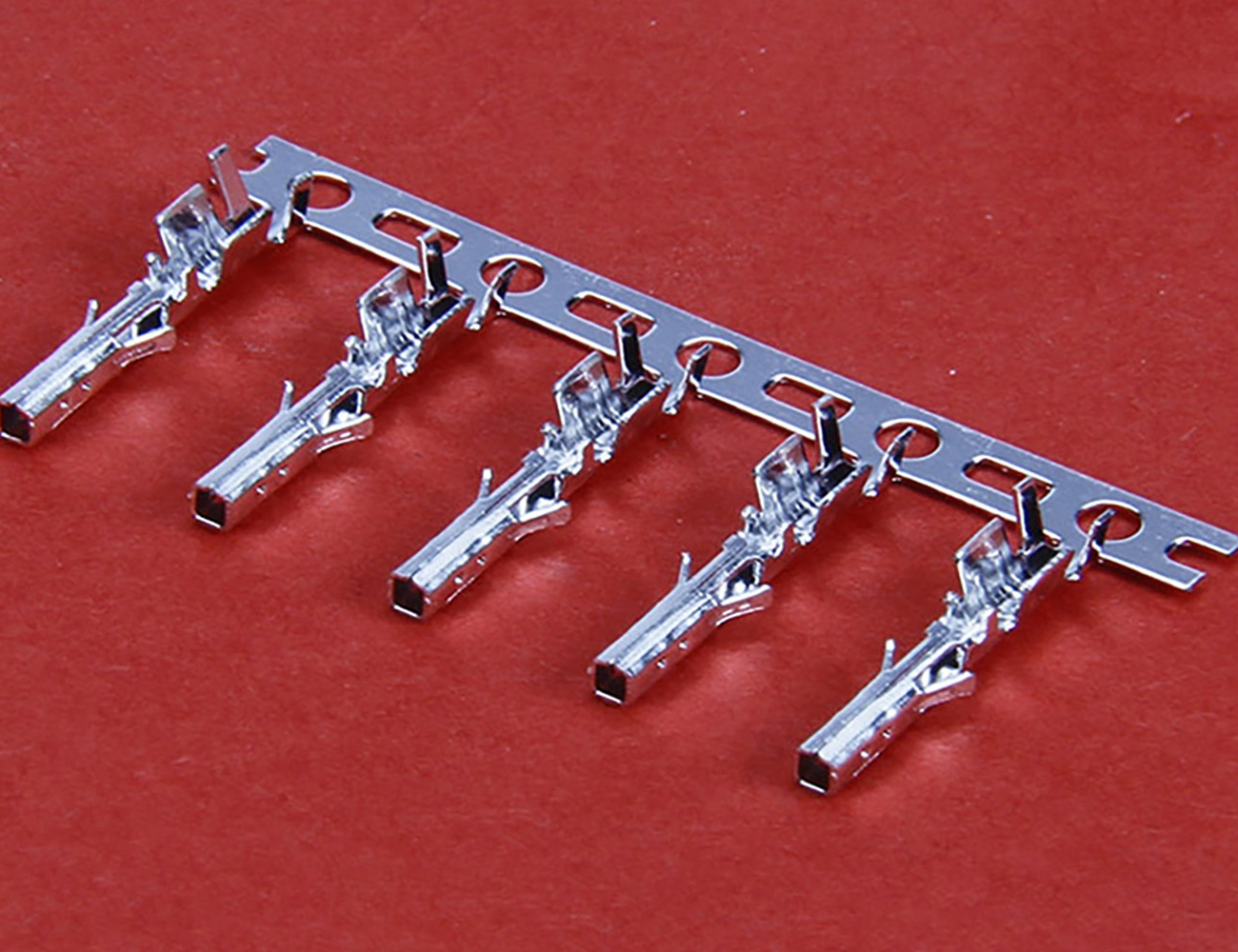

5558-FT Crimp Terminal Female - - - - -
