Signal 2317 L Series

Signal 2317 L Series

Signal 2317 L Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

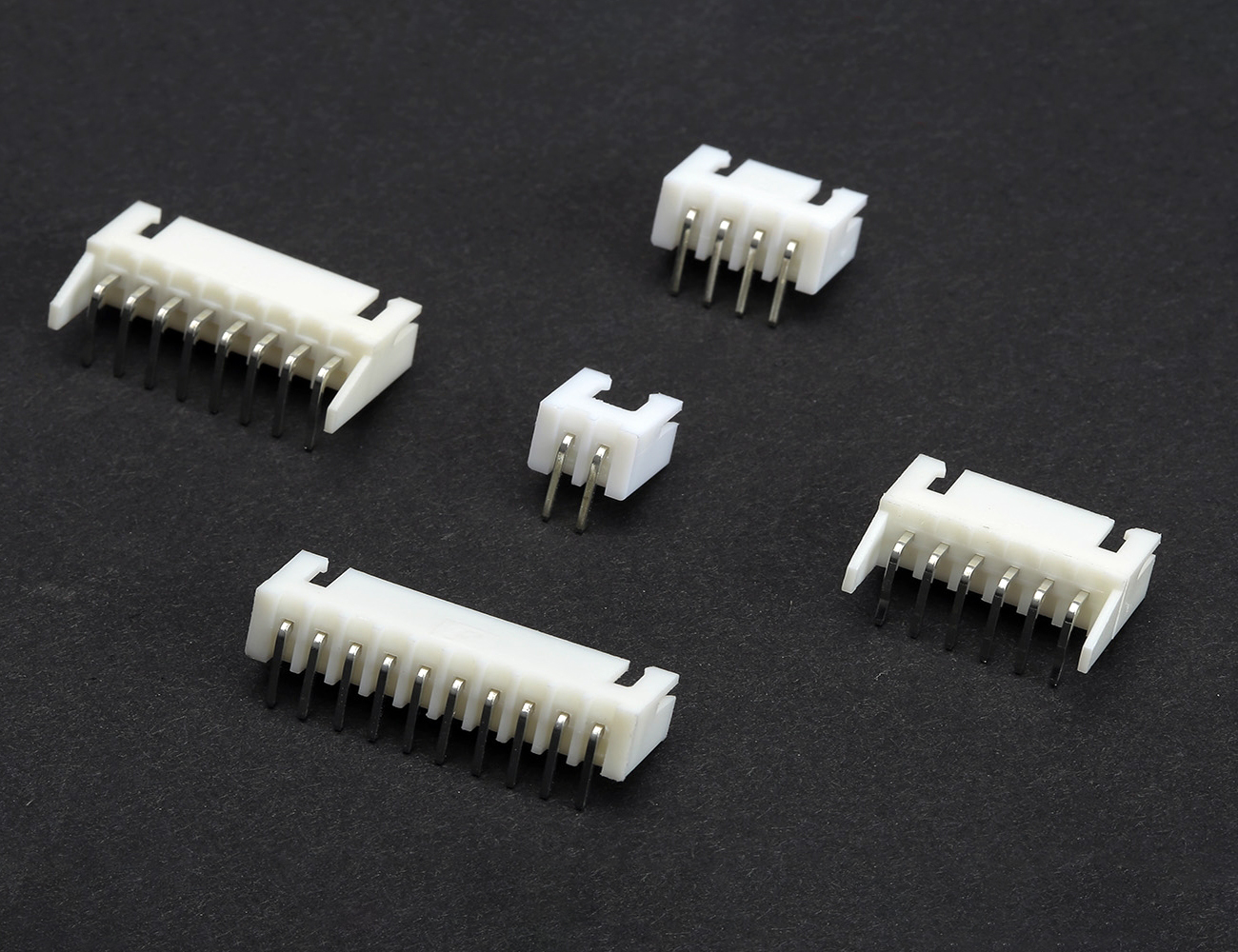

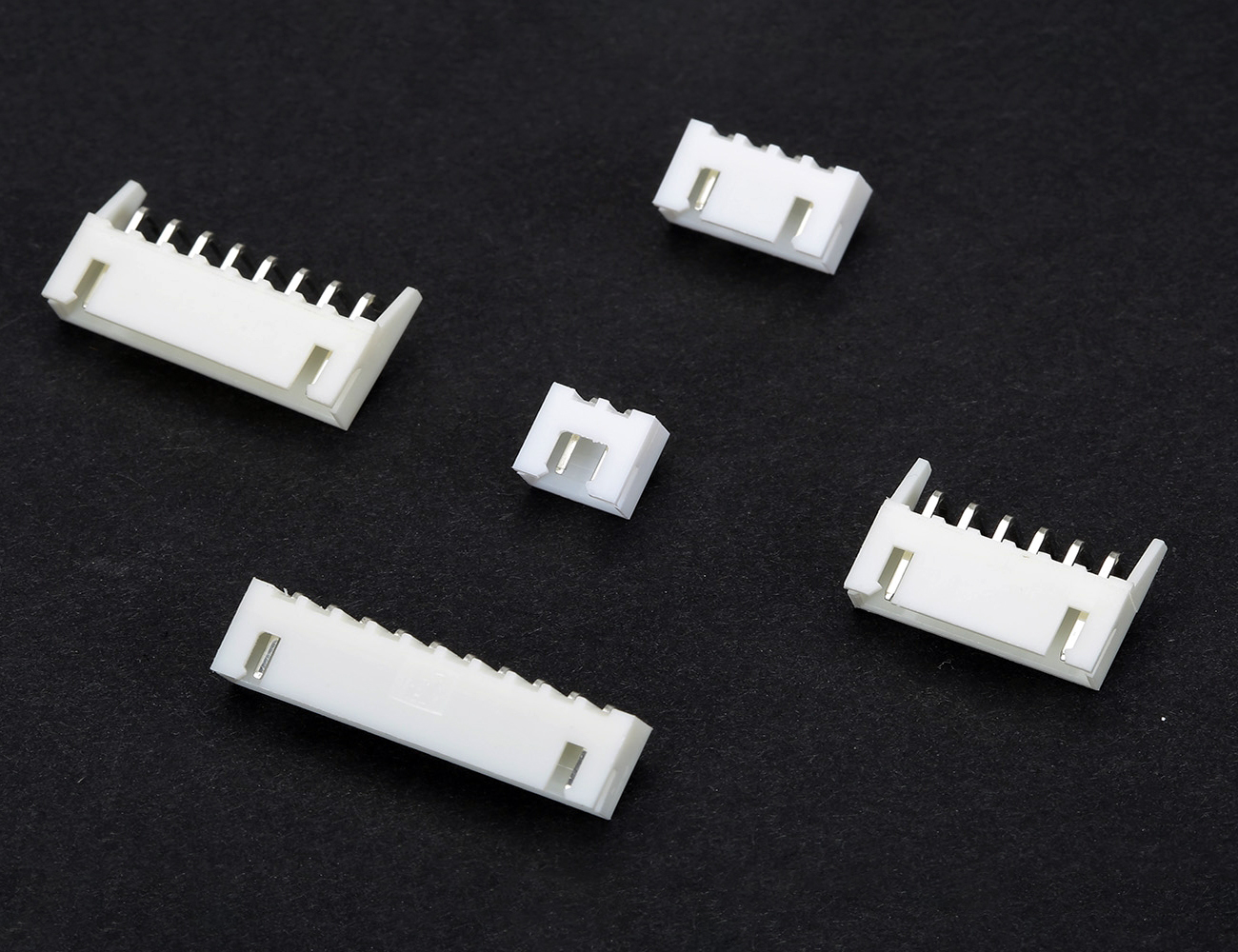

2317-02RL 2 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

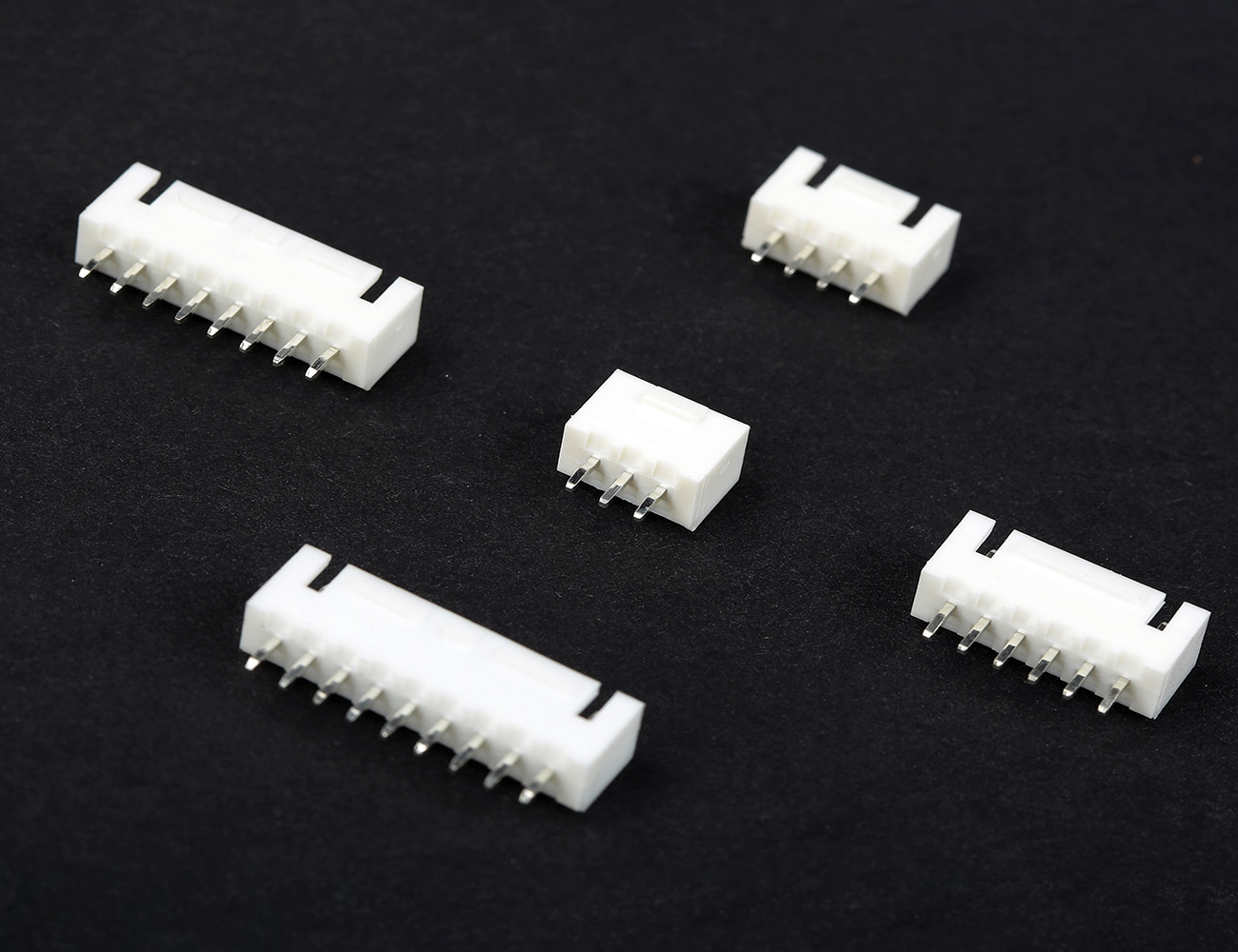

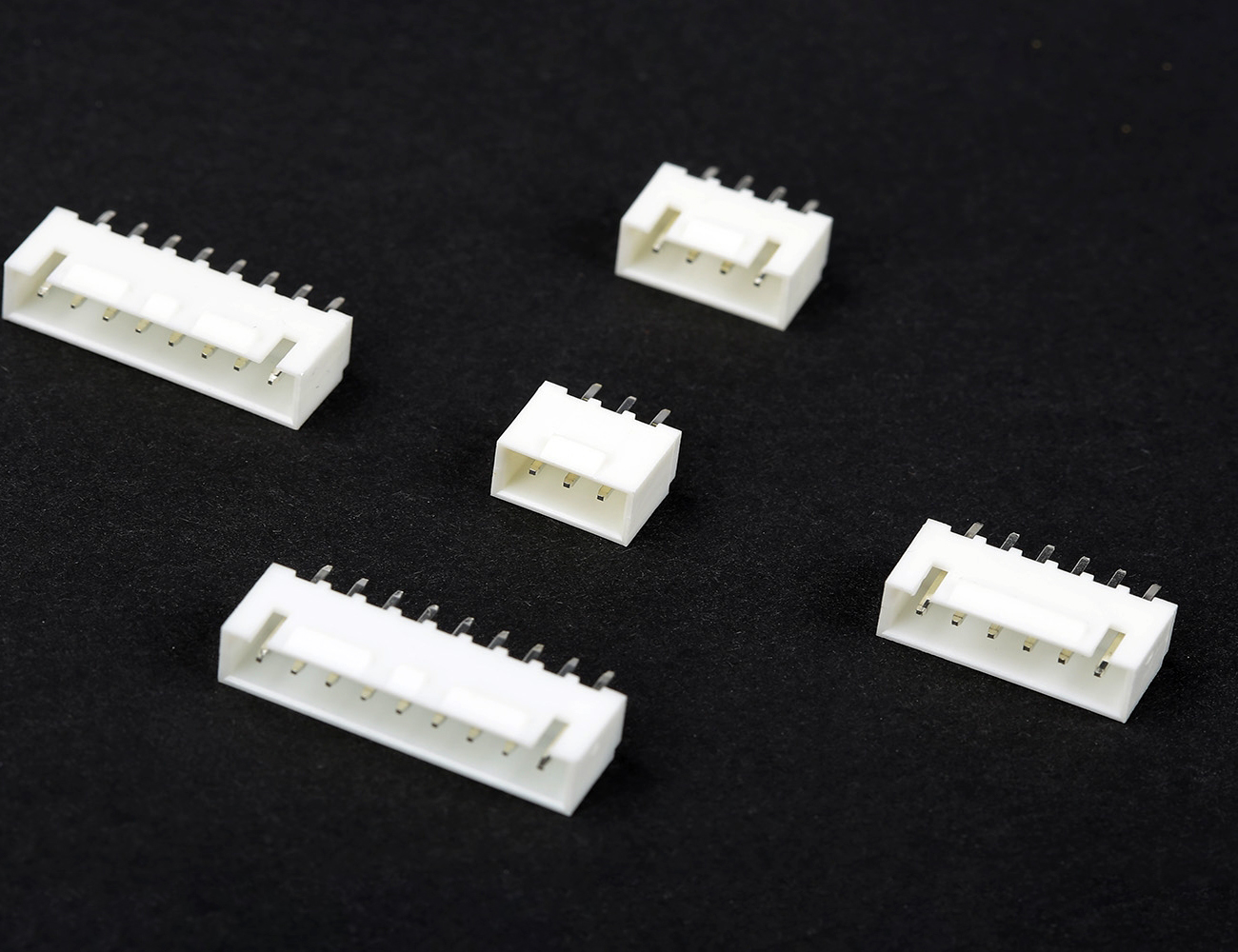

2317-02SL 2 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

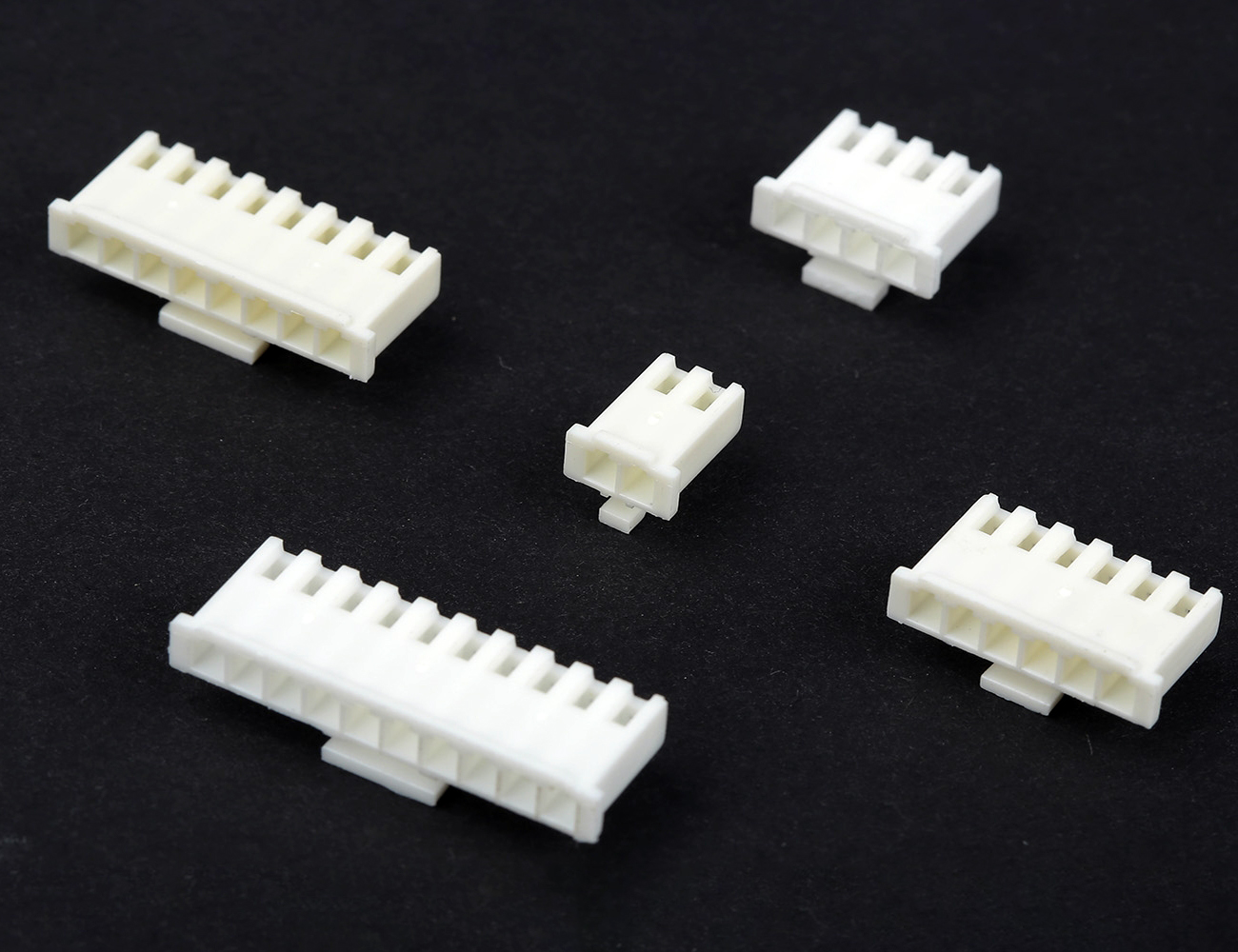

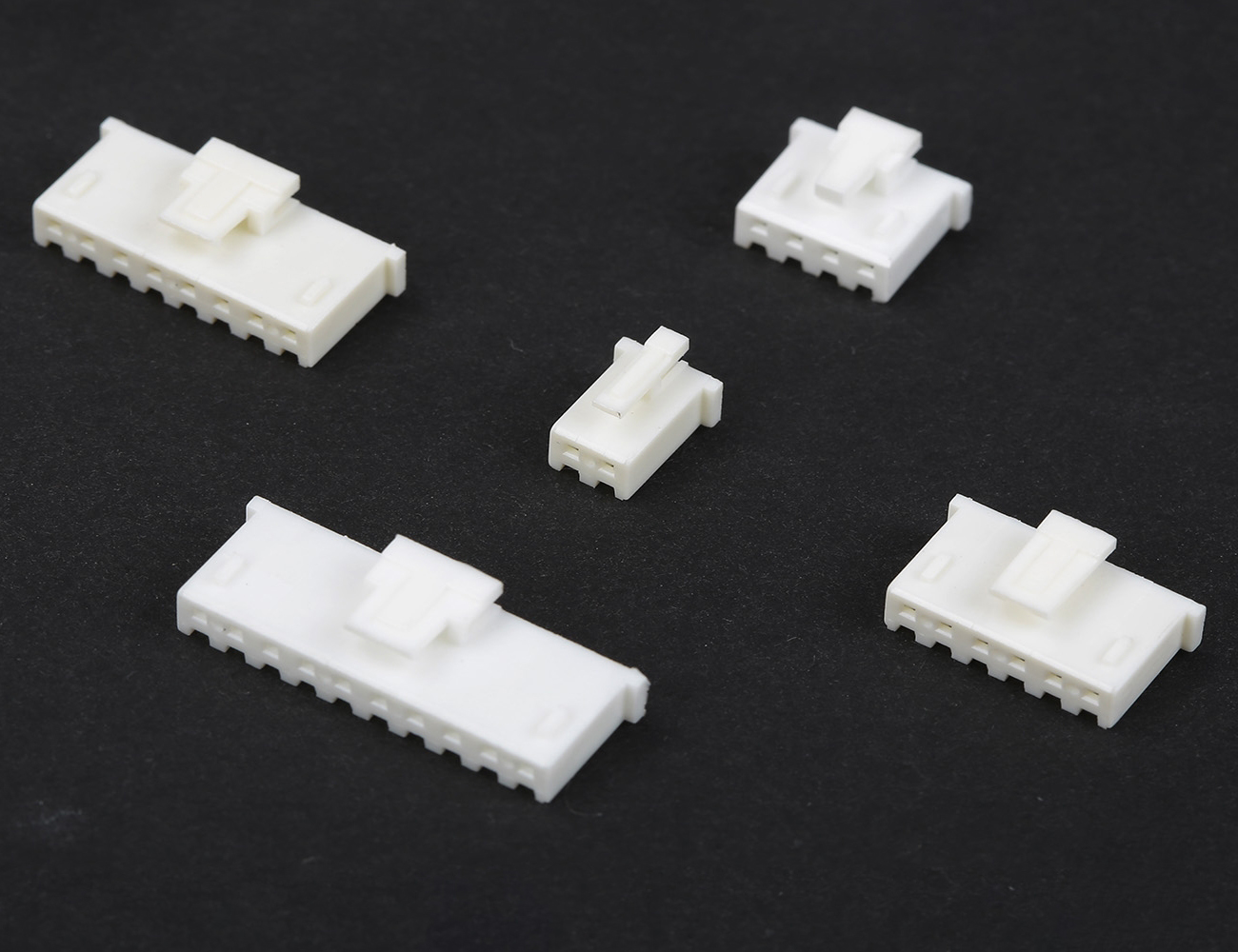

2317-02HL 2 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
2317-03RL 3 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-03SL 3 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-03HL 3 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
2317-04RL 4 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-04SL 4 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-04HL 4 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
2317-05RL 5 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-05SL 5 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-05HL 5 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
2317-06RL 6 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-06SL 6 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-06HL 6 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
2317-07RL 7 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-07SL 7 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-07HL 7 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
2317-08RL 8 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-08SL 8 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-08HL 8 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
2317-09RL 9 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-09SL 9 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-09HL 9 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
2317-10RL 10 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-10SL 10 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-10HL 10 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
2317-11RL 11 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-11SL 11 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-11HL 11 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
2317-12RL 12 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-12SL 12 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-12HL 12 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
2317-13RL 13 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-13SL 13 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-13HL 13 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
2317-14RL 14 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-14SL 14 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-14HL 14 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
2317-15RL 15 Pin 2.50mm DIP Pcb Type Male 90º Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-15SL 15 Pin 2.50mm DIP Pcb Type Male Vertical Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-15HL 15 Pin 2.50mm Female Locked Type 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

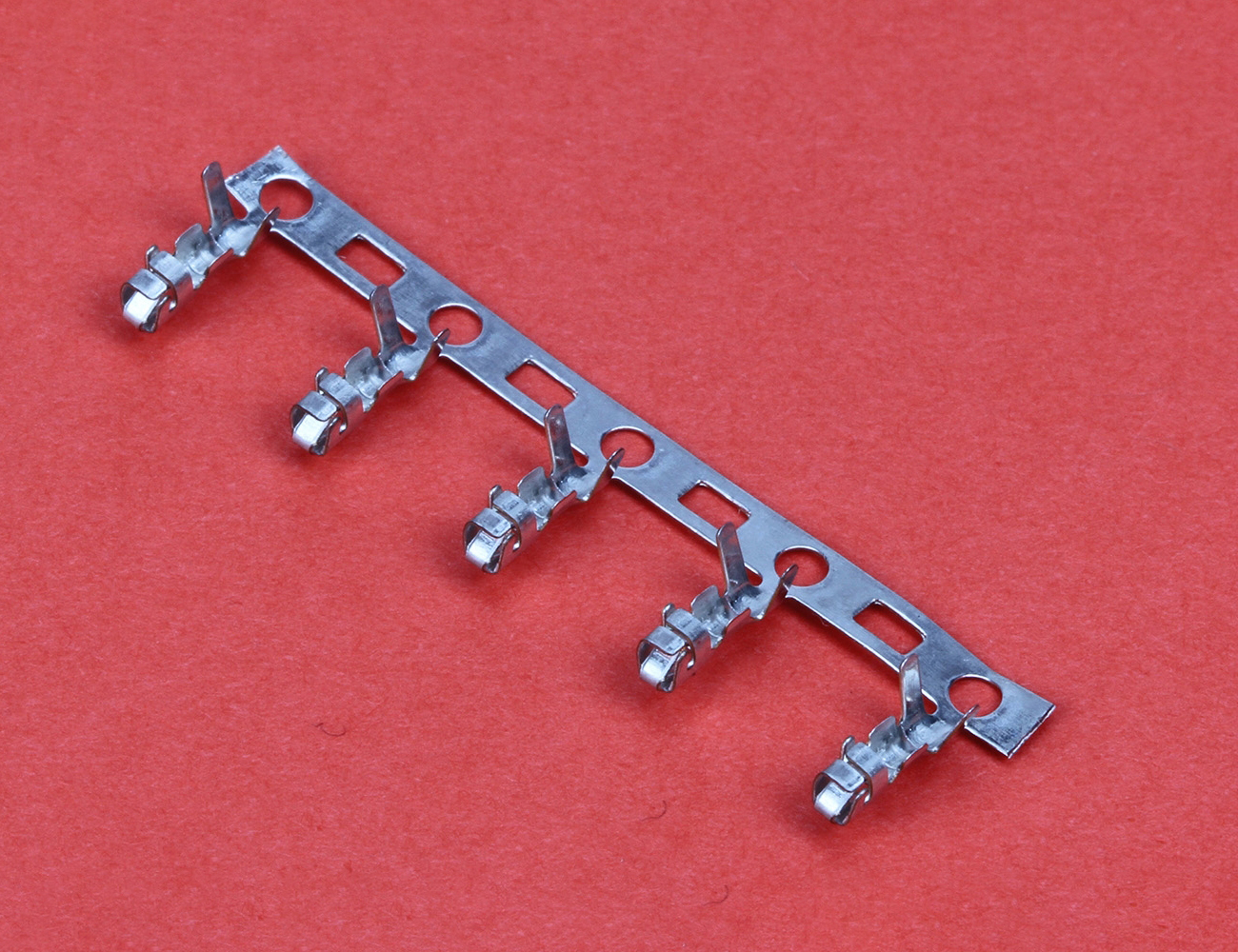

2317-T Crimp Terminal Female - - - - -
