Signal 1750 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 20 Pin | |||||||

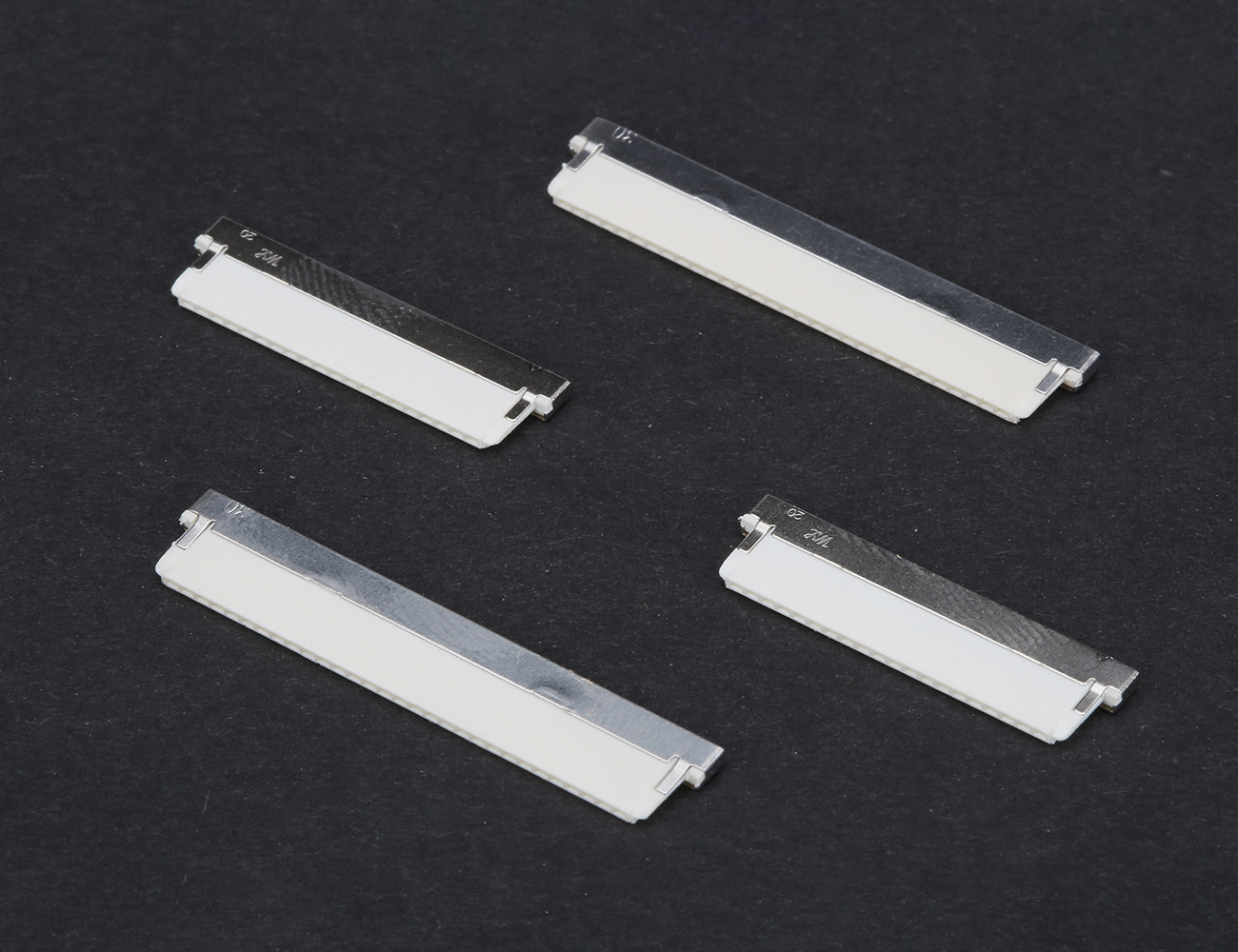

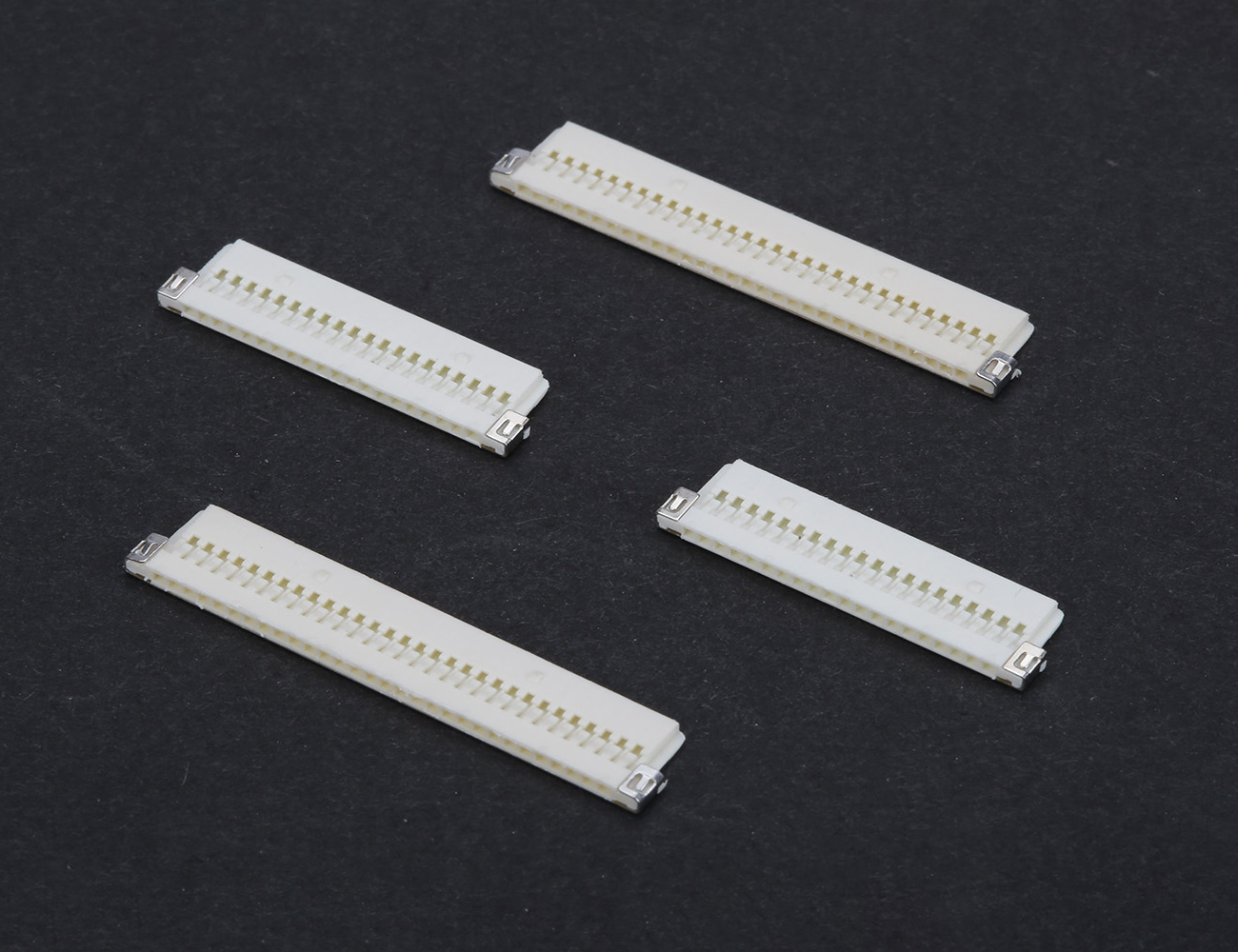

| 1750-20H | 20 Pin 1.00mm Female | 1A | 100V / AC/ DC | 500V / AC / munite | LCP UL94V-0 | -25°C ~ +85°C |
|
| 30 Pin | |||||||
| 1750-30H | 30 Pin 1.00mm Female | 1A | 100V / AC/ DC | 500V / AC / munite | LCP UL94V-0 | -25°C ~ +85°C |
|
| Terminal | |||||||

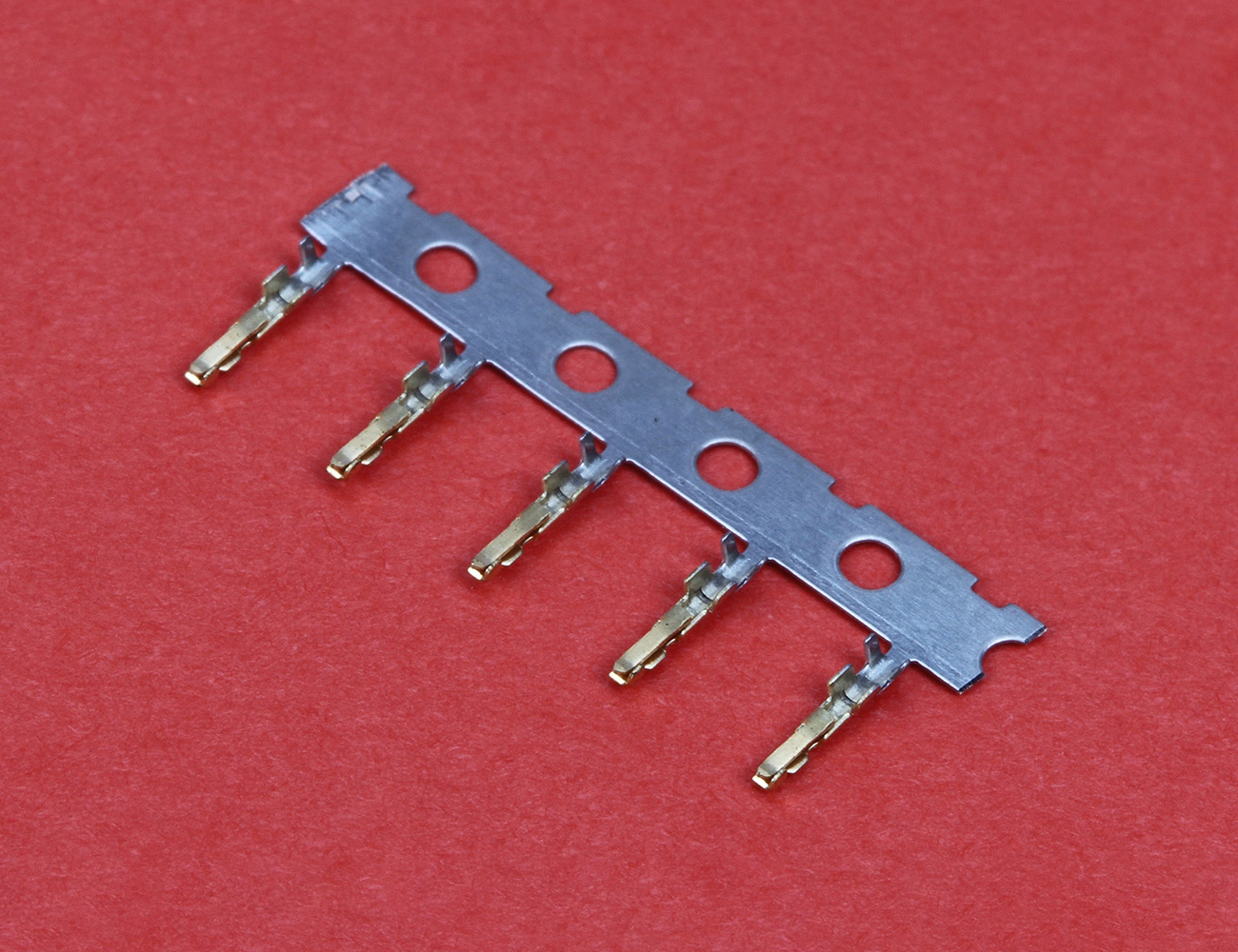

| 1750-TP | Crimp Terminal Female | - | - | - | - | - |
|
