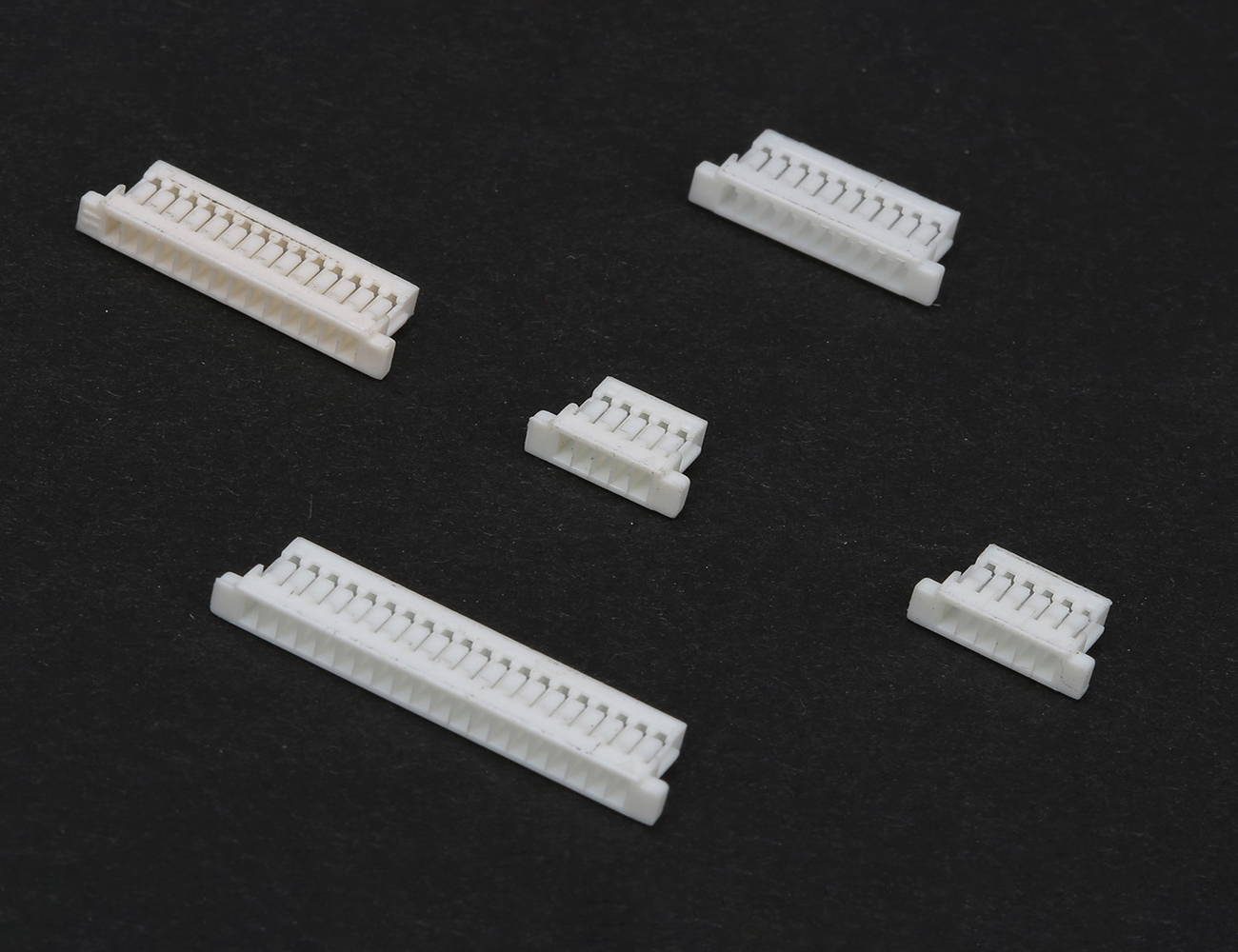

Signal 1600 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 2 Pin | |||||||
| 1600-02H | 2 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 3 Pin | |||||||
| 1600-03H | 3 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 4 Pin | |||||||
| 1600-04H | 4 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 5 Pin | |||||||
| 1600-05H | 5 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 6 Pin | |||||||
| 1600-06H | 6 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 7 Pin | |||||||
| 1600-07H | 7 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 8 Pin | |||||||
| 1600-08H | 8 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 9 Pin | |||||||
| 1600-09H | 9 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 10 Pin | |||||||
| 1600-10H | 10 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 11 Pin | |||||||
| 1600-11H | 11 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 12 Pin | |||||||
| 1600-12H | 12 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 13 Pin | |||||||
| 1600-13H | 13 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| 14 Pin | |||||||
| 1600-14H | 14 Pin 1.00mm Female | 1A | 50V / AC/ DC | 500V / munite | PBT-GF15%UL94V-0 | -25°C ~ +85°C |
|
| Terminal | |||||||

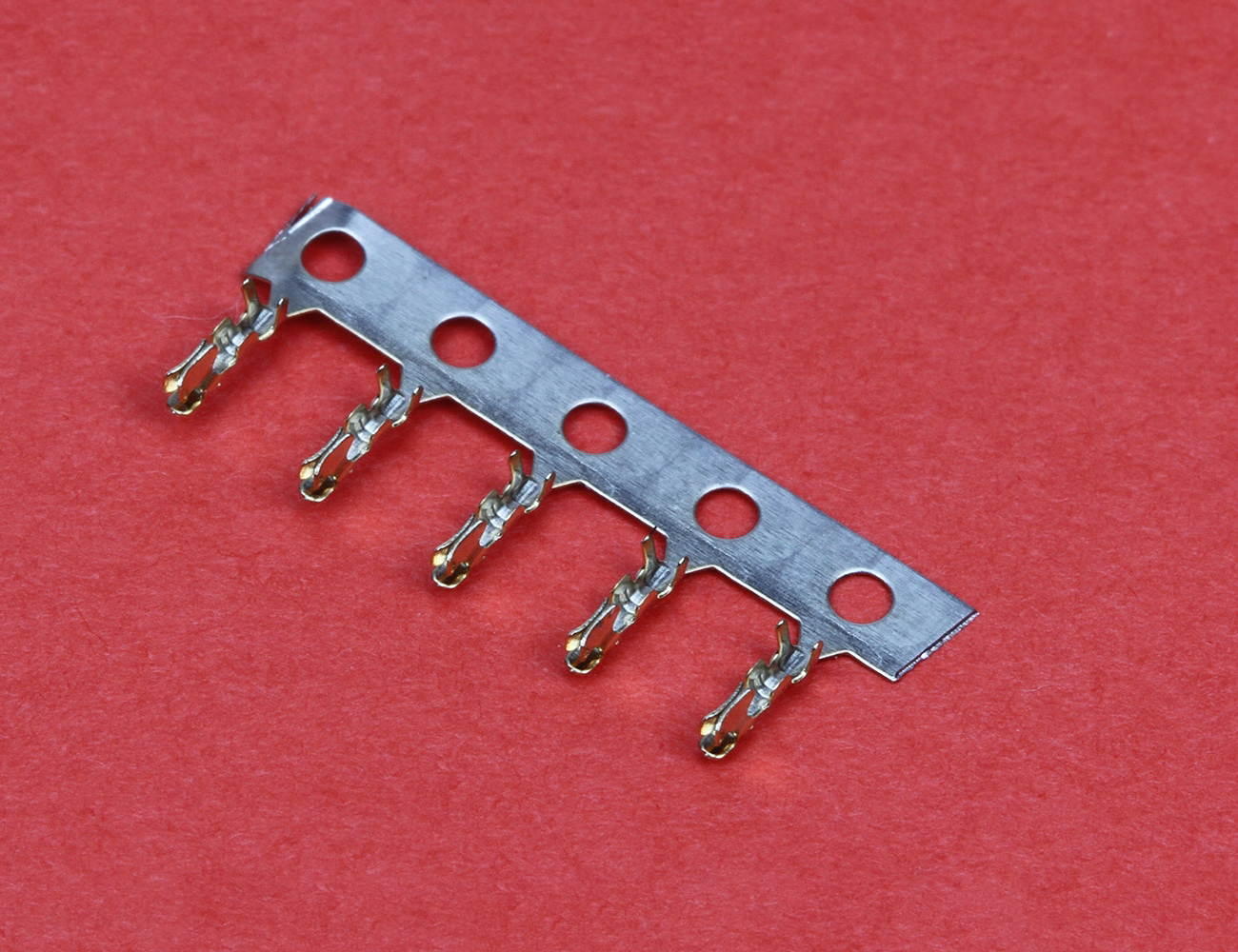

| 1600-TP | Crimp Terminal Female | - | - | - | - | - |
|
