Signal 1000 Series

Signal 1000 Series

Signal 1000 Series

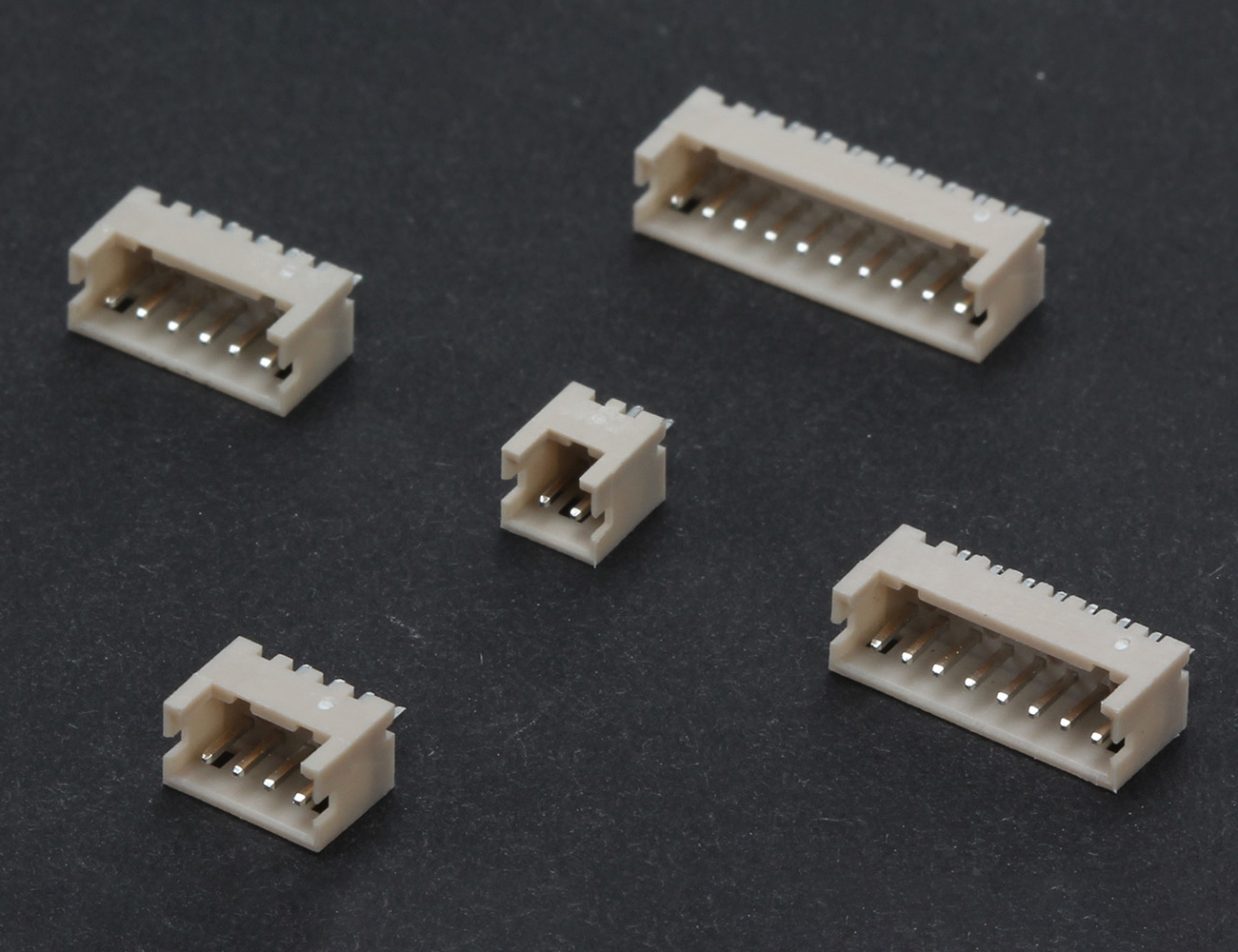

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

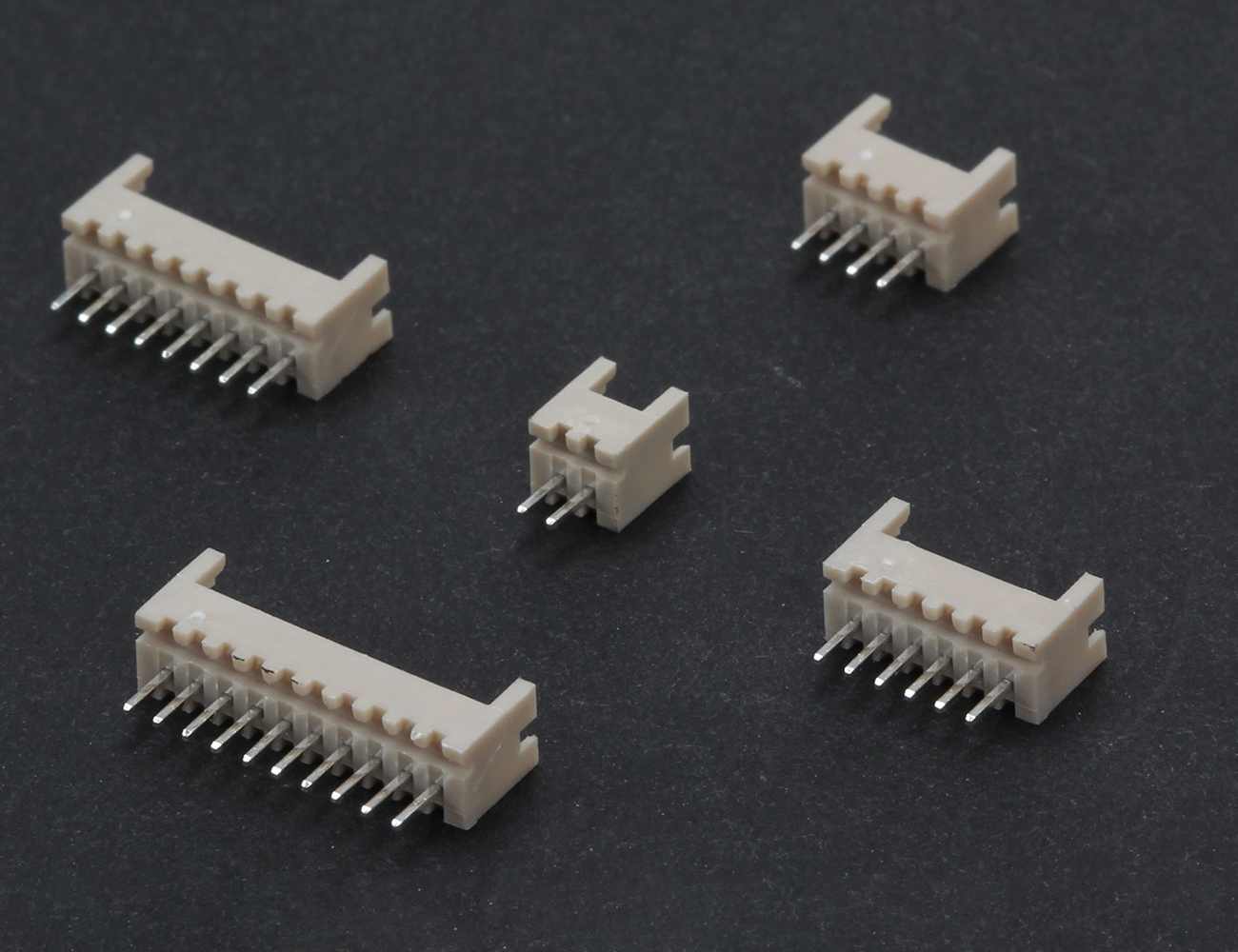

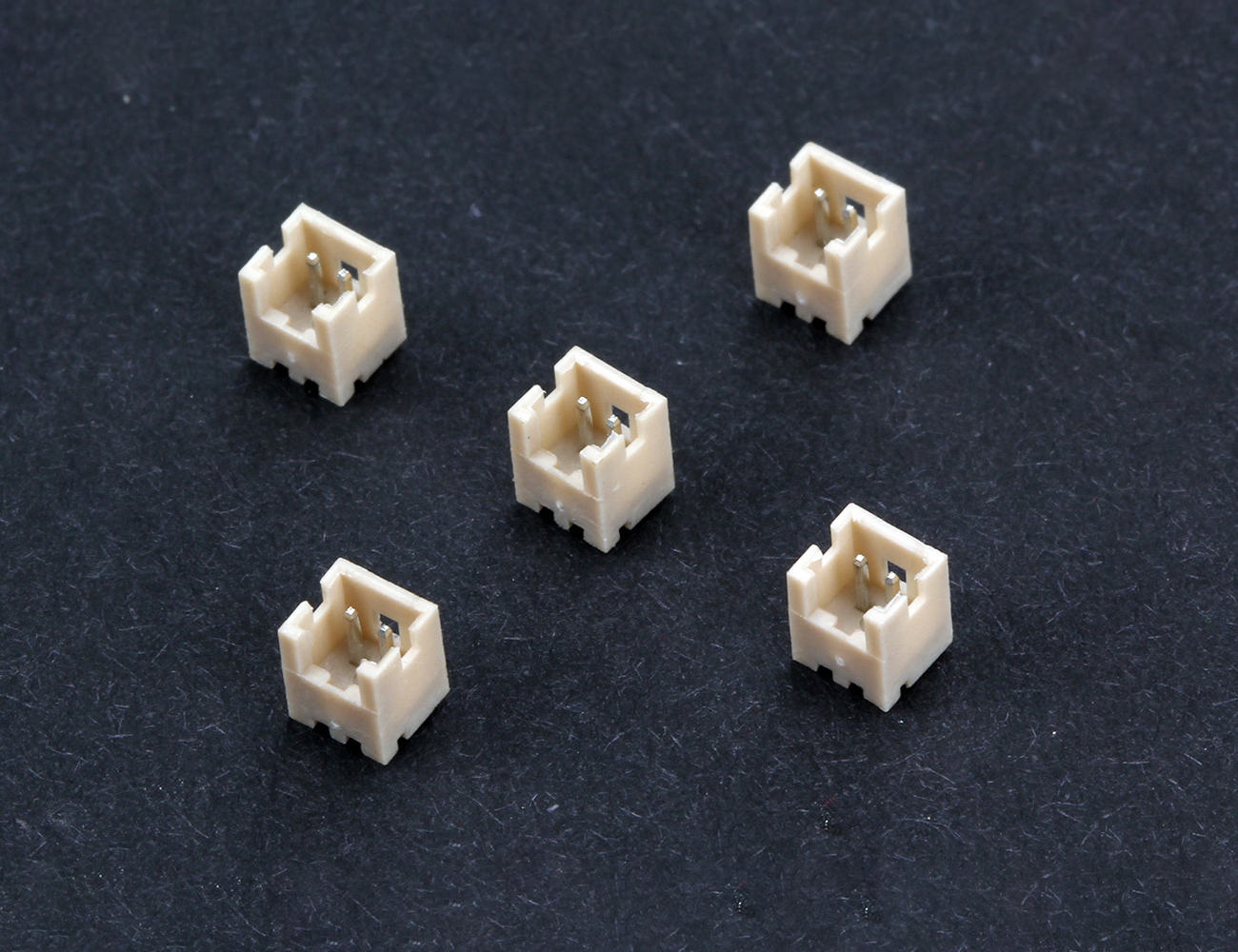

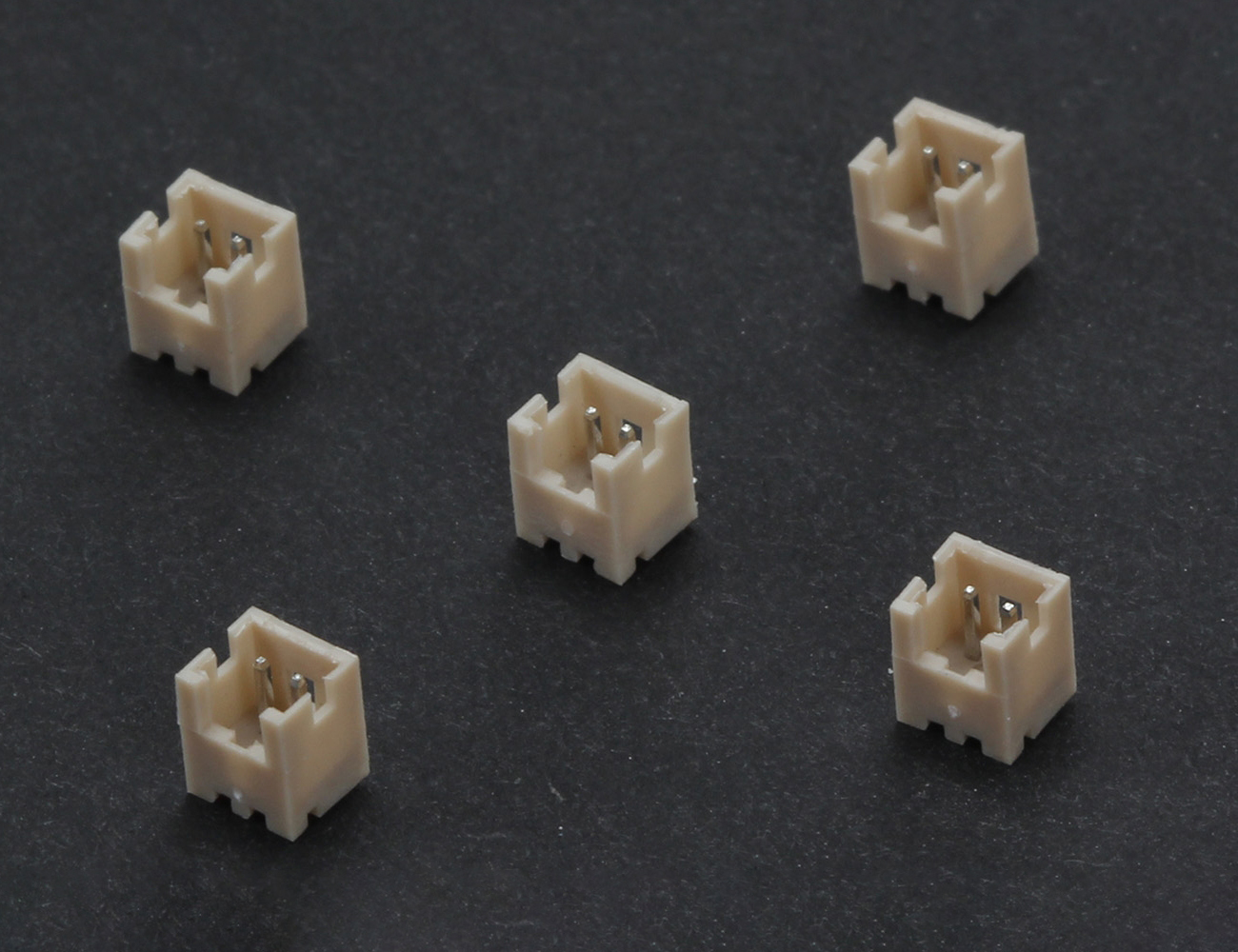

1000-02S 2 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

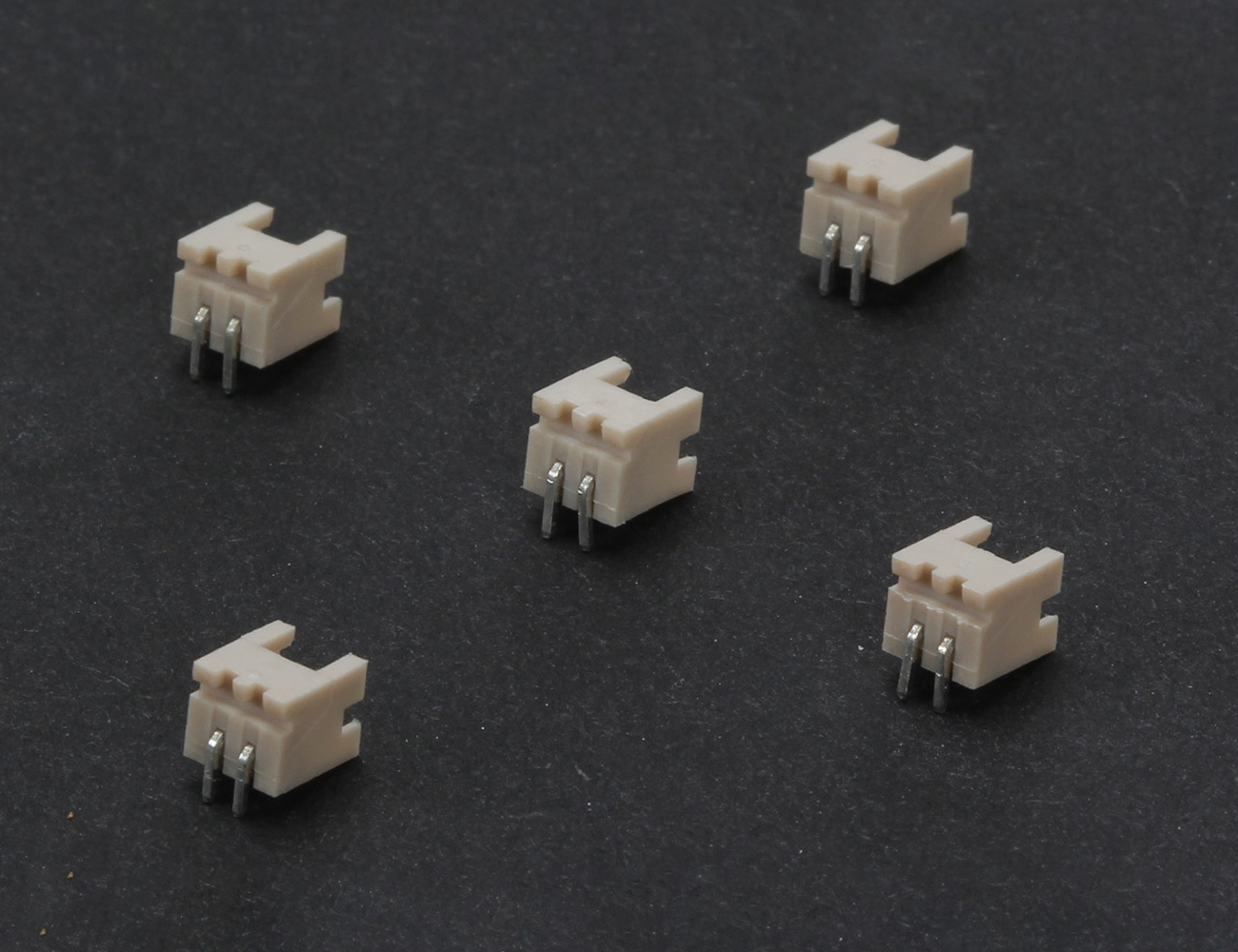

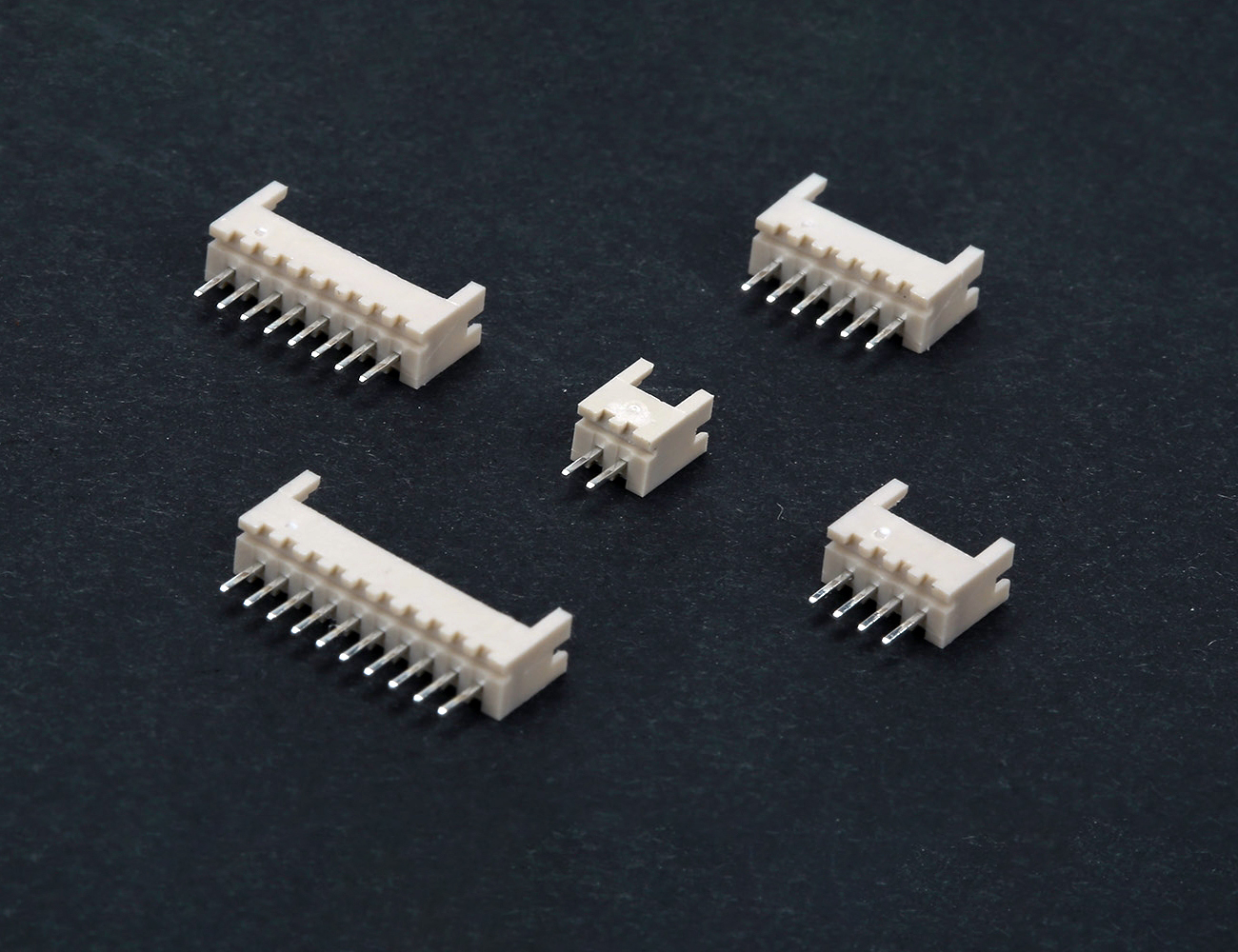

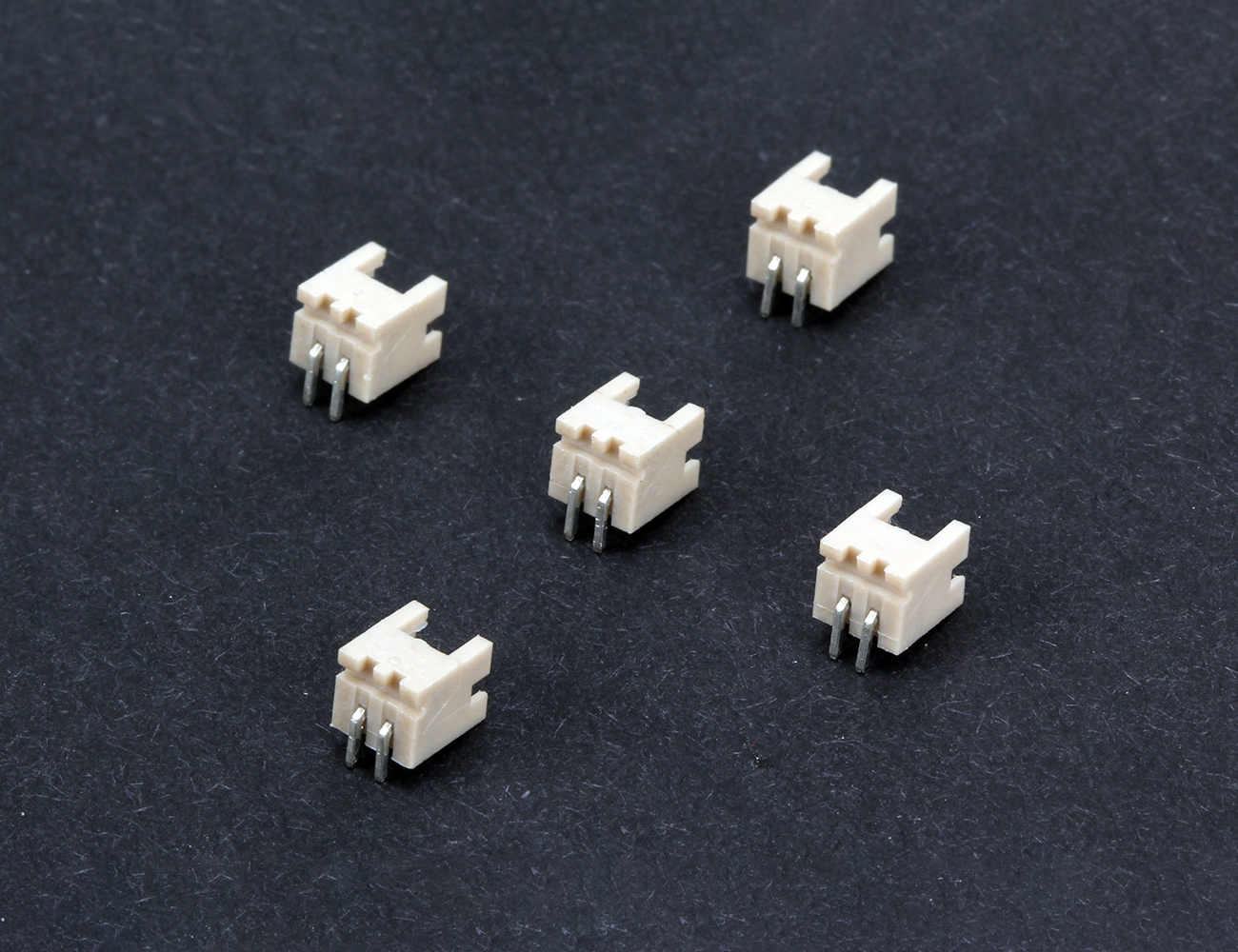

1000-02R 2 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-02RP 2 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

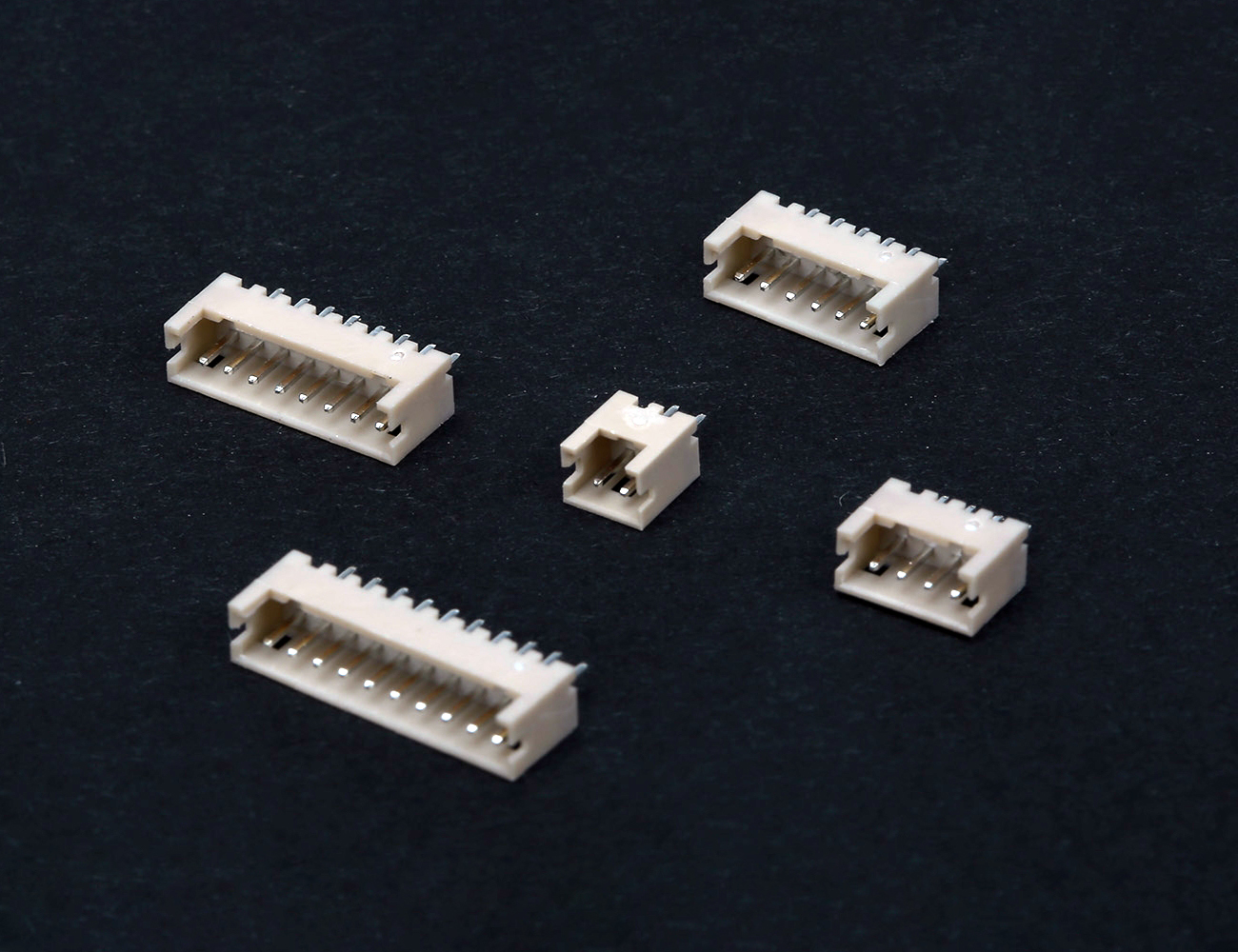

1000-02SP 2 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

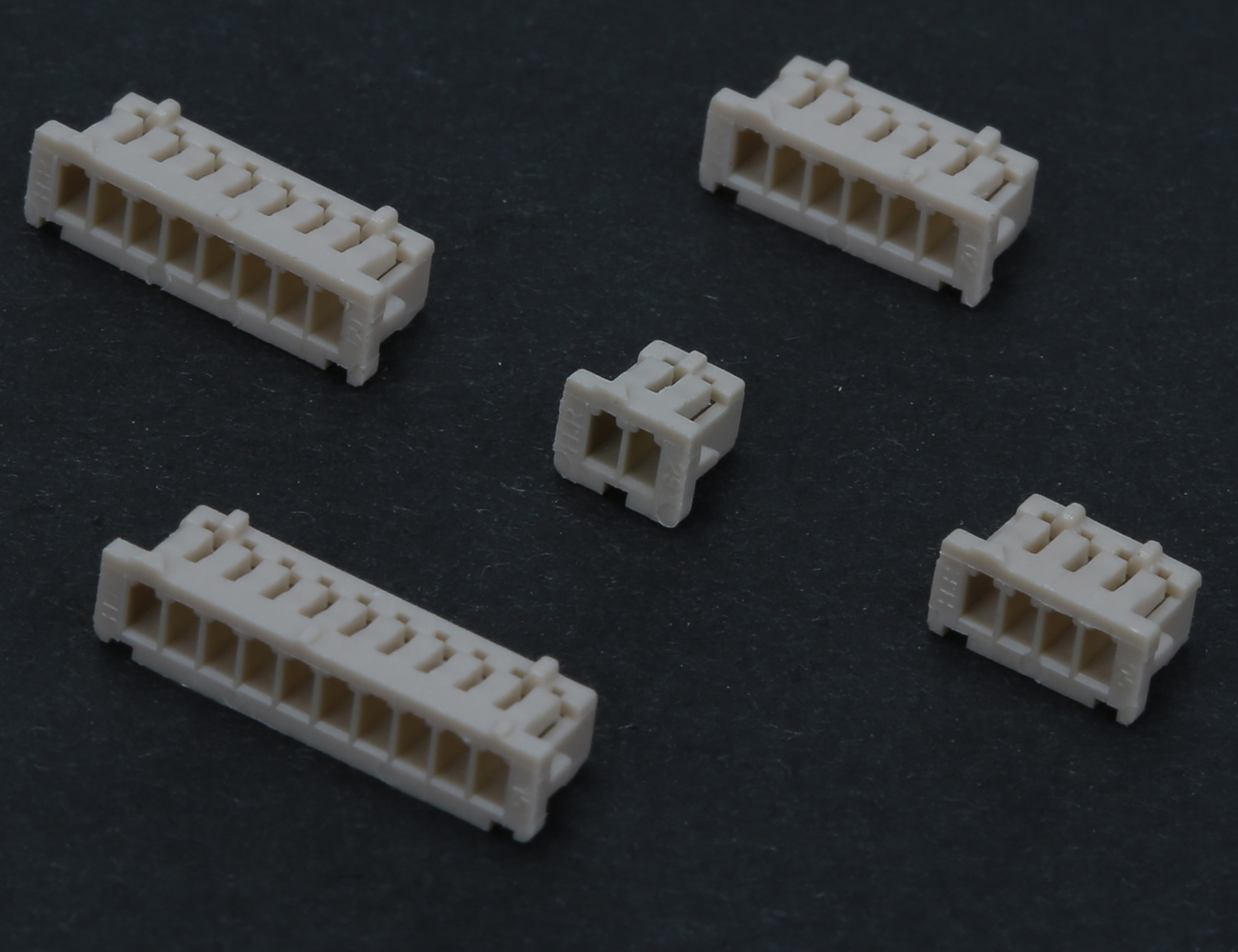

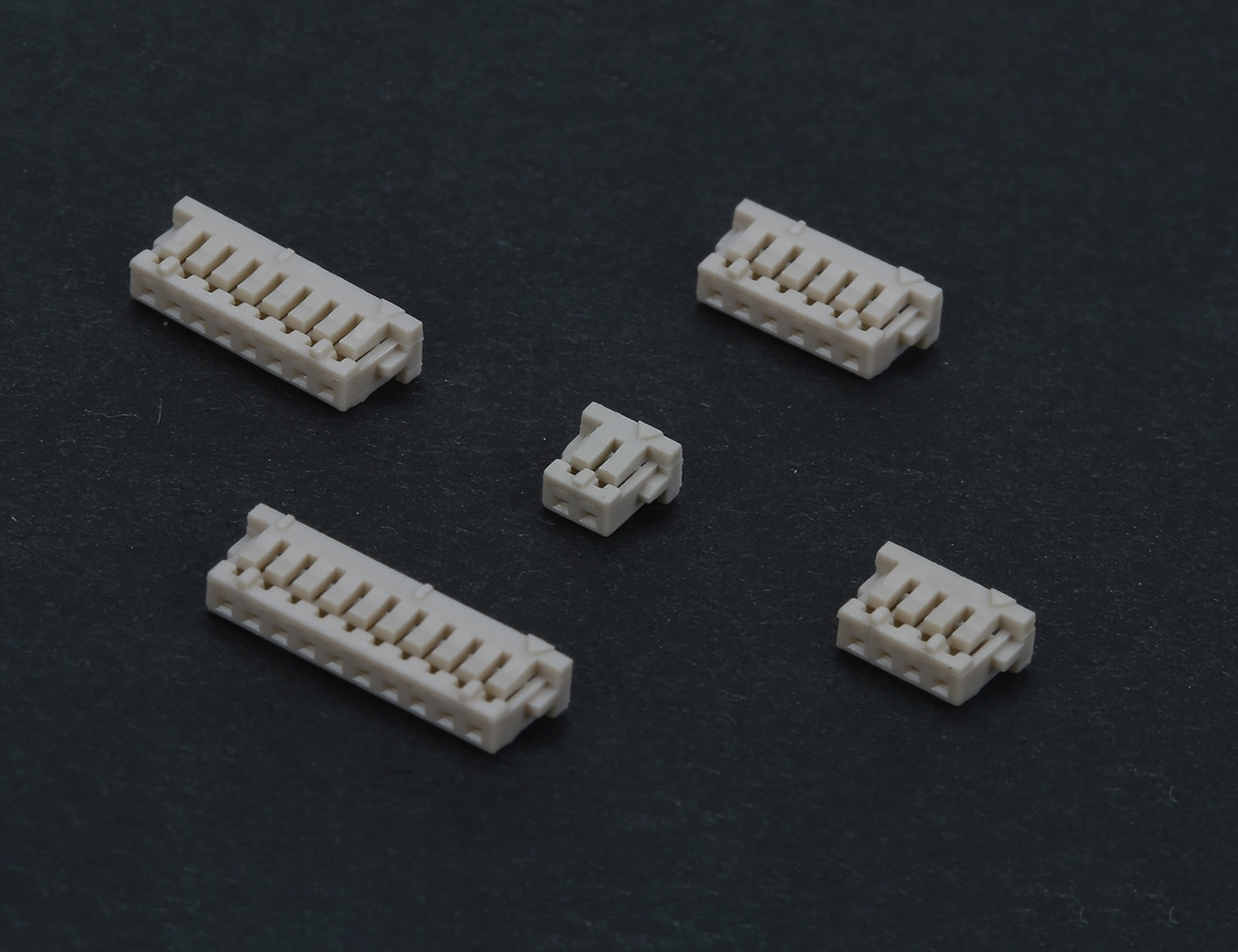

1000-02HB 2 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
1000-03S 3 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-03R 3 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-03RP 3 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-03SP 3 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-03HB 3 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
1000-04S 4 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-04R 4 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-04RP 4 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-04SP 4 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-04HB 4 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
1000-05S 5 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-05R 5 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-05RP 5 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-05SP 5 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-05HB 5 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
1000-06S 6 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-06R 6 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-06RP 6 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-06SP 6 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-06HB 6 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
1000-07S 7 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-07R 7 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-07RP 7 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-07SP 7 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-07HB 7 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
1000-08S 8 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-08R 8 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-08RP 8 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-08SP 8 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-08HB 8 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
1000-09S 9 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-09R 9 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-09RP 9 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-09SP 9 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-09HB 9 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
1000-10S 10 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-10R 10 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-10RP 10 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-10SP 10 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-10HB 10 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
1000-11S 11 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-11R 11 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-11RP 11 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-11SP 11 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-11HB 11 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
1000-12S 12 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-12R 12 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-12RP 12 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-12SP 12 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-12HB 12 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
1000-13S 13 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-13R 13 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-13RP 13 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-13SP 13 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-13HB 13 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
1000-14S 14 Pin 1.25mm DIP Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-14R 14 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-14RP 14 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-14SP 14 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-14HB 14 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
1000-15S 1.25mm Male Connector 180° 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-15R 15 Pin 1.25mm DIP Pcb Type Male 90' 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-15RP 15 Pin 1.25mm SMD Pcb Type Male 90º 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-15SP 15 Pin 1.25mm SMD Pcb Type Male Upright 1A 100V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1000-15HB 15 Pin 1.25mm Female 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

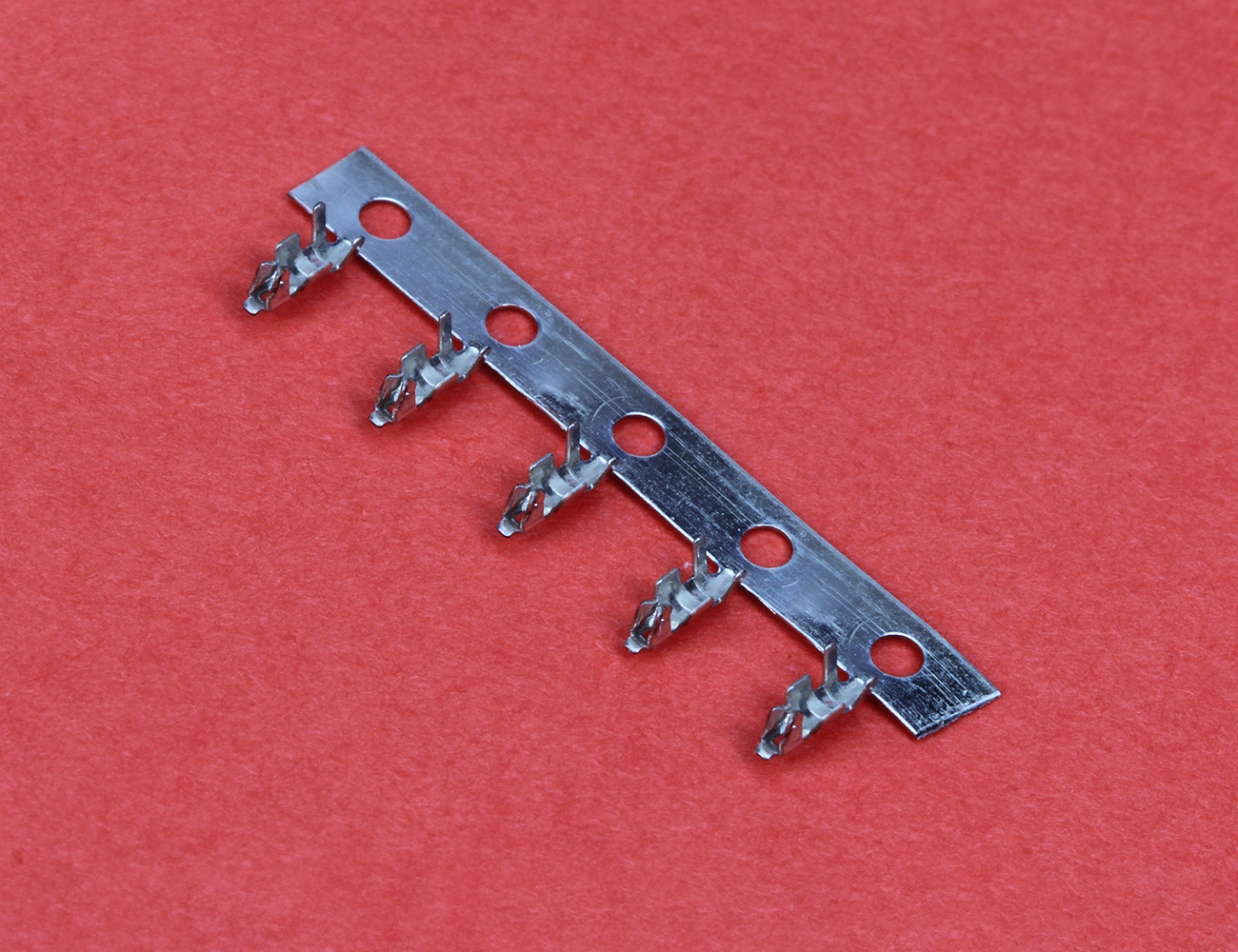

1000-TP Crimp Terminal Female - - - - -
