Power 2001 Series

Power 2001 Series

Power 2001 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
1 Pin

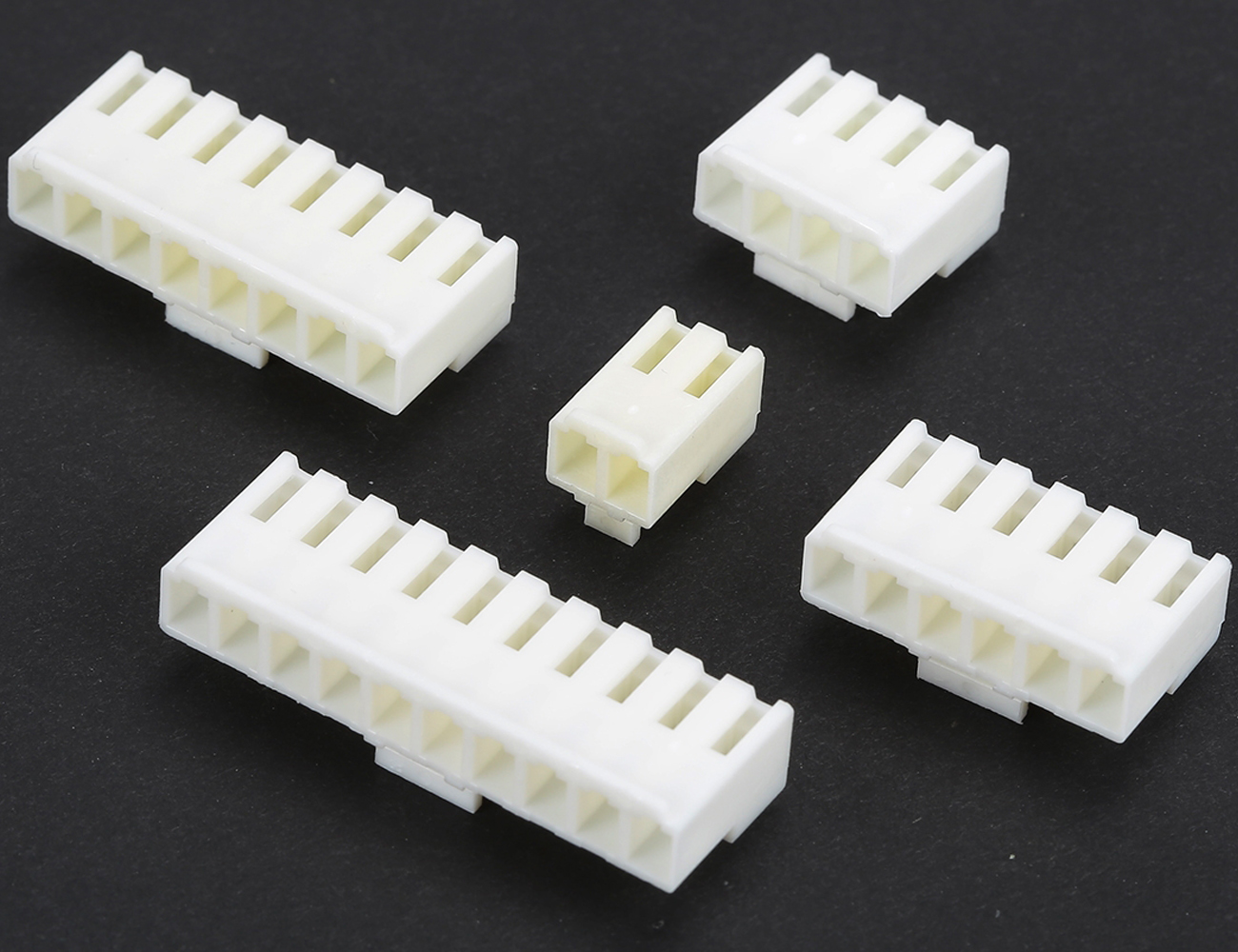

2001-01H 1 Pin 3.96mm Female Connector Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2 Pin

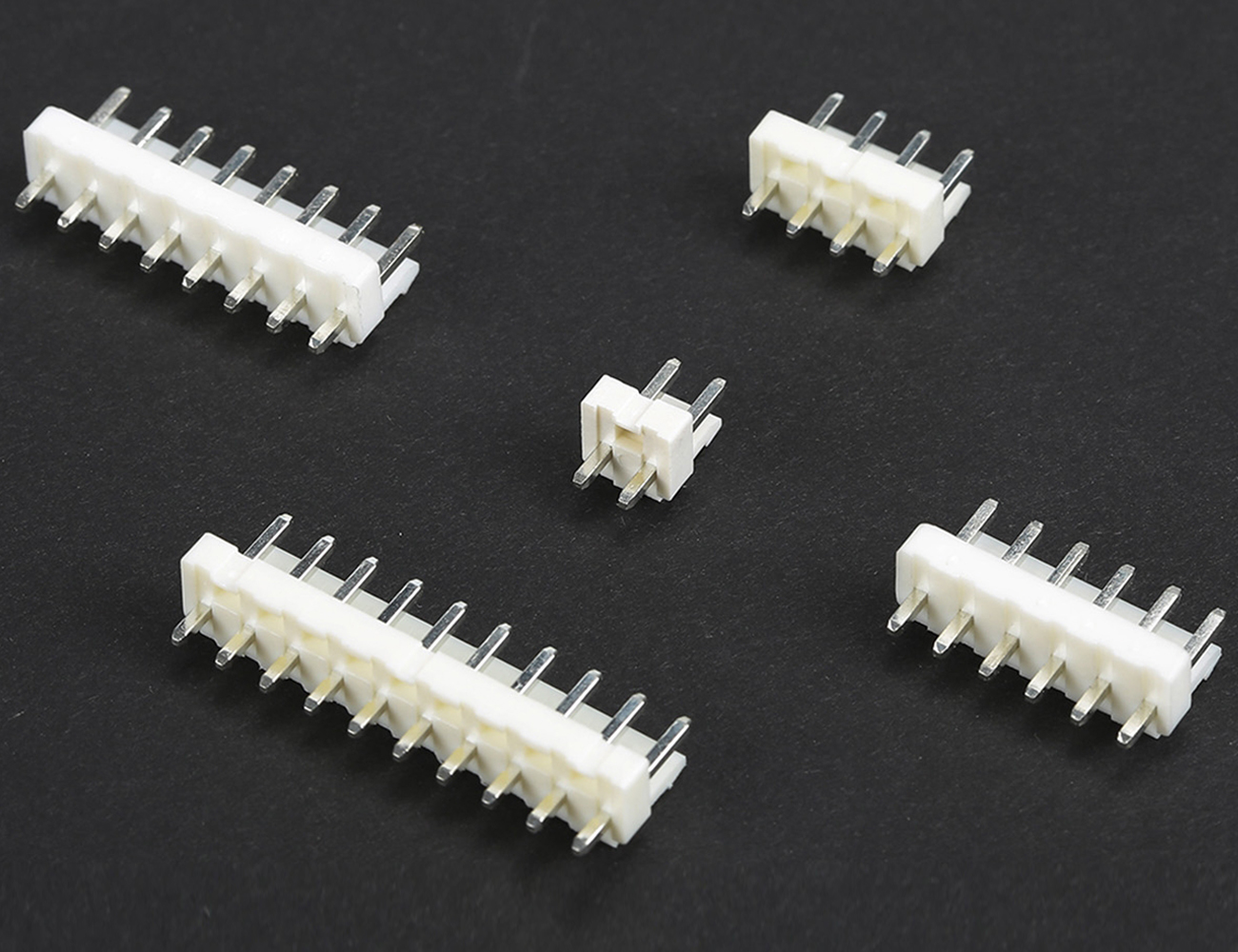

2001-02S 2 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

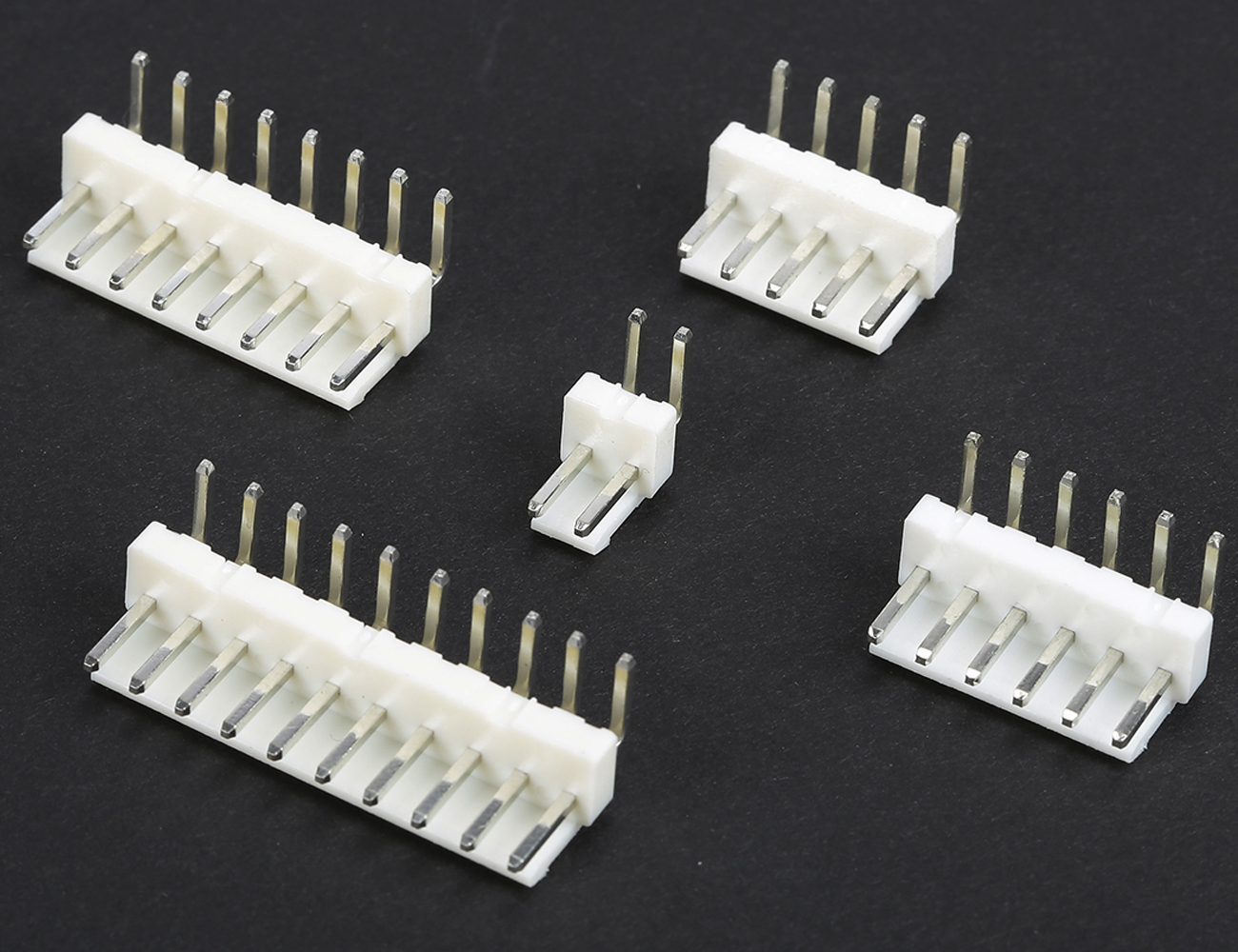

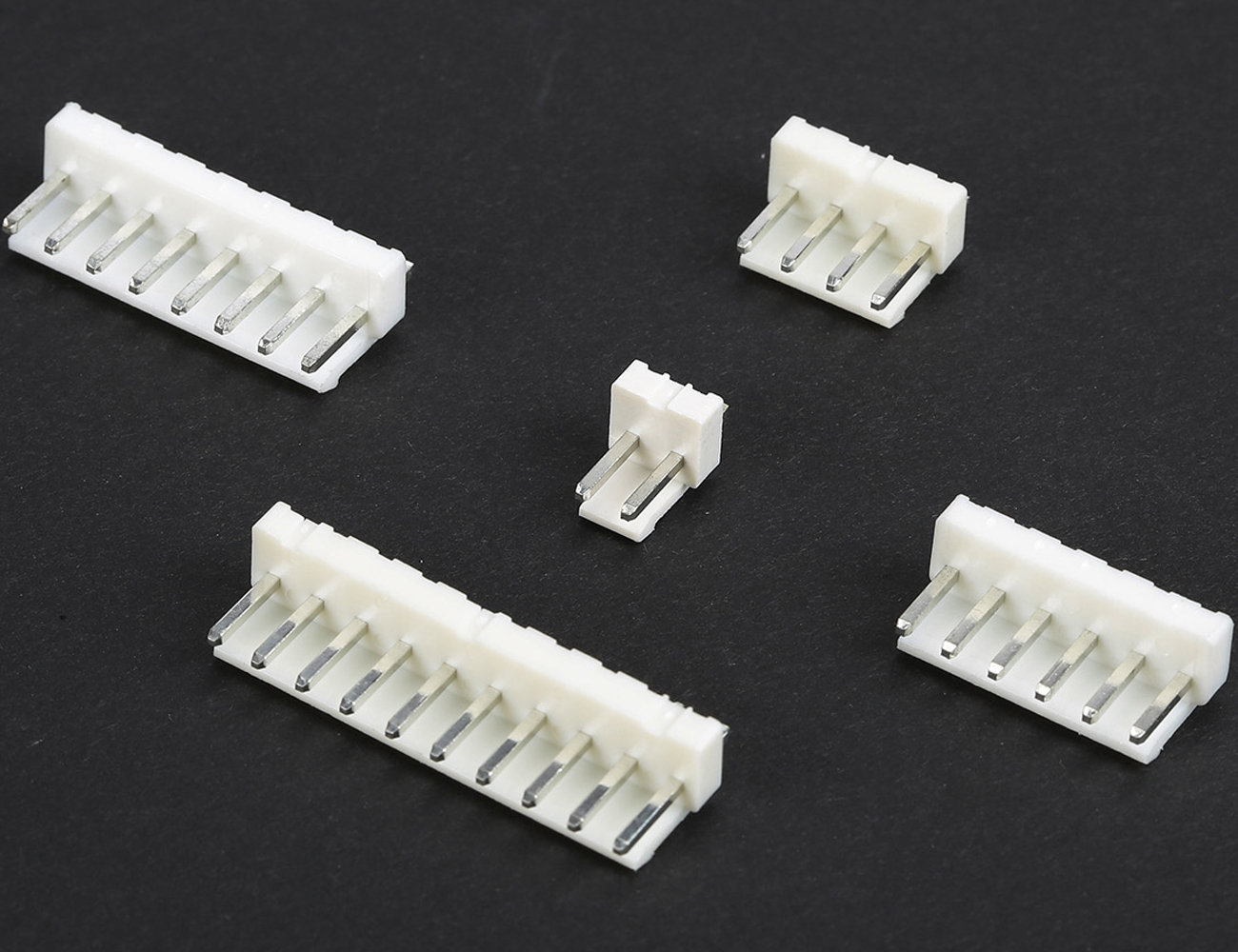

2001-02R 2 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-02H 2 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
2001-03S 3 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-03R 3 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-03H 3 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
2001-04S 4 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-04R 4 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-04H 4 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
2001-05S 5 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-05R 5 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-05H 5 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
2001-06S 6 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-06R 6 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-06H 6 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
2001-07S 7 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-07R 7 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-07H 7 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
2001-08S 8 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-08R 8 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-08H 8 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
2001-09S 9 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-09R 9 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-09H 9 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
2001-10S 10 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-10R 10 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-10H 10 Pin 3.96mm Female Connector Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
2001-11S 11 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-11R 11 Pin Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-11H 11 Pin 3.96mm Female Connector Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
2001-12S 12 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-12R 12 Pin Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-12H 12 Pin 3.96mm Female Connector Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
2001-13S 13 Pin Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-13R 13 Pin Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-13H 13 Pin 3.96mm Female Connector Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
2001-14S 14 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-14R 14 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-14H 14 Pin 3.96mm Female Connector Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
2001-15S 15 Pin 3.96mm DIP Pcb Type Male Vertical Lock 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-15R 15 Pin 3.96mm DIP Pcb Type Male 90º Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2001-15H 15 Pin 3.96mm Female Locked 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

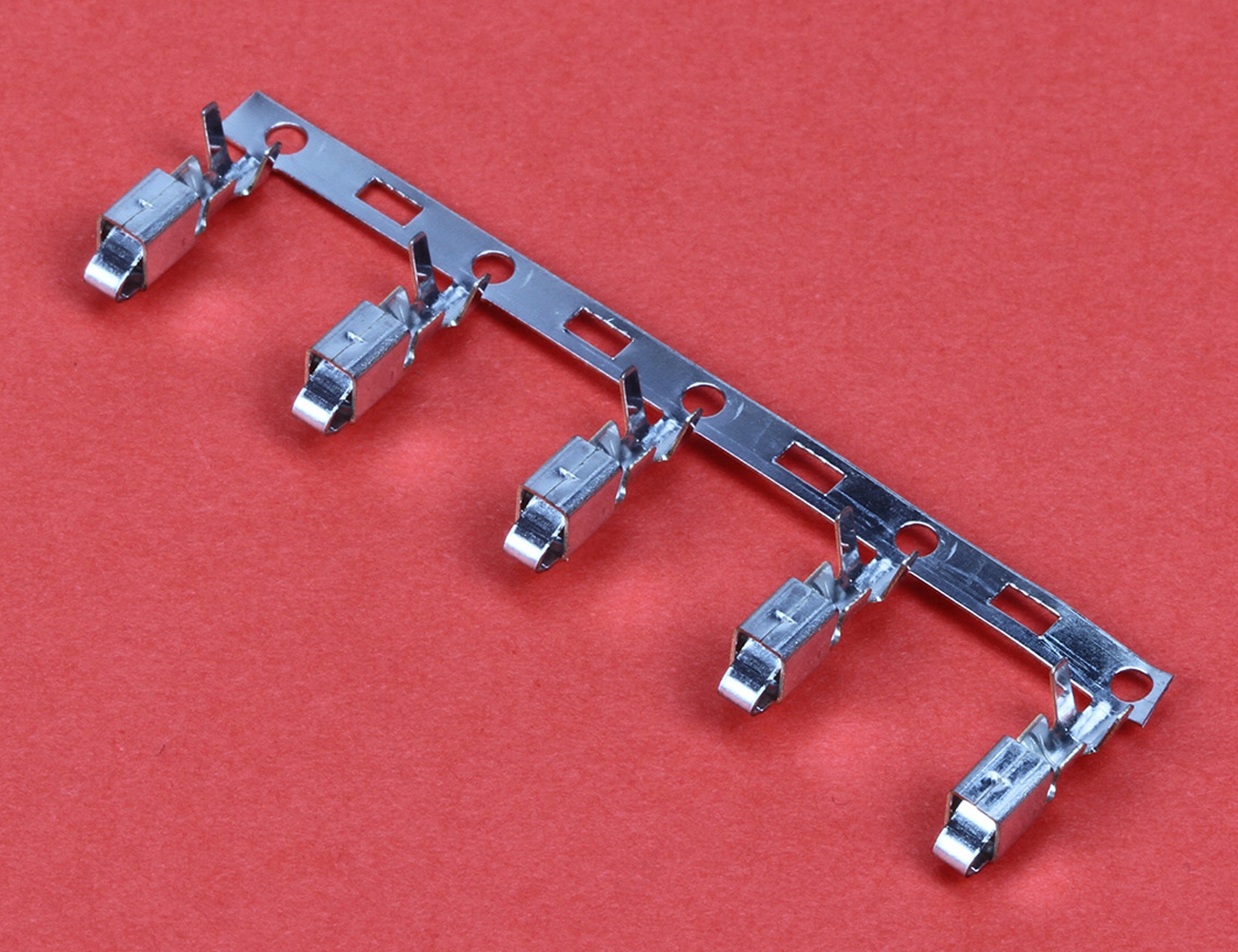

2001-TP Crimp Terminal Female - - - - -
