• TTAF ELEKTRONİK SAN. VE TİC. A.Ş

9200

9200

9200

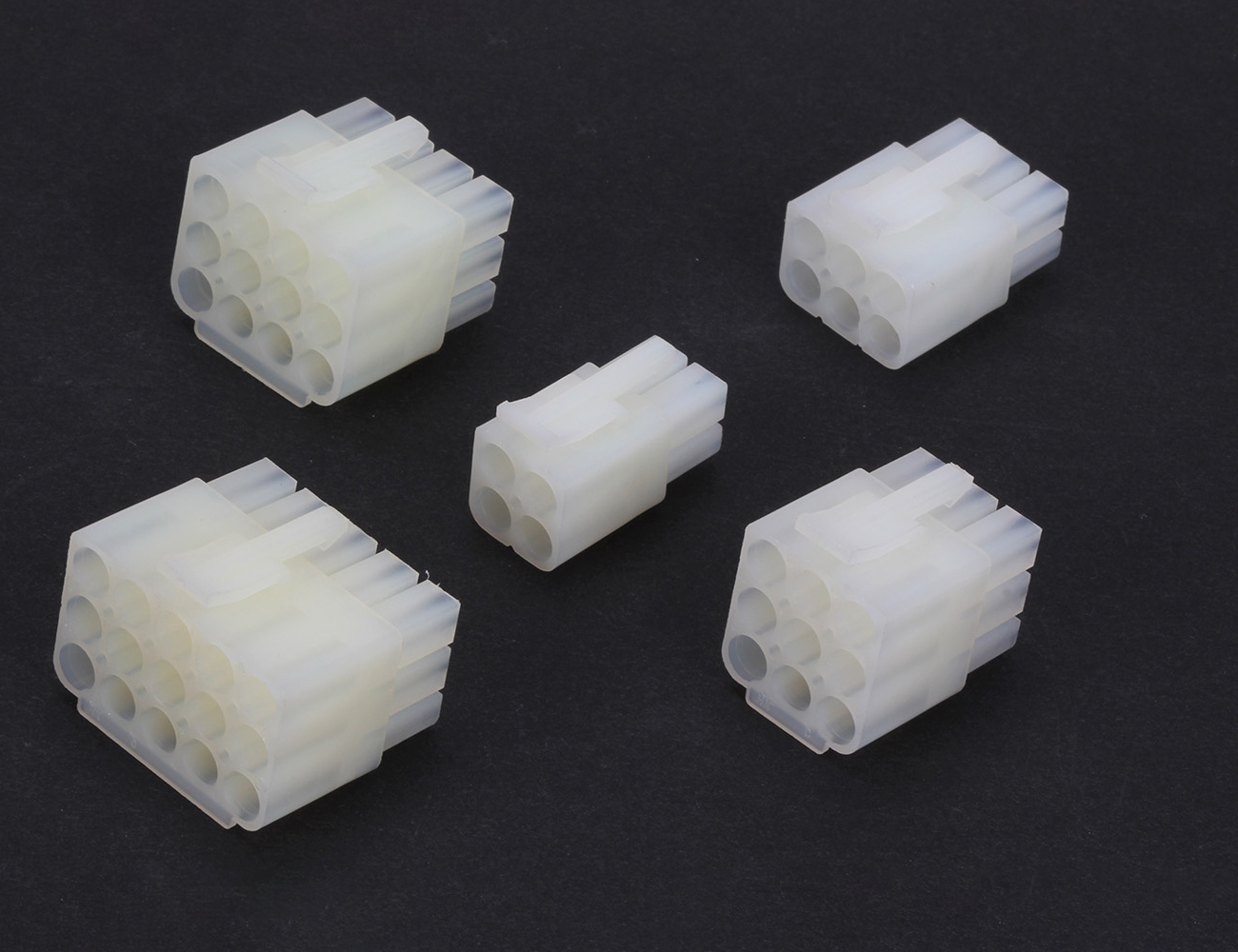

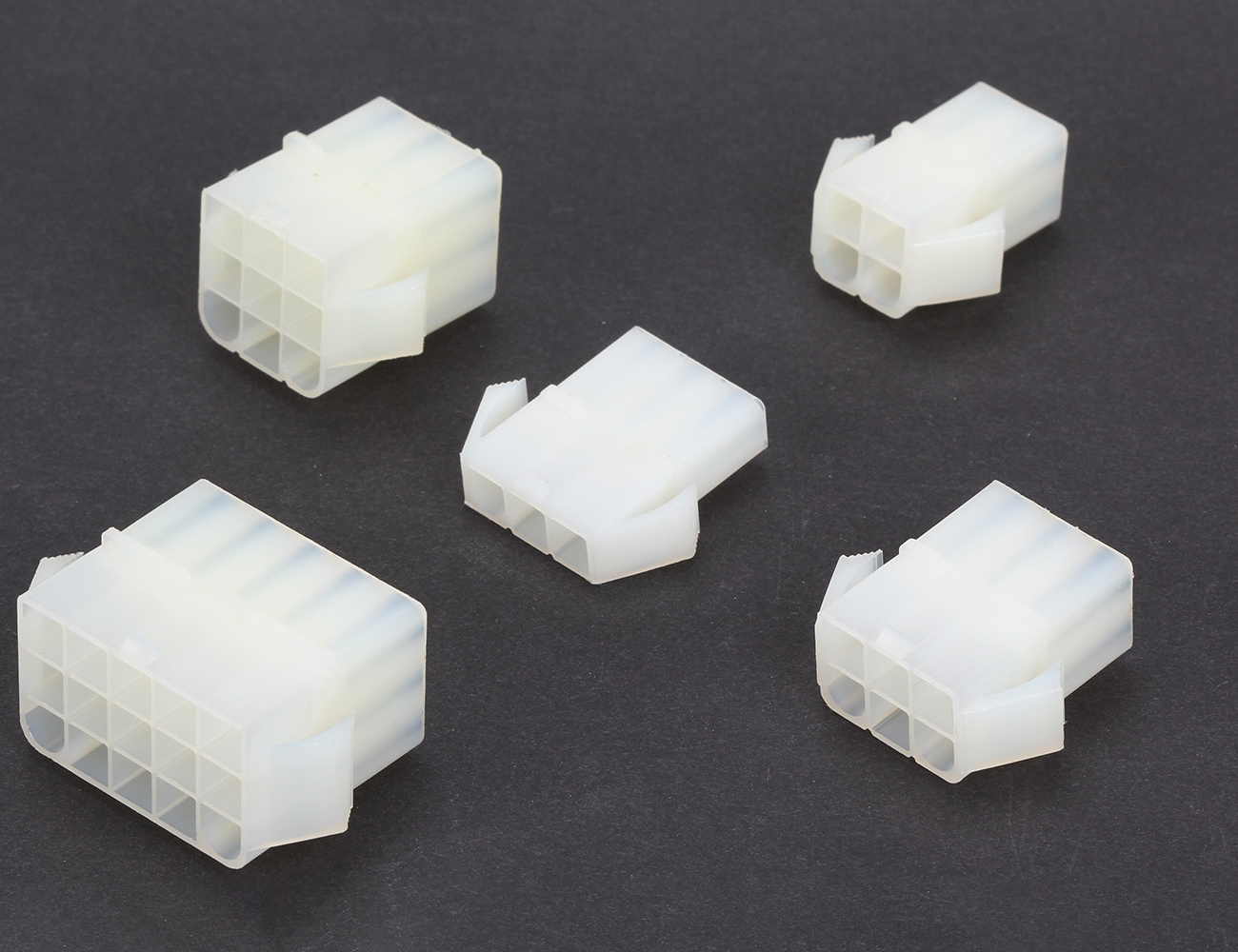

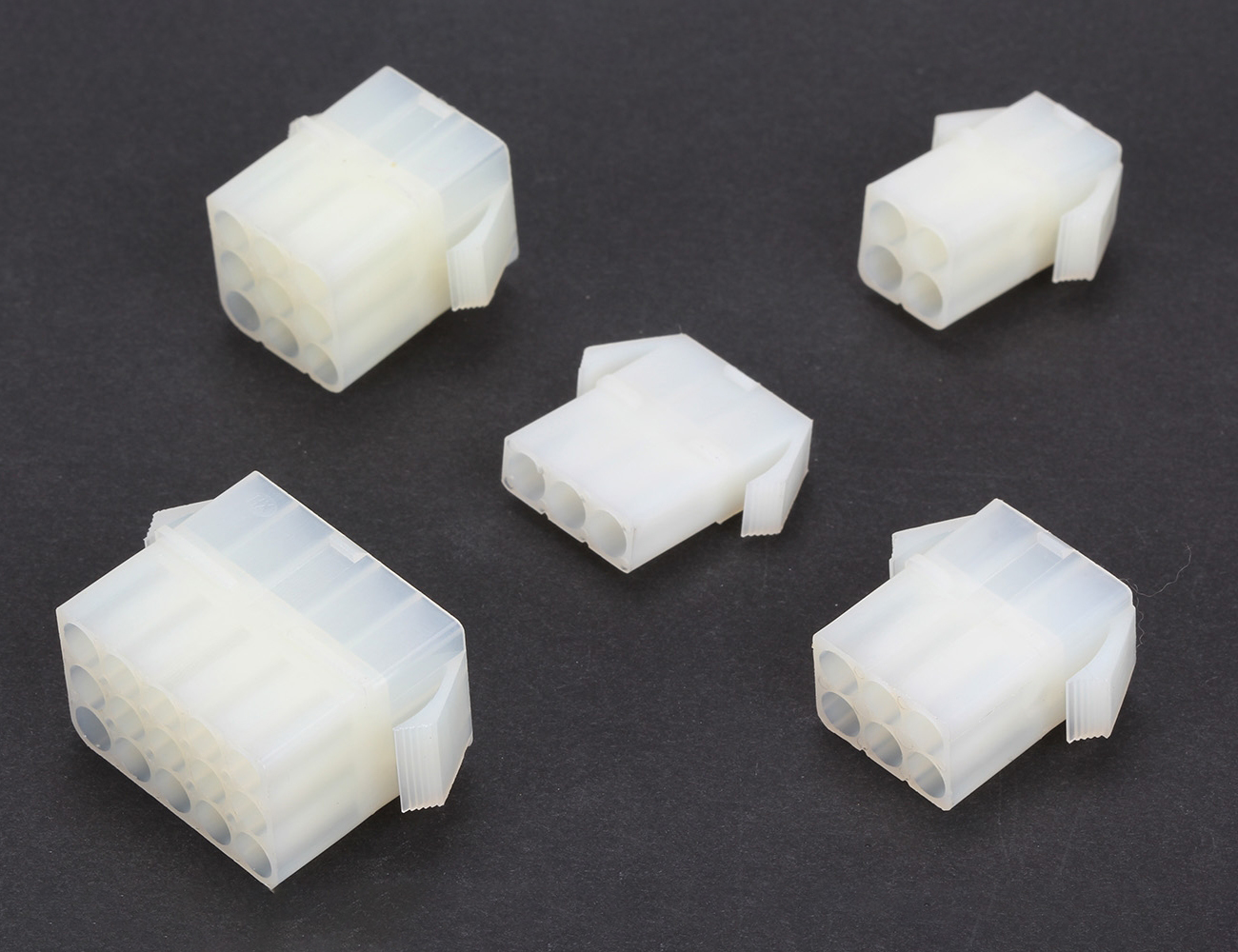

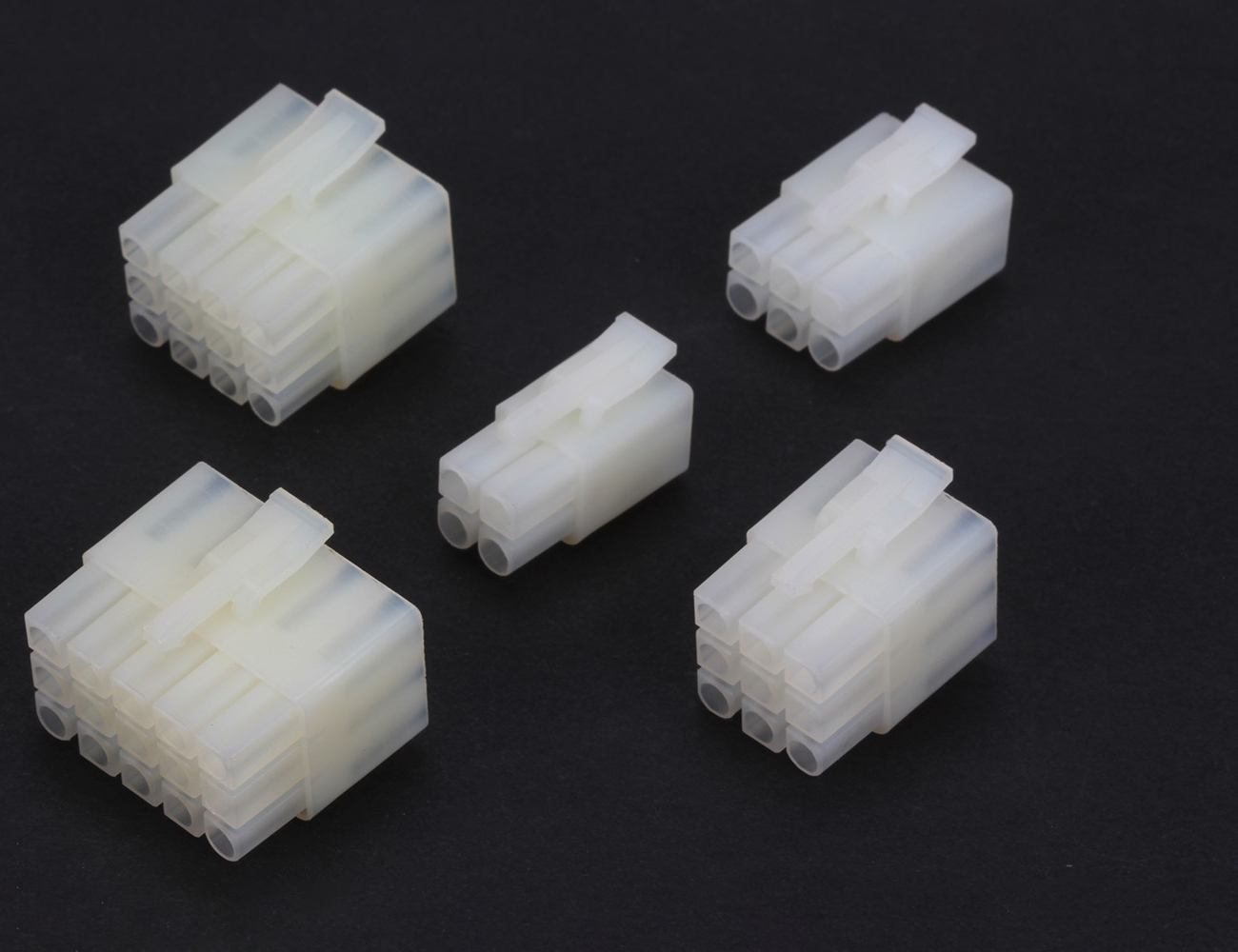

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin
9200-02F 2 Pin 6.20mm Female Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9200-02M 2 Pin 6.20mm Male Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
9200-03F 3 Pin 6.20mm Female Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9200-03M 3 Pin 6.20mm Male Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
9200-04F 4 Pin 6.20mm Female Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9200-04M 4 Pin 6.20mm Male Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
9200-06F 6 Pin 6.20mm Female Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9200-06M 6 Pin 6.20mm Male Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
9200-09F 9 Pin 6.20mm Female Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9200-09M 9 Pin 6.20mm Male Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
9200-12F 12 Pin 6.20mm Female Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9200-12M 12 Pin 6.20mm Male Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
9200-15F 15 Pin 6.20mm Female Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9200-15M 15 Pin 6.20mm Male Housing 10A 300V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

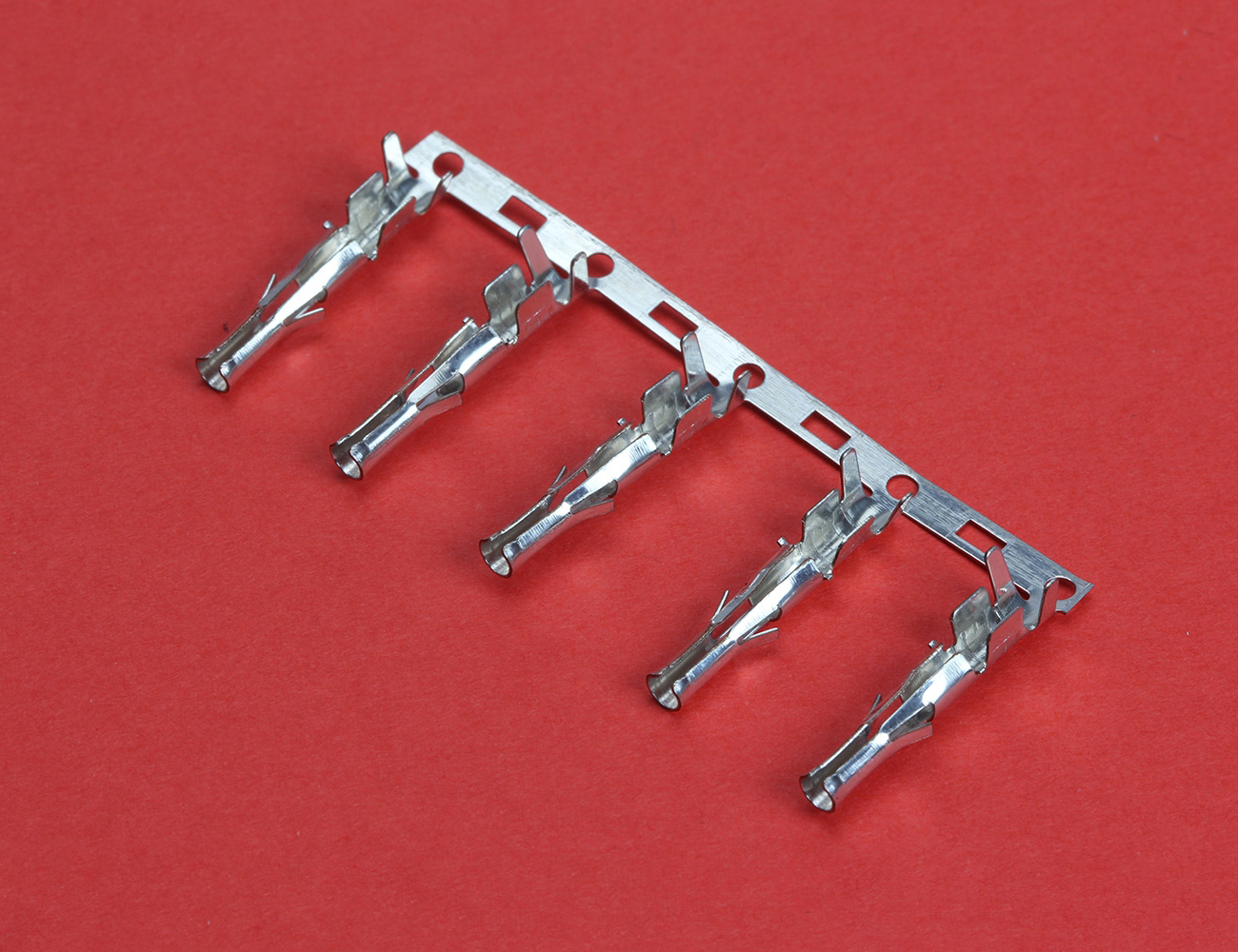

9200-FT Crimp Terminal Female 9200 Series Connector - - - Brass (Tin Plated) -

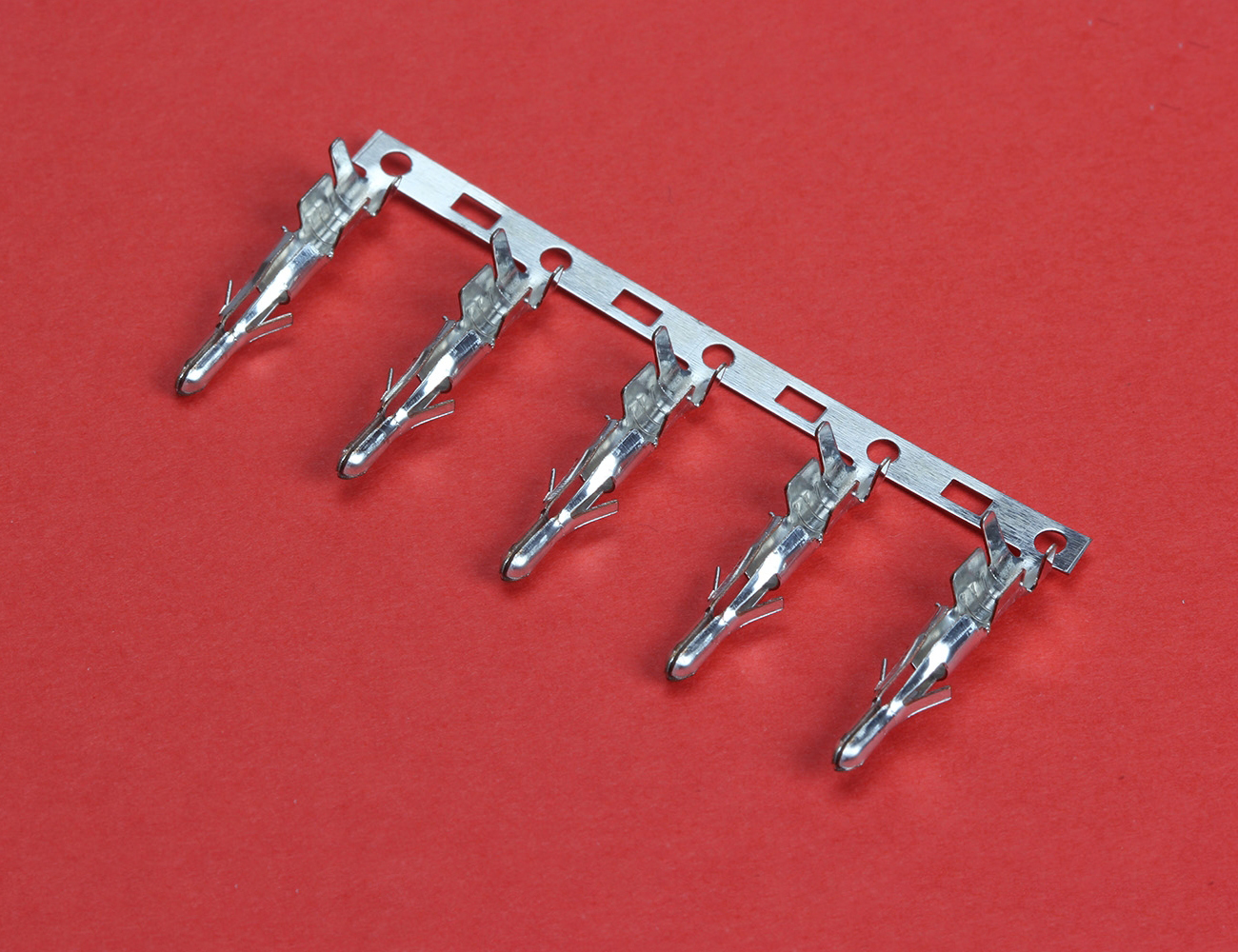

9200-MT Crimp Terminal Male 9200 Series Connector - - - Brass (Tin Plated) -
