2220 A Series

2220 A Series

2220 A Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

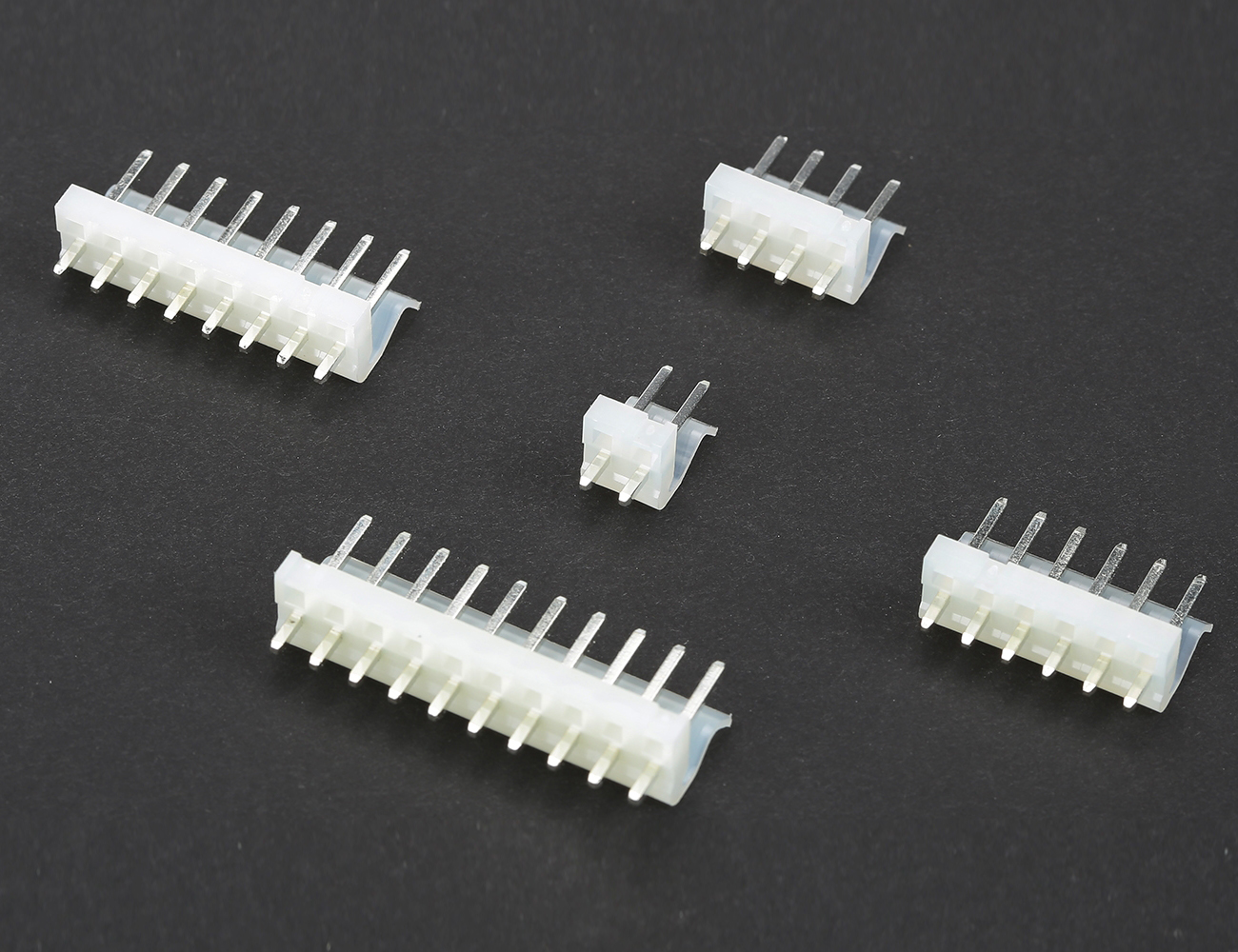

2220-02SA 2 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

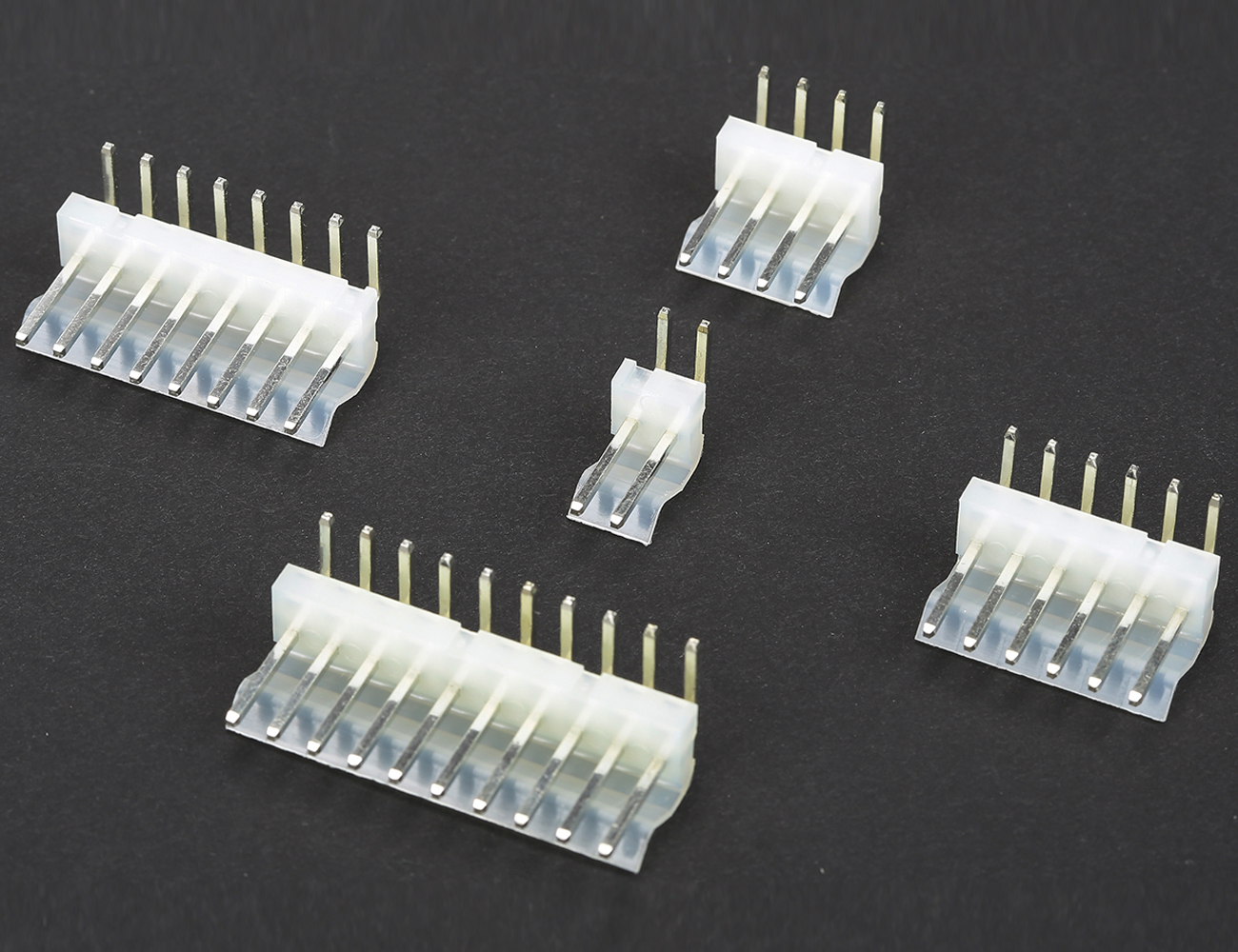

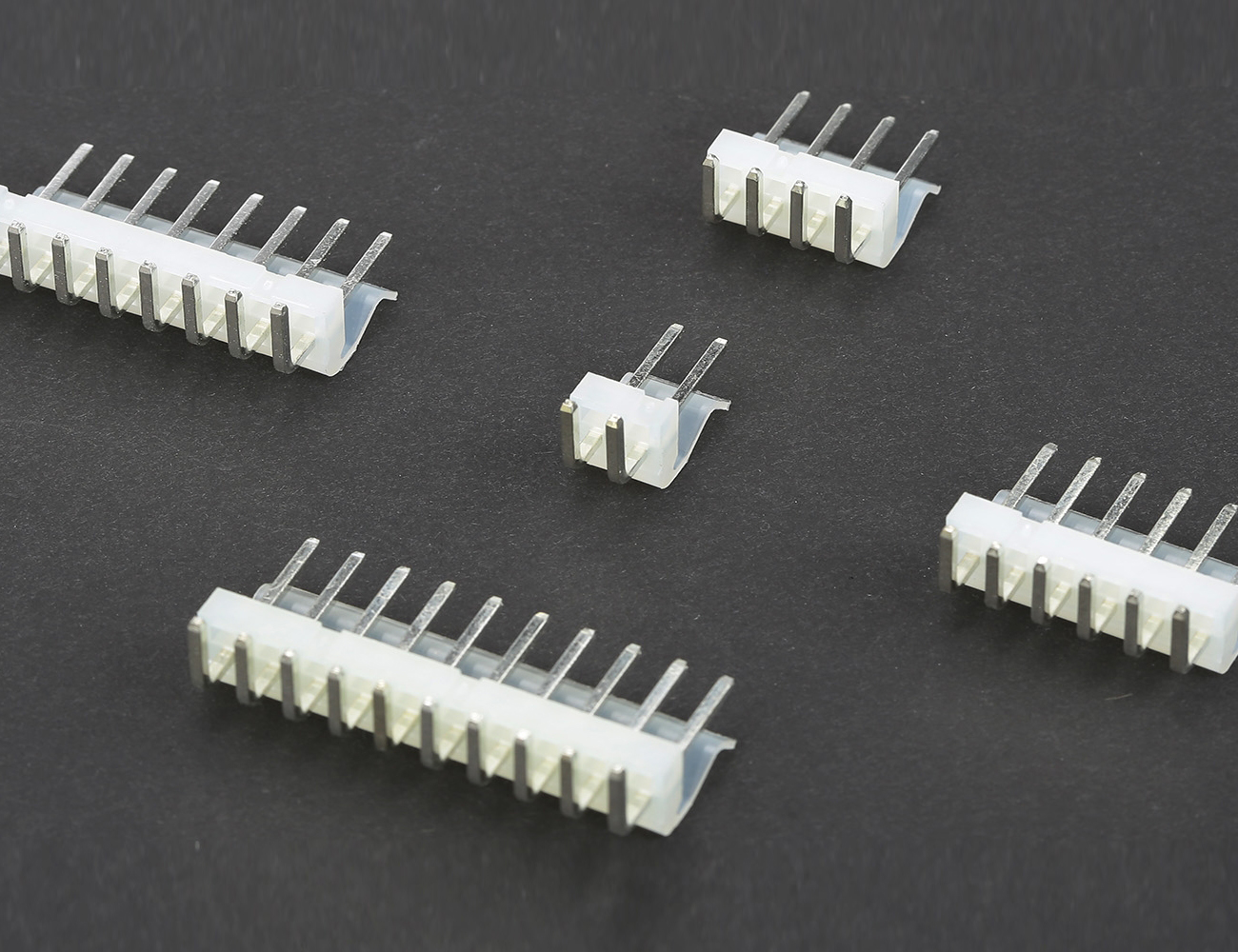

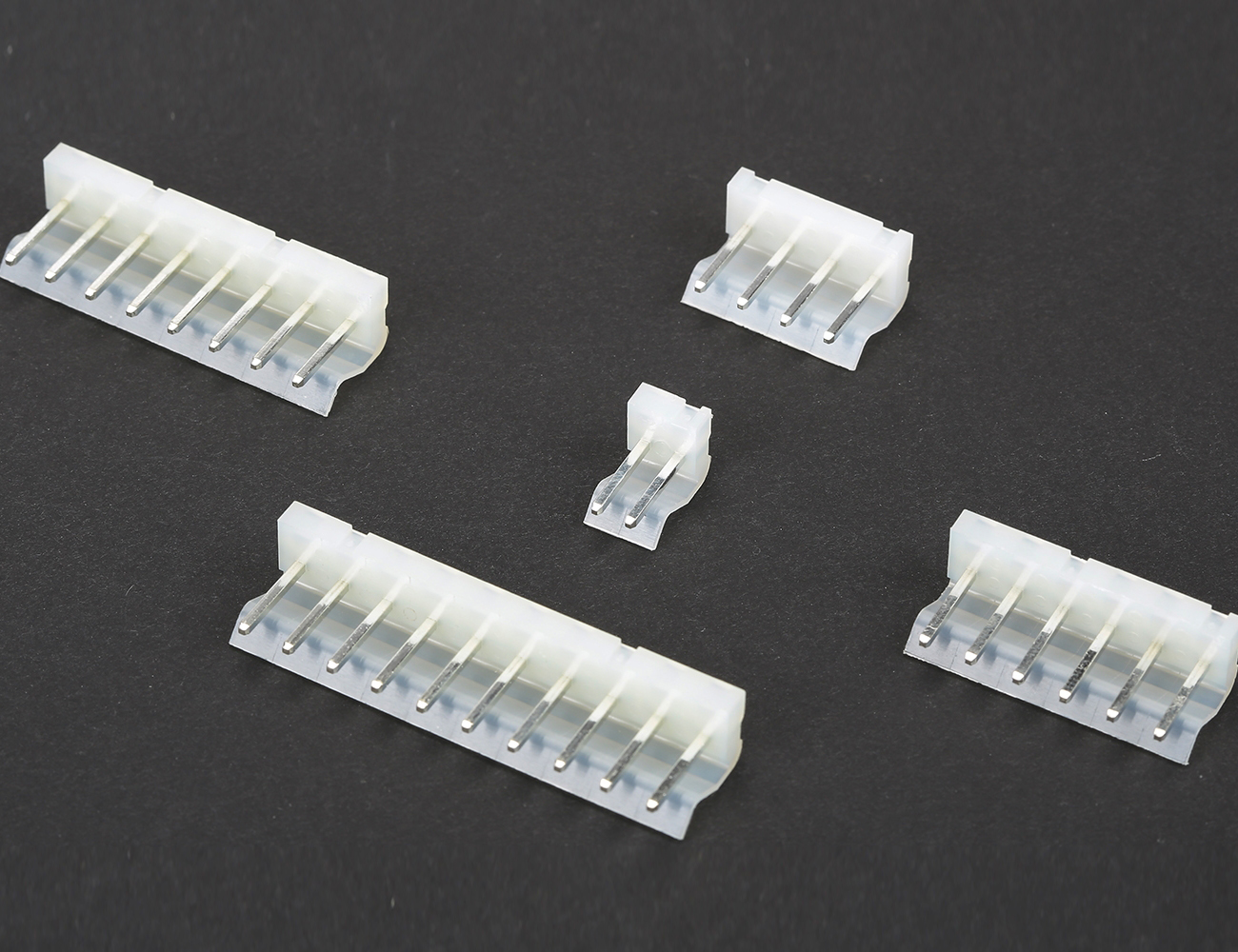

2220-02RA 2 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

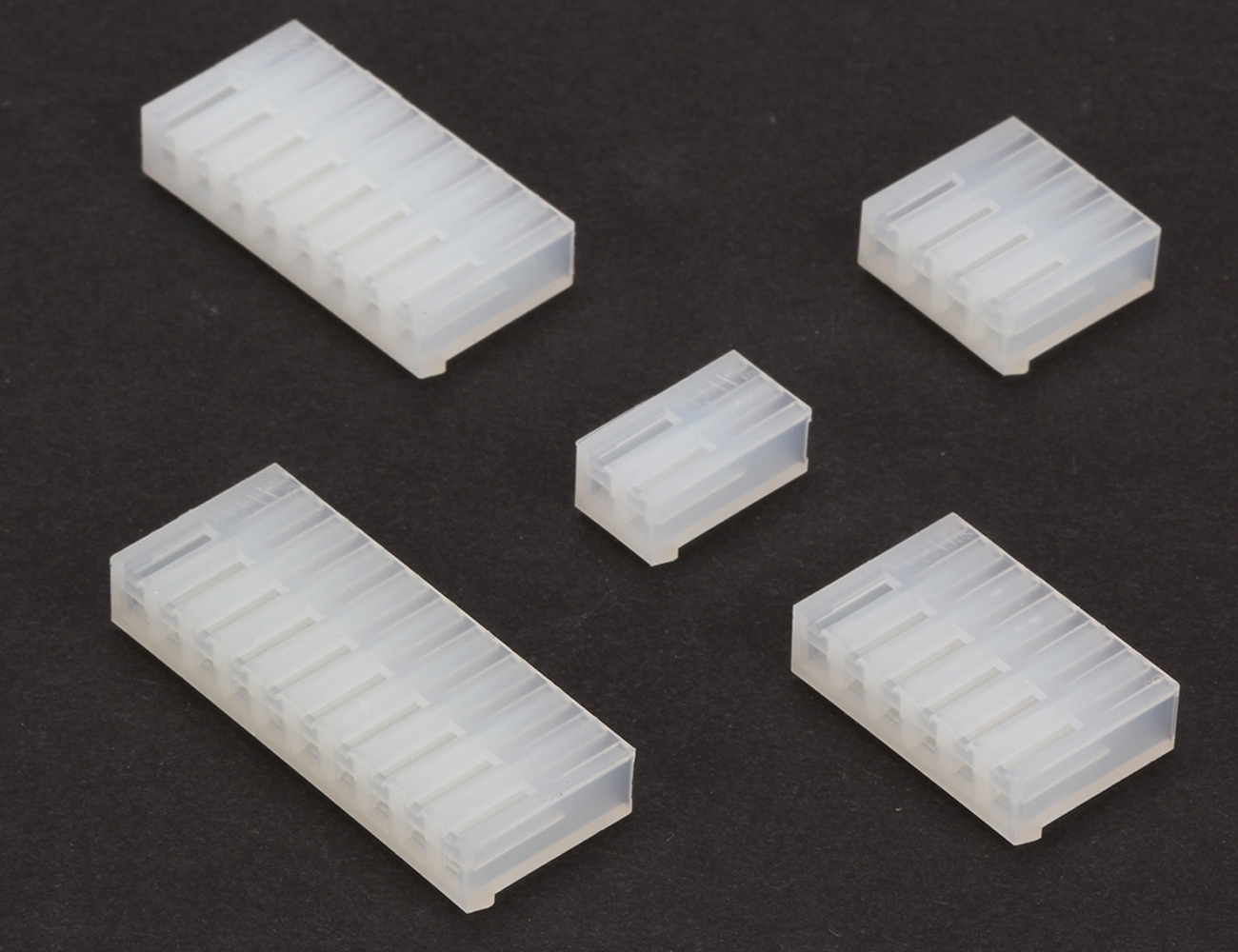

2220-02HA 2 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
2220-03SA 3 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-03RA 3 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-03HA 3 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
2220-04SA 4 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-04RA 4 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-04HA 4 Pin 3.96mm Thread 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
2220-05SA 5 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-05RA 5 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-05HA 5 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
2220-06SA 6 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-06RA 6 Pin 3.96mm DIP Pcb Tip Erkek 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-06HA 6 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
2220-07SA 7 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-07RA 7 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-07HA 7 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
2220-08SA 8 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-08RA 8 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-08HA 8 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
2220-09SA 9 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-09RA 9 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-09HA 9 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
2220-10SA 10 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-10RA 10 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-10HA 10 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
2220-11SA 11 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-11RA 11 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-11HA 11 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
2220-12SA 12 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-12RA 12 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-12HA 12 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
2220-13SA 13 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-13RA 13 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-13HA 13 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
2220-14SA 14 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-14RA 14 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-14HA 14 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
2220-15SA 15 Pin 3.96mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-15RA 15 Pin 3.96mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-15HA 15 Pin 3.96mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

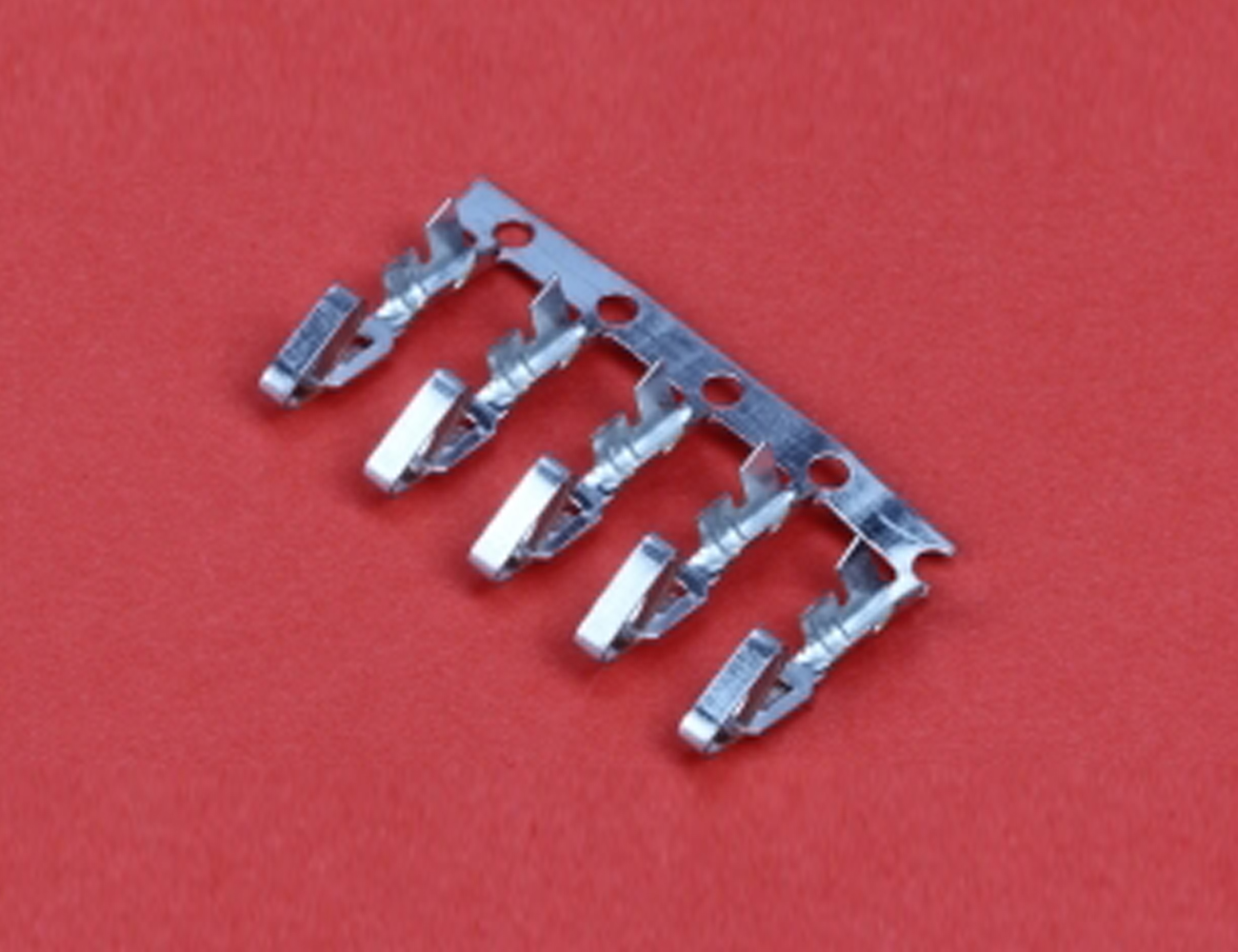

2220-TN Crimp Terminal Female - - - - -
