| 2 Pin |
|
|
|
|
|
|
|
| 9200-02F |

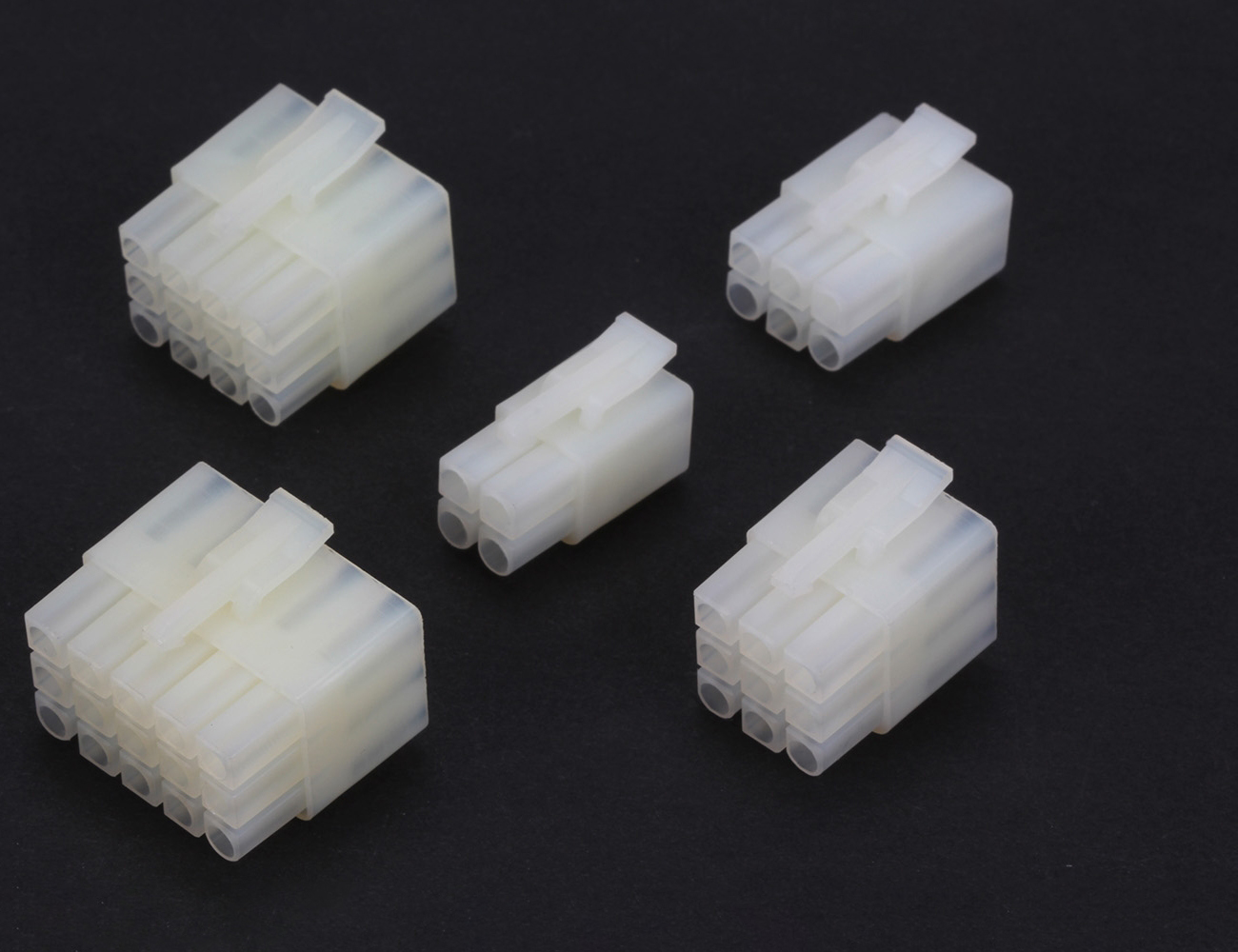

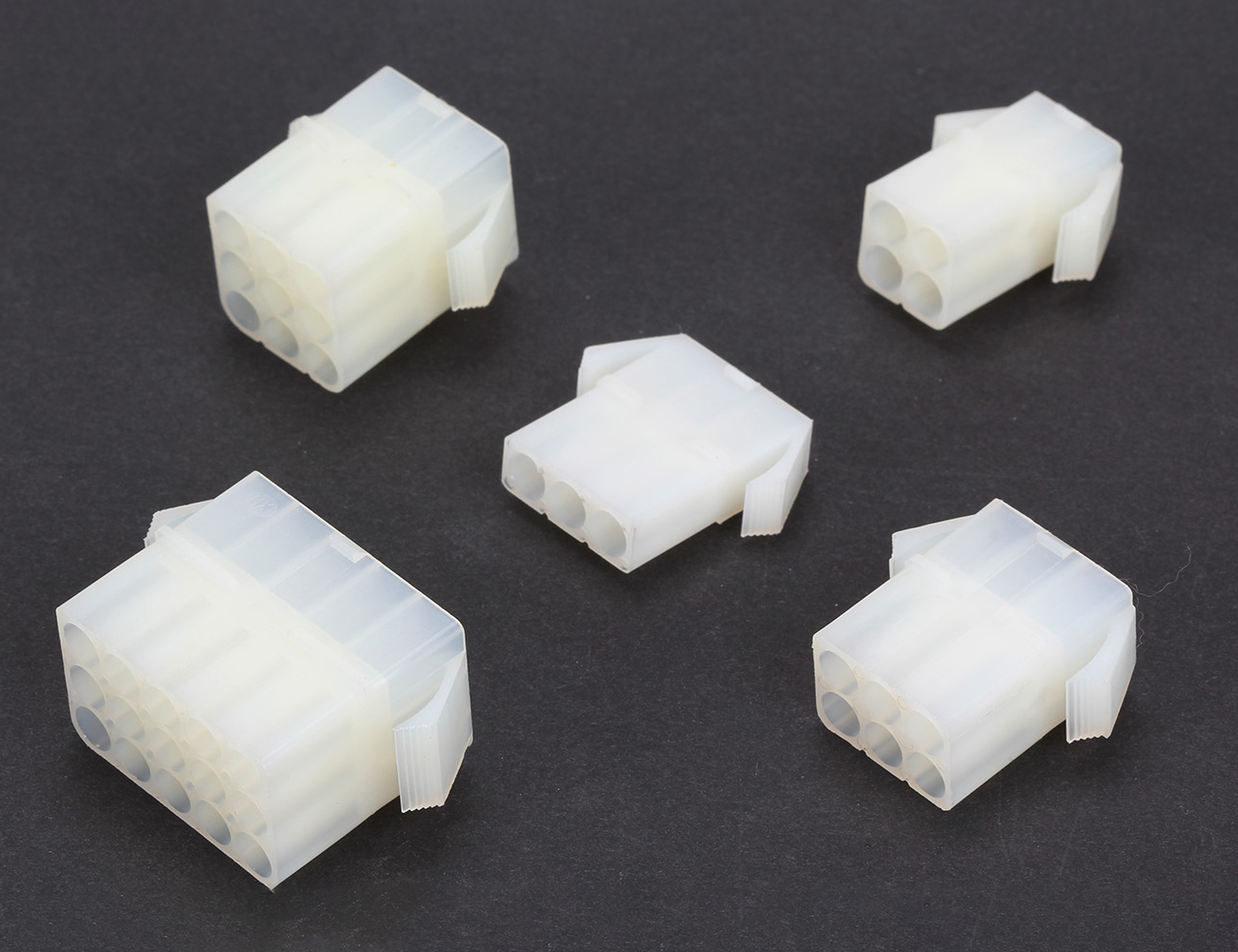

2 Pin 6.20mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9200-02M |

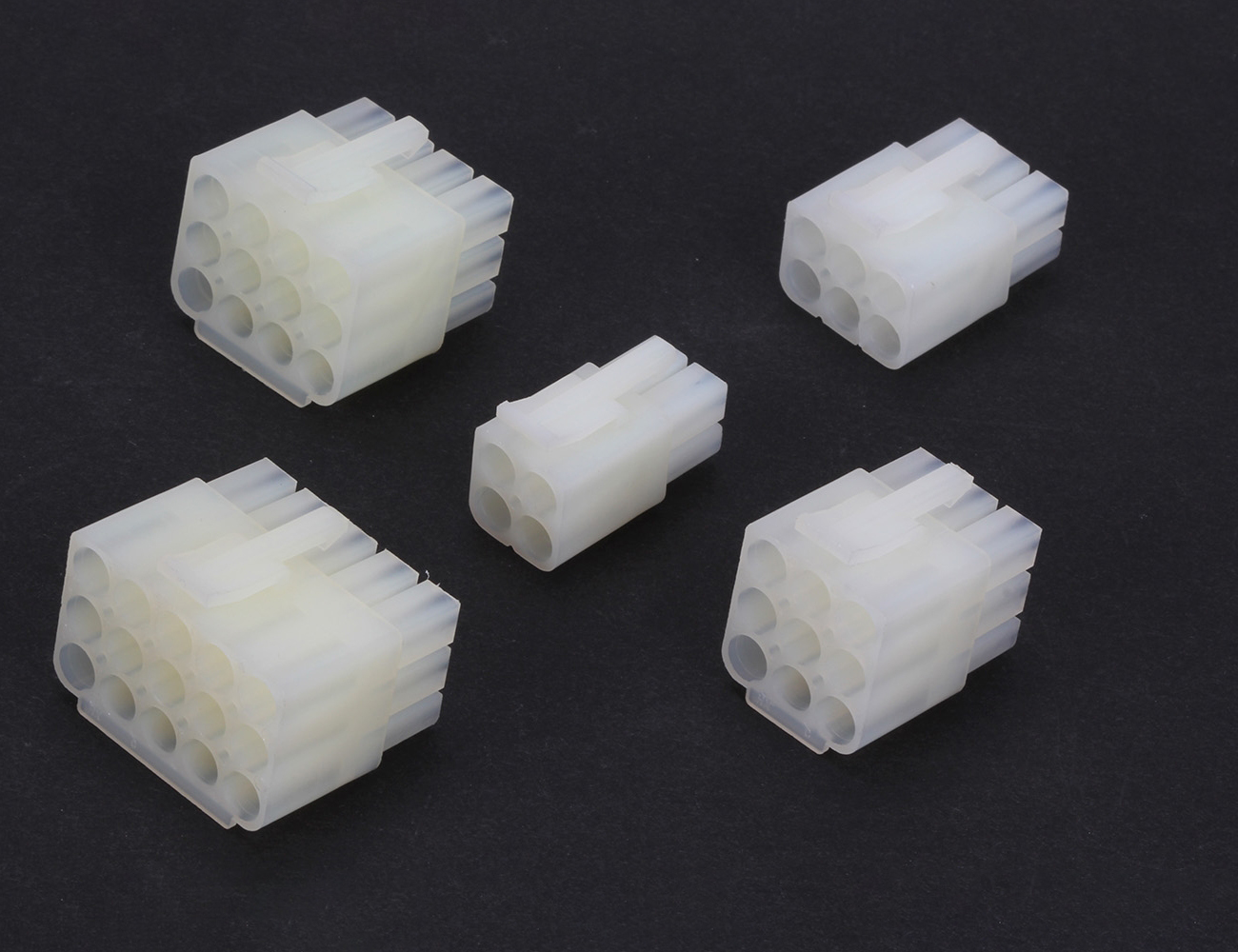

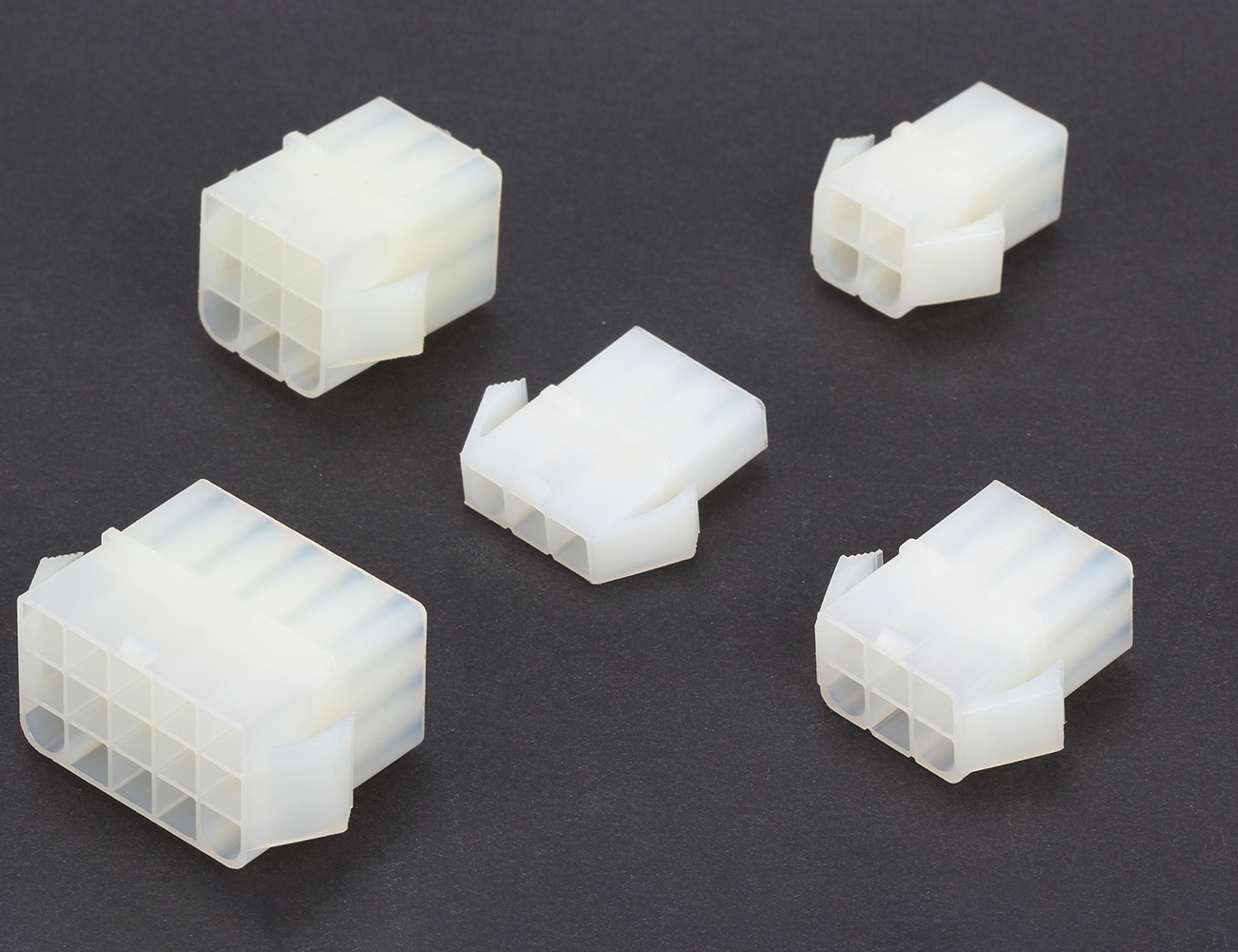

2 Pin 6.20mm Erkek Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3 Pin |
|
|
|
|
|
|
|
| 9200-03F |
3 Pin 6.20mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9200-03M |
3 Pin 6.20mm Erkek Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 4 Pin |
|
|
|
|
|
|
|
| 9200-04F |
4 Pin 6.20mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9200-04M |
4 Pin 6.20mm Erkek Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 6 Pin |
|
|
|
|
|
|
|
| 9200-06F |
6 Pin 6.20mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9200-06M |
6 Pin 6.20mm Erkek Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9 Pin |
|
|
|
|
|
|
|
| 9200-09F |
9 Pin 6.20mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9200-09M |
9 Pin 6.20mm Erkek Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 12 Pin |
|
|
|
|
|
|
|
| 9200-12F |
12 Pin 6.20mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9200-12M |
12 Pin 6.20mm Erkek Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 15 Pin |
|
|
|
|
|
|
|
| 9200-15F |
15 Pin 6.20mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9200-15M |
15 Pin 6.20mm Erkek Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| Terminal |
|
|
|
|
|
|
|
| 9200-FT |

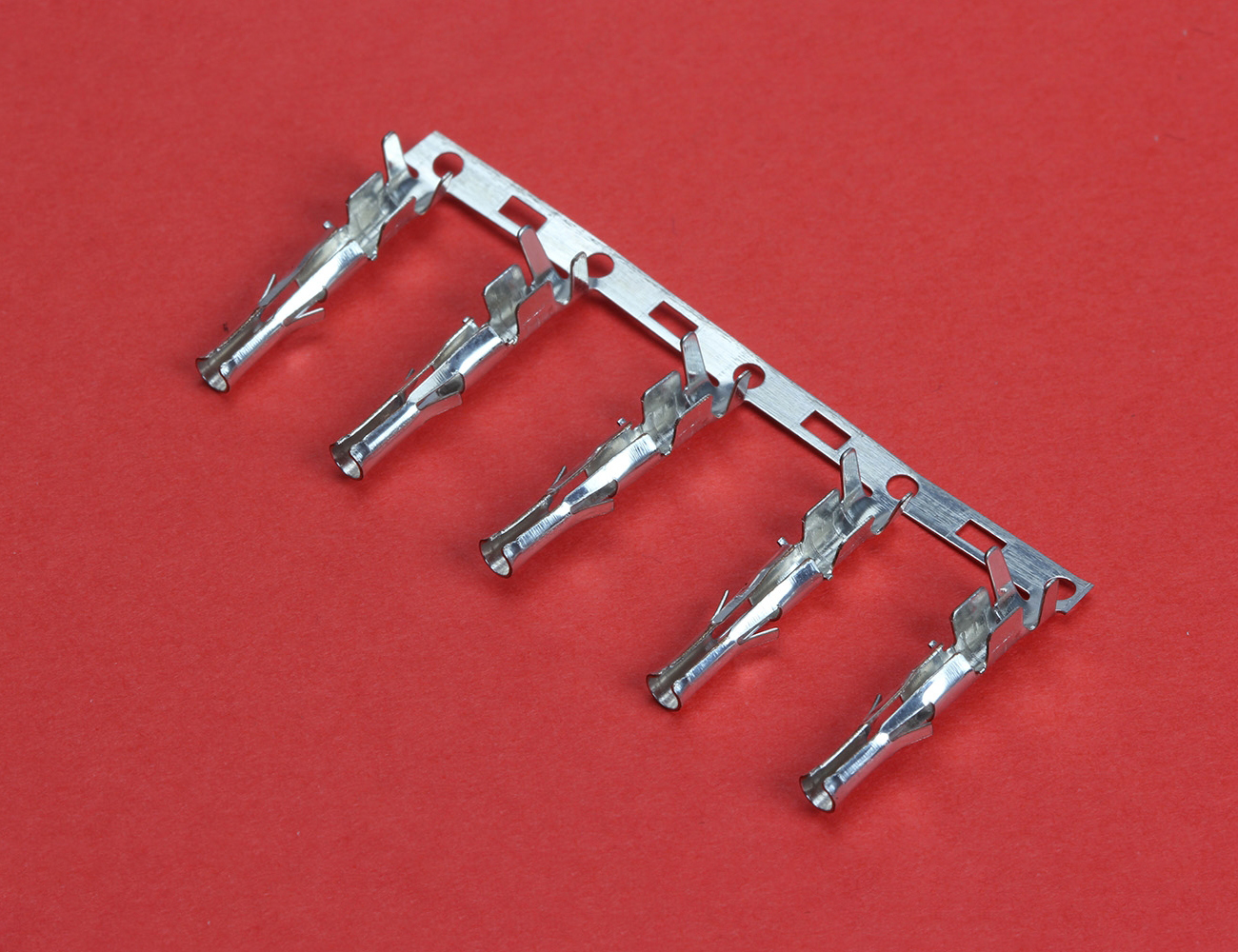

Crimp Terminal Dişi 9200 Serisi Konnektör |
- |
- |
- |
Pirinç (Kalay Kaplam) |
- |
|
| 9200-MT |

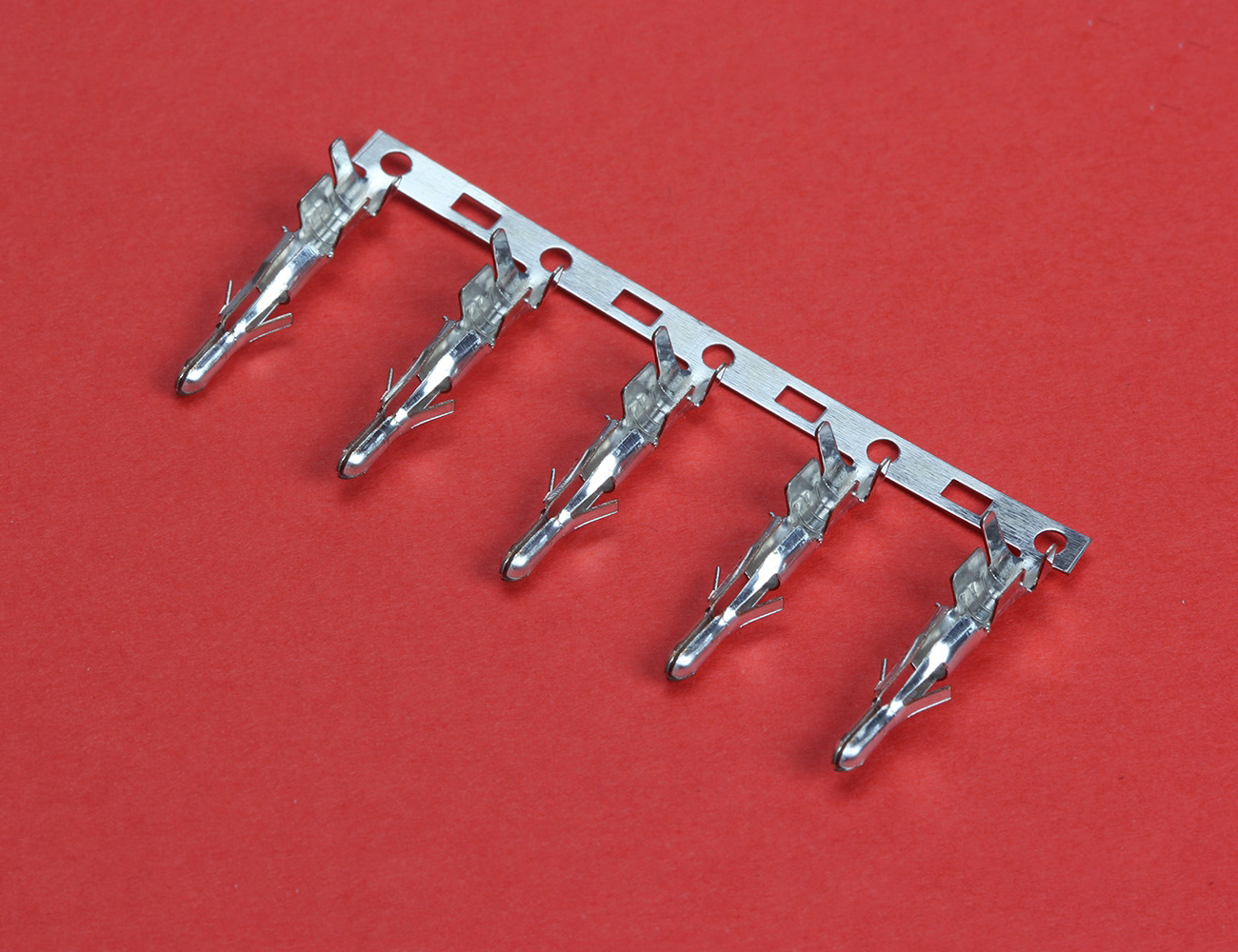

Crimp Terminal Erkek 9200 Serisi Konnektör |
- |
- |
- |
Pirinç (Kalay Kaplam) |
- |
|
