WW250

WW250

WW250

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin
WW250-02F 2 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-02M 2 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
3 Pin
WW250-03F 3 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-03M 3 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
4 Pin
WW250-04F 4 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-04M 4 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
5 Pin
WW250-05F 5 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-05M 5 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
6 Pin
WW250-06F 6 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-06M 6 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
7 Pin
WW250-07F 7 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-07M 7 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
8 Pin
WW250-08F 8 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-08M 8 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
9 Pin
WW250-09F 9 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-09M 9 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
10 Pin
WW250-10F 10 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-10M 10 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
11 Pin
WW250-11F 11 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-11M 11 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
12 Pin
WW250-12F 12 Pin 2.50mm Female Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C
WW250-12M 12 Pin 2.50mm Male Housing 2.5A 250V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C # +85°C

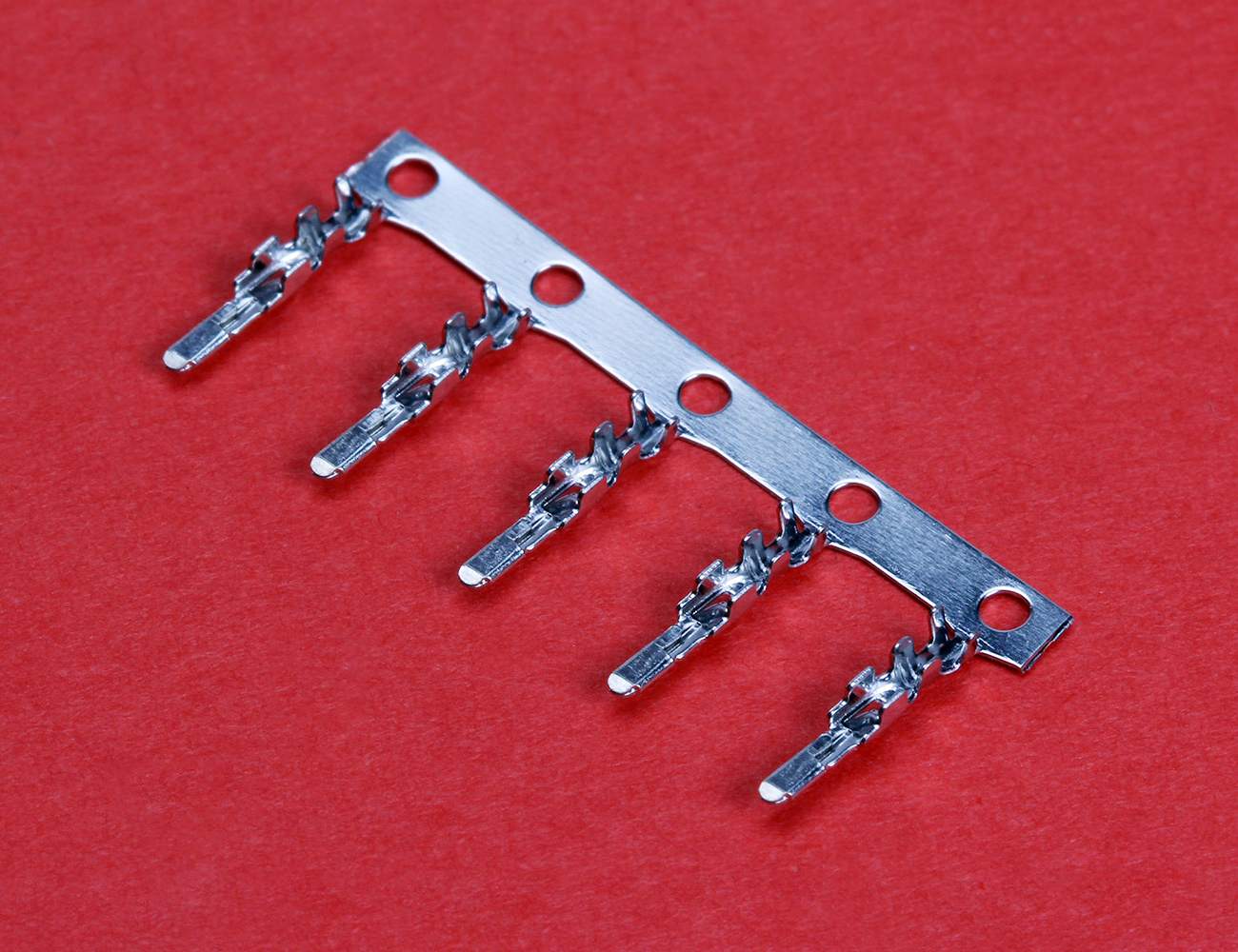

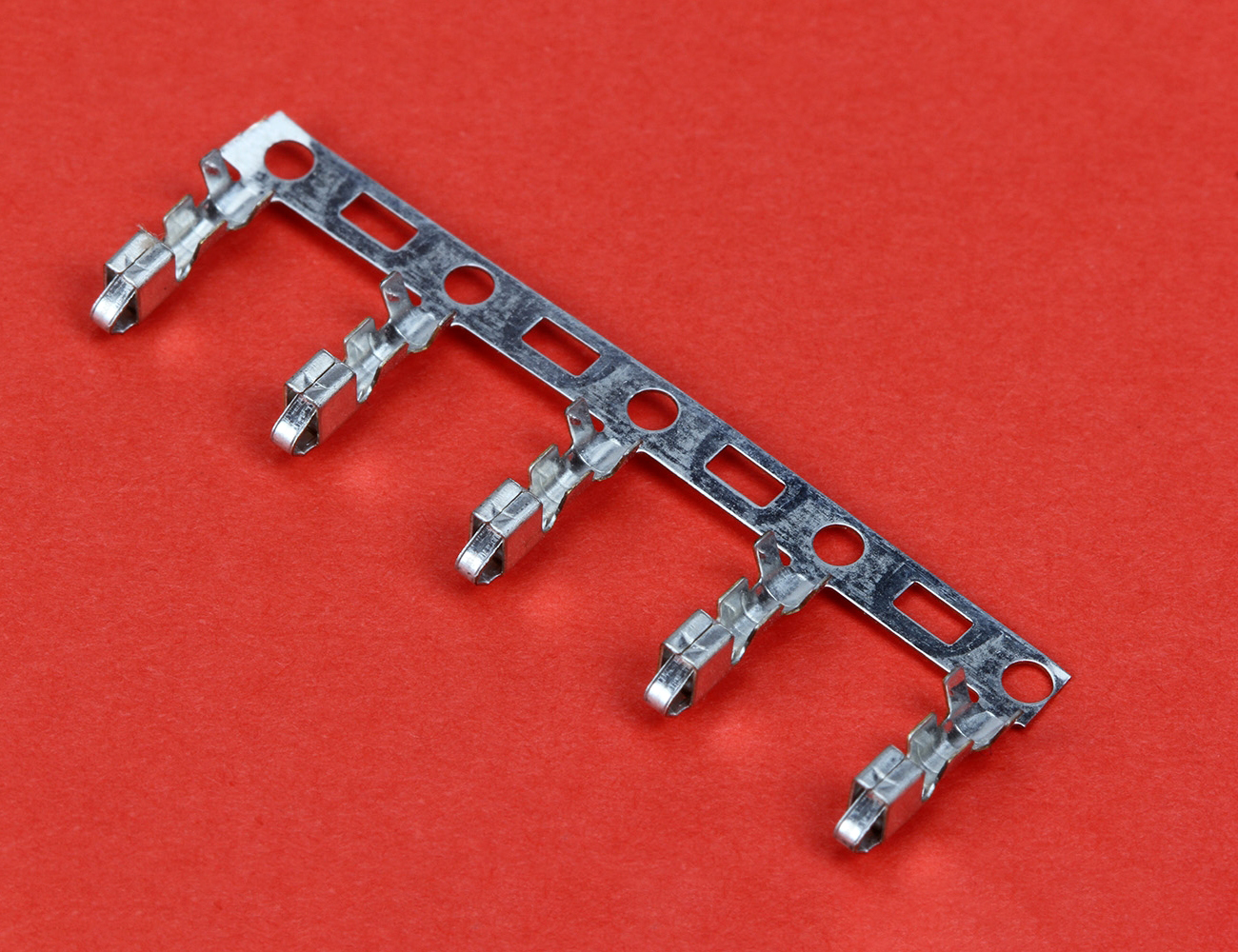

Crimp Terminal
WW250-FT Crimp Terminal Female WW250 Series Connector - - - Phosphor Bronze -
WW250-MT Crimp Terminal Male WW250 Series Connector - - - Phosphor Bronze -
