TECHNICAL SPECIFICATIONS
- Outer Diameter : 6,2 mm(nom)
- Durability : 1000 Loop
- Impedance : 100 ohm
- Contact Resistance : 20m Ohm max.
- Imbalance Resistance : %2 Max
- Dielectric Strength : 1000 Volt/1 minute min.
- Isolation Resistance : 500MOhm min.@500 Vdc
- Storage Temperature : -40°C……+80°C
- Operating Temperature : -20°C……+60°C
- Outer jacket : PVC / LSZH
- Retention : 50 N ( 11 IBF ) for 60 ± 5 s
- Mating cycle life : Min. 1000 cycles
- Tensile strength : ≥ 20 N per wire

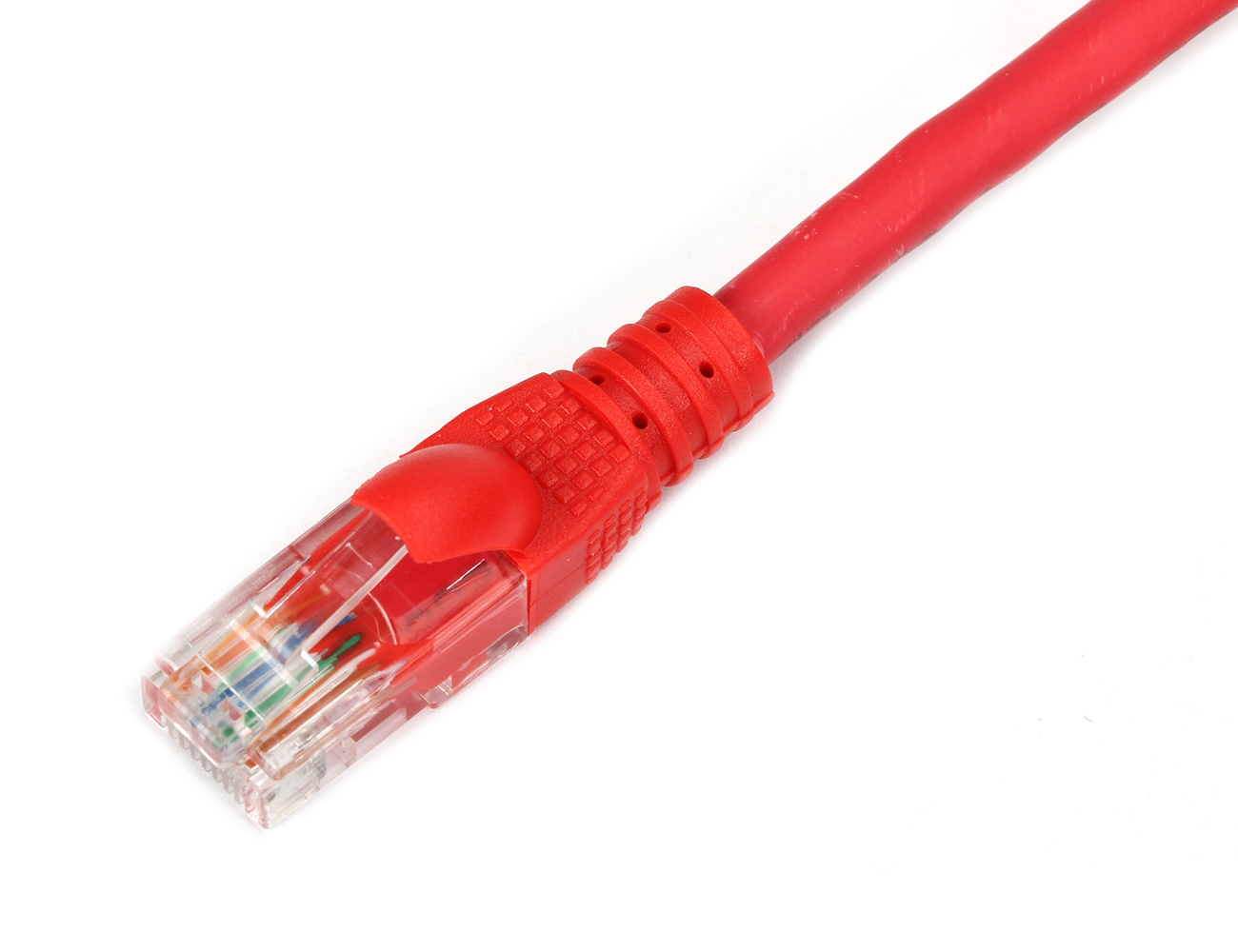

- Type : Unshielded RJ45 8P8C modular plug.
- Housing : UL listed 94V-0 flame retardant polycarbonate
- IDC blades : Phosphor bronze, gold plating over 100 μ in of nickel in contact area.
