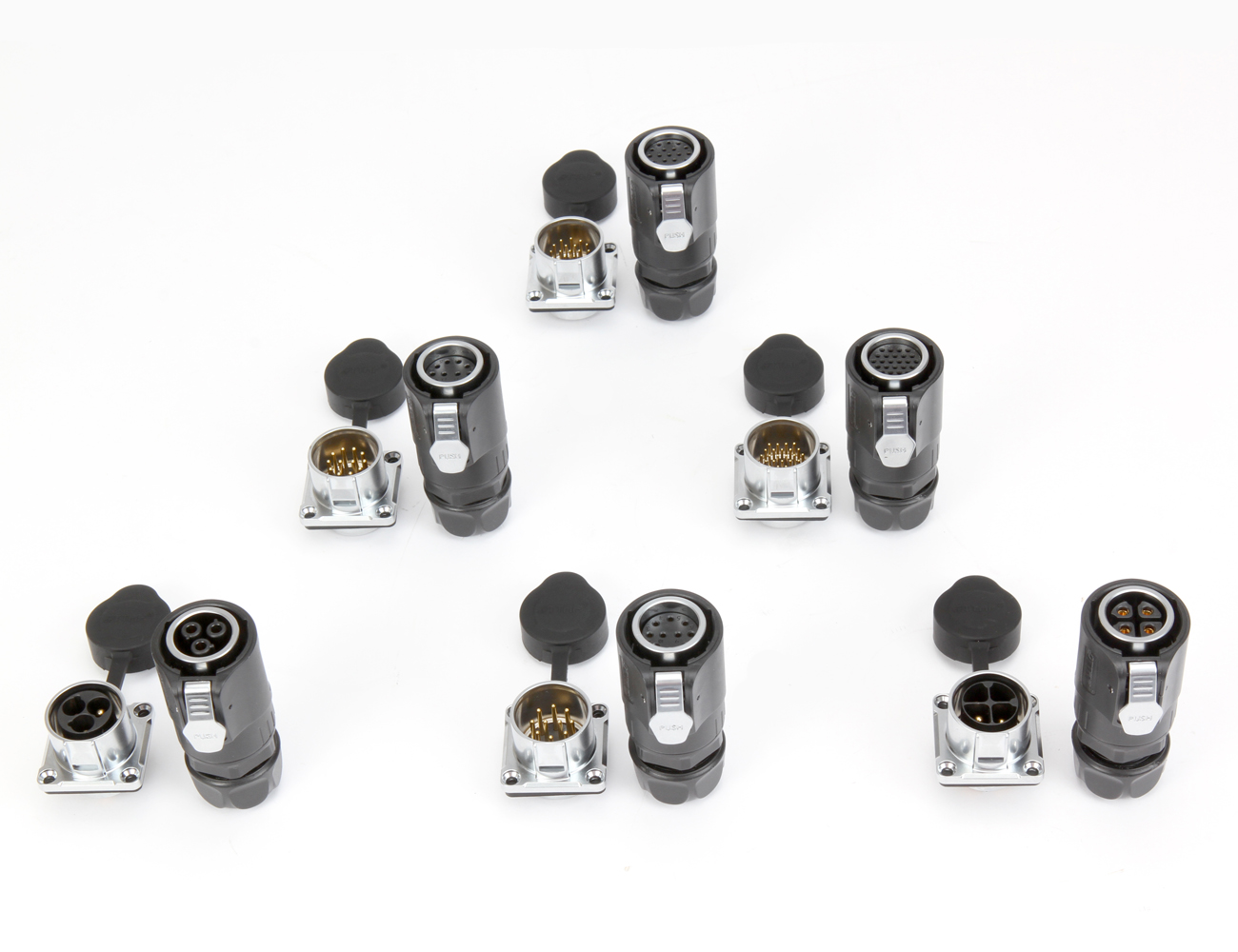

TT35 Series

TT35 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
3
TT35-03F-SX-01-001 3 Panel Type Female 22A 500V 2500V PBT -40°C ∼ +80°C
TT35-03M-PE-01-001 3 Panel Type Male 22A 500V 2500V PBT -40°C ∼ +80°C
4 Pin
TT35-04F-SX-01-001 4 Panel Type Female 22A 500V 2500V PBT -40°C ∼ +80°C
TT35-04M-PE-01-001 4 Panel Type Male 22A 500V 2500V PBT -40°C ∼ +80°C
10 Pin
TT35-10F-SX-01-001 10 Panel Type Female 10A 250V 2500V PBT -40°C ∼ +80°C
TT35-10M-PE-01-001 10 Panel Type Male 10A 250V 2500V PBT -40°C ∼ +80°C
12 Pin
TT35-12F-SX-01-001 12 Panel Type Female 10A 250V 2500V PBT -40°C ∼ +80°C
TT35-12M-PE-01-001 12 Panel Type Male 10A 250V 2500V PBT -40°C ∼ +80°C
19 Pin
TT35-19F-SX-01-001 19 Panel Type Female 3A 125V 1500V PBT -40°C ∼ +80°C
TT35-19M-PE-01-001 19 Panel Type Male 3A 125V 1500V PBT -40°C ∼ +80°C
24 Pin
TT35-24F-SX-01-001 24 Panel Type Female 3A 125V 1500V PBT -40°C ∼ +80°C
TT35-24M-PE-01-001 24 Panel Type Male 3A 125V 1500V PBT -40°C ∼ +80°C
