Signal 250G1 Series

Signal 250G1 Series

Signal 250G1 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

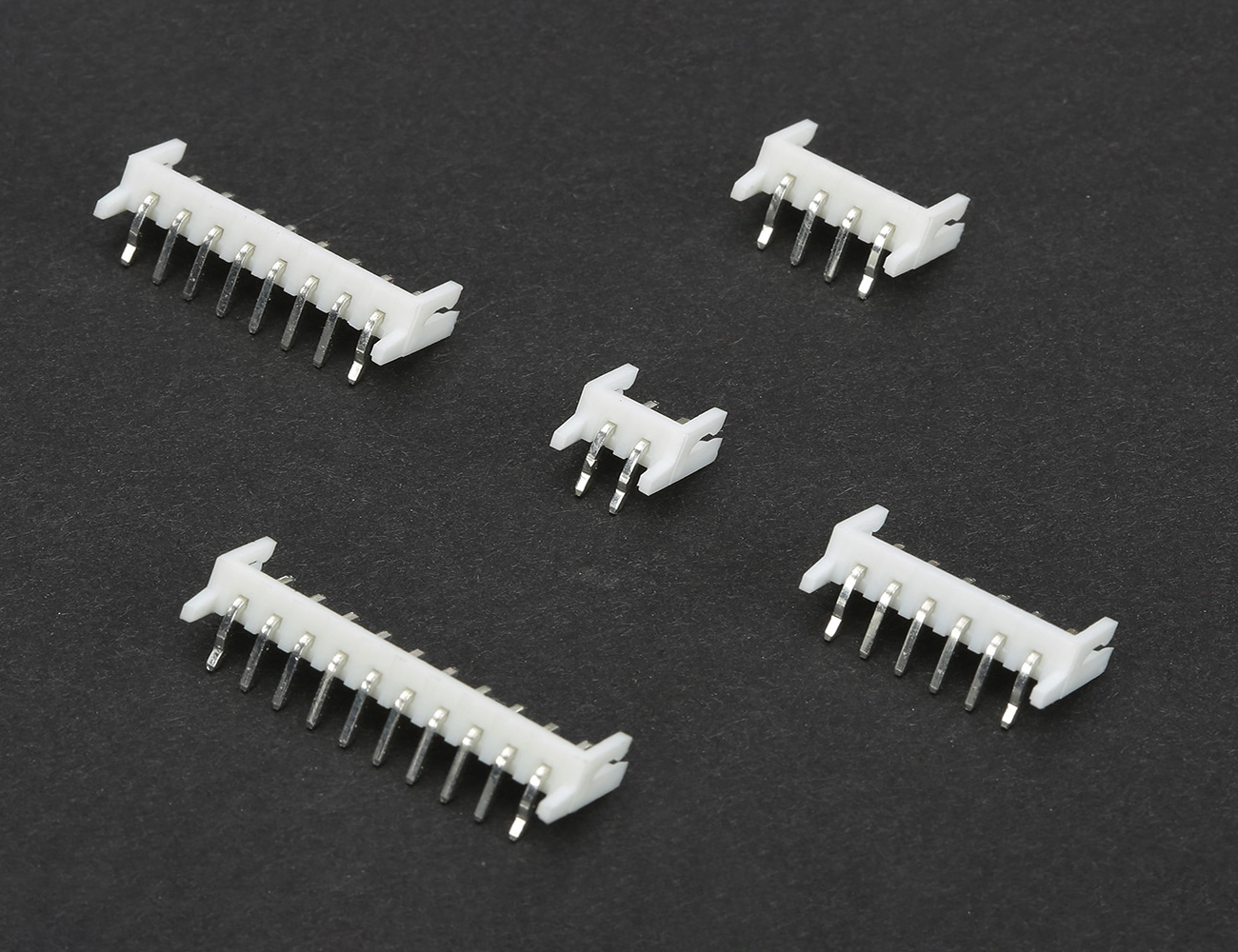

250G1-02R 2 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

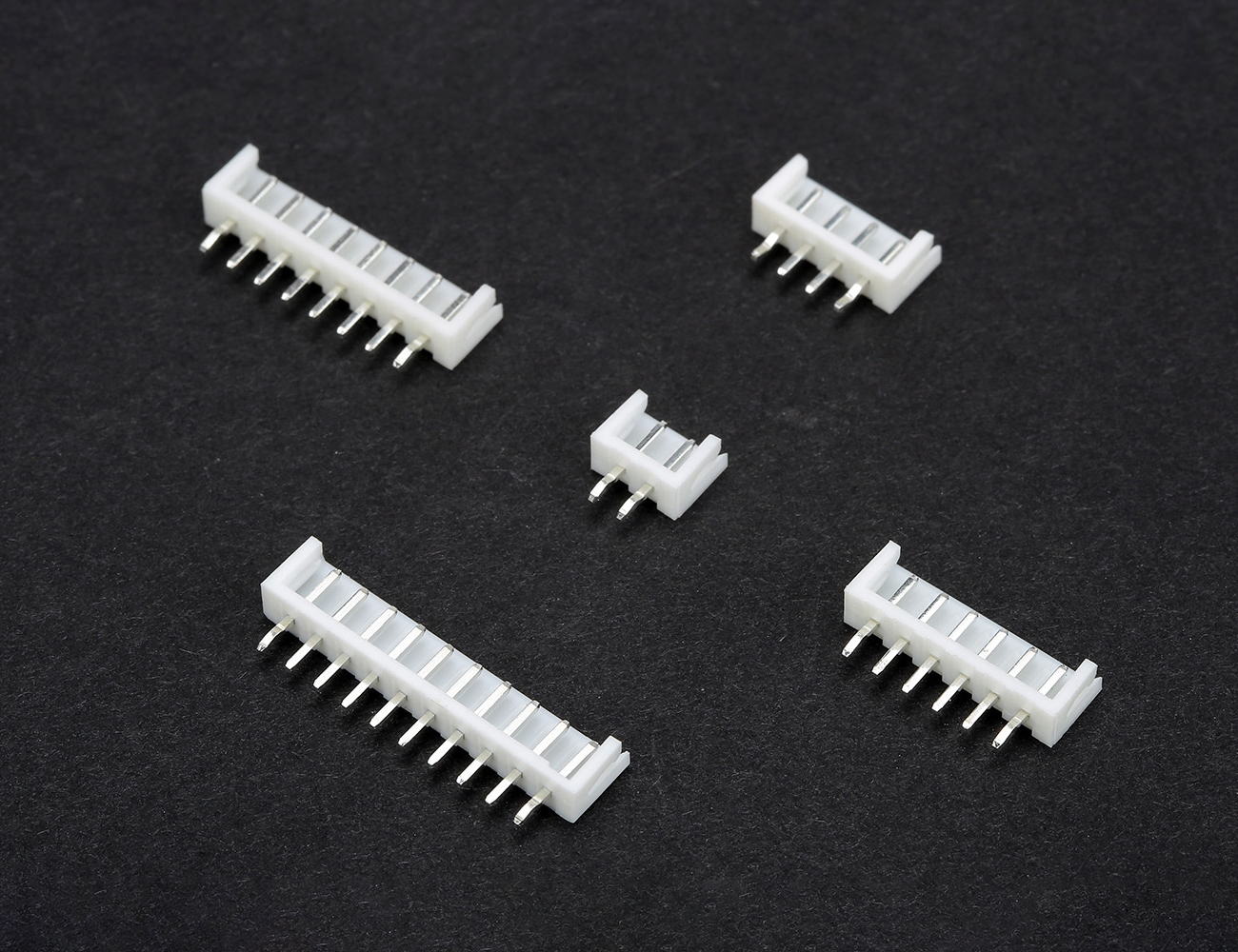

250G1-02S 2 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

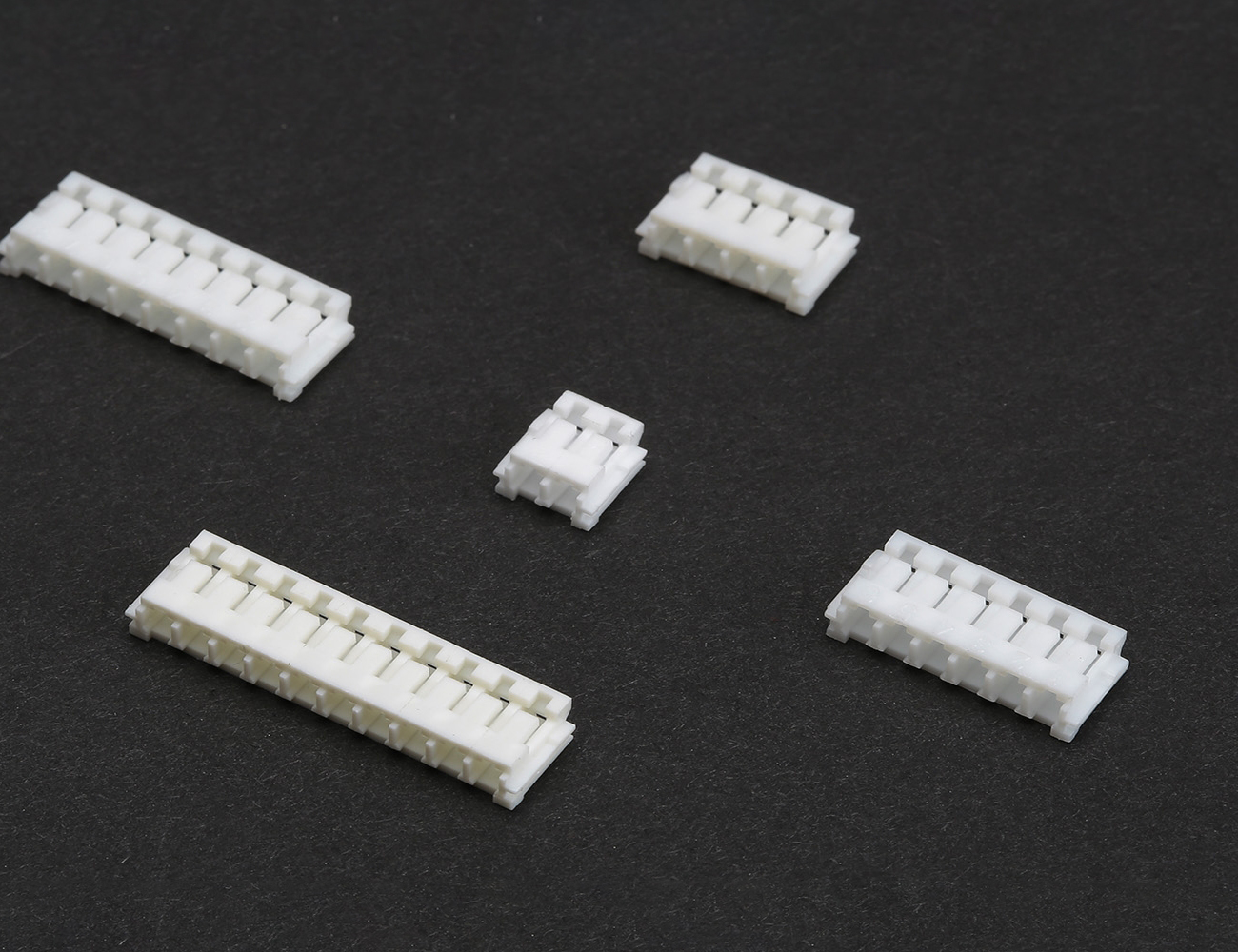

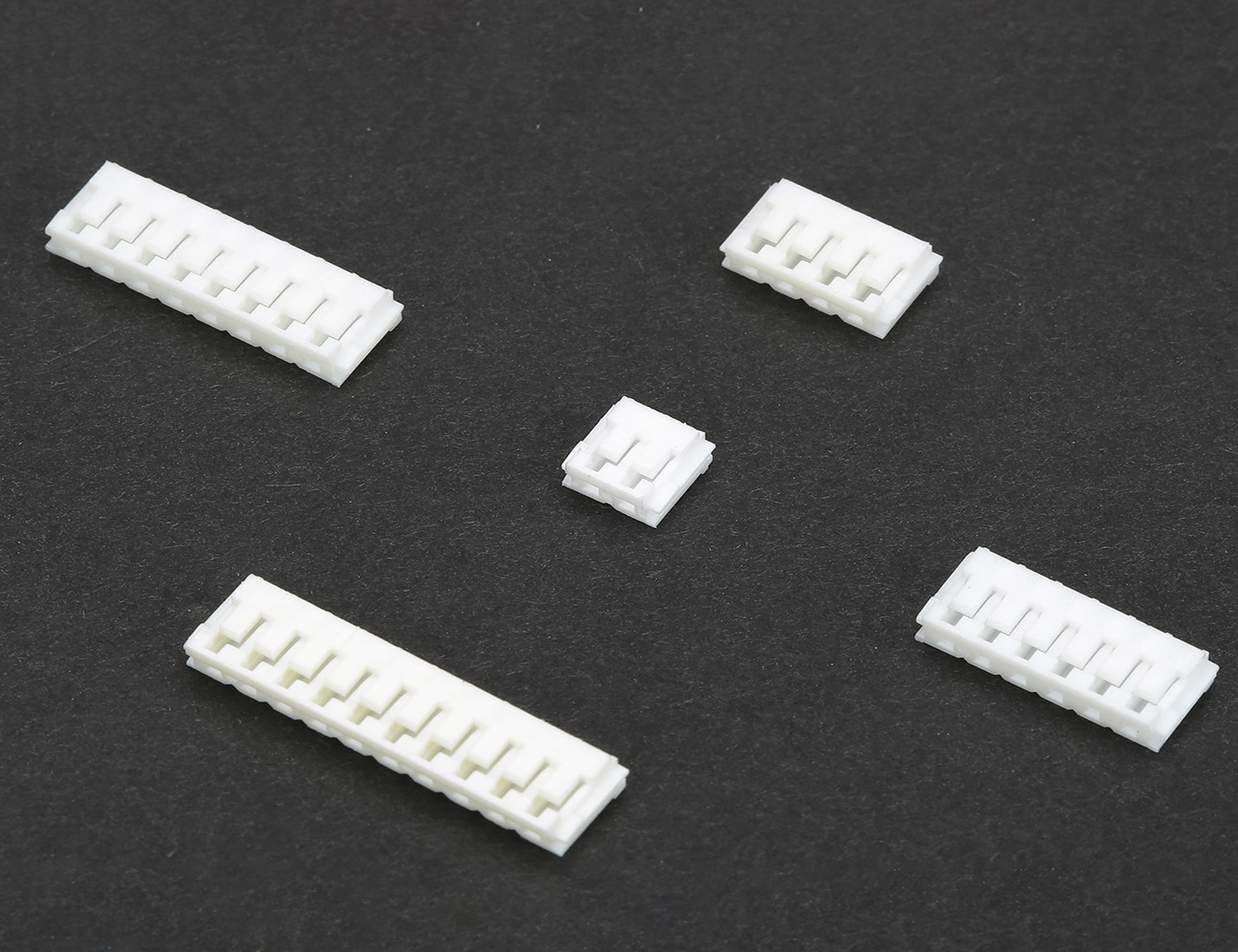

250G1-02H 2 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
250G1-03R 3 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-03S 3 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-03H 3 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
250G1-04R 4 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-04S 4 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-04H 4 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
250G1-05R 5 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-05S 5 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-05H 5 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
250G1-06R 6 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-06S 6 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-06H 6 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
250G1-07R 7 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-07S 7 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-07H 7 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
250G1-08R 8 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-08S 8 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-08H 8 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
250G1-09R 9 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-09S 9 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-09H 9 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
250G1-10R 10 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-10S 10 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-10H 10 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
250G1-11R 11 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-11S 11 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-11H 11 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
250G1-12R 12 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-12S 12 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-12H 12 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
250G1-13R 13 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-13S 13 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-13H 13 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
250G1-14R 14 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-14S 14 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-14H 14 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
250G1-15R 15 Pin 2.50mm DIP Pcb Type Male 90º 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-15S 15 Pin 2.50mm DIP Pcb Type Male Upright 2.5A 600V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
250G1-15H 15 Pin 2.50mm Female 2.5A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

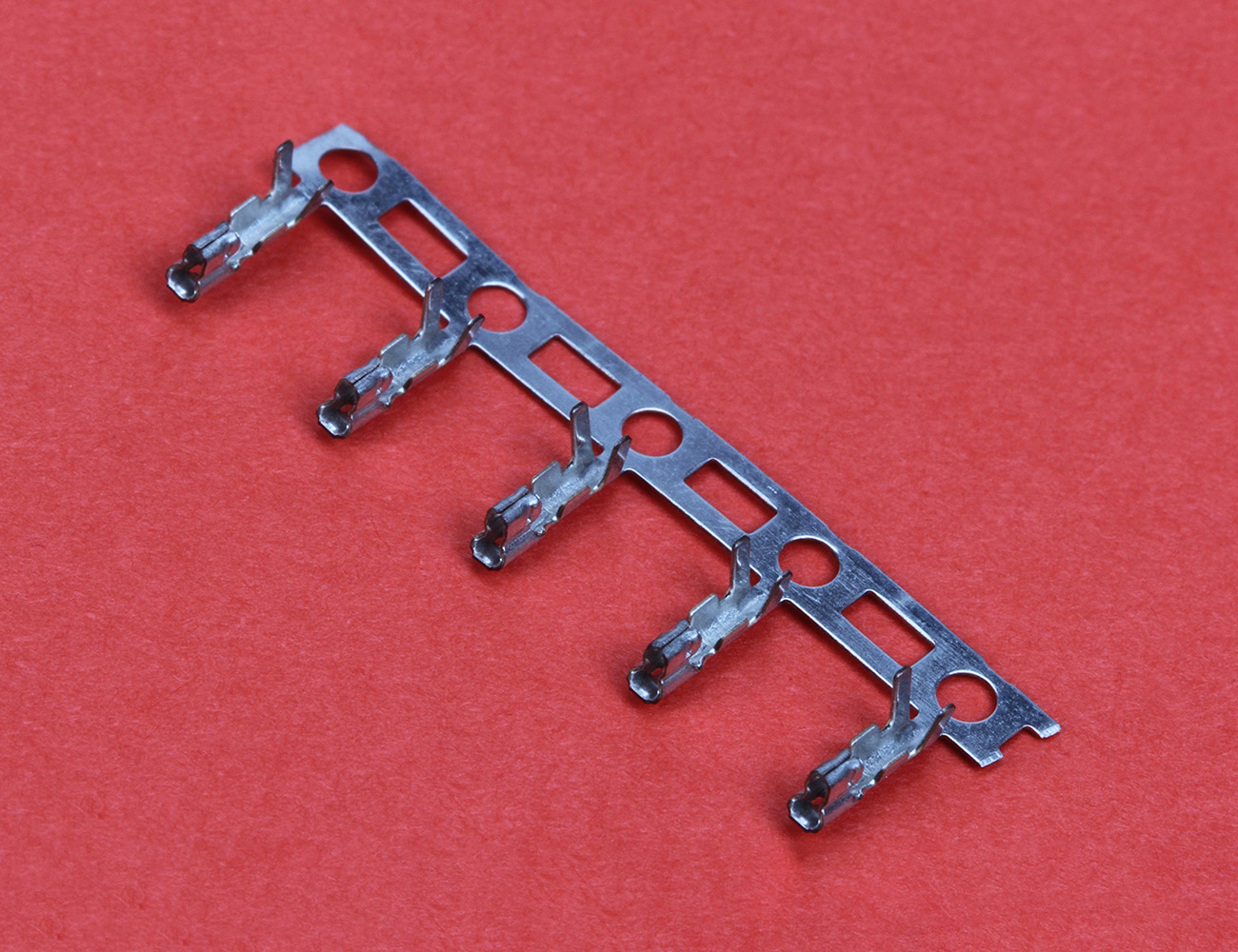

250G1-T Crimp Terminal Female - - - - -
