Signal 2319 Series

Signal 2319 Series

Signal 2319 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin
2319-02S 2 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-02R 2 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-02H 2 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
2319-03S 3 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-03R 3 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-03H 3 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
2319-04S 4 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-04R 4 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-04H 4 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
2319-05S 5 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-05R 5 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-05H 5 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
2319-06S 6 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-06R 6 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-06H 6 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
2319-07S 7 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-07R 7 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-07H 7 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
2319-08S 8 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-08R 8 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-08H 8 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
2319-09S 9 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-09R 9 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-09H 9 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
2319-10S 10 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-10R 10 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-10H 10 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
2319-11S 11 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-11R 11 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-11H 11 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
2319-12S 12 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-12R 12 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-12H 12 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
2319-13S 13 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-13R 13 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-13H 13 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
2319-14S 14 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-14R 14 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-14H 14 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
2319-15S 15 Pin 2.54mm DIP Pcb Type Male Upright 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-15R 15 Pin 2.54mm DIP Pcb Type Male 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-15H 15 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
16 Pin
2319-16S 16 Pin 2.54mm DIP Pcb Tip Erkek Dik 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-16R 16 Pin 2.54mm DIP Pcb Tip Erkek 90º 4A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2319-16H 16 Pin 2.54mm Female 4A 250V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

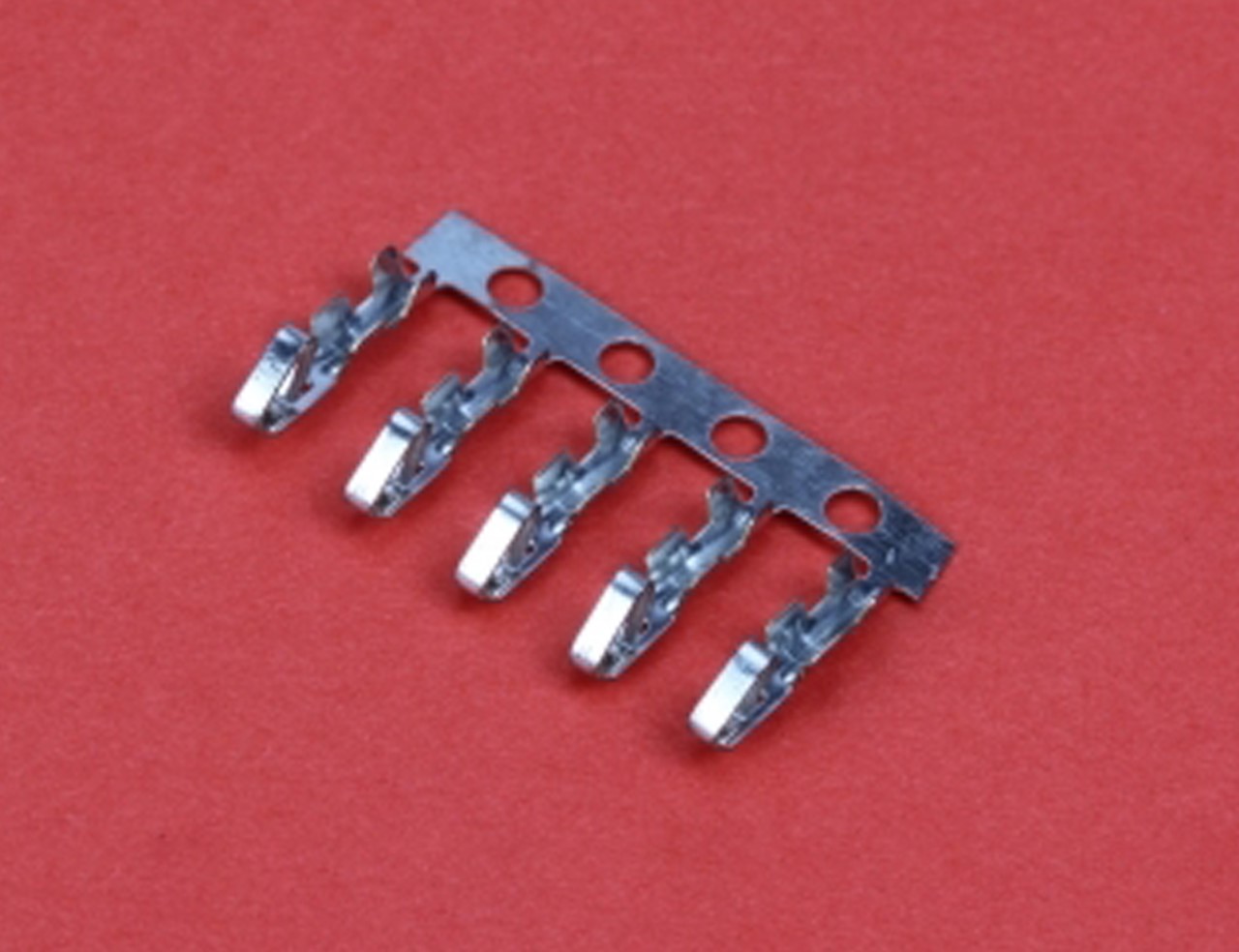

2319-T Crimp Terminal Female - - - - -
