Signal 2317 Series

Signal 2317 Series

Signal 2317 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

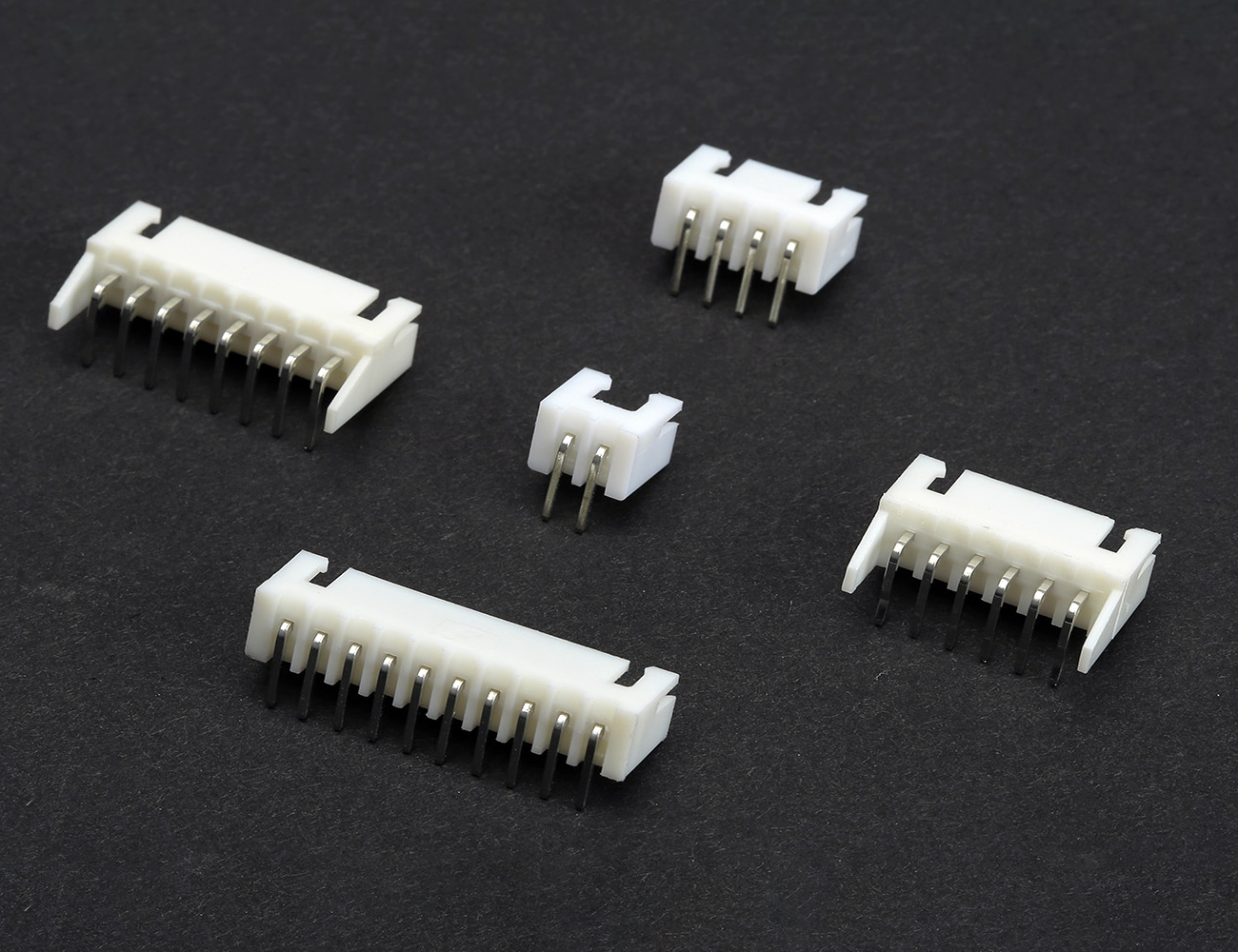

2317-02R 2 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

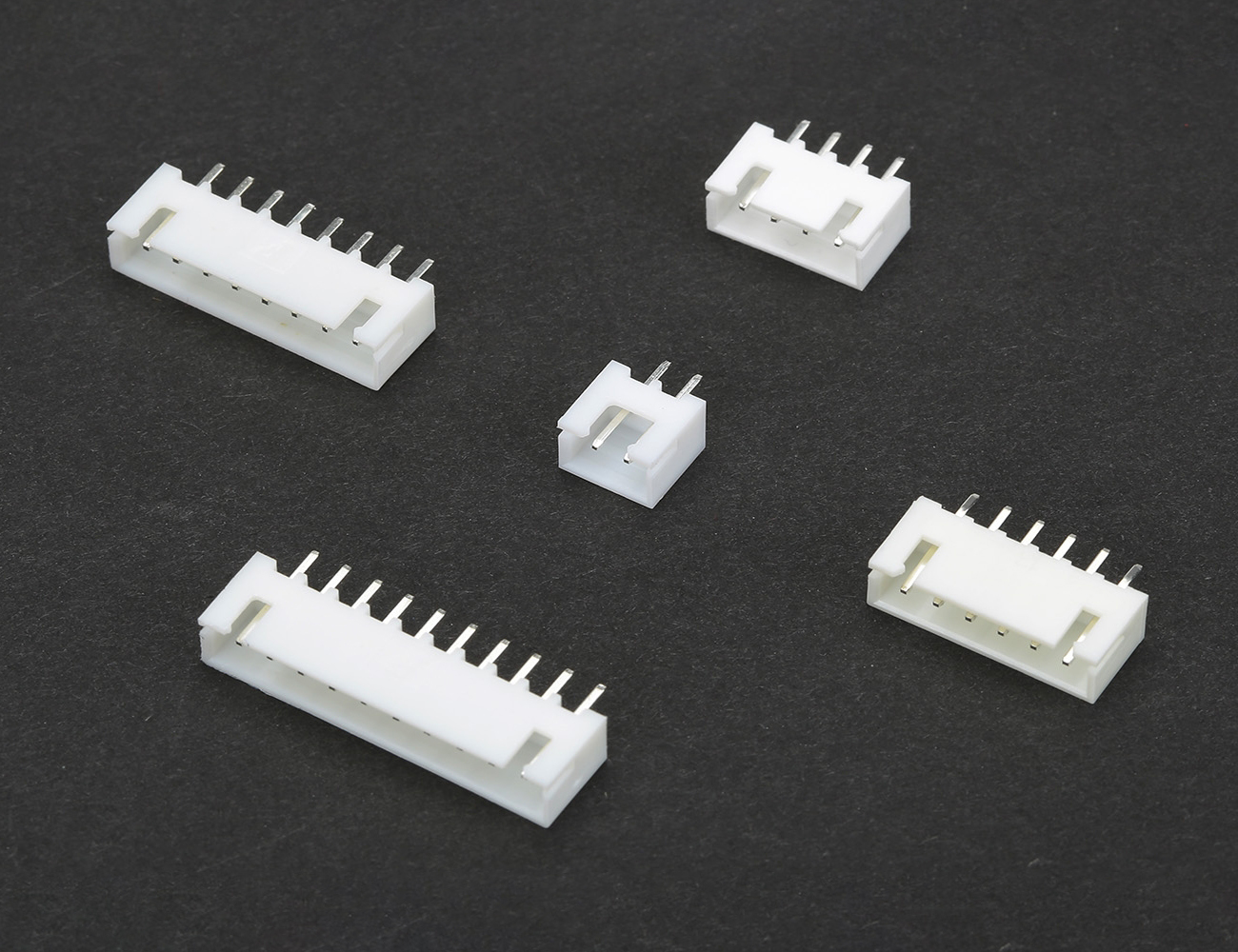

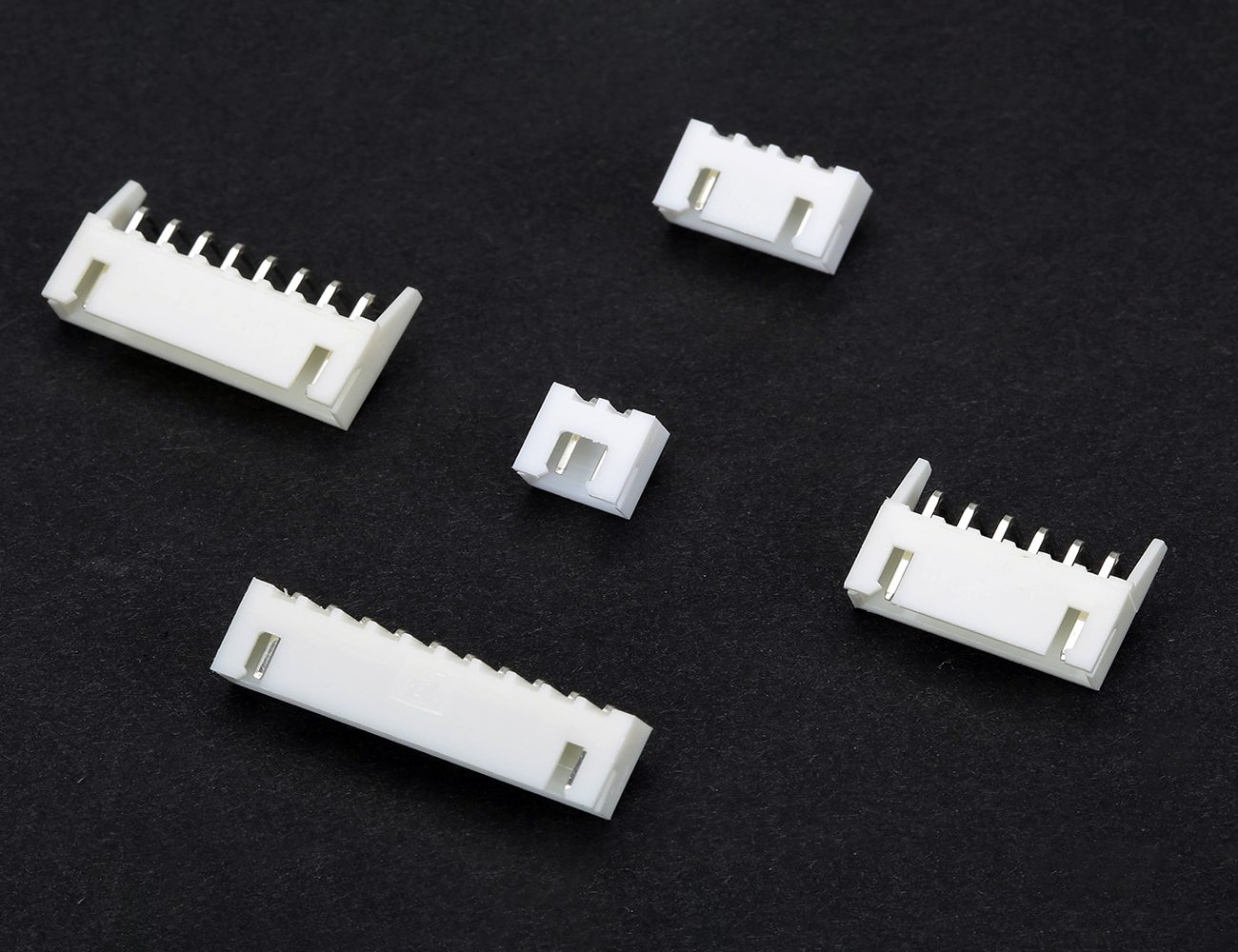

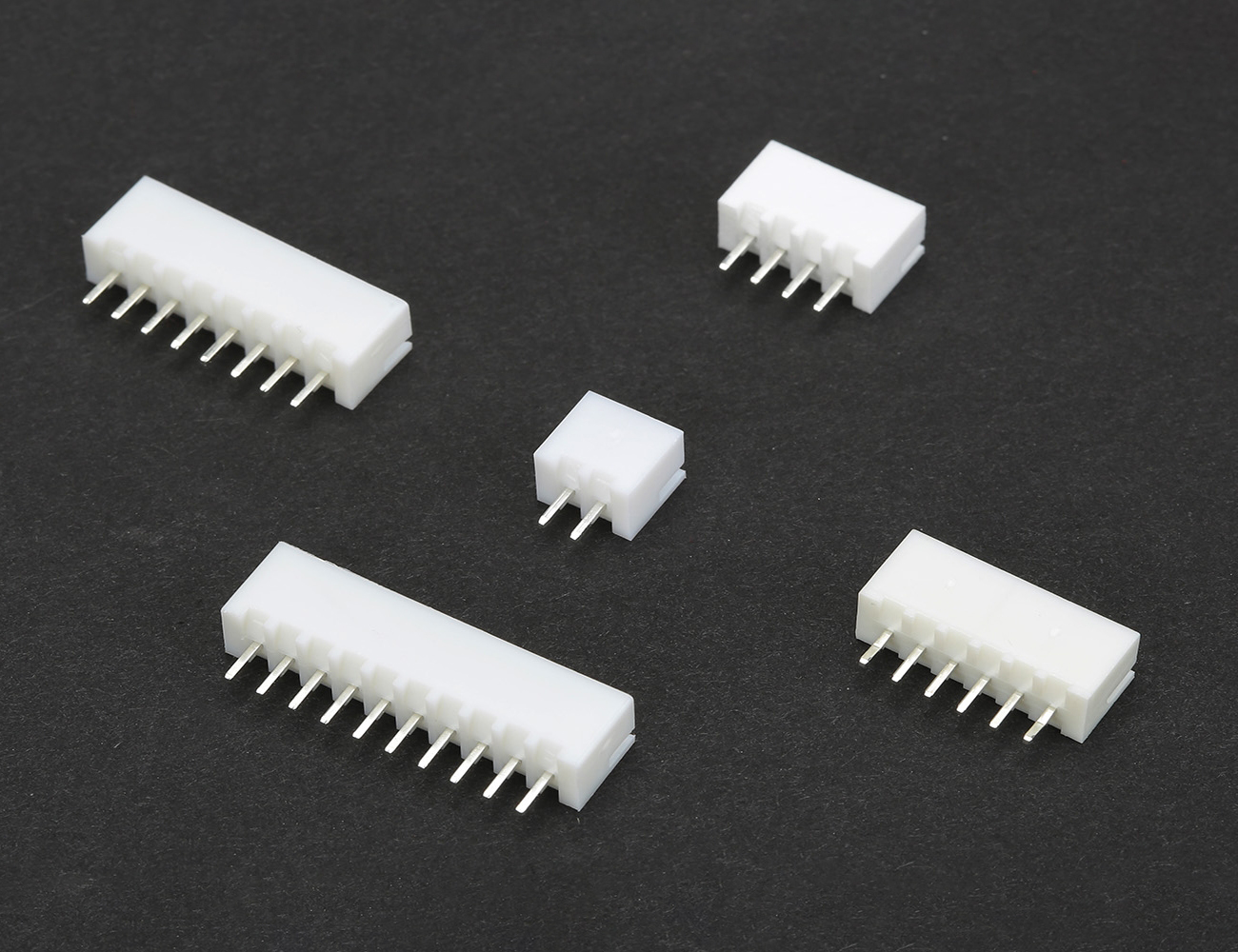

2317-02S 2 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

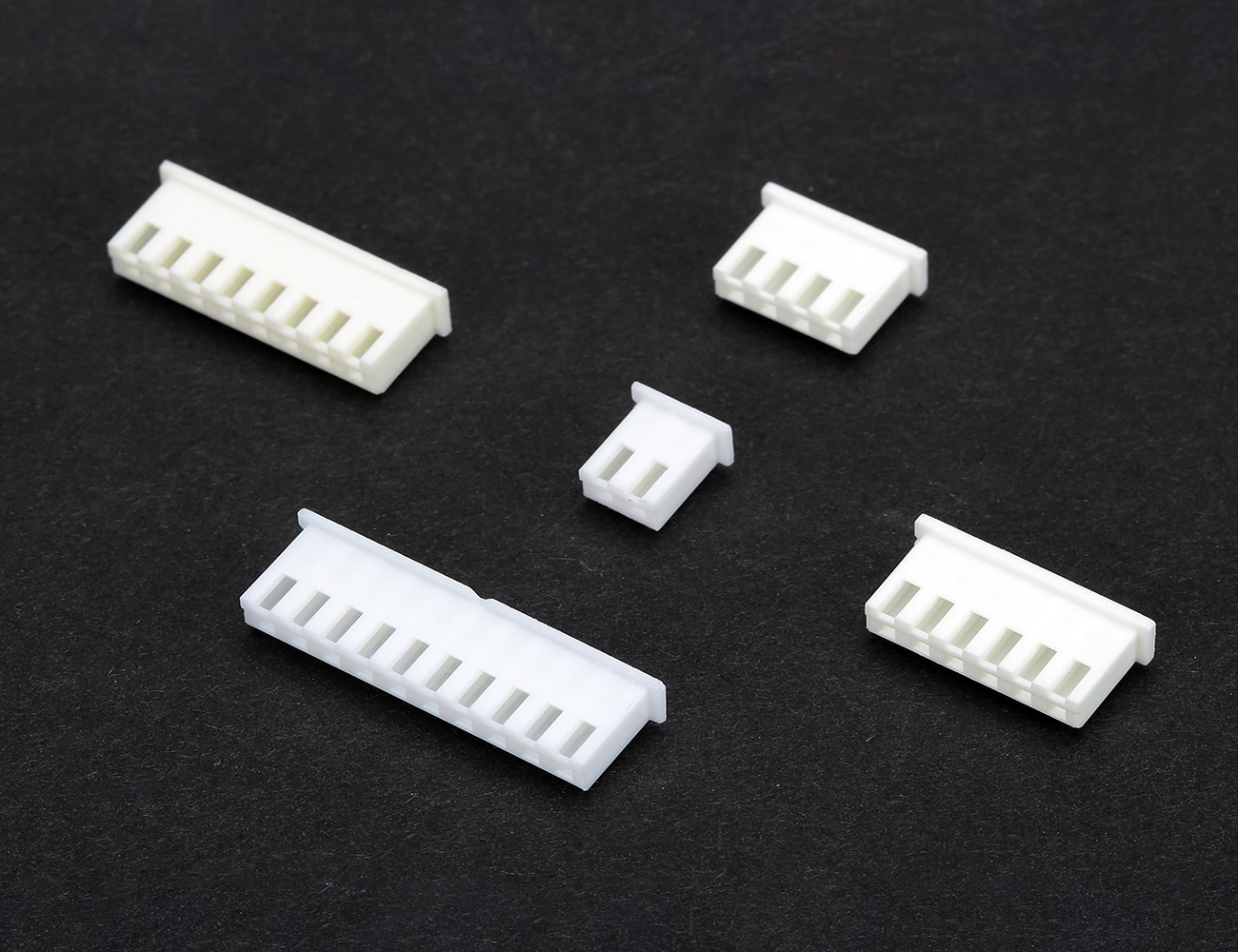

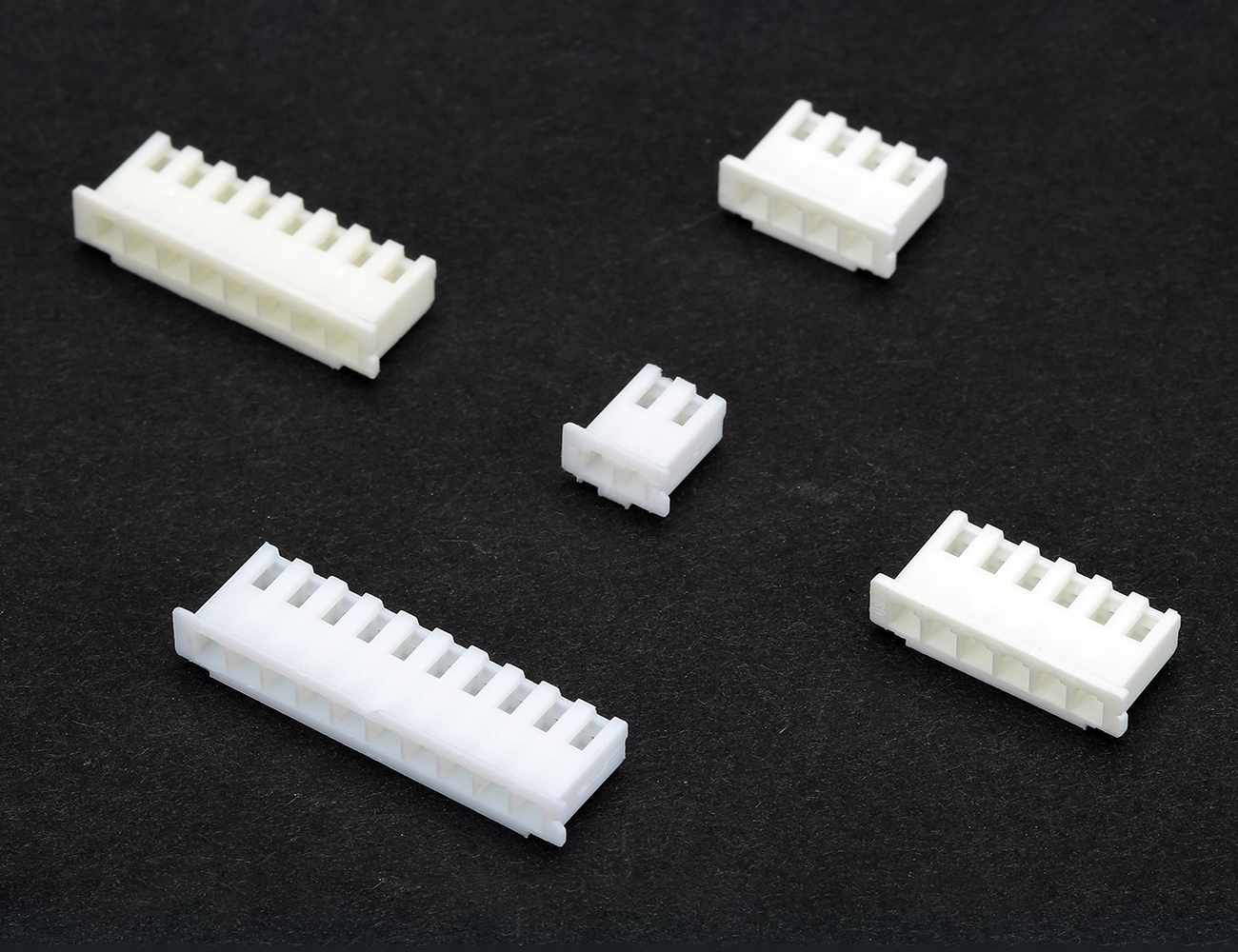

2317-02H 2 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
2317-03R 3 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-03S 3 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-03H 3 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
2317-04R 4 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-04S 4 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-04H 4 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
2317-05R 5 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-05S 5 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-05H 5 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
2317-06R 6 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-06S 6 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-06H 6 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
2317-07R 7 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-07S 7 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-07H 7 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
2317-08R 8 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-08S 8 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-08H 8 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
2317-09R 9 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-09S 9 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-09H 9 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
2317-10R 10 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-10S 10 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-10H 10 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
2317-11R 11 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-11S 11 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-11H 11 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
2317-12R 12 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-12S 12 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-12H 12 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
2317-13R 13 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-13S 13 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-13H 13 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
2317-14R 14 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-14S 14 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-14H 14 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
2317-15R 15 Pin 2.50mm DIP Pcb Type Male 90º 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-15S 15 Pin 2.50mm DIP Pcb Type Male Upright 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2317-15H 15 Pin 2.50mm Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

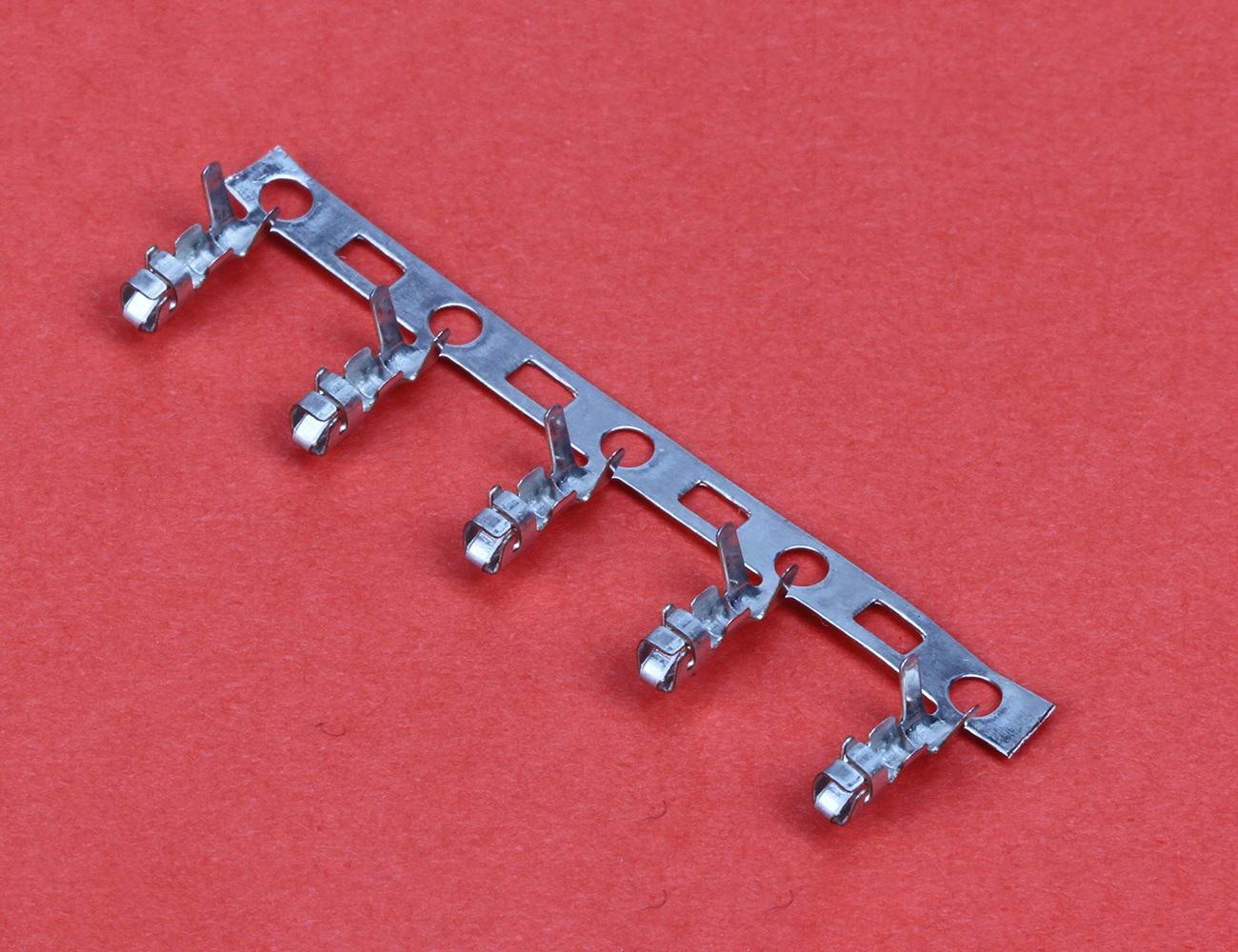

2317-T Crimp Terminal Female - - - - -
