Signal 2316 Series

Signal 2316 Series

Signal 2316 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

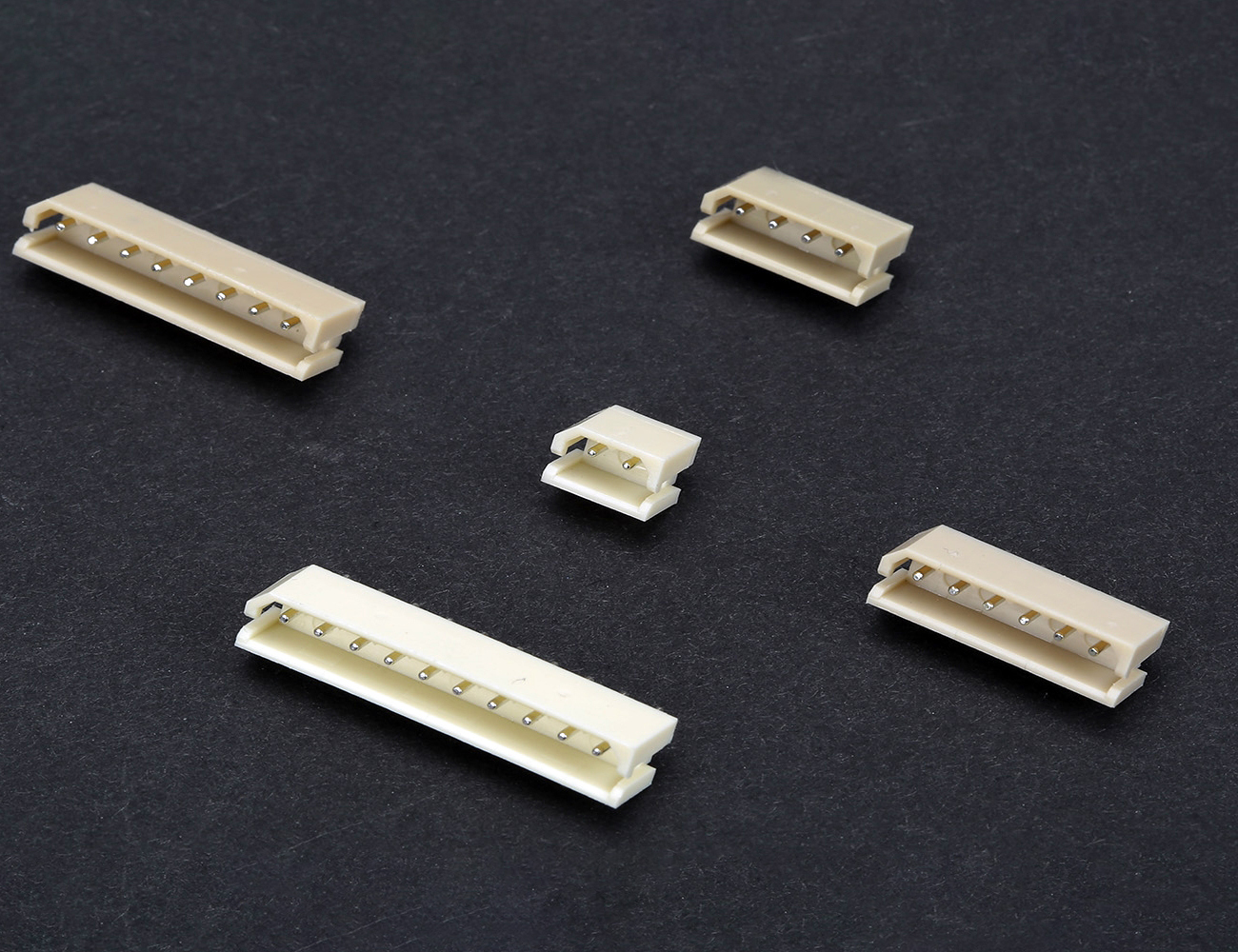

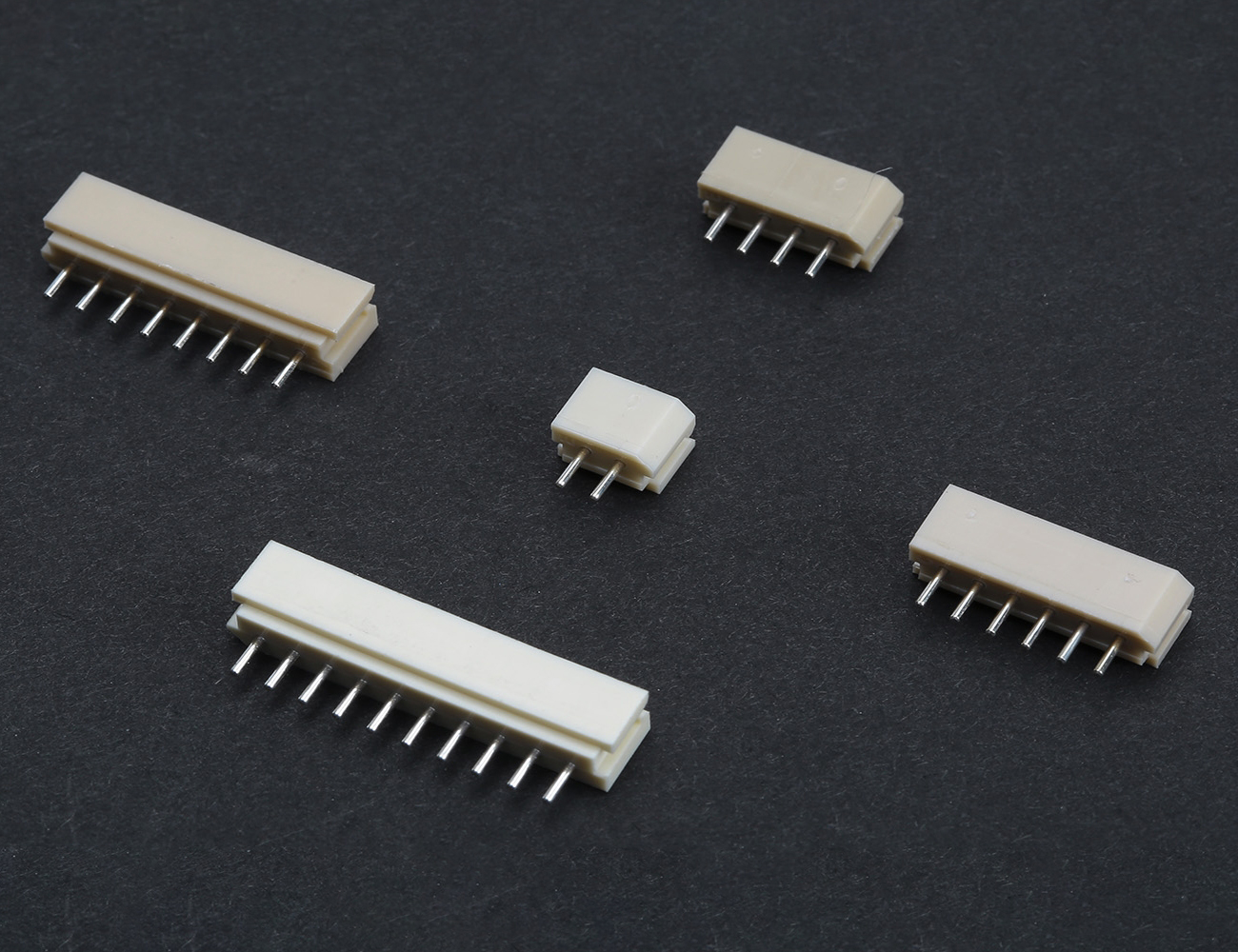

2316-02S 2 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C

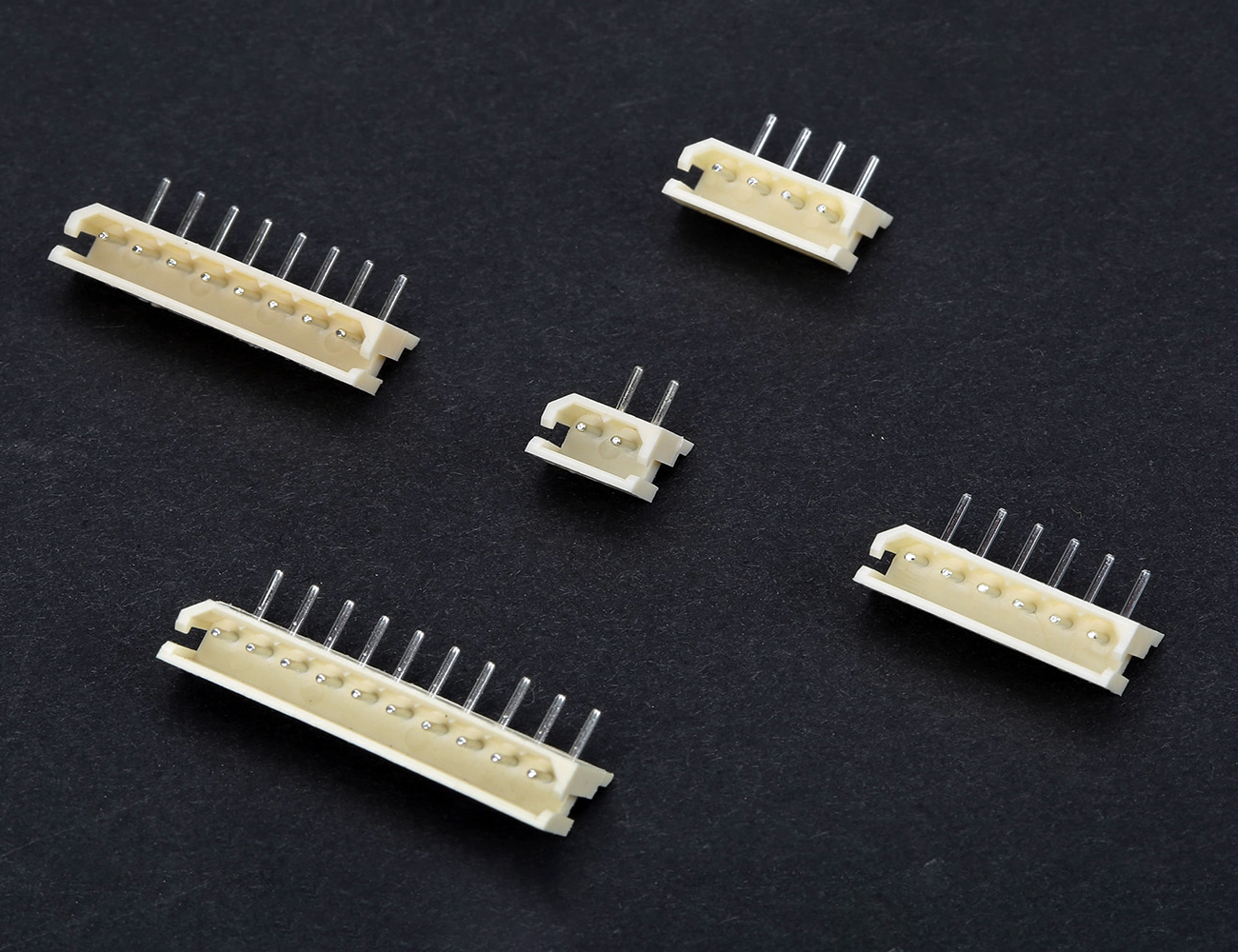

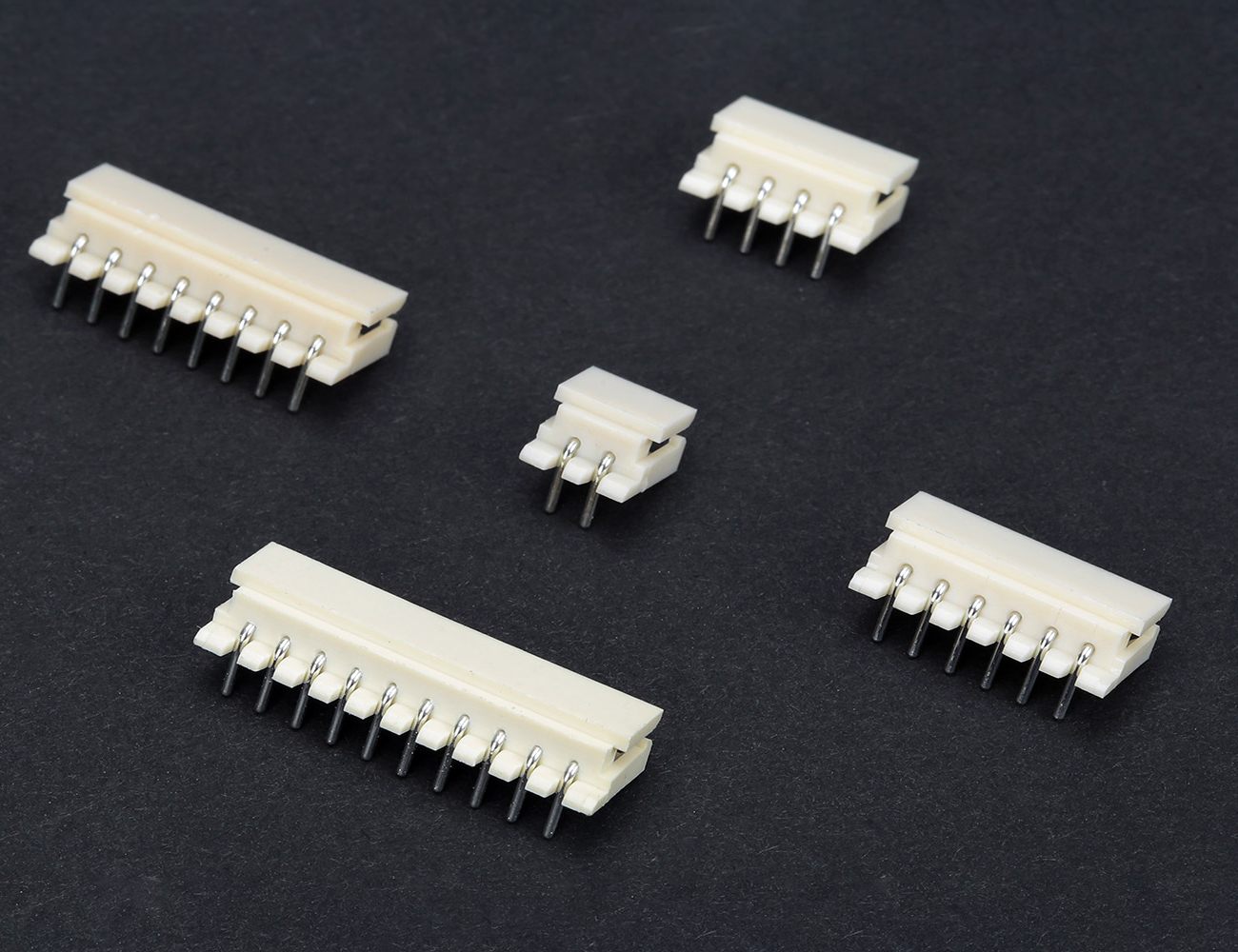

2316-02R 2 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C

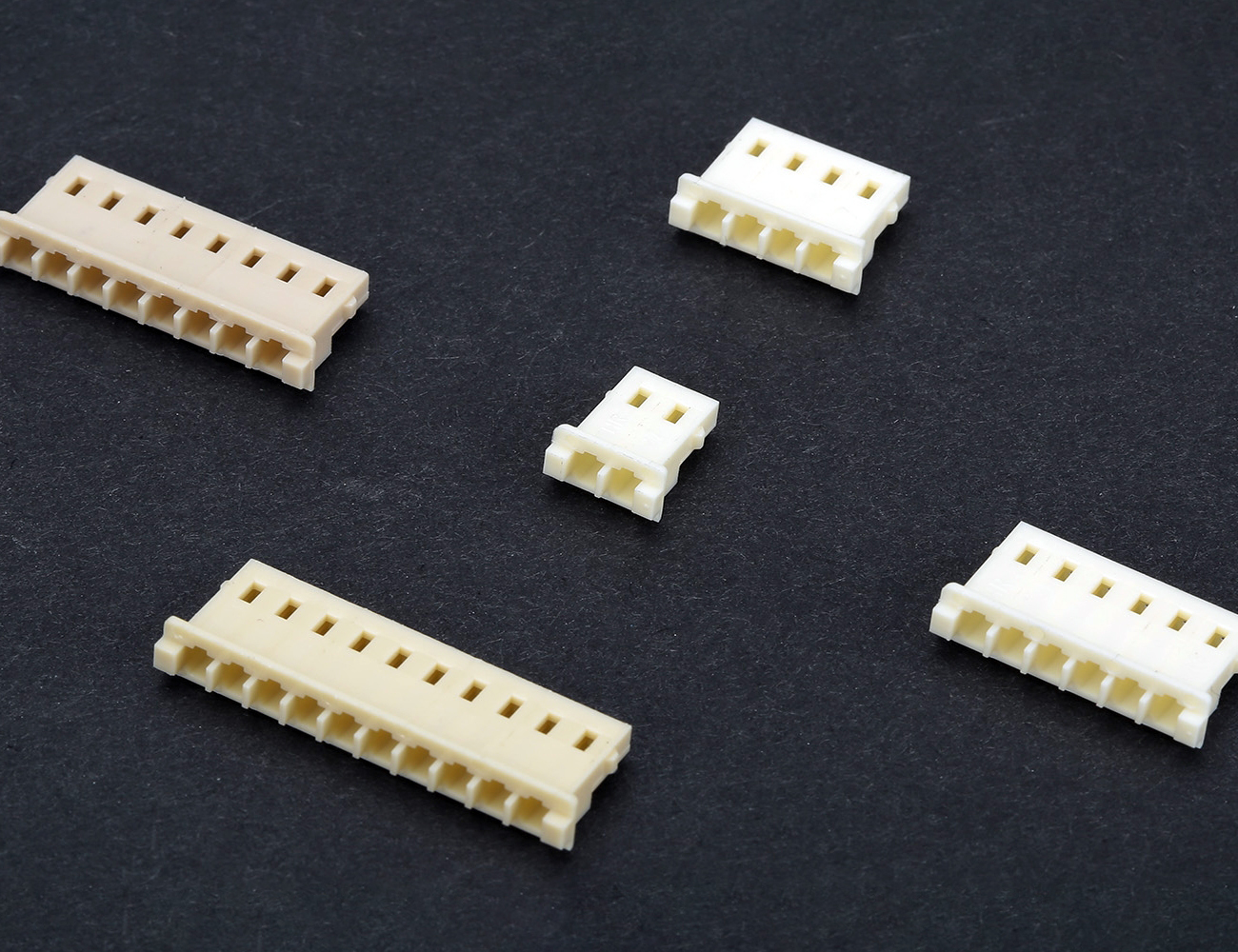

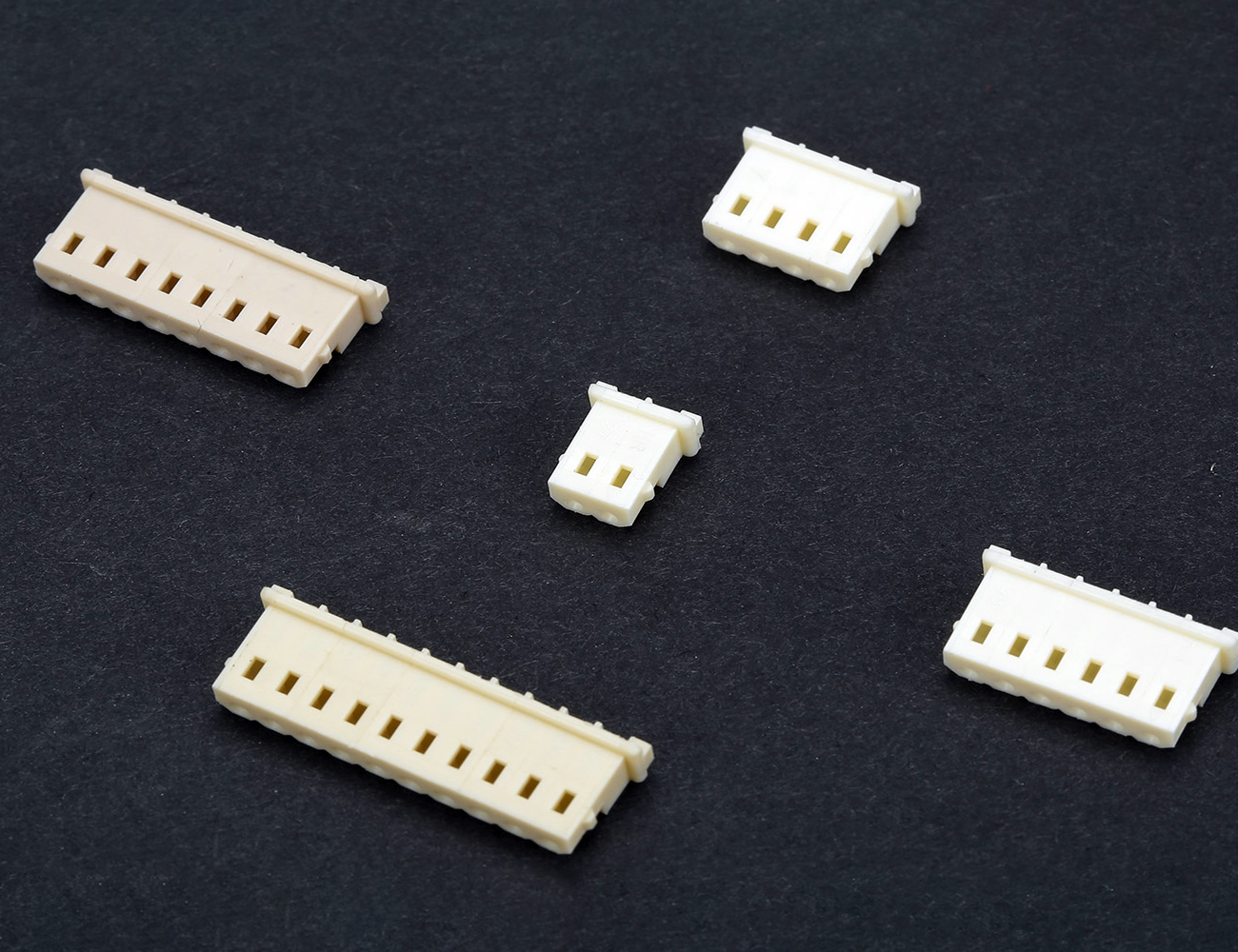

2316-02H 2 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
2316-03S 3 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-03R 3 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-03H 3 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
2316-04S 4 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-04R 4 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-04H 4 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
2316-05S 5 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-05R 5 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-05H 5 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite PA 66 UL94V-0 -25°C ~ +85°C
6 Pin
2316-06S 6 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-06R 6 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-06H 6 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
2316-07S 7 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-07R 7 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-07H 7 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite PA 66 UL94V-0 -25°C ~ +85°C
8 Pin
2316-08S 8 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-08R 8 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-08H 8 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
2316-09S 9 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-09R 9 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-09H 9 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
2316-10S 10 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-10R 10 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-10H 10 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
2316-11S 11 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-11R 11 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-11H 11 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
2316-12S 12 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-12R 12 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-12H 12 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
2316-13S 13 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-13R 13 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-13H 13 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
2316-14S 14 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-14R 14 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-14H 14 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
2316-15S 15 Pin 2.50mm DIP Pcb Type Male Upright 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-15R 15 Pin 2.50mm DIP Pcb Type Male 90º 3A / AC / DC 250V / AC/ DC 1000V/ munite PA 66 UL94V-0 -25°C ~ +85°C
2316-15H 15 Pin 2.50mm Female 3A 250V / AC/ DC 1000V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

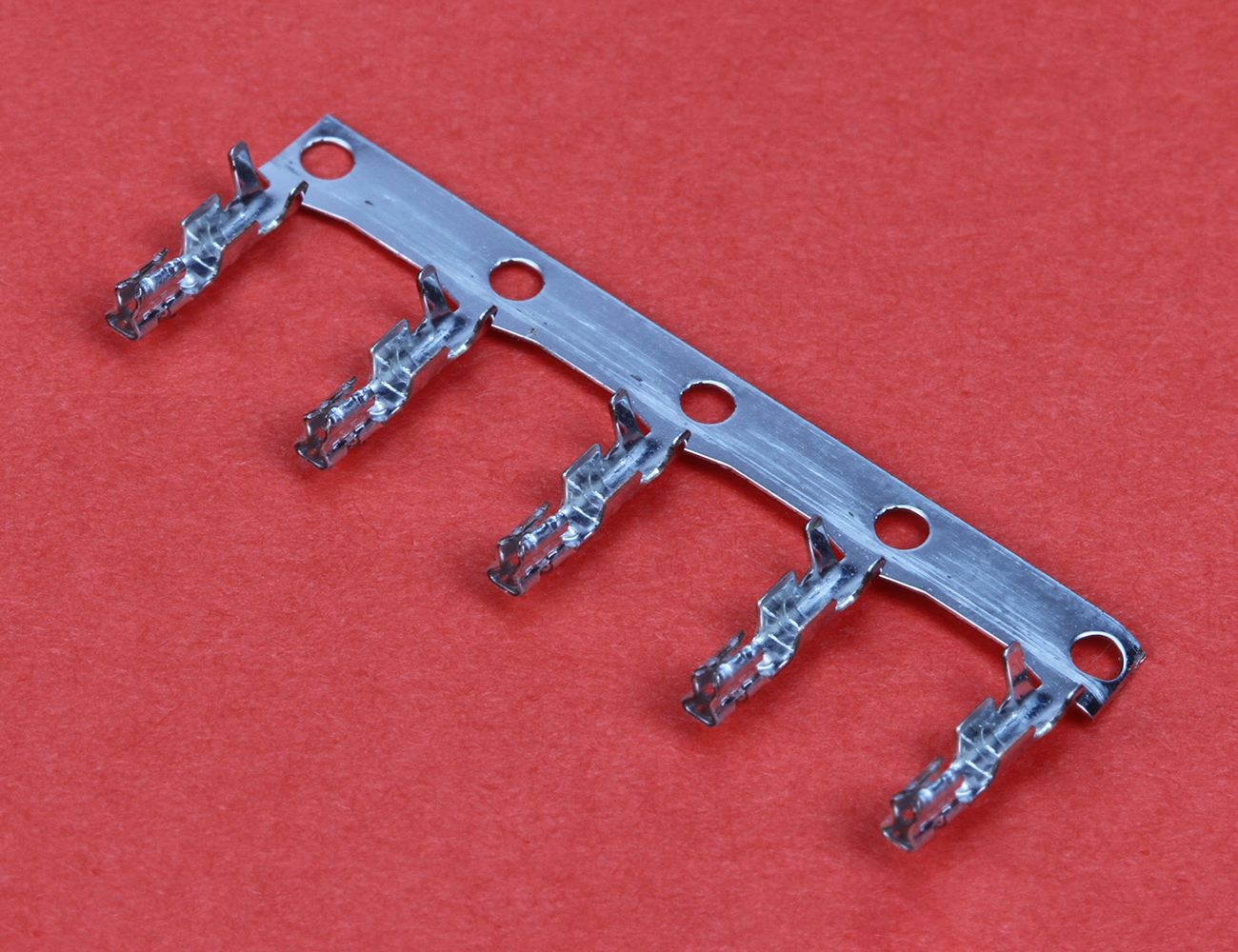

2316-T Crimp Terminal Female - - - - -
