Signal 2013 Series

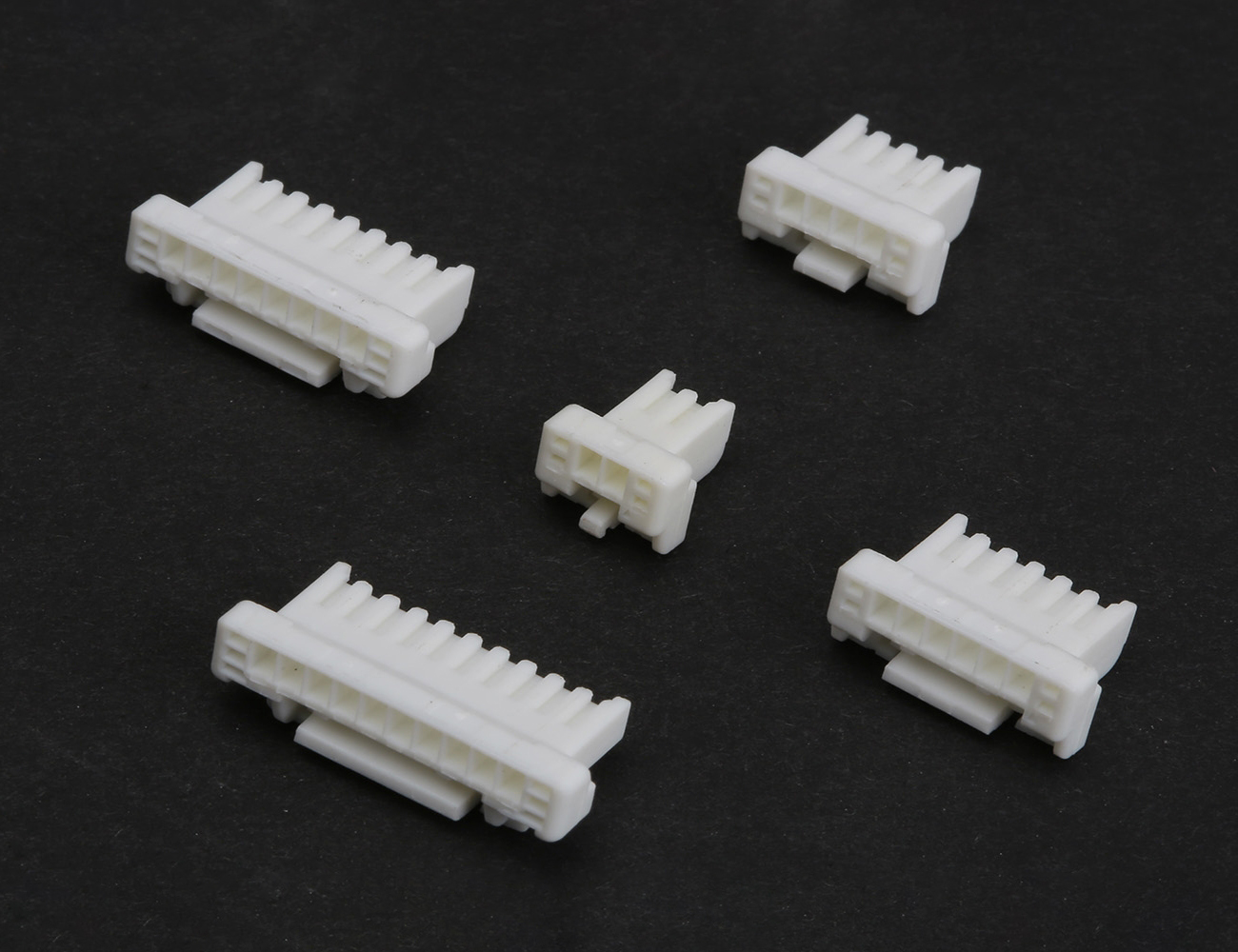

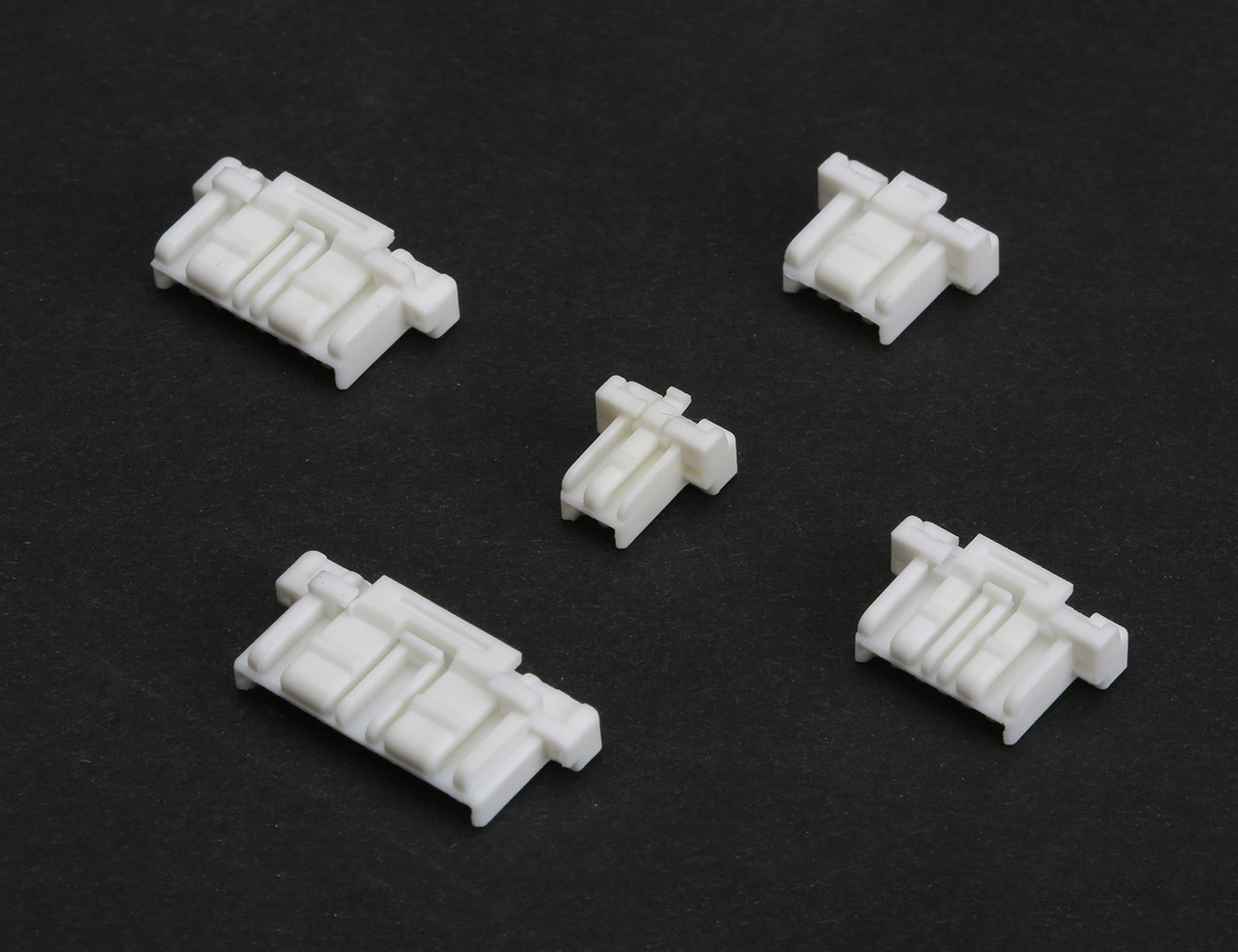

| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 2 Pin | |||||||
| 2013-02H | 2 Pin 1.50mm Female | 2A | 100V / AC/ DC | 800V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 3 Pin | |||||||
| 2013-03H | 3 Pin 1.50mm Female | 2A | 100V / AC/ DC | 800V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 5 Pin | |||||||
| 2013-05H | 5 Pin 1.50mm Female | 2A | 100V / AC/ DC | 800V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| Terminal | |||||||

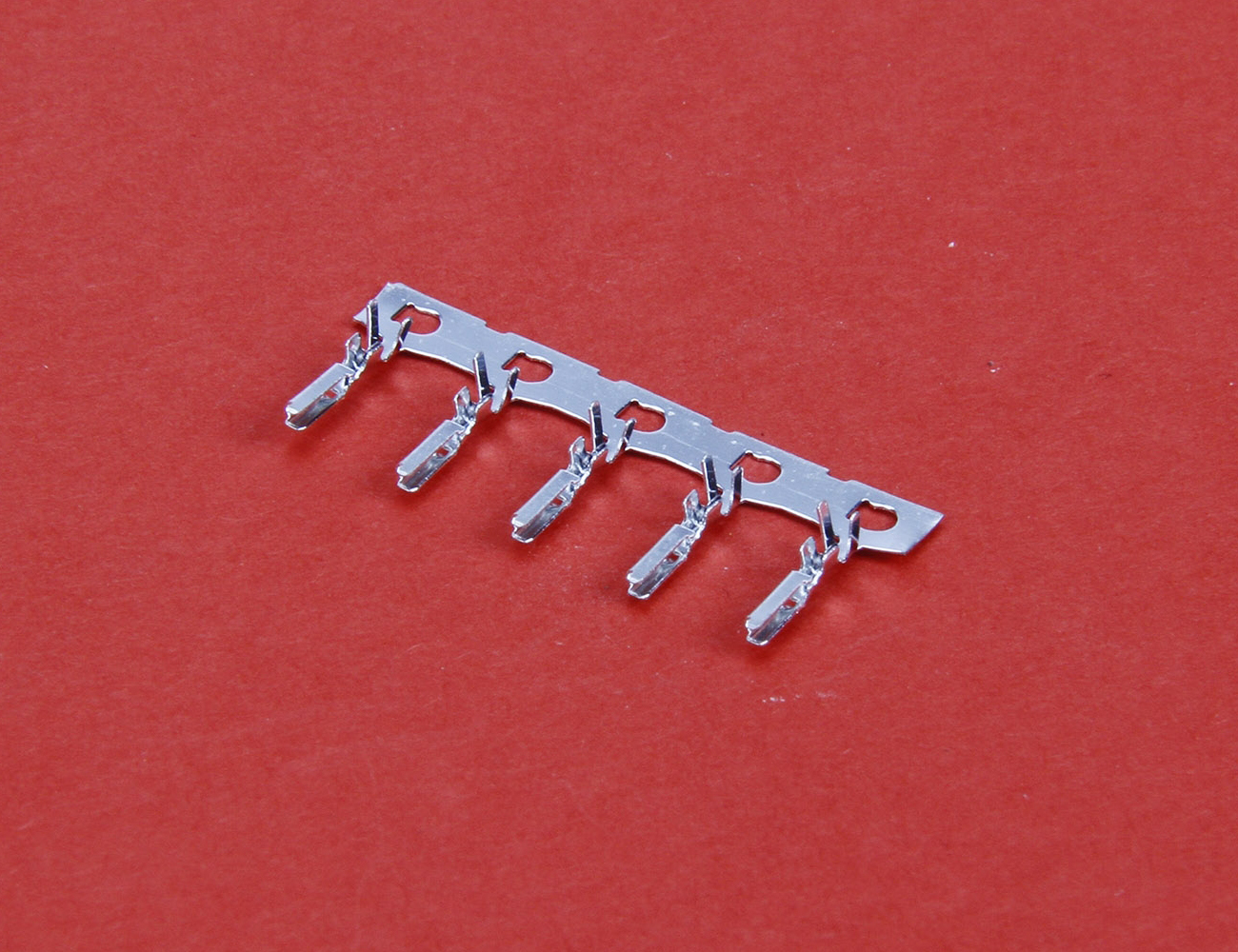

| 2013-T | Crimping Terminal Female | - | - | - | - | - |
|
