Signal 200G1 Series

Signal 200G1 Series

Signal 200G1 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

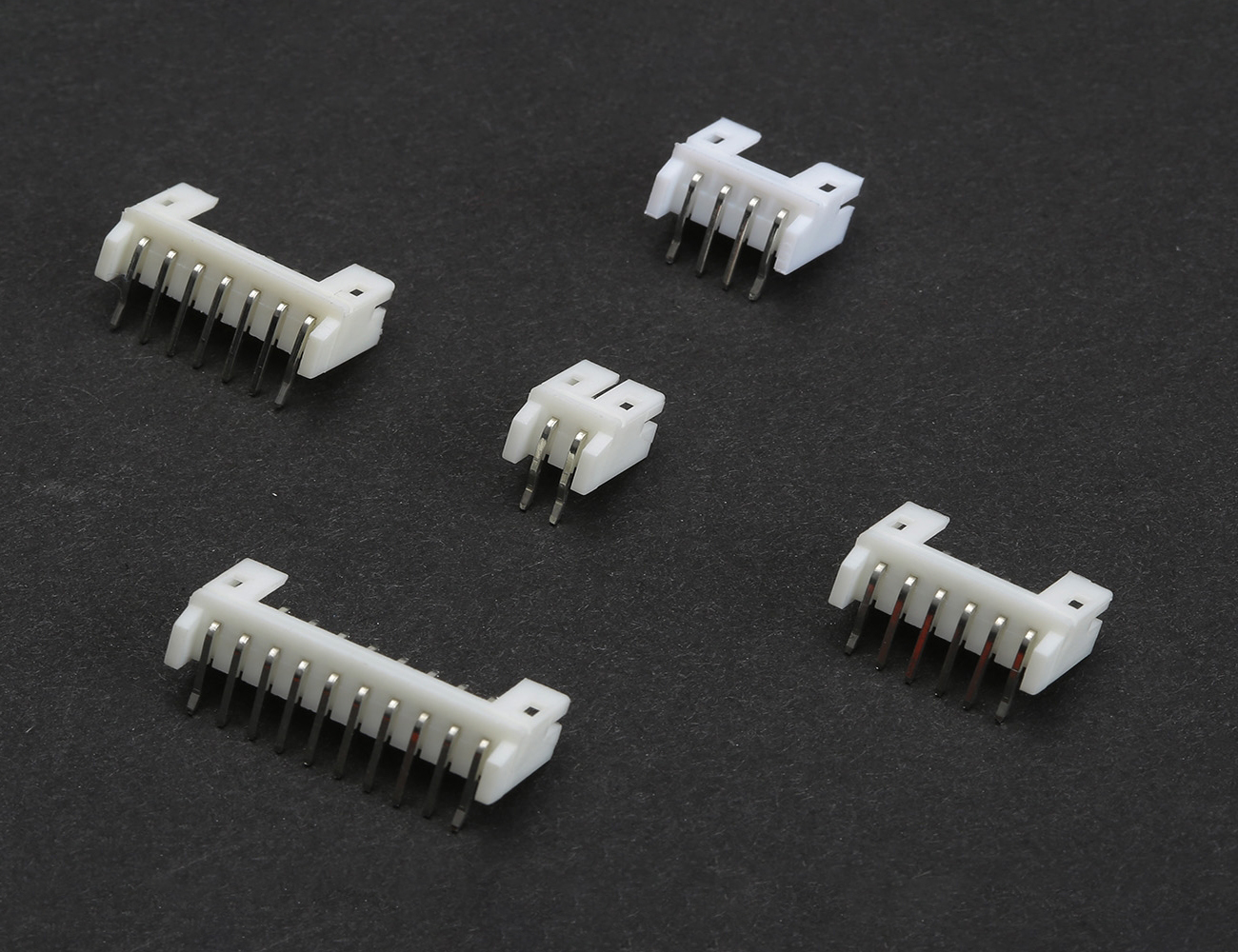

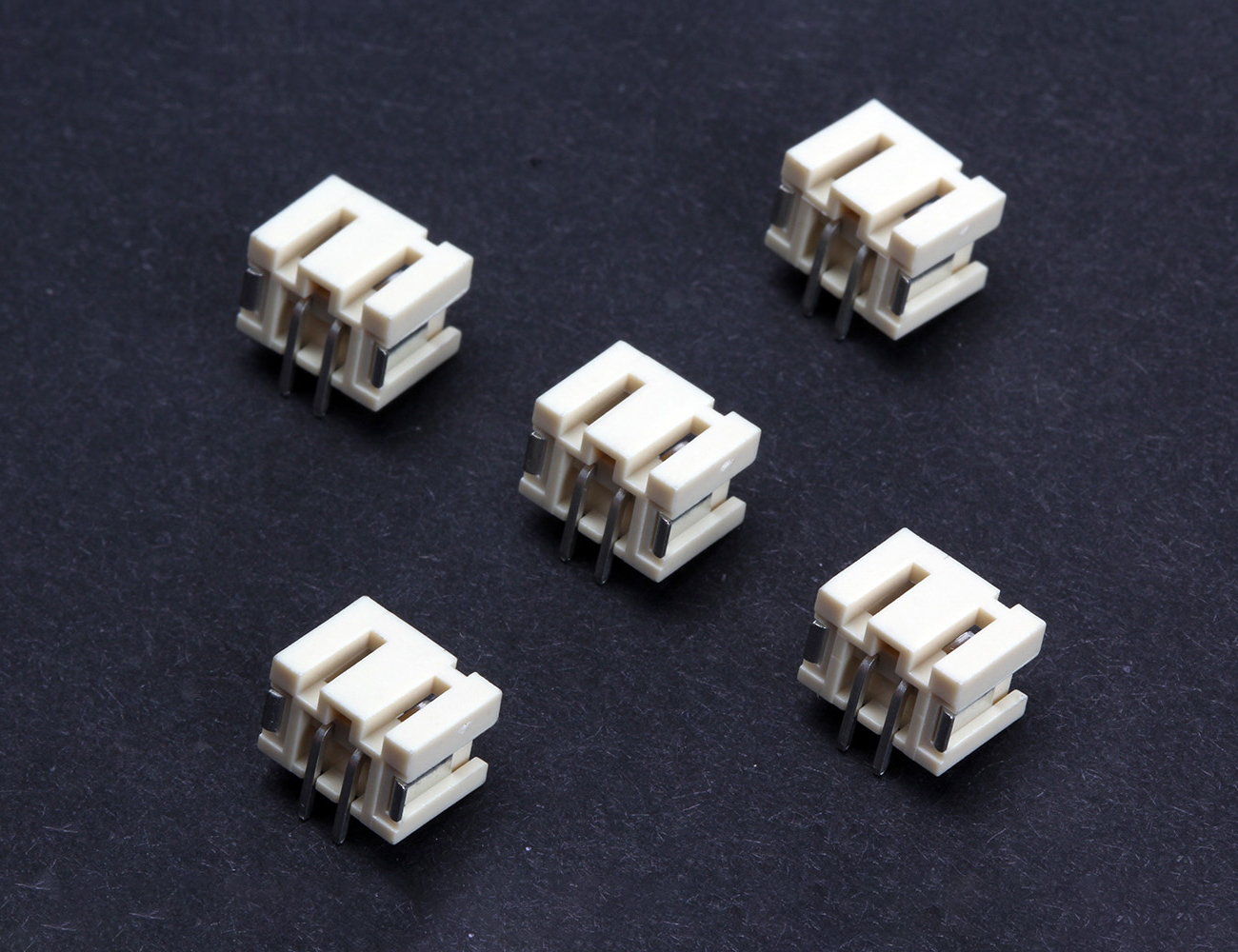

200G1-02R 2 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

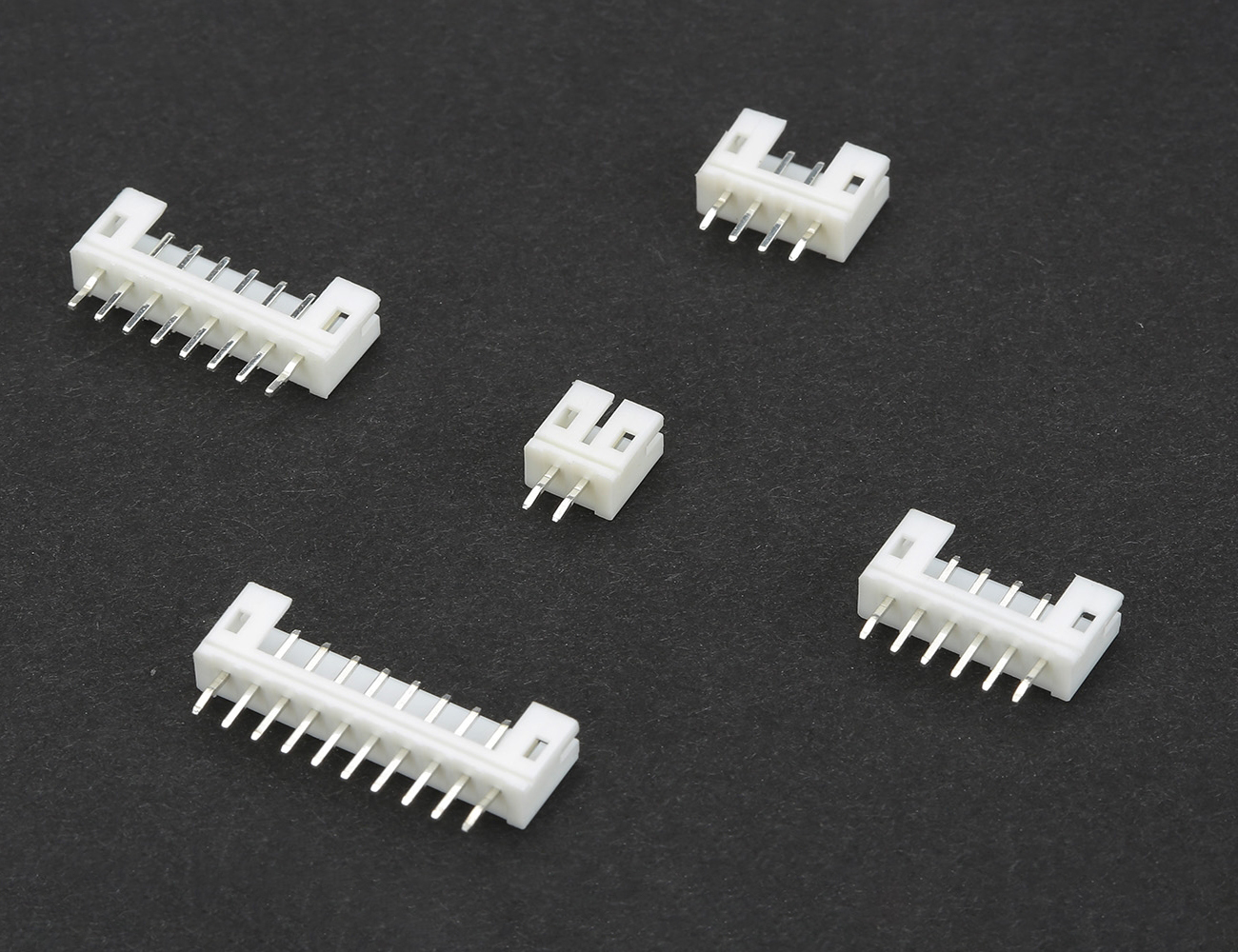

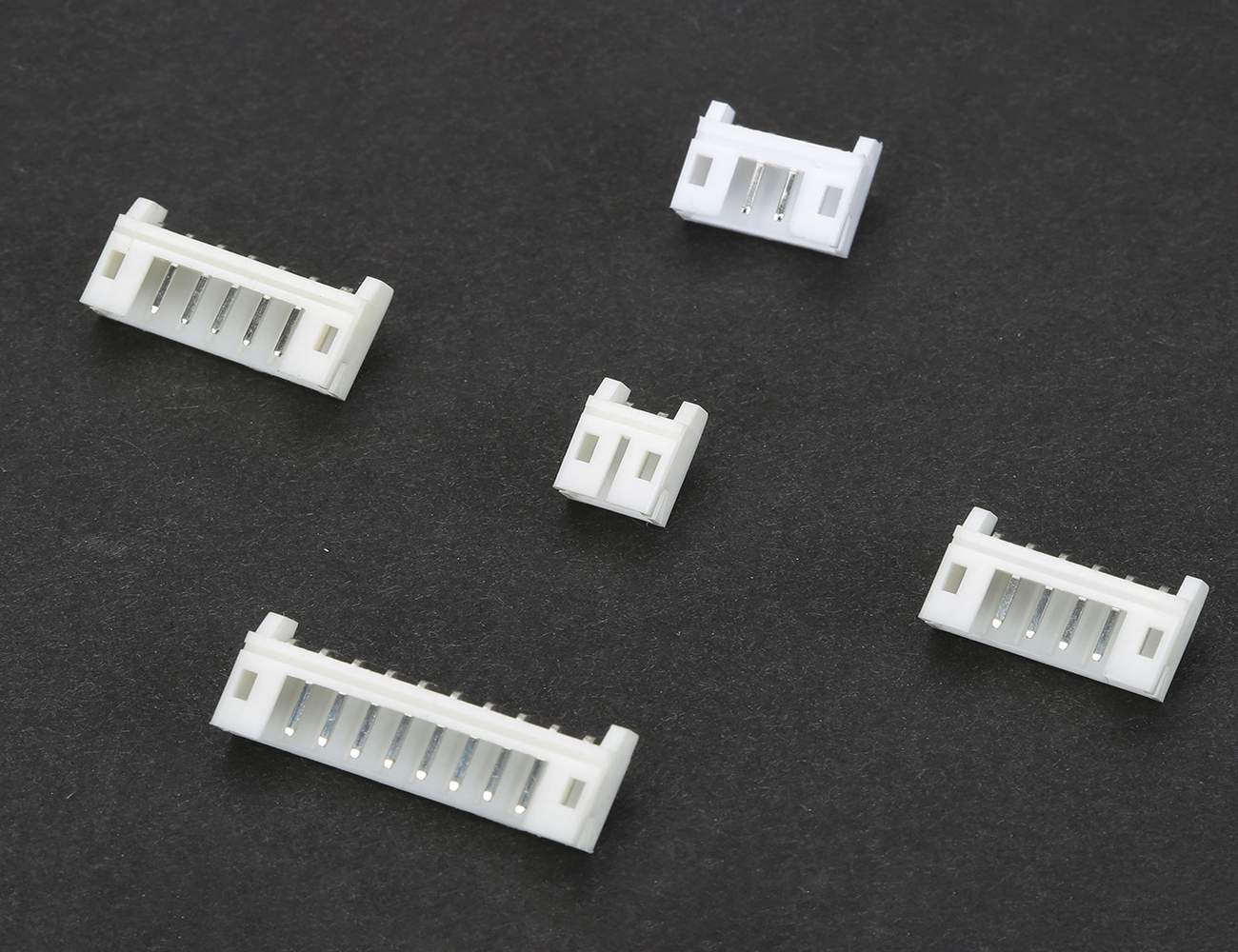

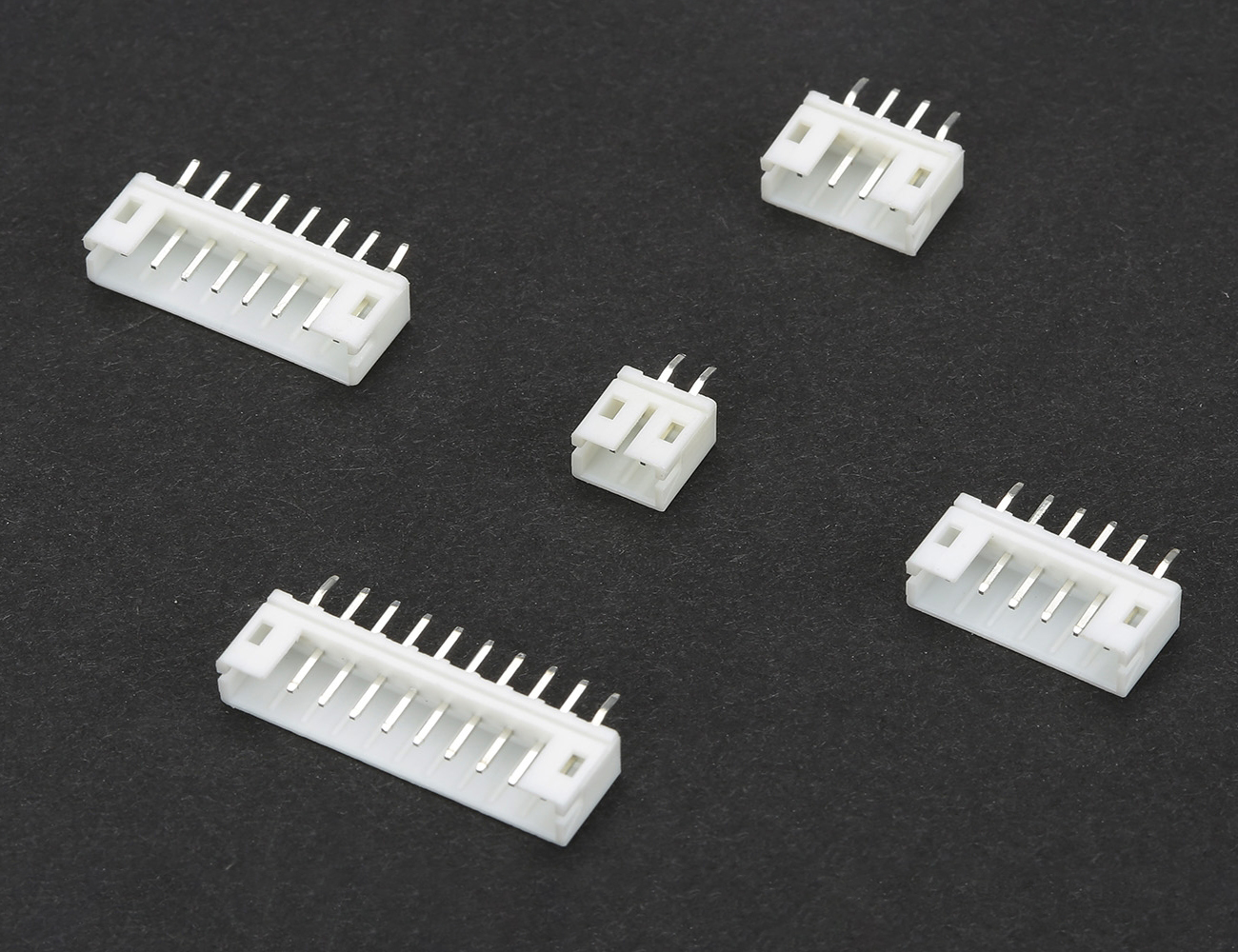

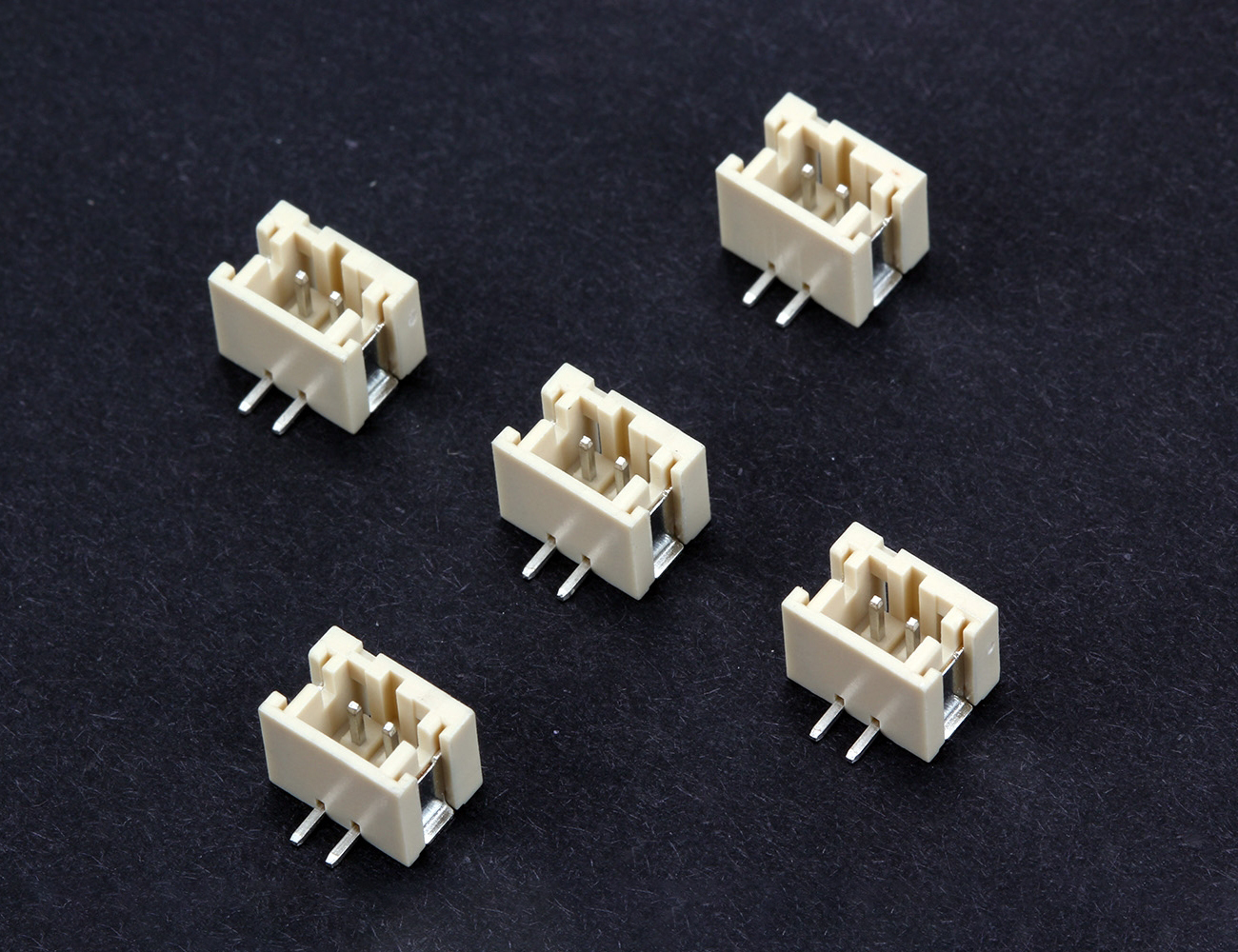

200G1-02S 2 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

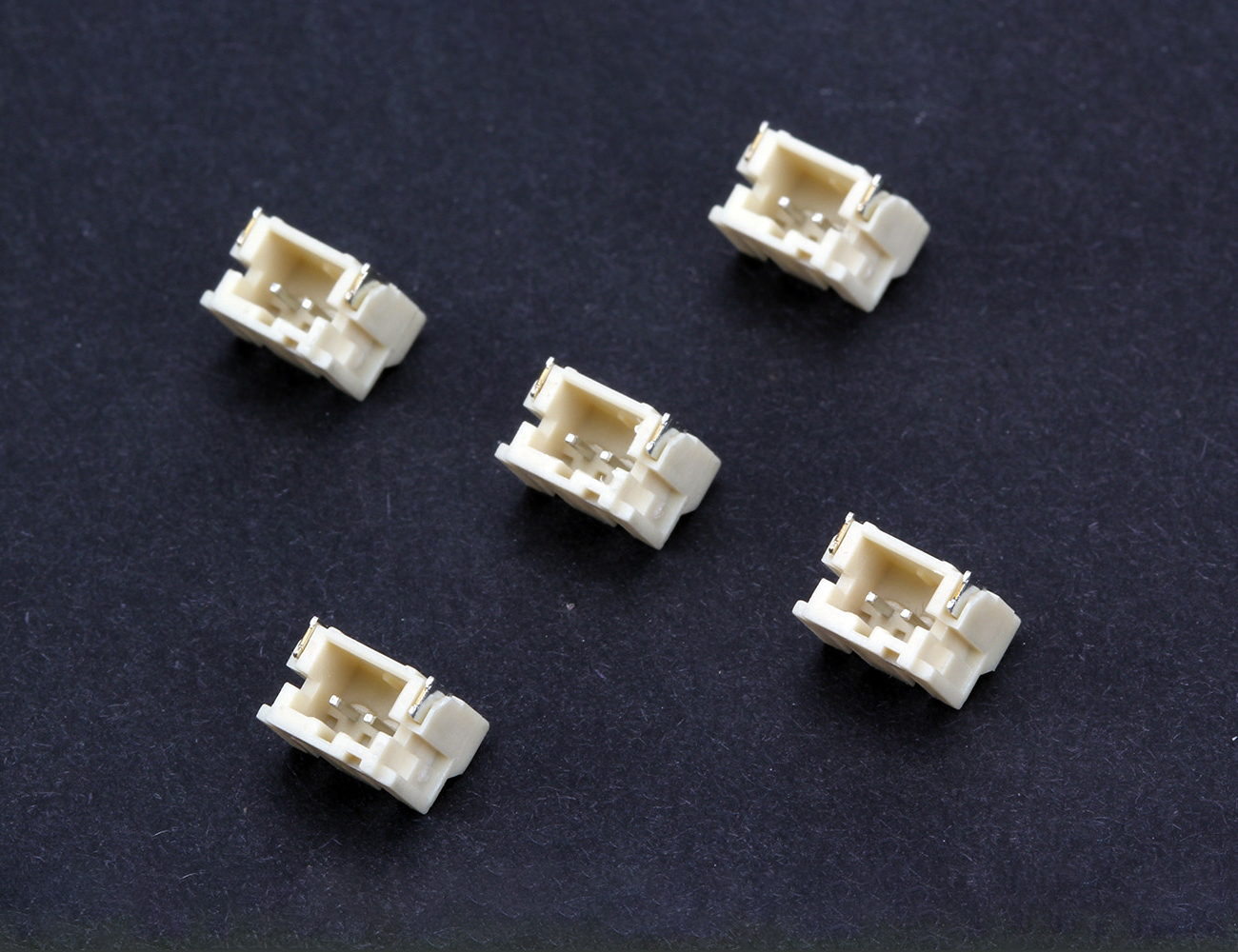

200G1-02SP 2 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C

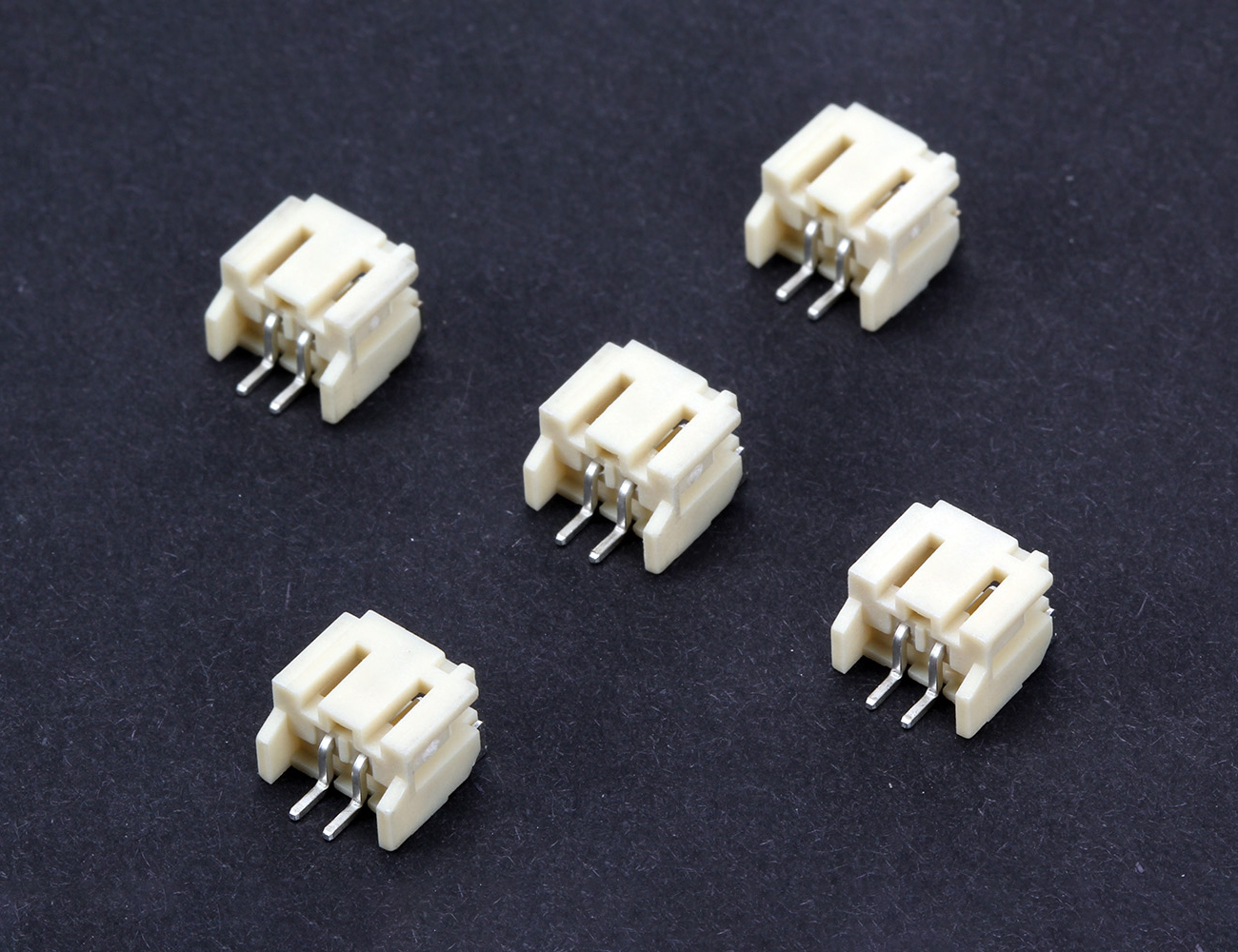

200G1-02RP 2 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C

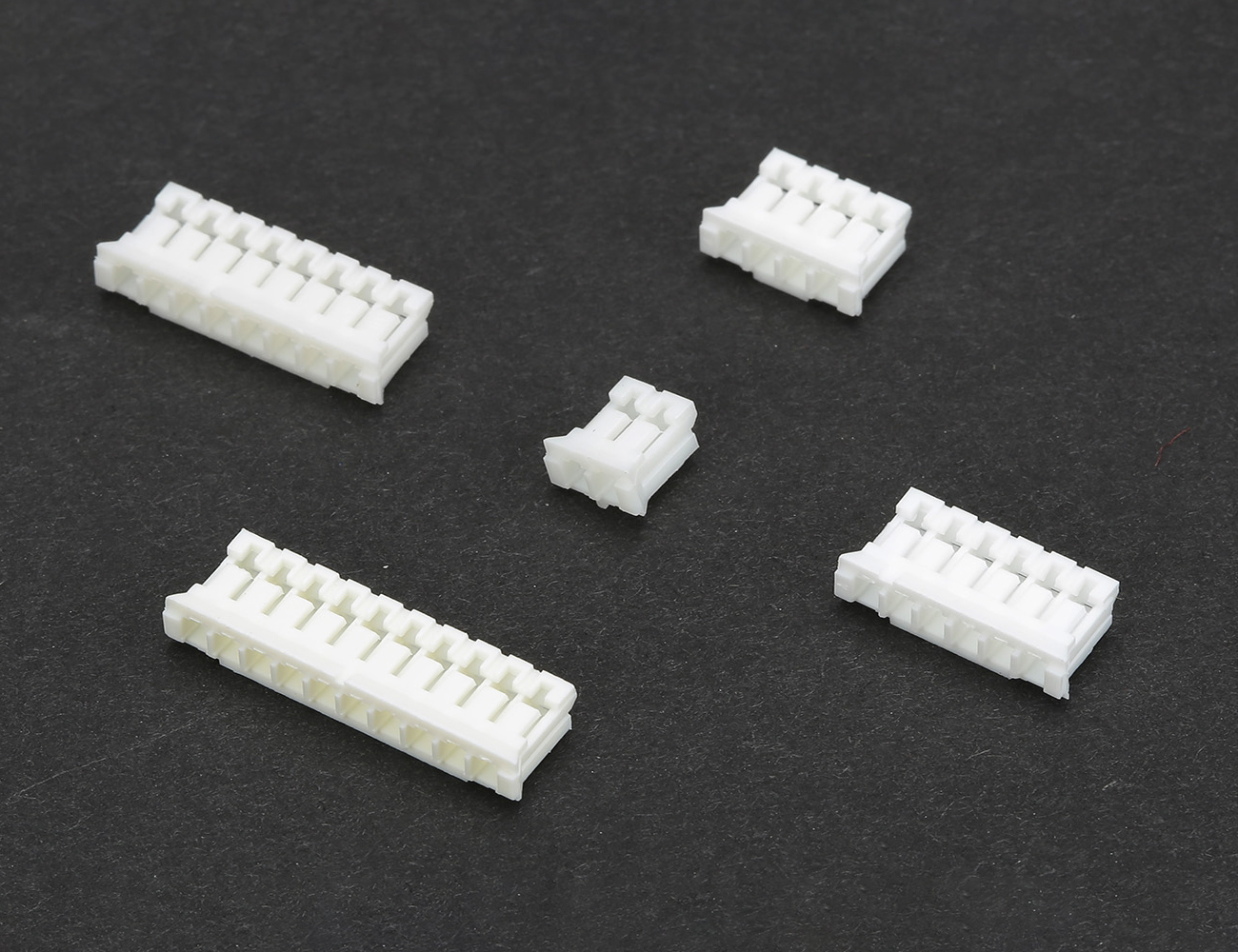

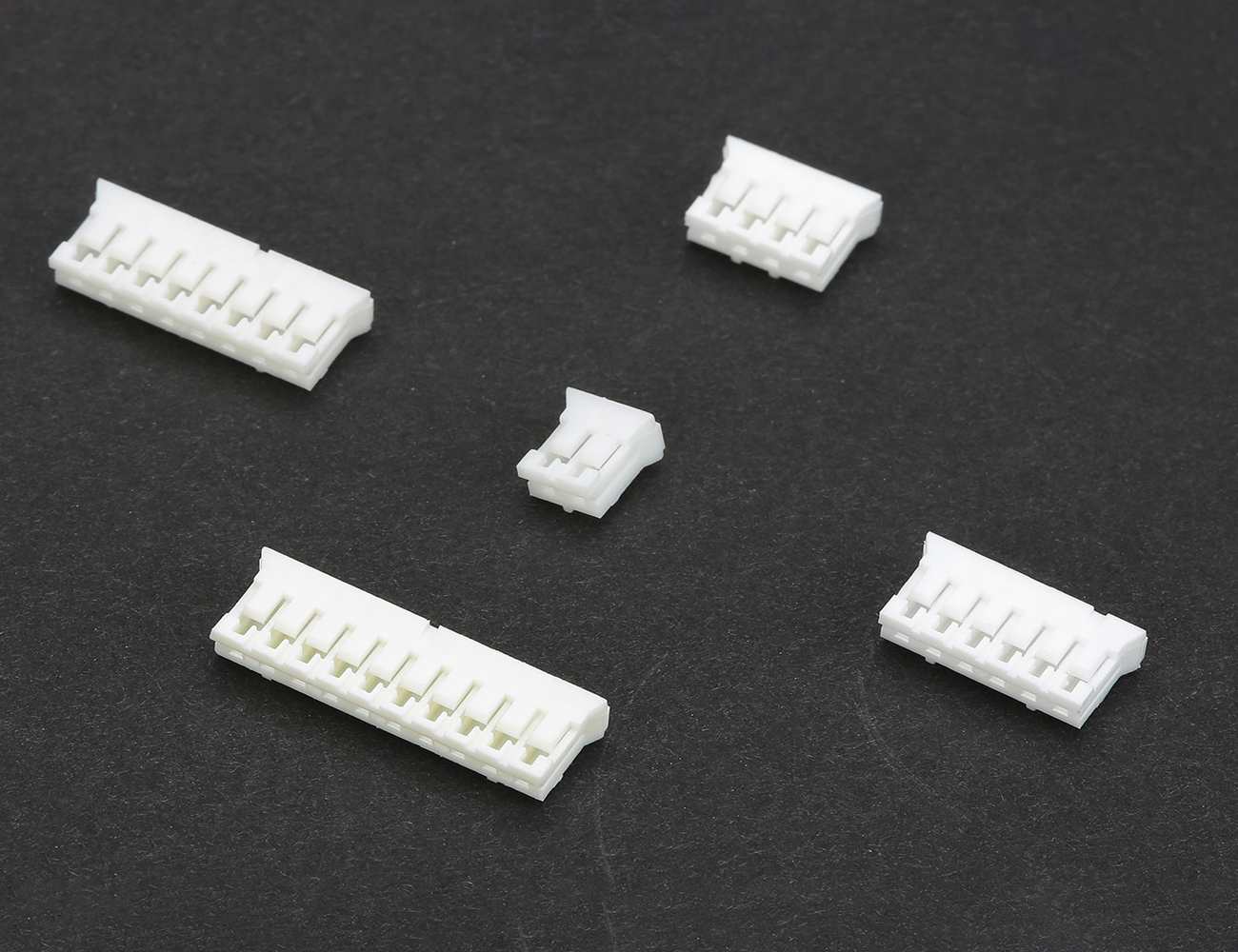

200G1-02H 2 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
200G1-03R 3 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-03S 3 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-03SP 3 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-03RP 3 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-03H 3 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
200G1-04R 4 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-04S 4 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-04SP 4 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-04RP 4 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-04H 4 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
200G1-05R 5 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-05S 5 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-05SP 5 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-05RP 5 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-05H 5 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
200G1-06R 6 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-06S 6 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-06SP 6 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-06RP 6 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
200G1-07R 7 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-07S 7 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-07SP 7 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-07RP 7 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-07H 7 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
200G1-08R 8 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-08S 8 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-08SP 8 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-08RP 8 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-08H 8 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
200G1-09R 9 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-09S 9 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-09SP 9 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-09RP 9 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-09H 9 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
200G1-10R 10 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-10S 10 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-10SP 10 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-10RP 10 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-10H 10 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
200G1-11R 11 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-11S 11 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-11SP 11 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-11RP 11 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-11H 11 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
200G1-12R 12 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-12S 12 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-12SP 12 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-12RP 12 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-12H 12 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
200G1-13R 13 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-13S 13 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-13SP 13 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-13RP 13 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-13H 13 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
200G1-14S 14 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-14SP 14 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-14RP 14 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-14H 14 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
200G1-15R 15 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-15S 15 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-15SP 15 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-15RP 15 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-15H 15 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
16 Pin
200G1-16R 16 Pin 2.00mm DIP Pcb Type Male 90º 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-16SP 16 Pin 2.00mm DIP Pcb Type Male Upright 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-16SP 16 Pin 2.00mm SMD Pcb Type Male Upright 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-16RP 16 Pin 2.00mm SMD Pcb Type Male 90º 2A 100V / AC/ DC 800V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
200G1-16H 16 Pin 2.00mm Female 2A 100V 800VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

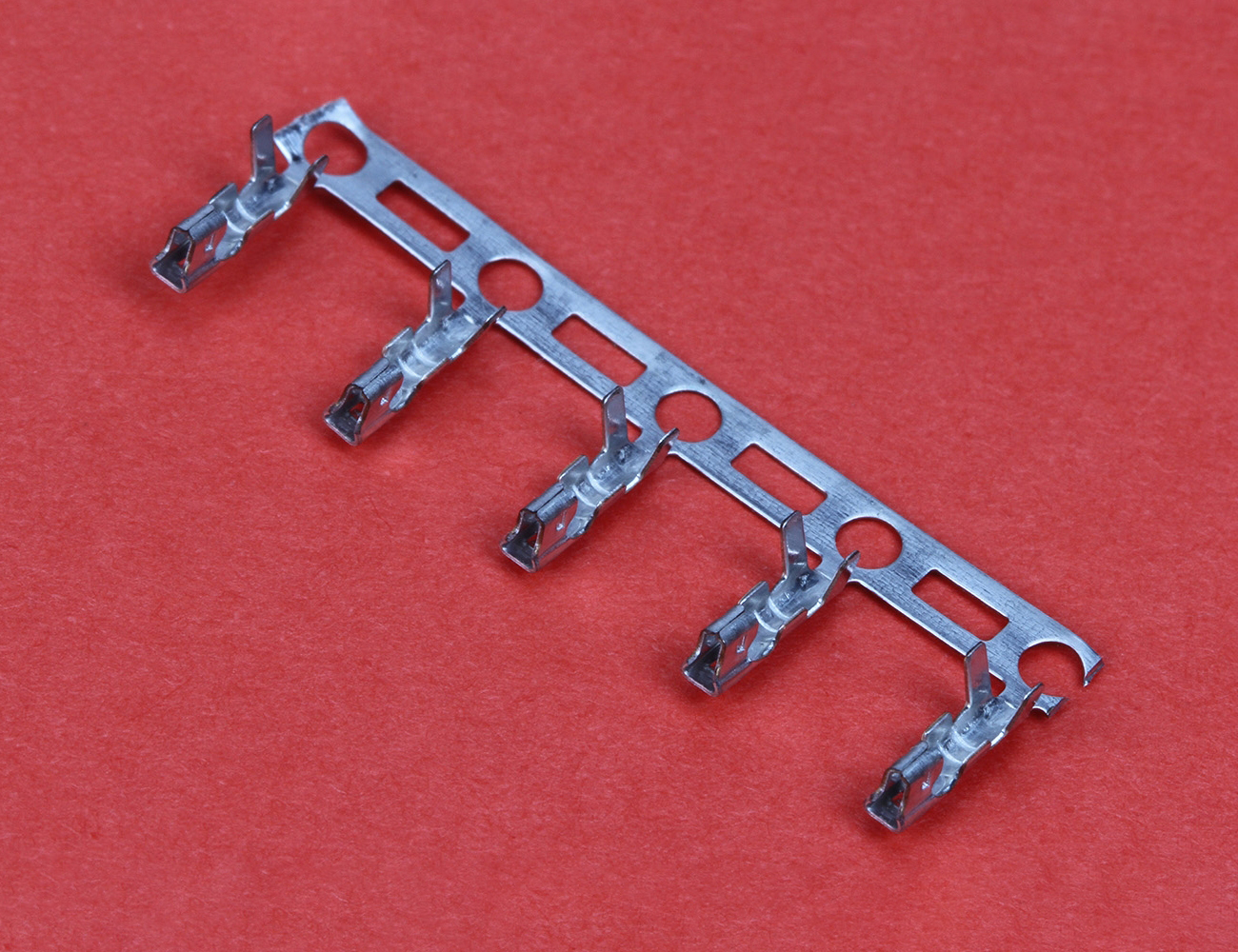

200G1-TP Crimp Terminal Female - - - - -
