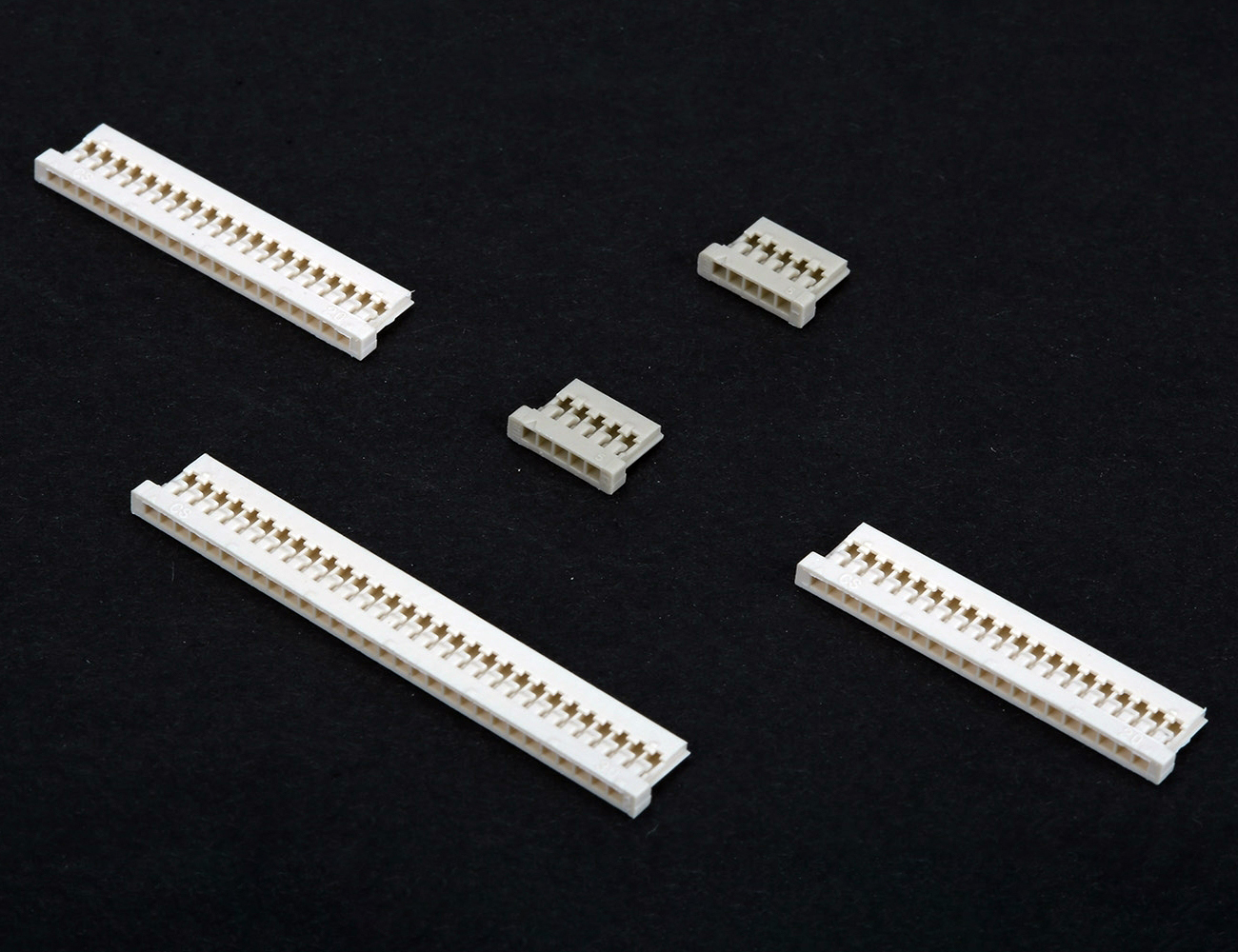

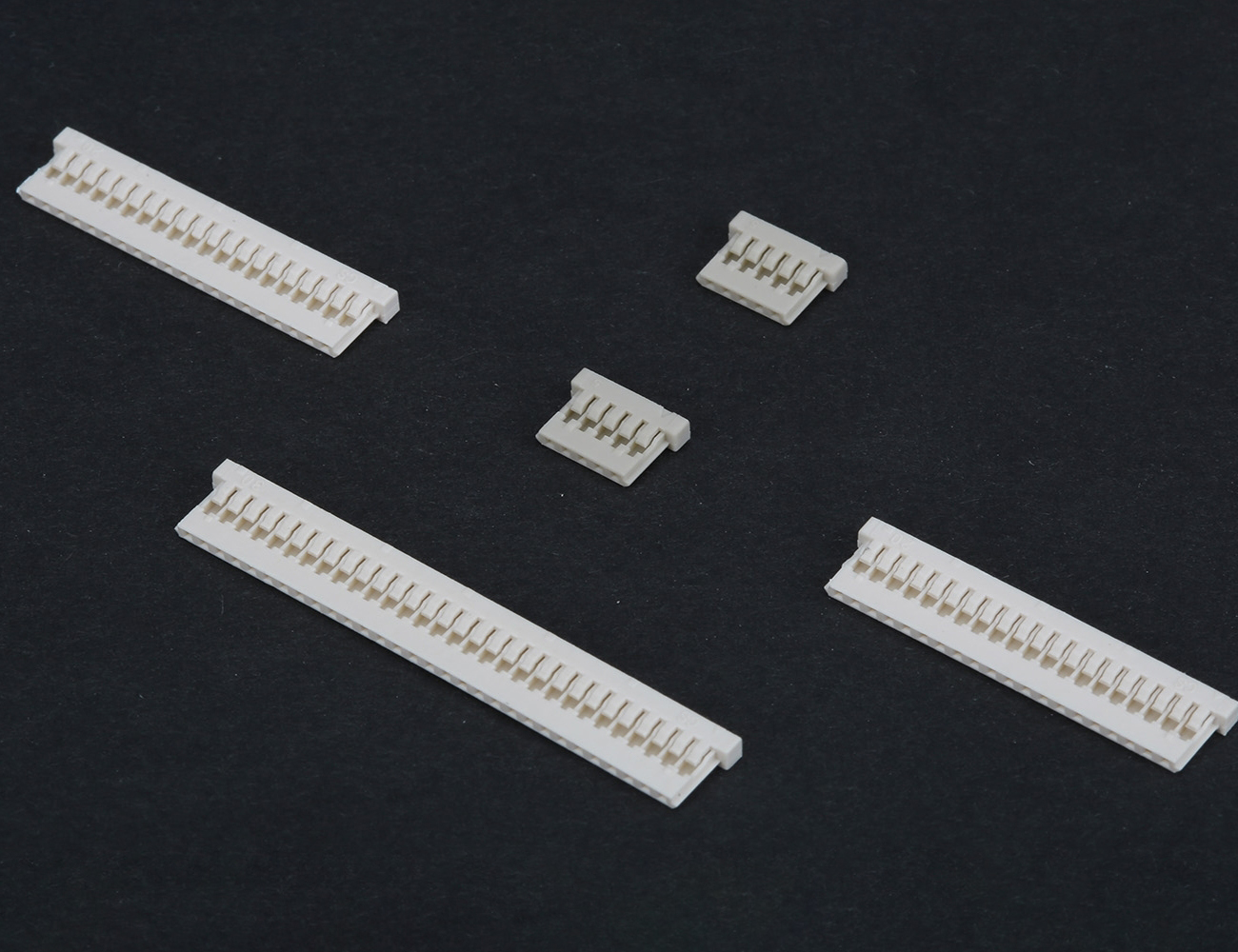

Signal 1950 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 2 Pin | |||||||
| 1950-02HB | 2 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 3 Pin | |||||||
| 1950-03HB | 3 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 4 Pin | |||||||
| 1950-04HB | 4 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 5 Pin | |||||||
| 1950-05HB | 5 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 6 Pin | |||||||
| 1950-06HB | 6 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 7 Pin | |||||||
| 1950-07HB | 7 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 8 Pin | |||||||
| 1950-08HB | 8 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 9 Pin | |||||||
| 1950-09HB | 9 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 10 Pin | |||||||
| 1950-10HB | 10 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 15 Pin | |||||||
| 1950-15HB | 15 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 20 Pin | |||||||
| 1950-20HB | 20 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 30 Pin | |||||||
| 1950-30HB | 30 Pin 1.25mm Female | 1A | 150V / AC/ DC | 500V / AC / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| Terminal | |||||||

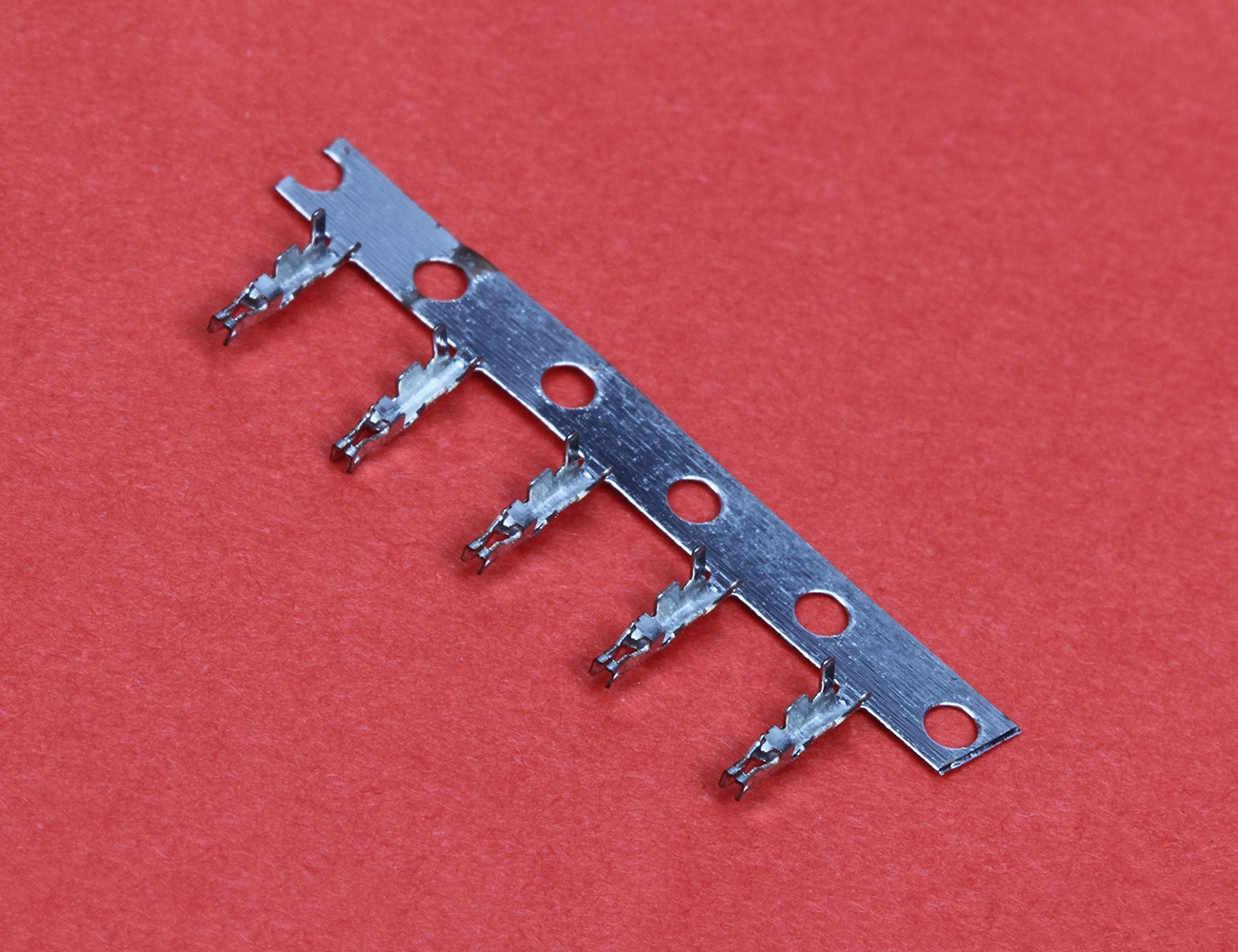

| 1950-TP | Crimp Terminal Female | - | - | - | - | - |
|
