Signal 1800 Series

Signal 1800 Series

Signal 1800 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

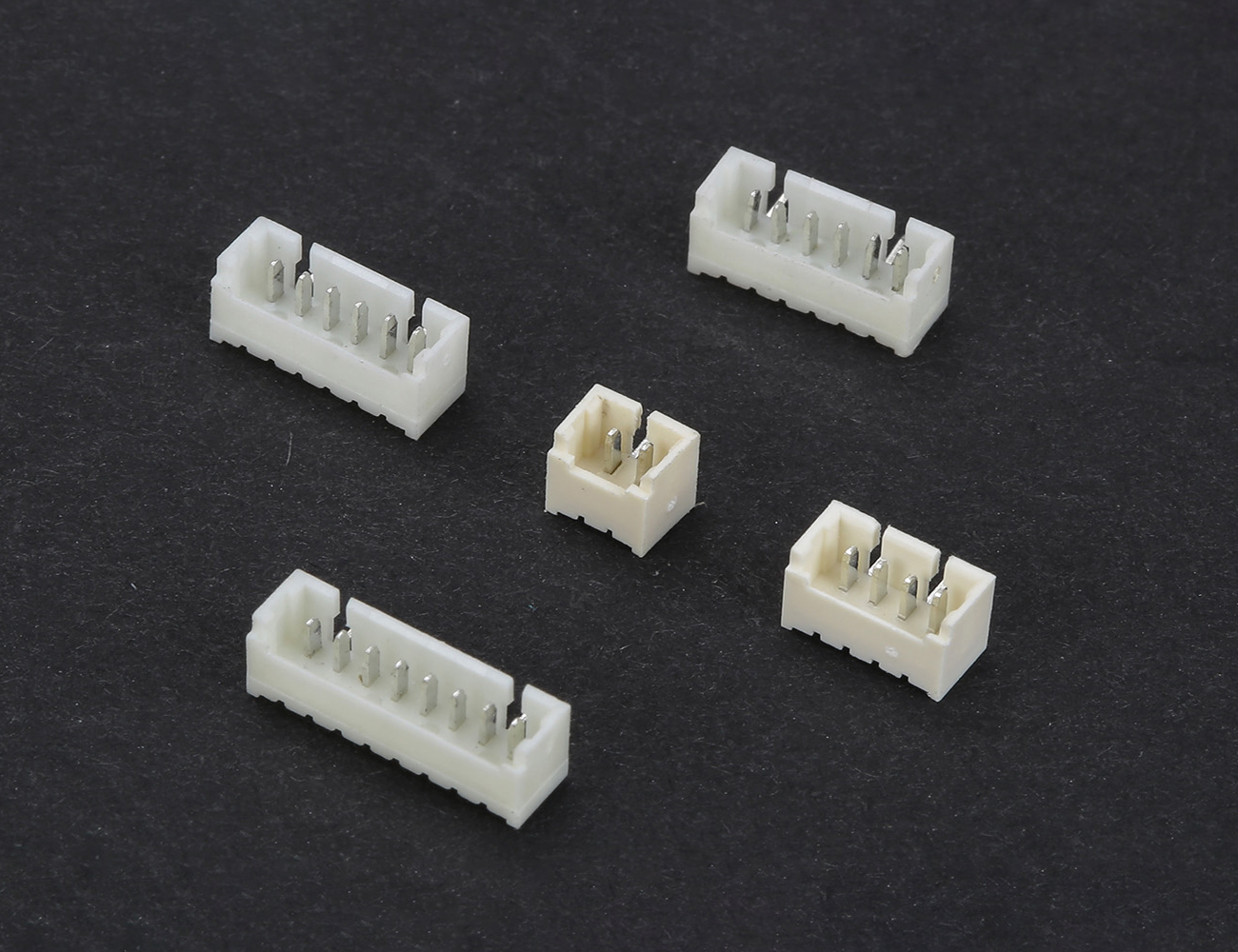

1800-02SB 2 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C

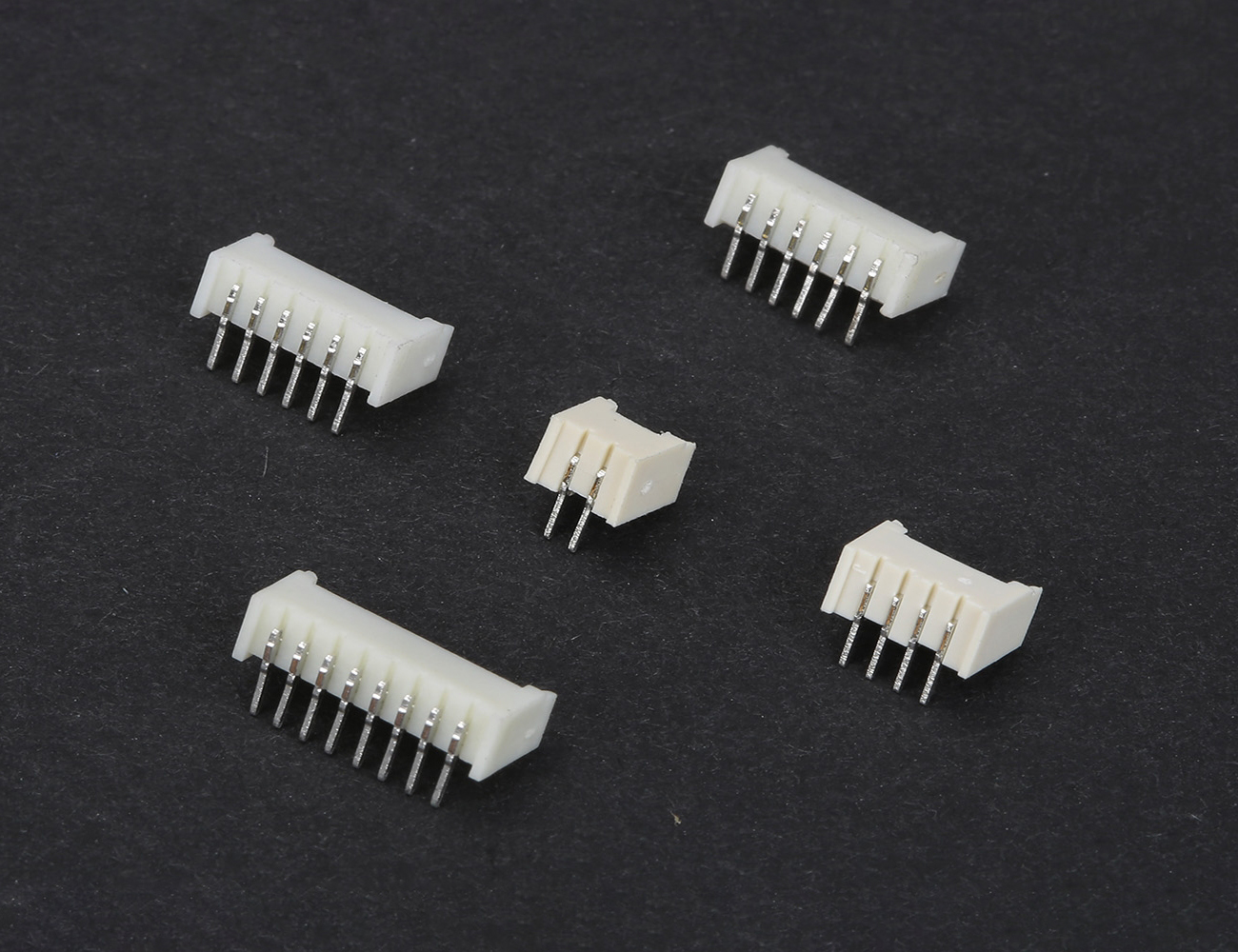

1800-02RB 2 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C

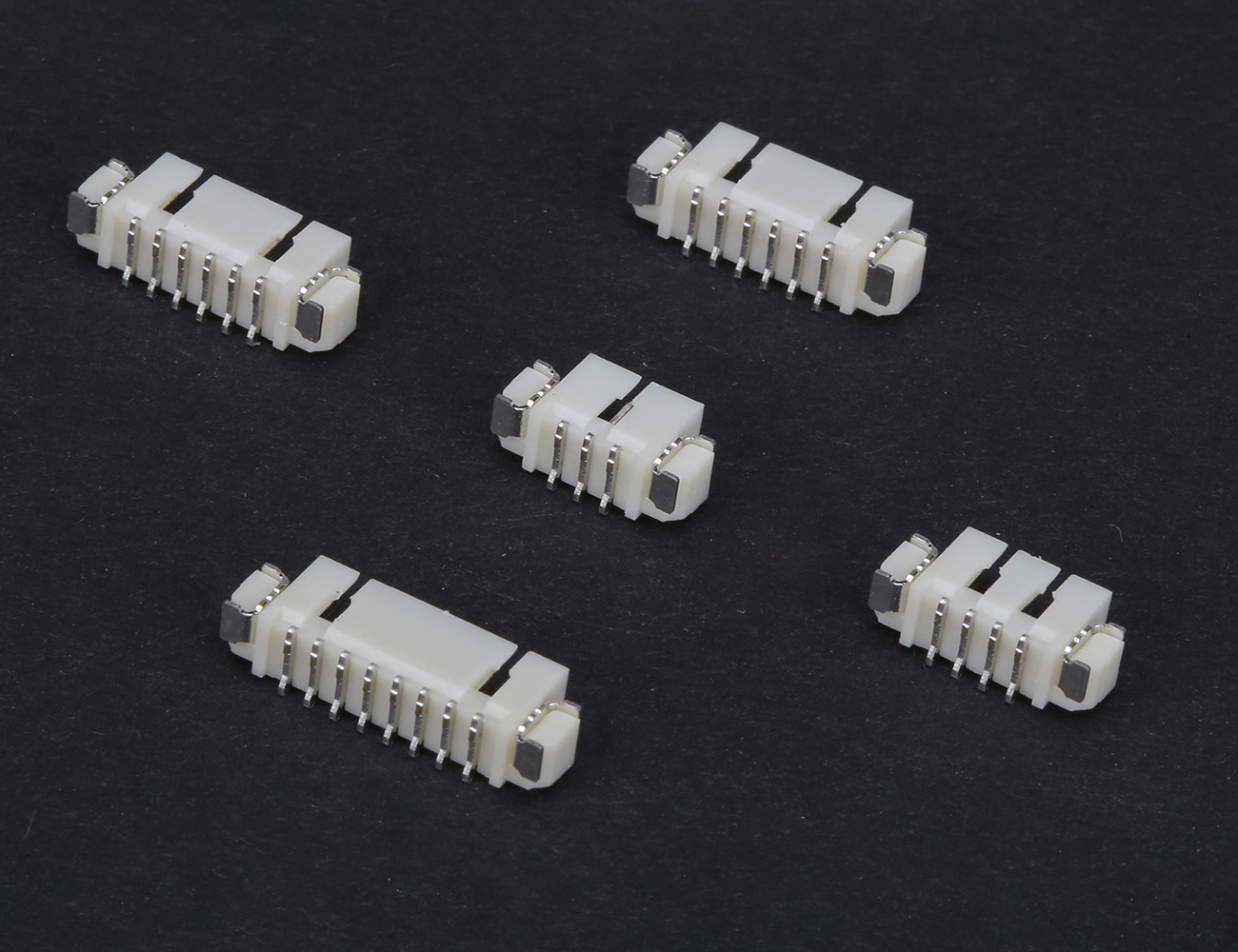

1800-02SPR 2 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-02RPR 2 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C

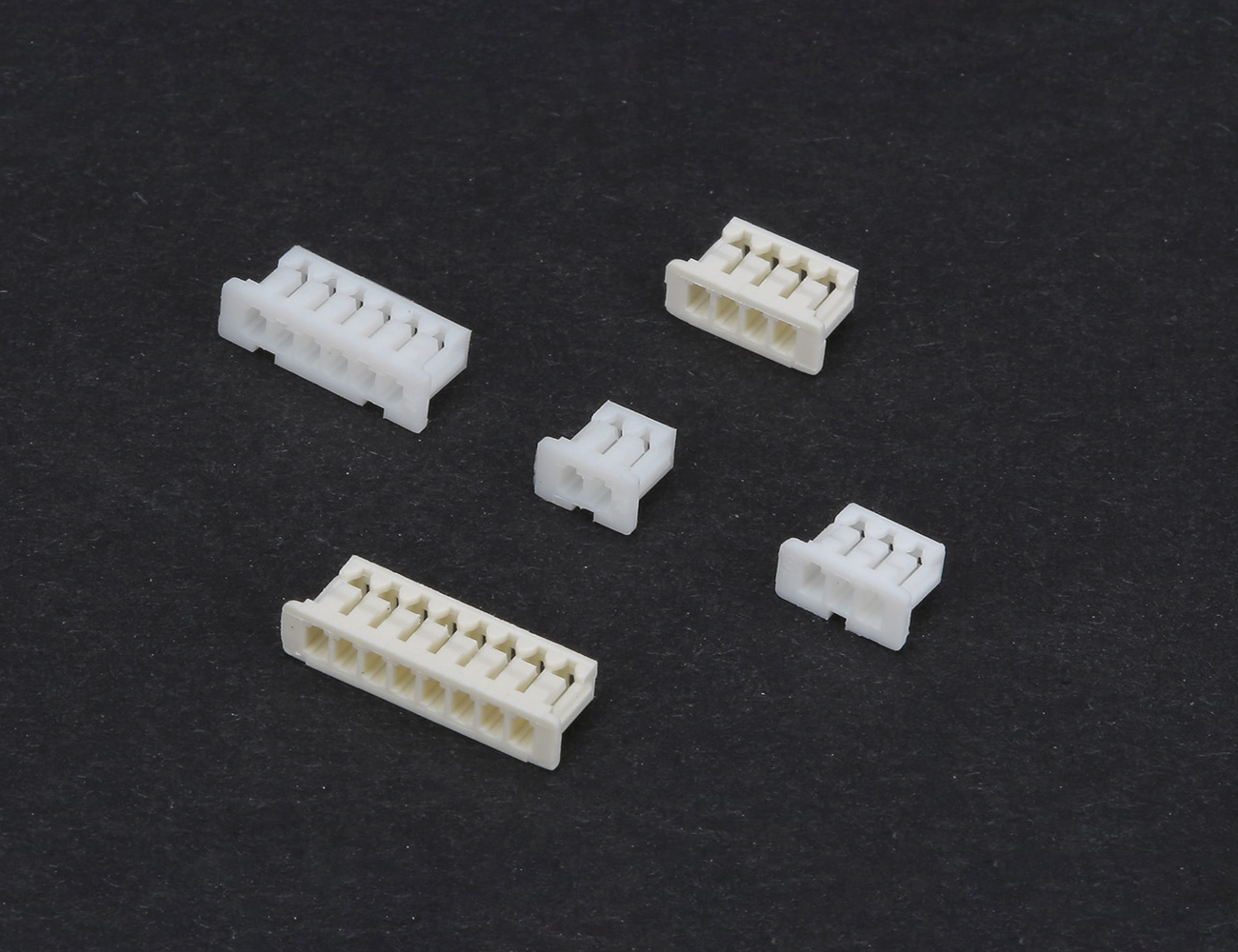

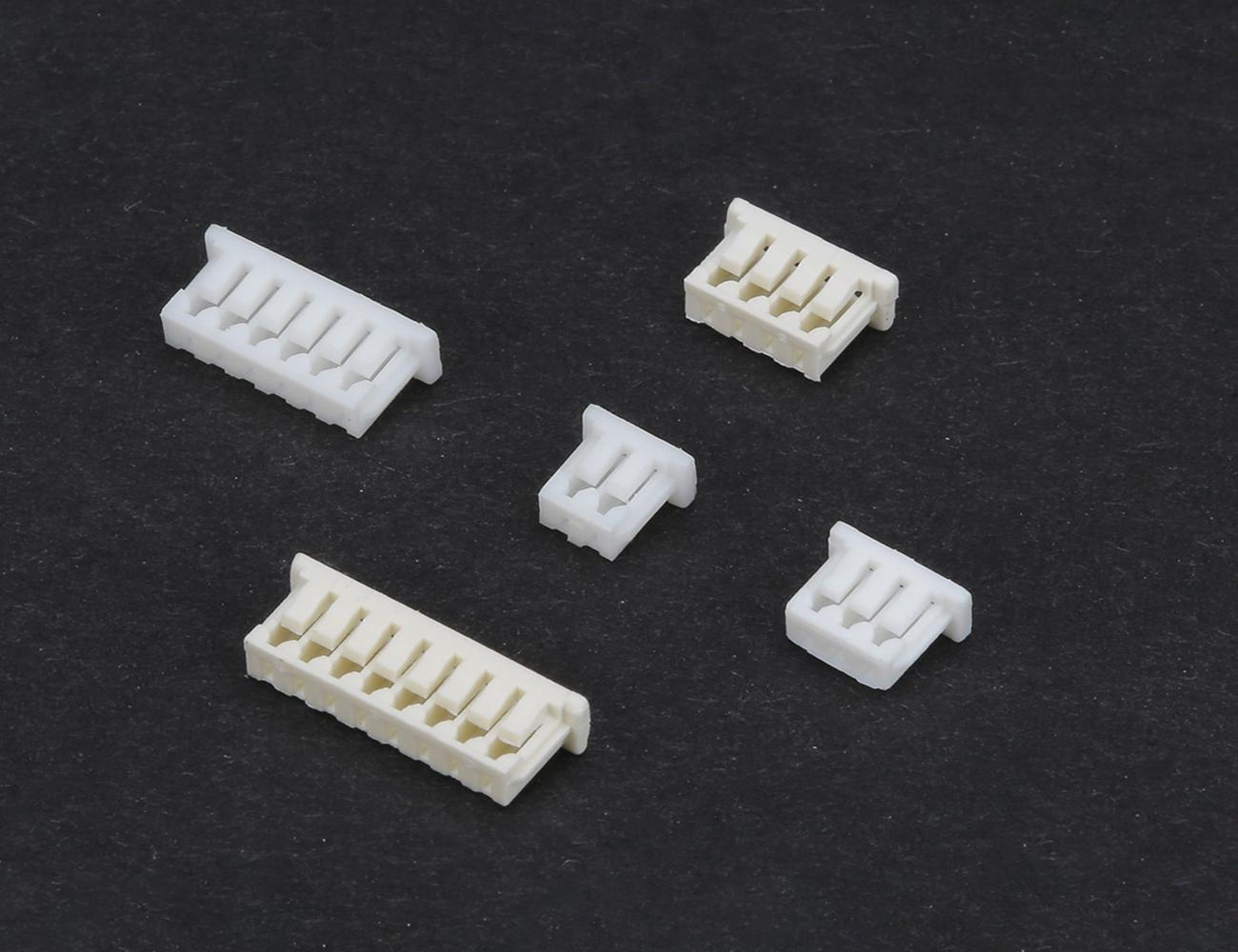

1800-02HB 2 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
3 Pin
1800-03SB 3 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-03RB 3 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-03SPR 3 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-03RPR 3 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-03HB 3 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
4 Pin
1800-04SB 4 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-04RB 4 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-04SPR 4 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-04RPR 4 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-04HB 4 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
5 Pin
1800-05SB 5 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-05RB 5 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-05SPR 5 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-05RPR 5 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-05HB 5 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
6 Pin
1800-06SB 6 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-06RB 6 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-06SPR 6 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-06RPR 6 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-06HB 6 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
7 Pin
1800-07SB 7 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-07RB 7 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-07SPR 7 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-07RPR 7 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 6T UL94V-0 -25°C ~ +85°C
1800-07HB 7 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
8 Pin
1800-08SB 8 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-08RB 8 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-08SPR 8 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-08RPR 8 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-08HB 8 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
9 Pin
1800-09SB 9 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-09RB 9 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-09SPR 9 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-09RPR 9 Pin 1.25mm SMD Pcb Type Male 90º 1A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-09HB 9 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
10 Pin
1800-10SB 10 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-10RB 10 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-10SPR 10 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-10RPR 10 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-10HB 10 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
11 Pin
1800-11SB 11 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-11RB 11 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-11SPR 11 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-11RPR 11 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-11HB 11 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
12 Pin
1800-12SB 12 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-12RB 12 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-12SPR 12 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-12RPR 12 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-12HB 12 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
13 Pin
1800-13SB 13 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-13RB 13 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-13SPR 13 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-13RPR 13 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-13HB 13 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
14 Pin
1800-14SB 14 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-14RB 14 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-14SPR 14 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
1800-14RPR 14 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-14HB 14 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
15 Pin
1800-15SB 15 Pin 1.25mm DIP Pcb Type Male Upright 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-15RB 15 Pin 1.25mm DIP Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800-15SPR 15 Pin 1.25mm SMD Pcb Type Male Upright 1A 125V 500V / AC / munite Nylon 66 UL94V-0 -25°C ~ +85°C
1800-15RPR 15 Pin 1.25mm SMD Pcb Type Male 90º 1A 125V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1800--15HB 15 Pin 1.25mm Female 1A 150V 250VAC @ 60 s. Nylon 66 UL94V-0 -40°C ~ +85°C
Terminal
1800-TP Crimp Terminal Female - - - - -
