Signal 1640 Series-TTAF CONSUMER

Signal 1640 Series

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
20 Pin

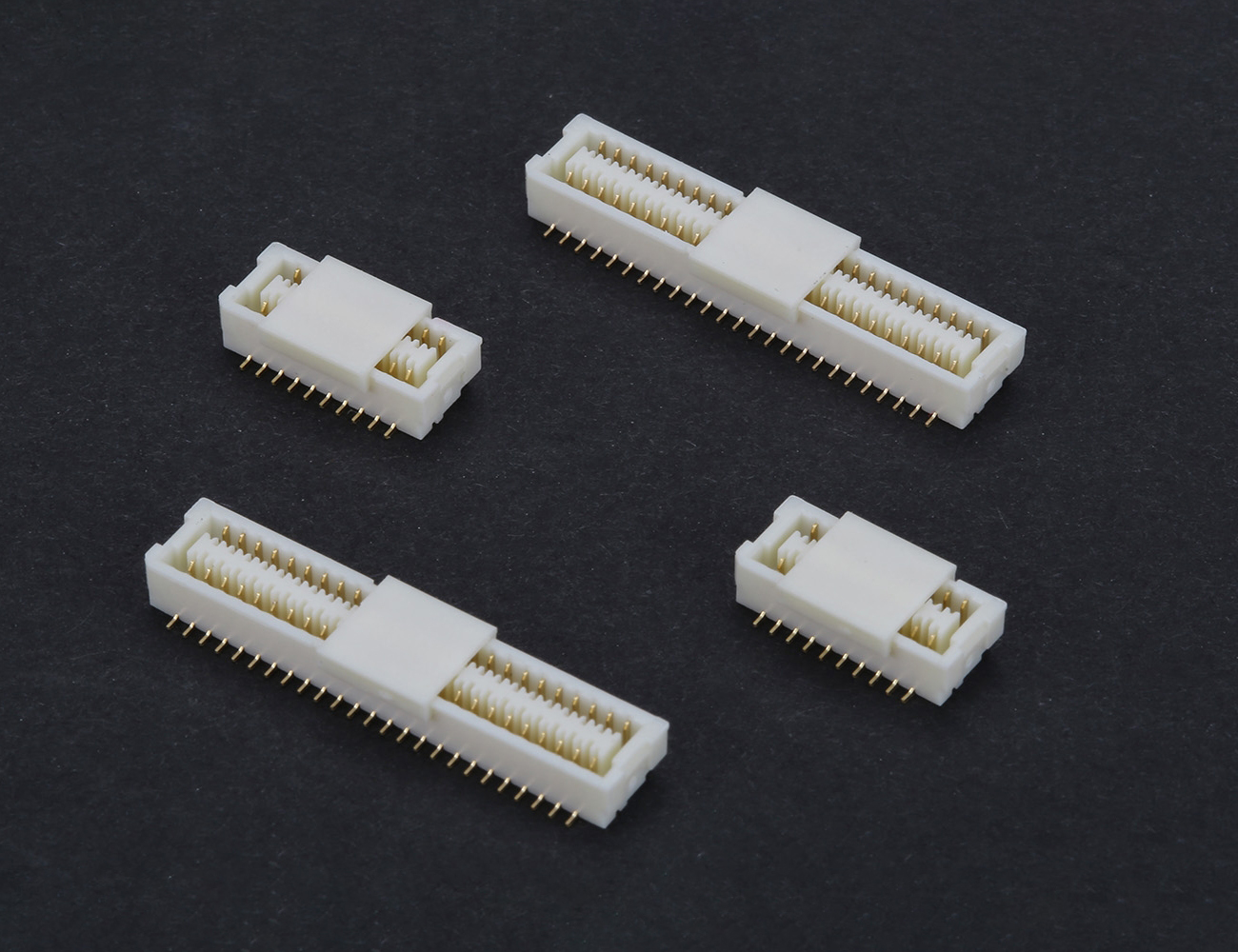

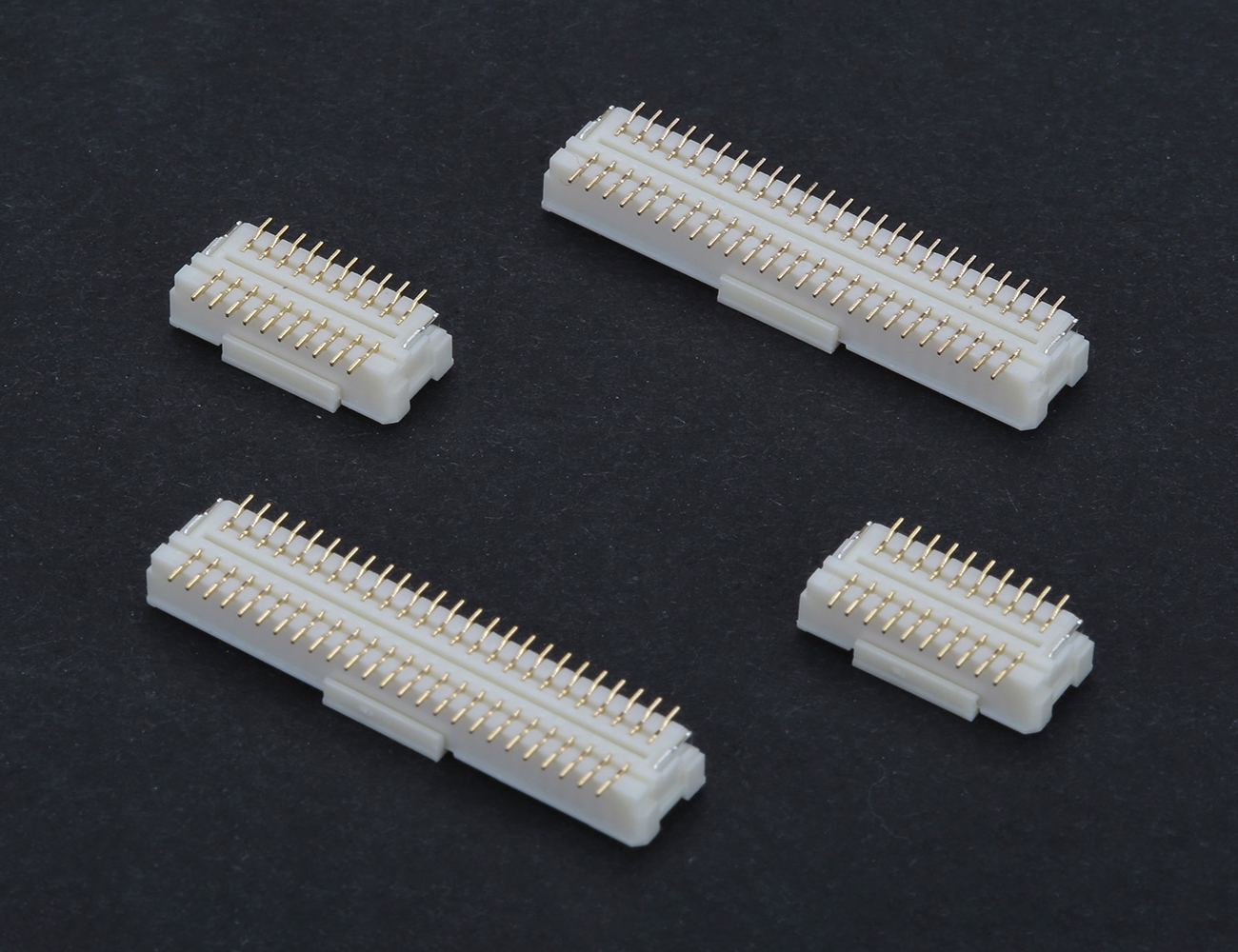

1640-20S	20 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C

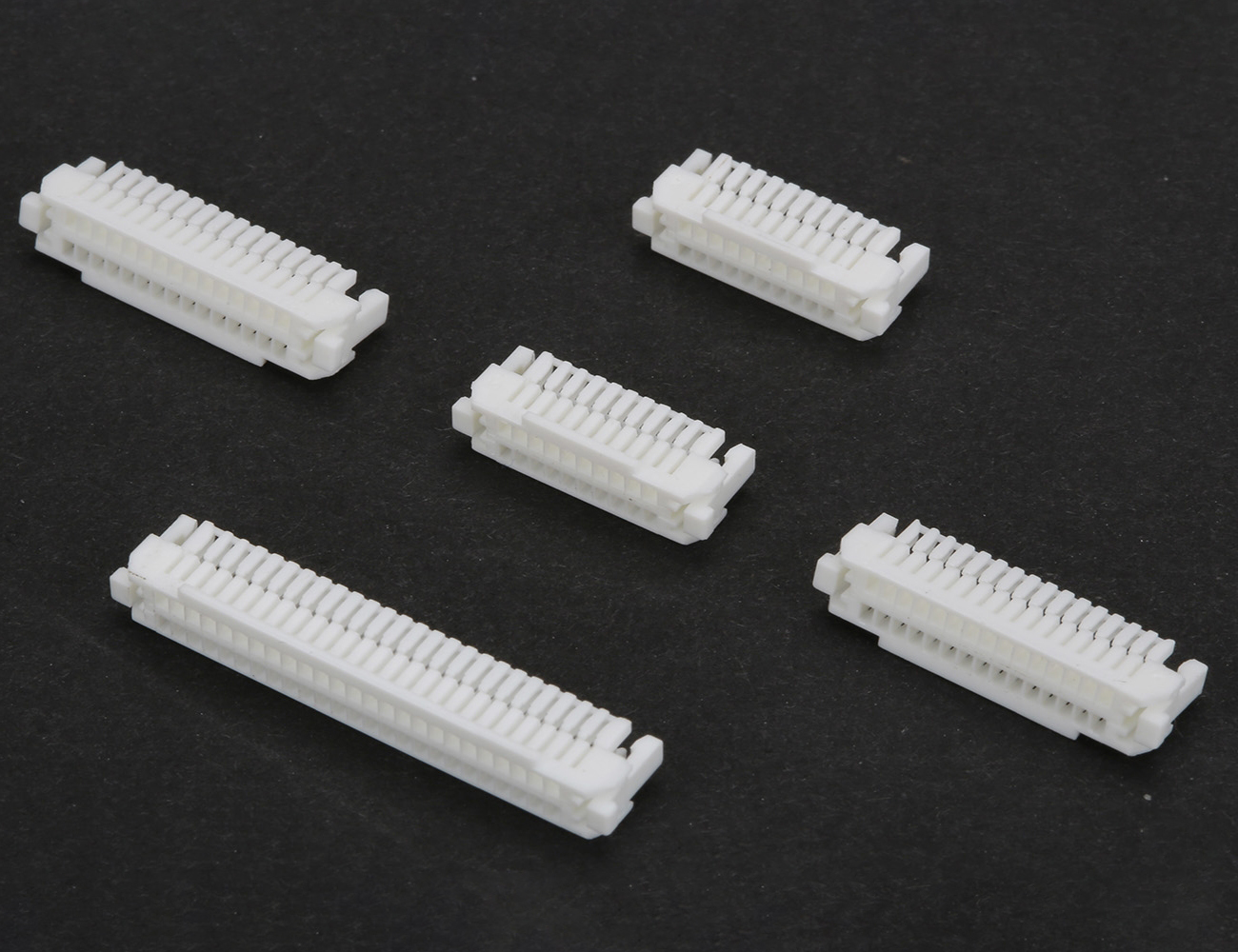

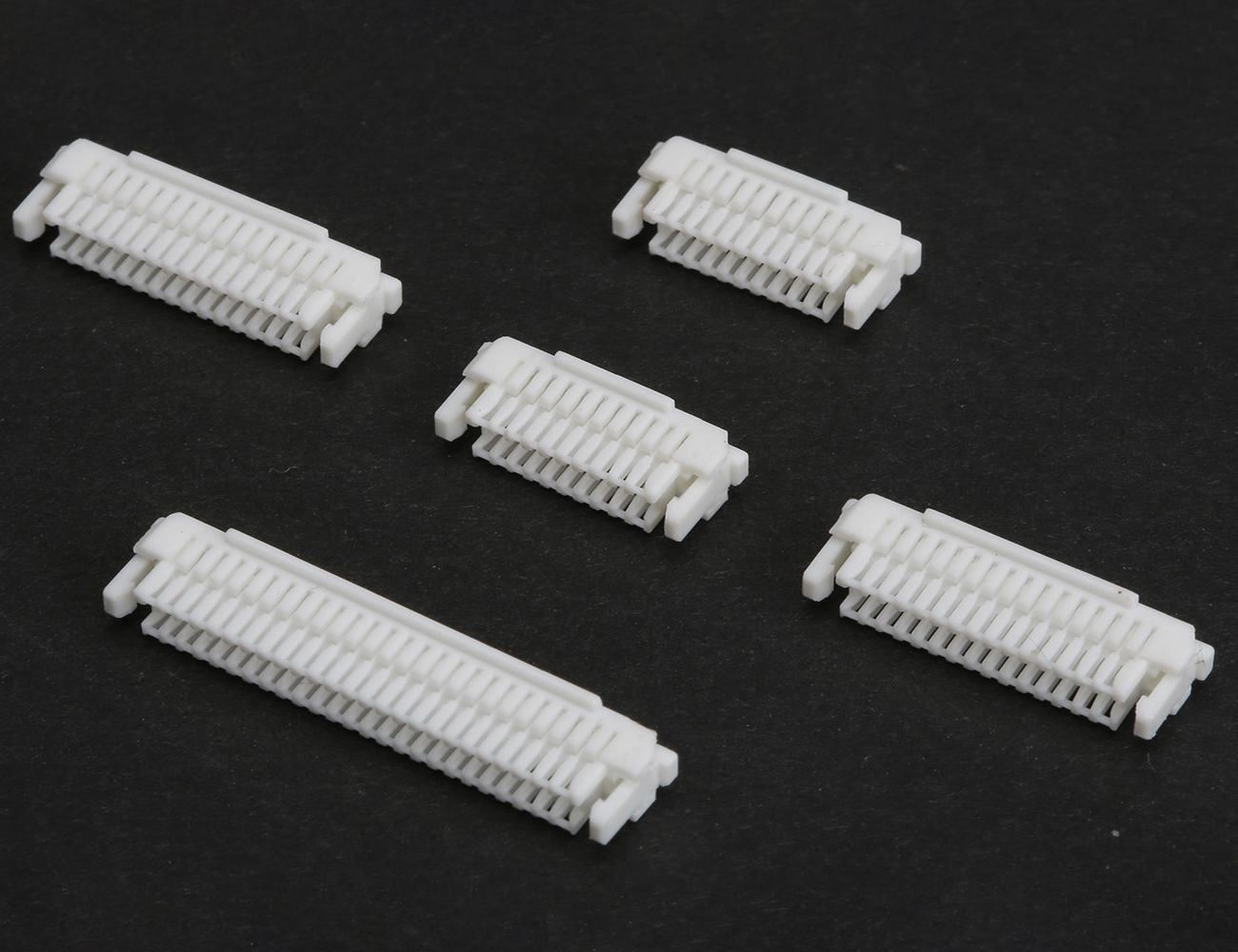

1640-20HL	20 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
30 Pin
1640-30S	30 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C
1640-30HL	30 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
40 Pin
1640-40S	40 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C
1640-40HL	40 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
50 Pin
1640-50S	50 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C
1640-50HL	50 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
Terminal

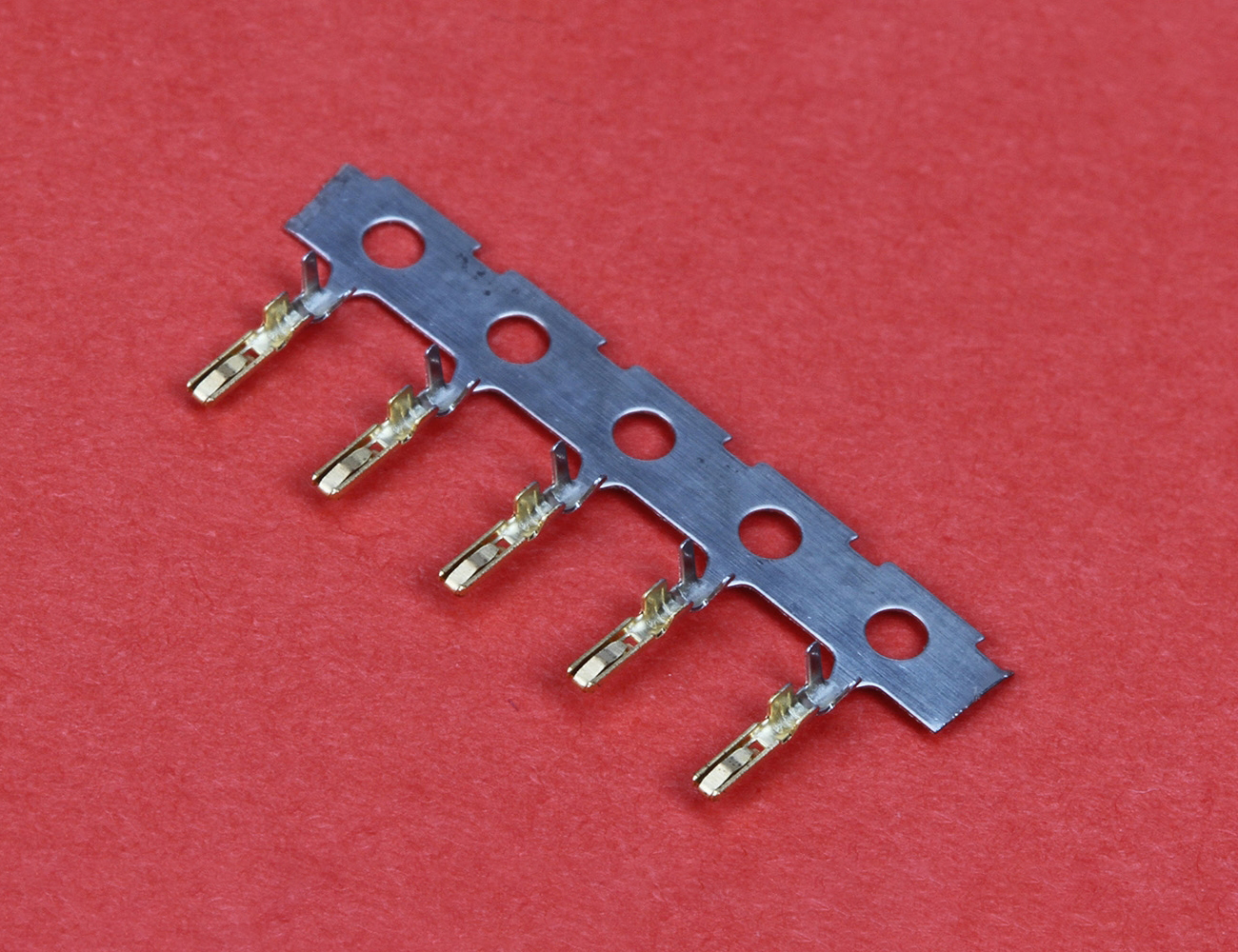

1640-TP	Crimp Terminal Female	-	-	-	-	-
