Signal 1630 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 30 Pin | |||||||

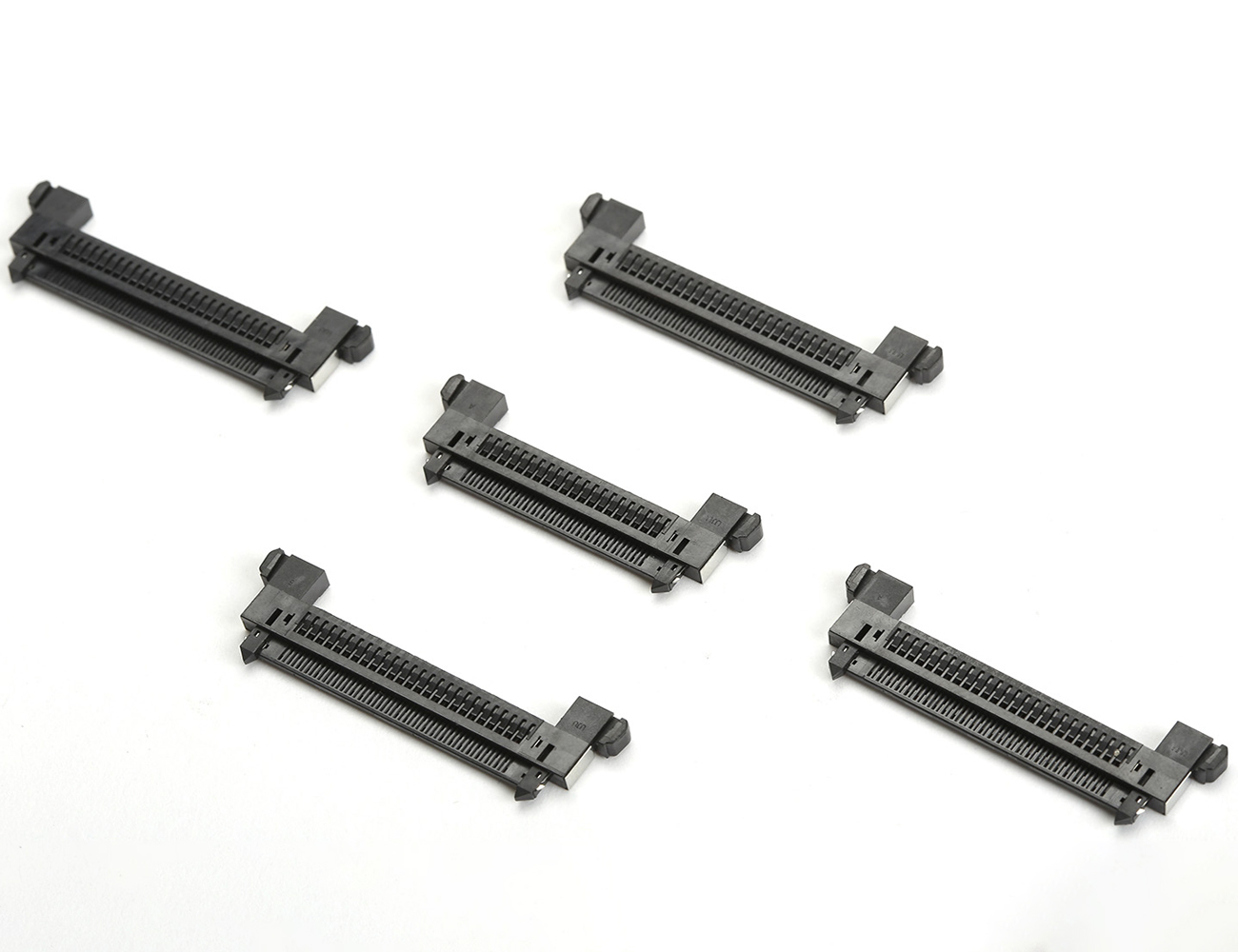

| 1630-30EH | 30 Pin 1.00mm Female | 1A | 200V / AC/ DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 30 Pin | |||||||

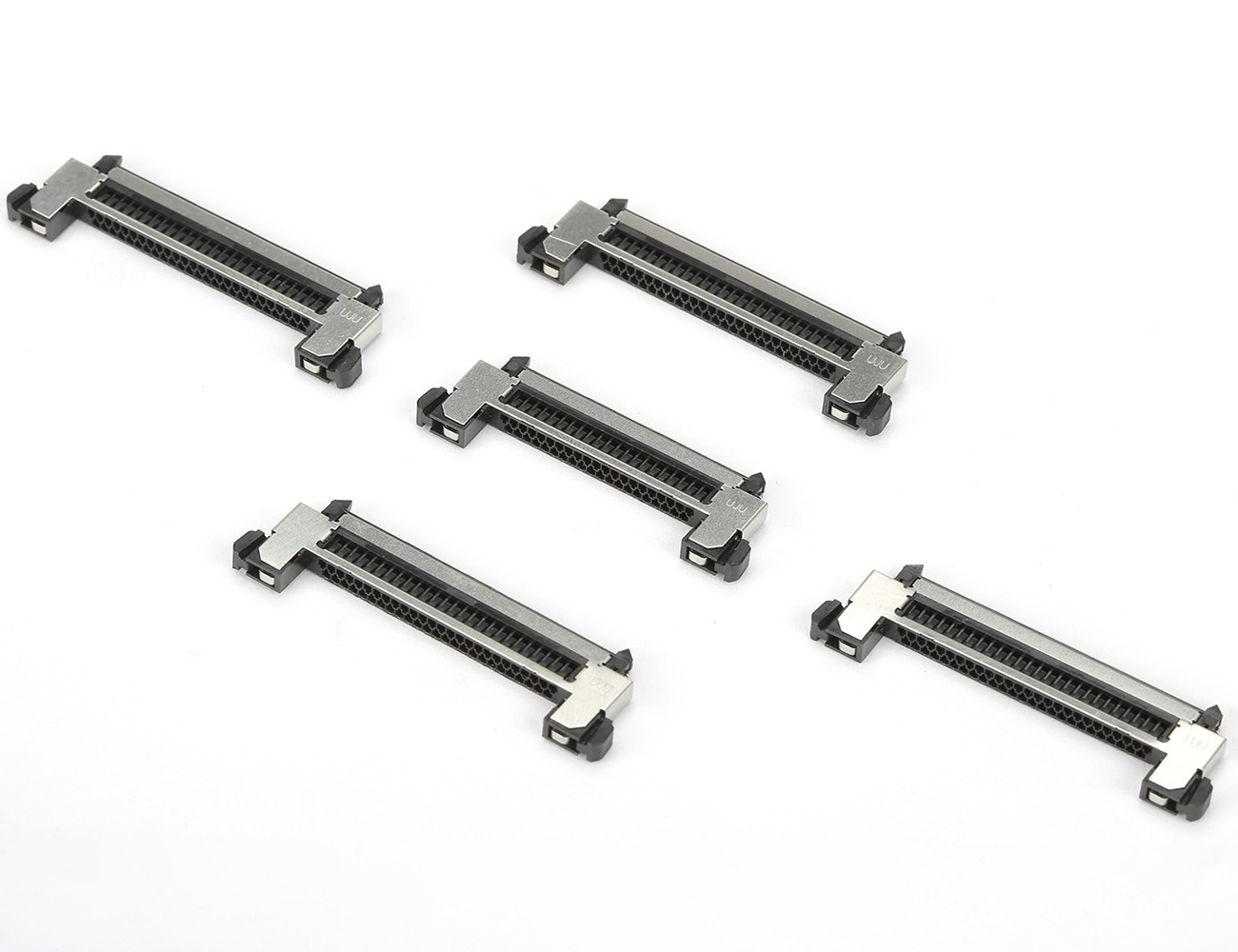

| 1630-30XH | 30 Pin 1.00mm Female | 1A | 200V / AC/ DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| Terminal | |||||||

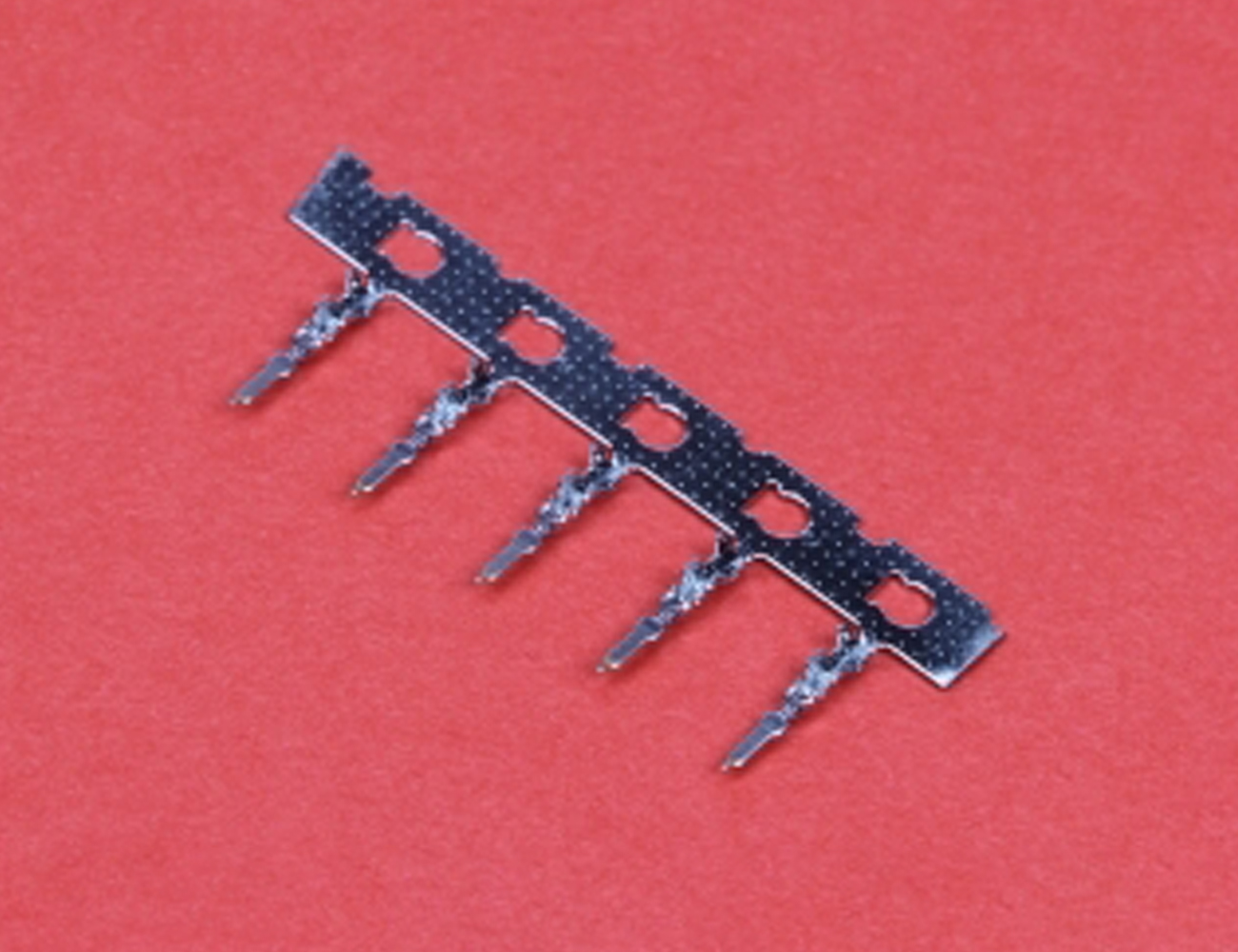

| 1630-TP | Crimp Terminal Female | - | - | - | - | - |
|
| Terminal | |||||||

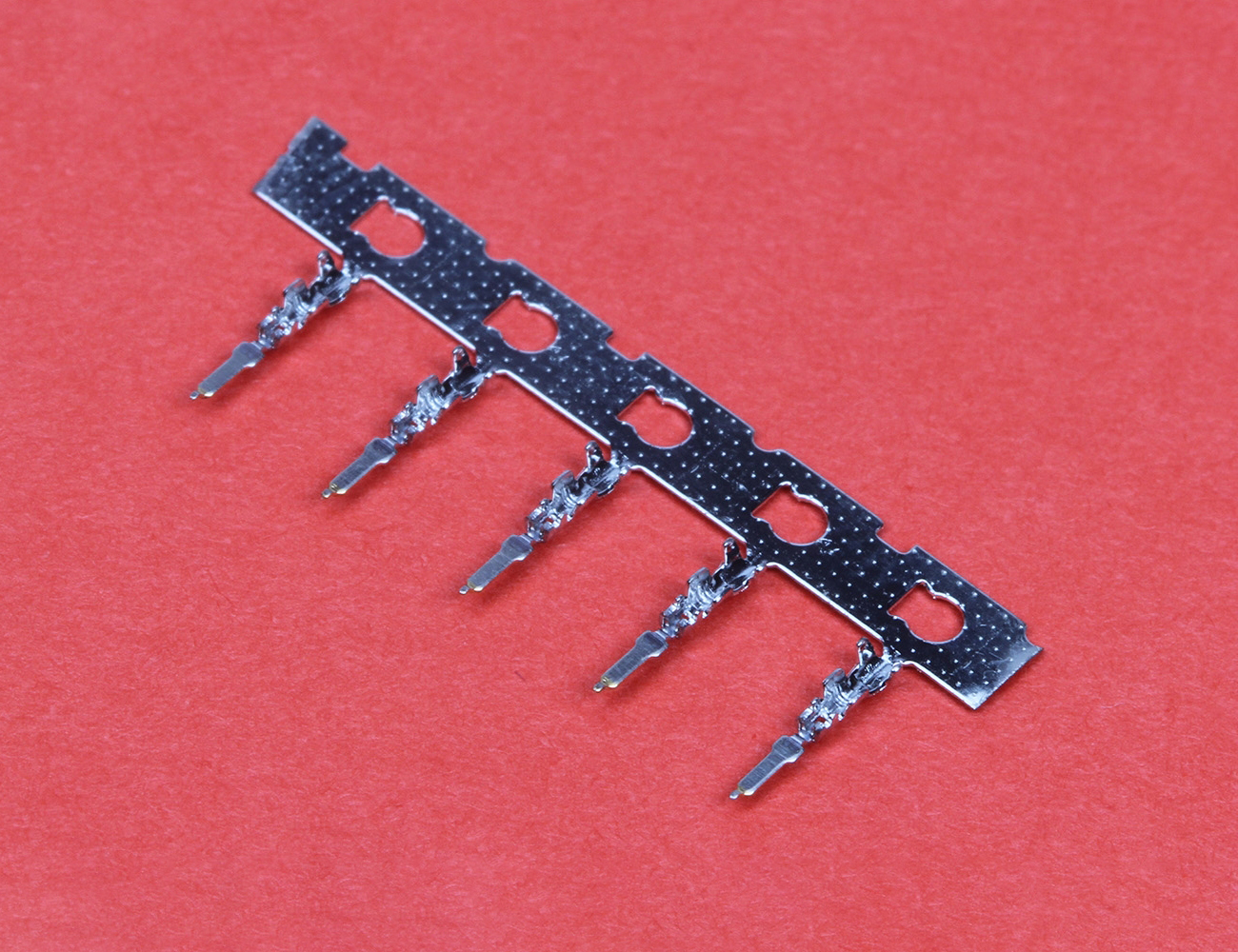

| 1630-TPM | Crimp Terminal Female | - | - | - | - | - |
