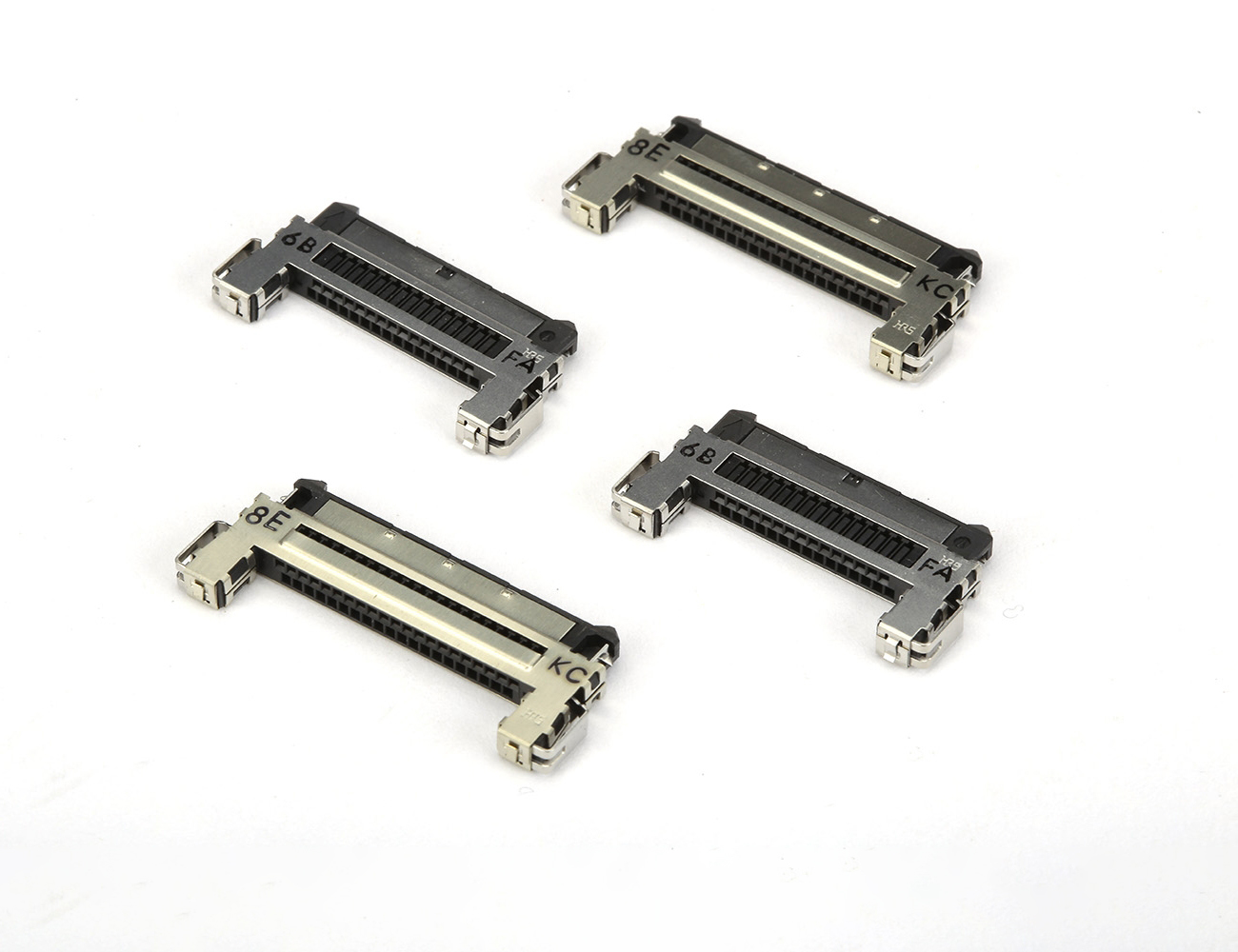

Signal 1620 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 31 Pin | |||||||
| 1620-31H | 31 Pin 1.00mm Female | 0,5A | 100V / AC/ DC | 300V / munite | UL94-0 | -25°C ~ +85°C |
|
| 41 Pin | |||||||
| 1620-41H | 41 Pin 1.00mm Female | 0,5A | 100V / AC/ DC | 500V/ munite | UL94-0 | -25°C ~ +85°C |
|
| 51 Pin | |||||||
| 1620-51H | 51 Pin 1.00mm Female | 0,5A | 100V / AC/ DC | 300V / munite | UL94-0 | -25°C ~ +85°C |
|
| Terminal | |||||||

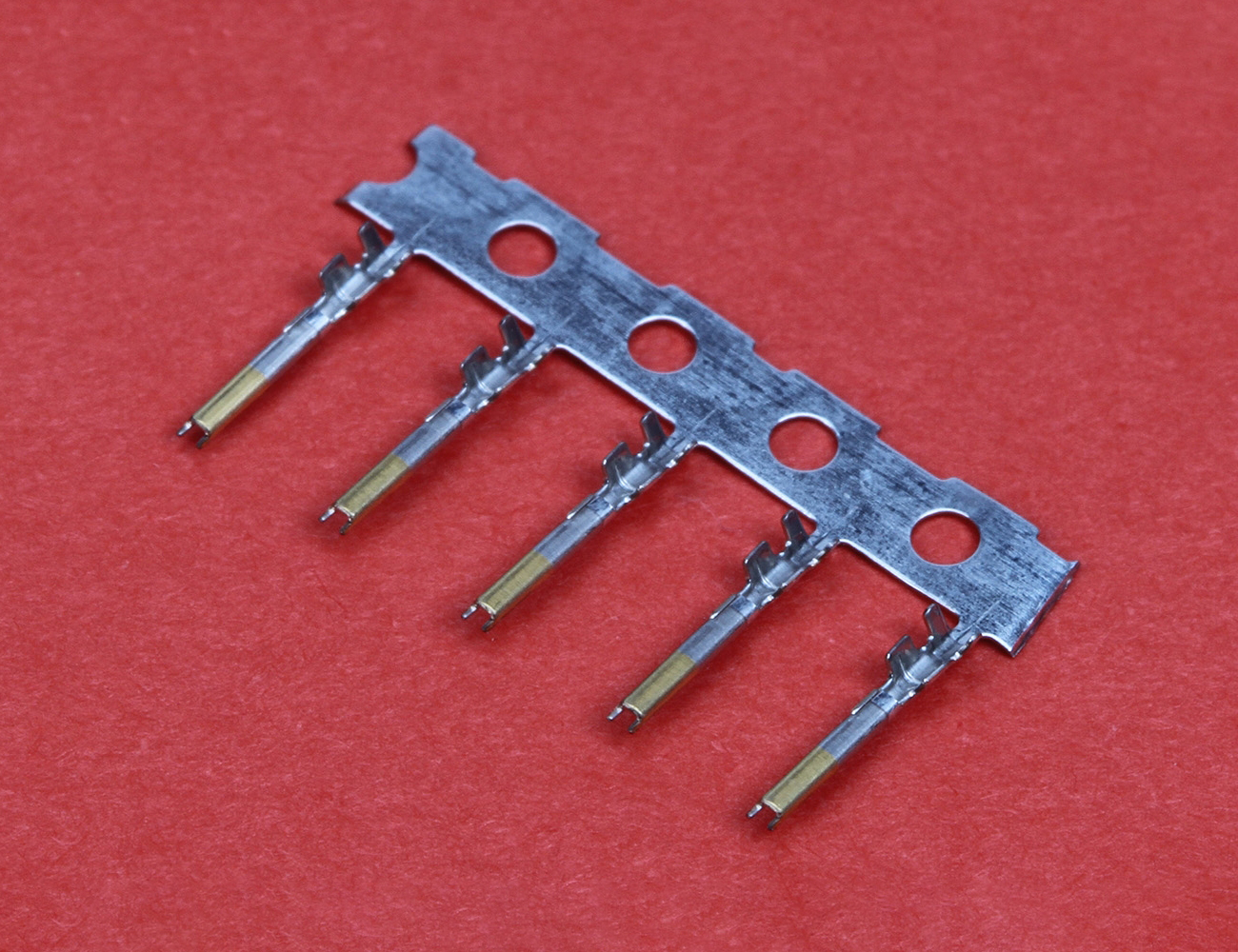

| 1620-T | Crimp Terminal Female | - | - | - | - | - |
