Signal 1312 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 1 Pin | |||||||

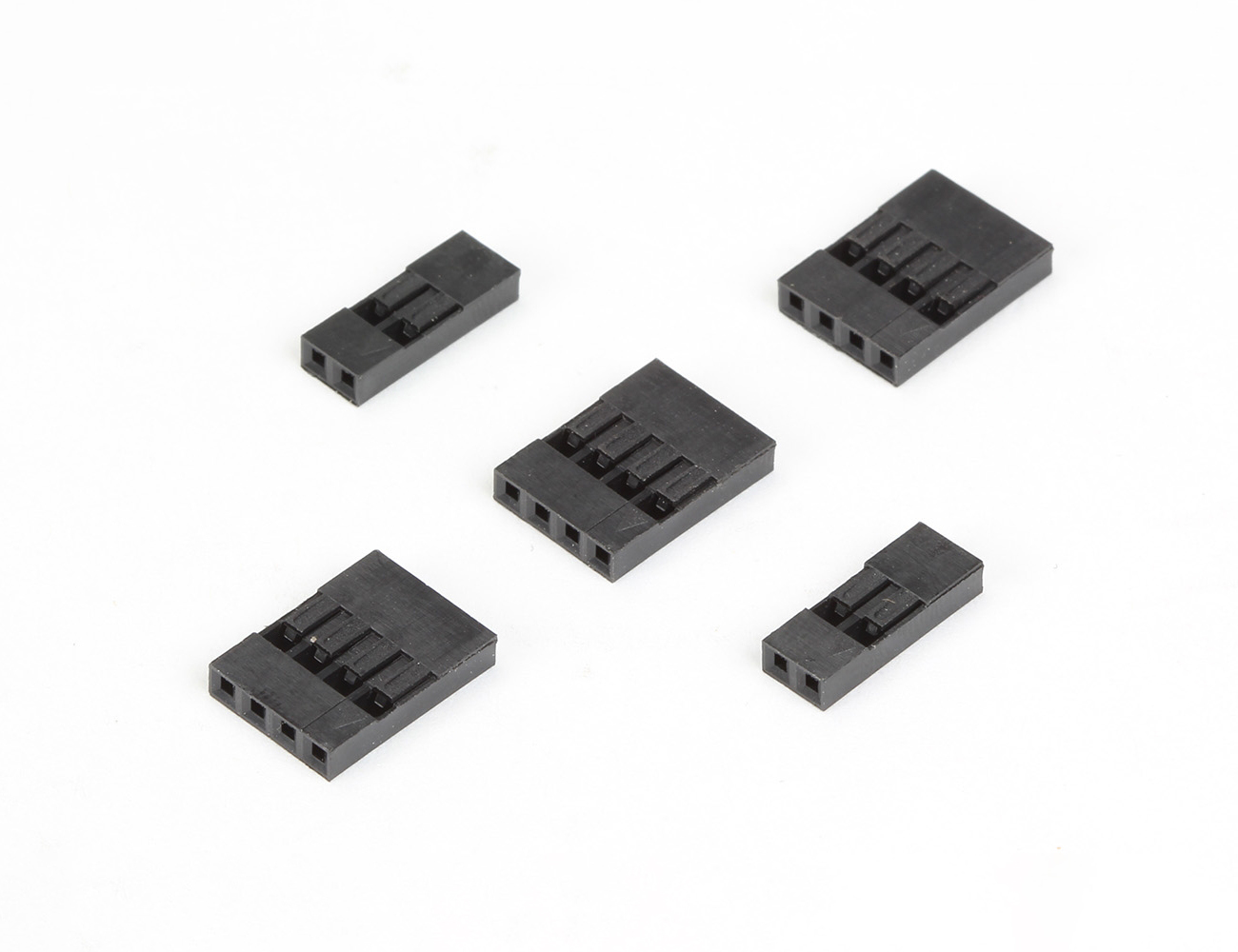

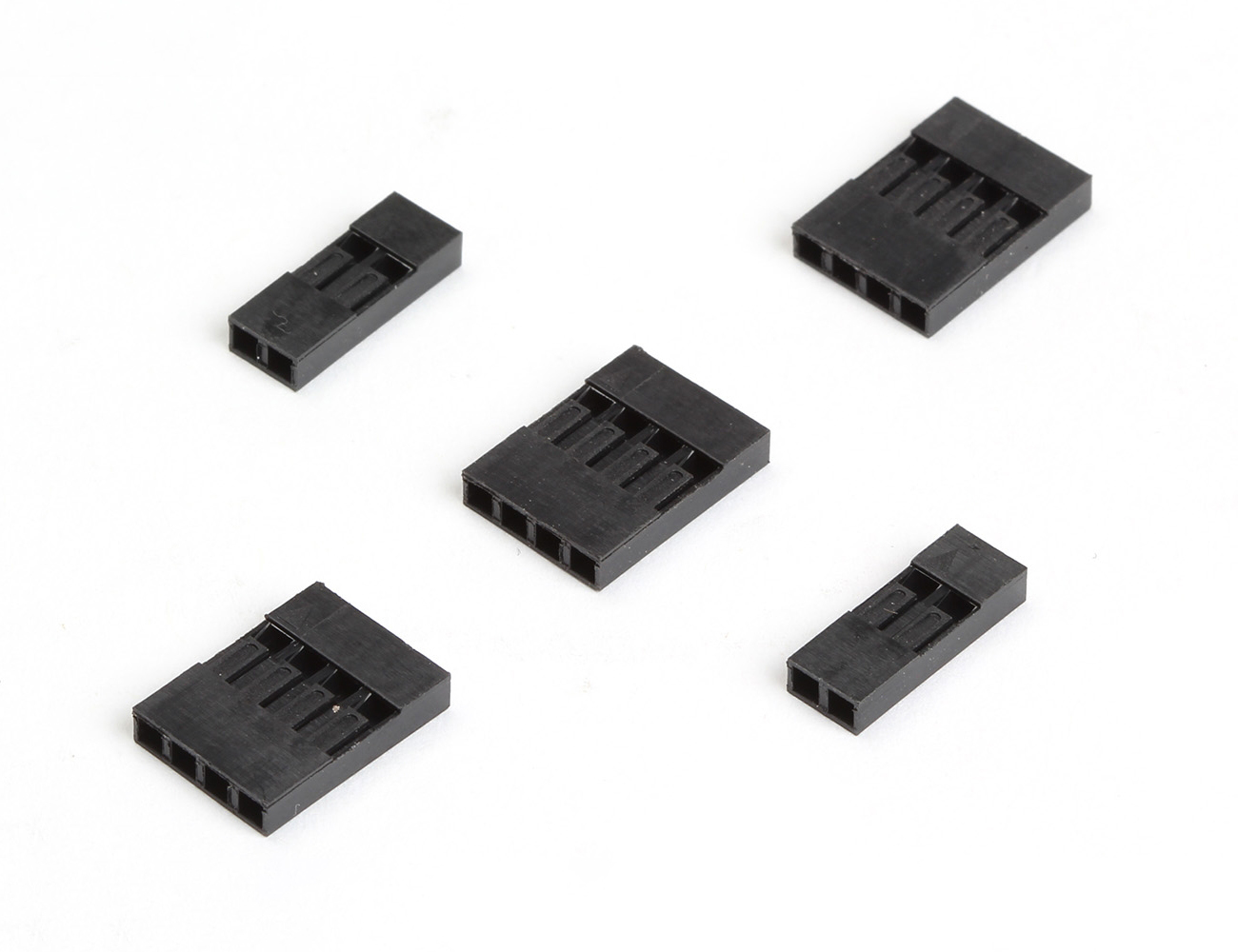

| 1312-1x1P | 1x1 Pin 2.54mm Single Row Female | 3A | 250V / AC/ DC | 800V AC / munite | P.B.T UL94V-0 | -25°C # +85°C |
|
| 2 Pin | |||||||

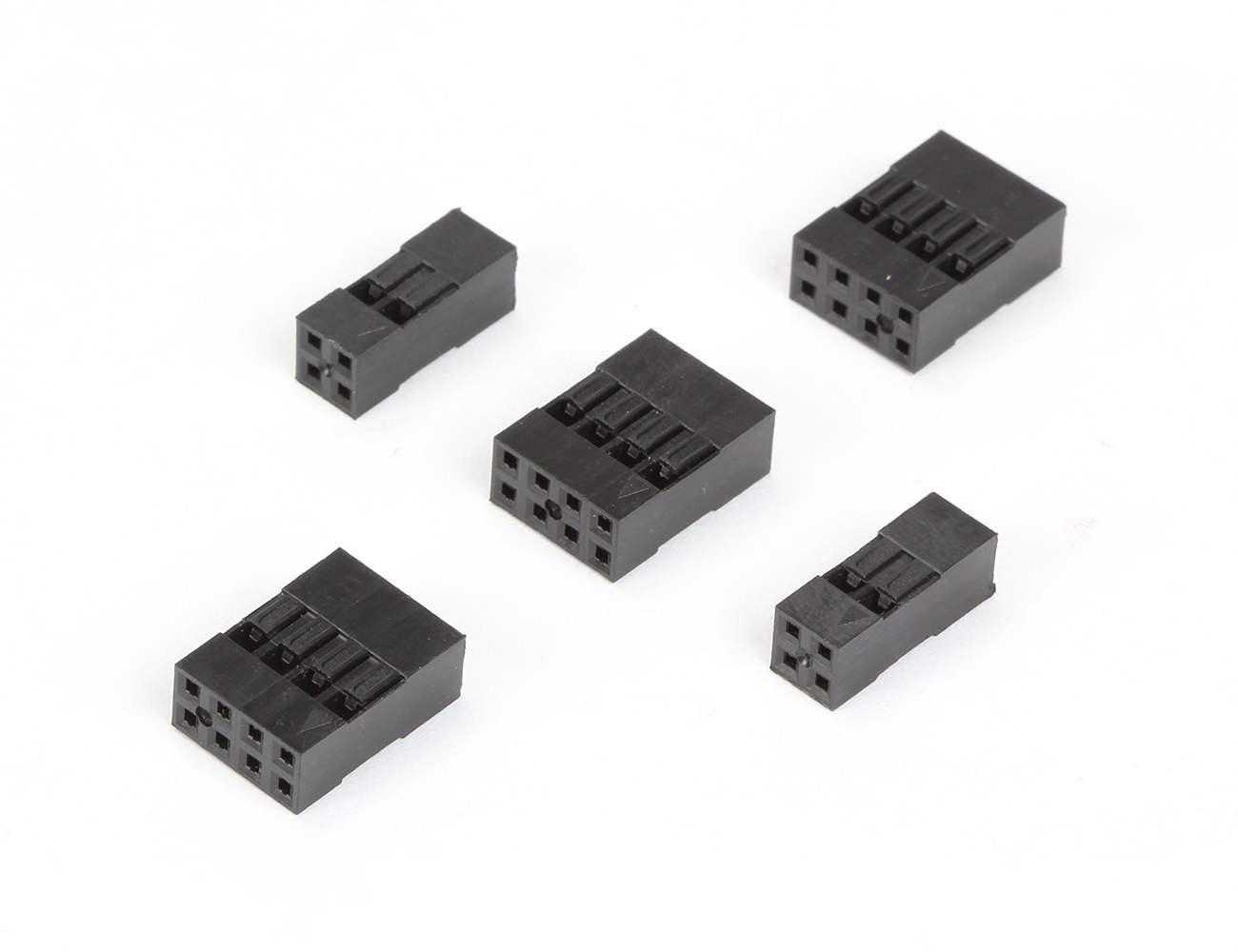

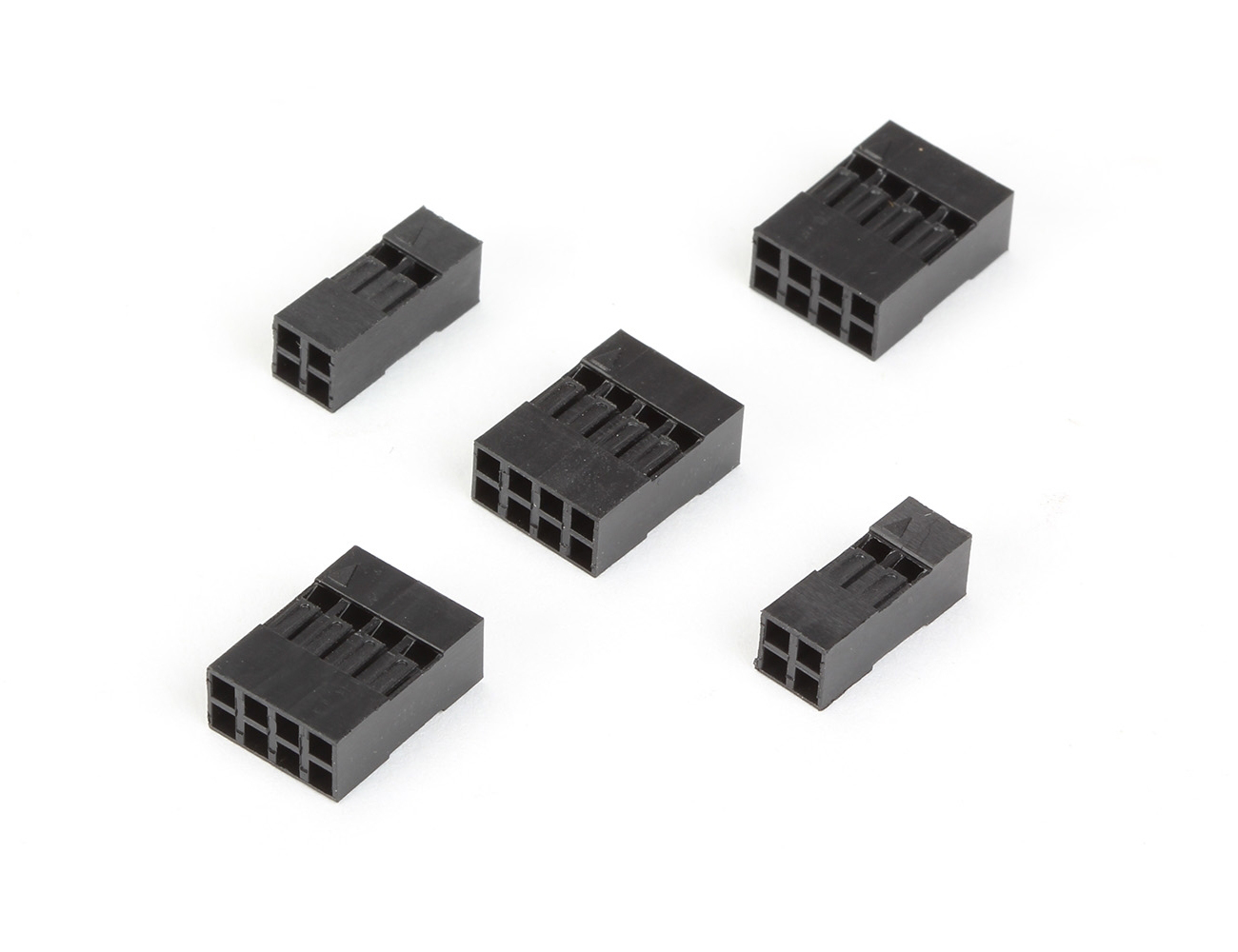

| 1312-2x2P | 2x2 Pin 2.54mm Double Row Female | 3A | 250V / AC/ DC | 800V AC / munite | P.B.T UL94V-0 | -25°C # +85°C |
|
| 1312-1x2P | 1x2 Pin 2.54mm Single Row Female | 3A | 250V / AC/ DC | 800V AC / munite | P.B.T UL94V-0 | -25°C # +85°C |
|
| 4 Pin | |||||||
| 1312-2x4P | 2x4 Pin 2.54mm Double Row Female | 3A | 250V / AC/ DC | 800V AC / munite | P.B.T UL94V-0 | -25°C # +85°C |
|
| 40 Pin | |||||||
| 1312-1x40P | 1x40 Pin 2.54mm Single Row Female | 3A | 250V / AC/ DC | 800V AC / munite | P.B.T UL94V-0 | -25°C # +85°C |
|
| 1312-2x40P | 2x40 Pin 2.54mm Double Row Female | 3A | 250V / AC/ DC | 800V AC / munite | P.B.T UL94V-0 | -25°C # +85°C |
|
| Terminal | |||||||

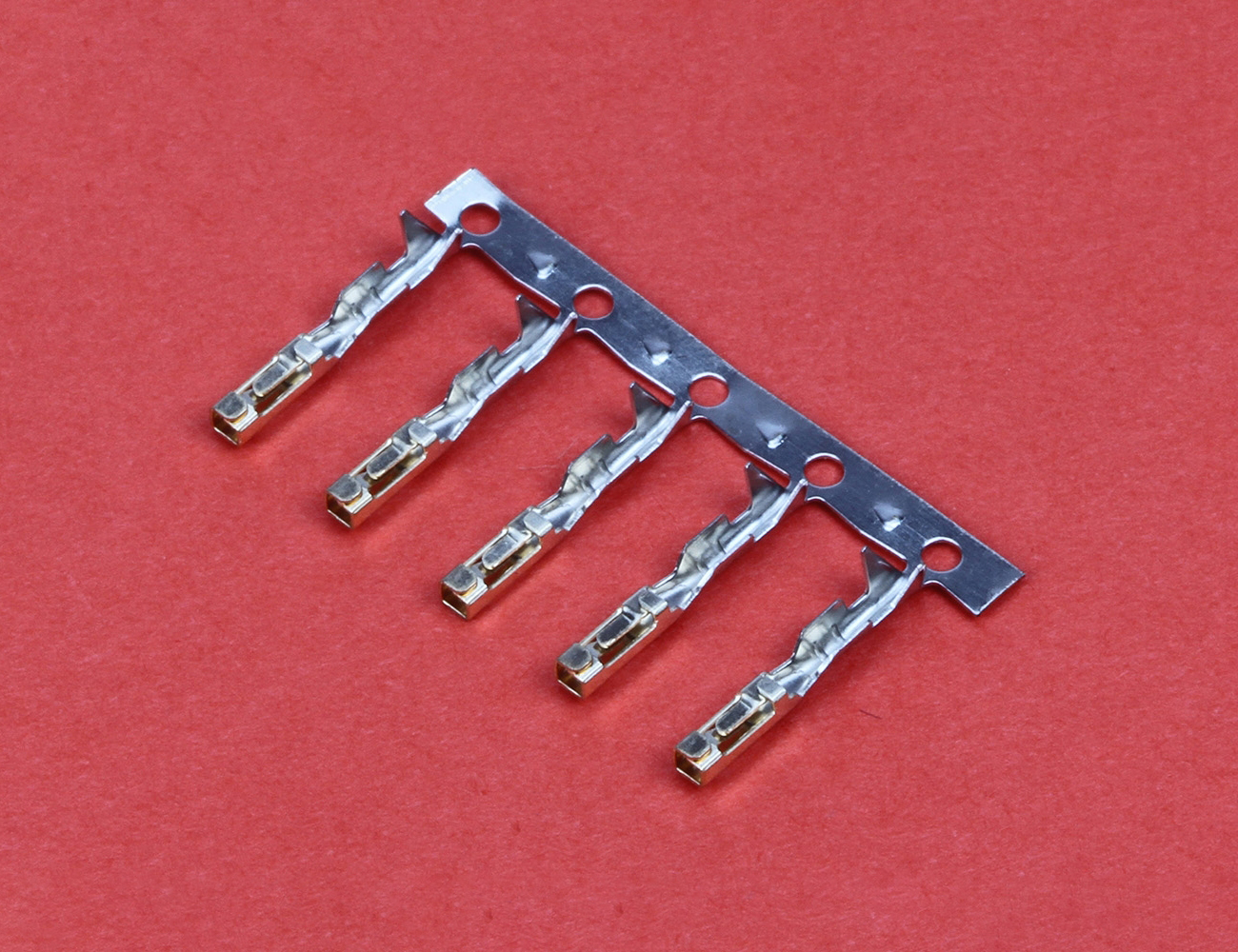

| 1312-T | Crimp Terminal Female | - | - | - | - | - |
|
