Signal 1110 D Series

Signal 1110 D Series

Signal 1110 D Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
6 Pin

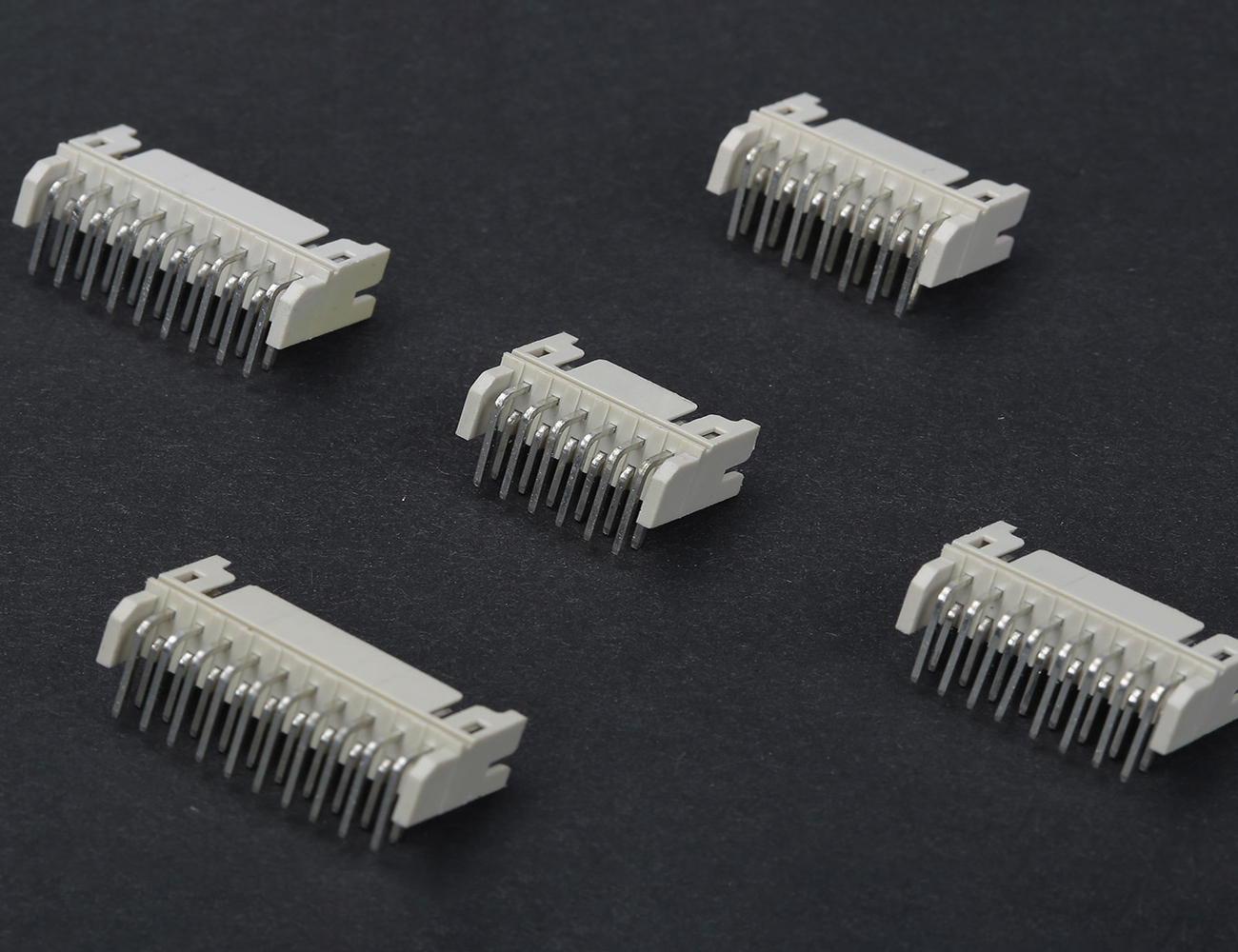

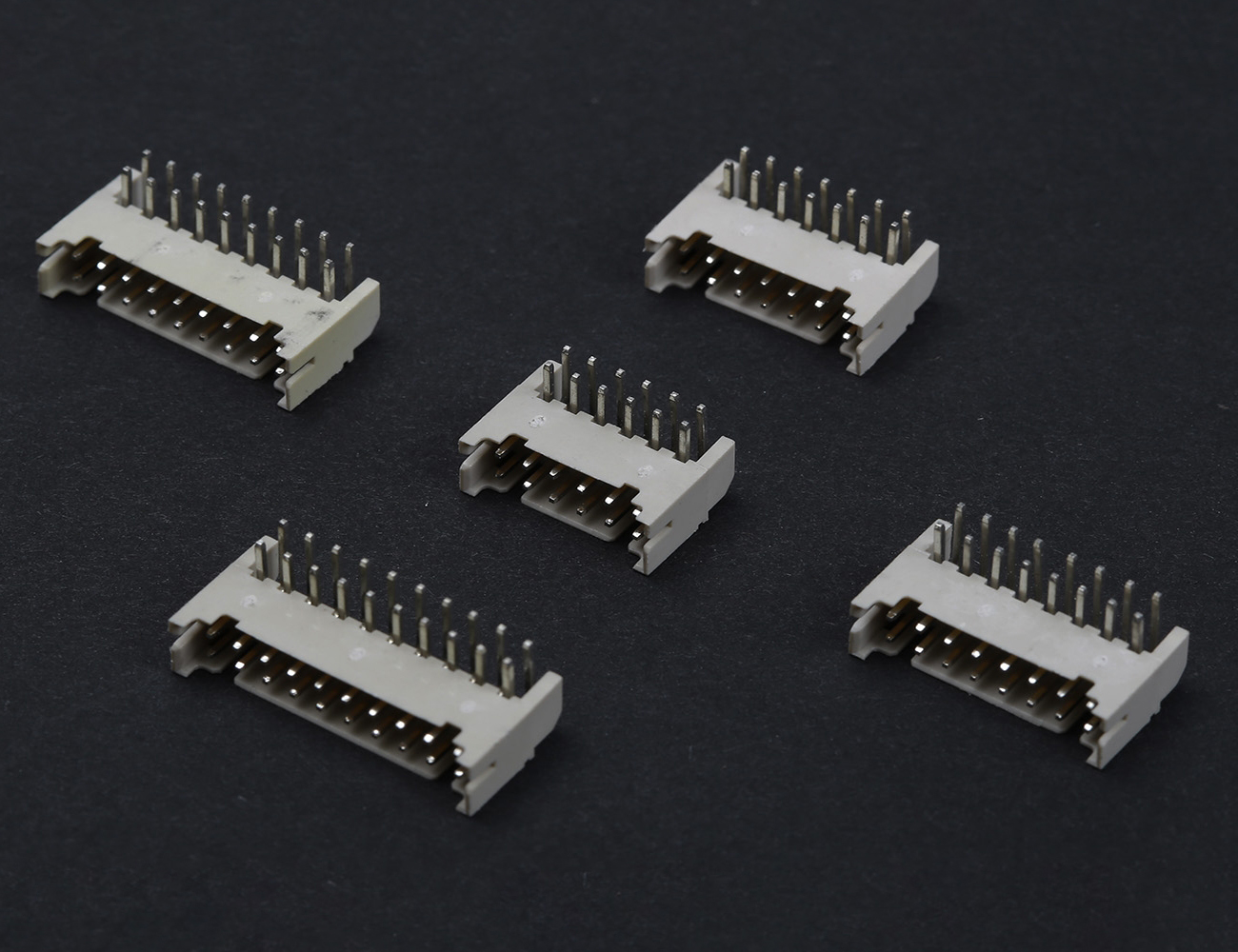

1110D-06R 6 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

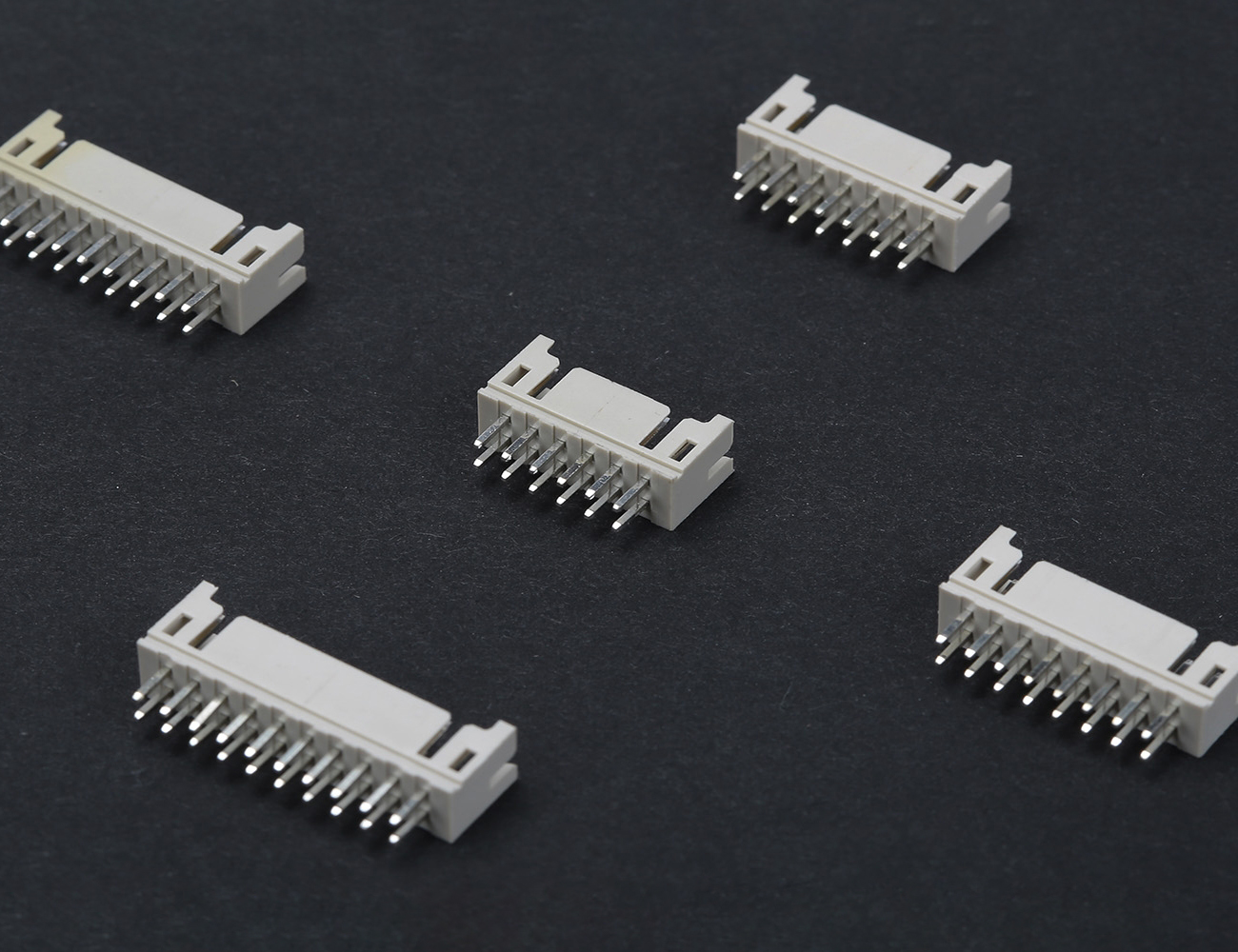

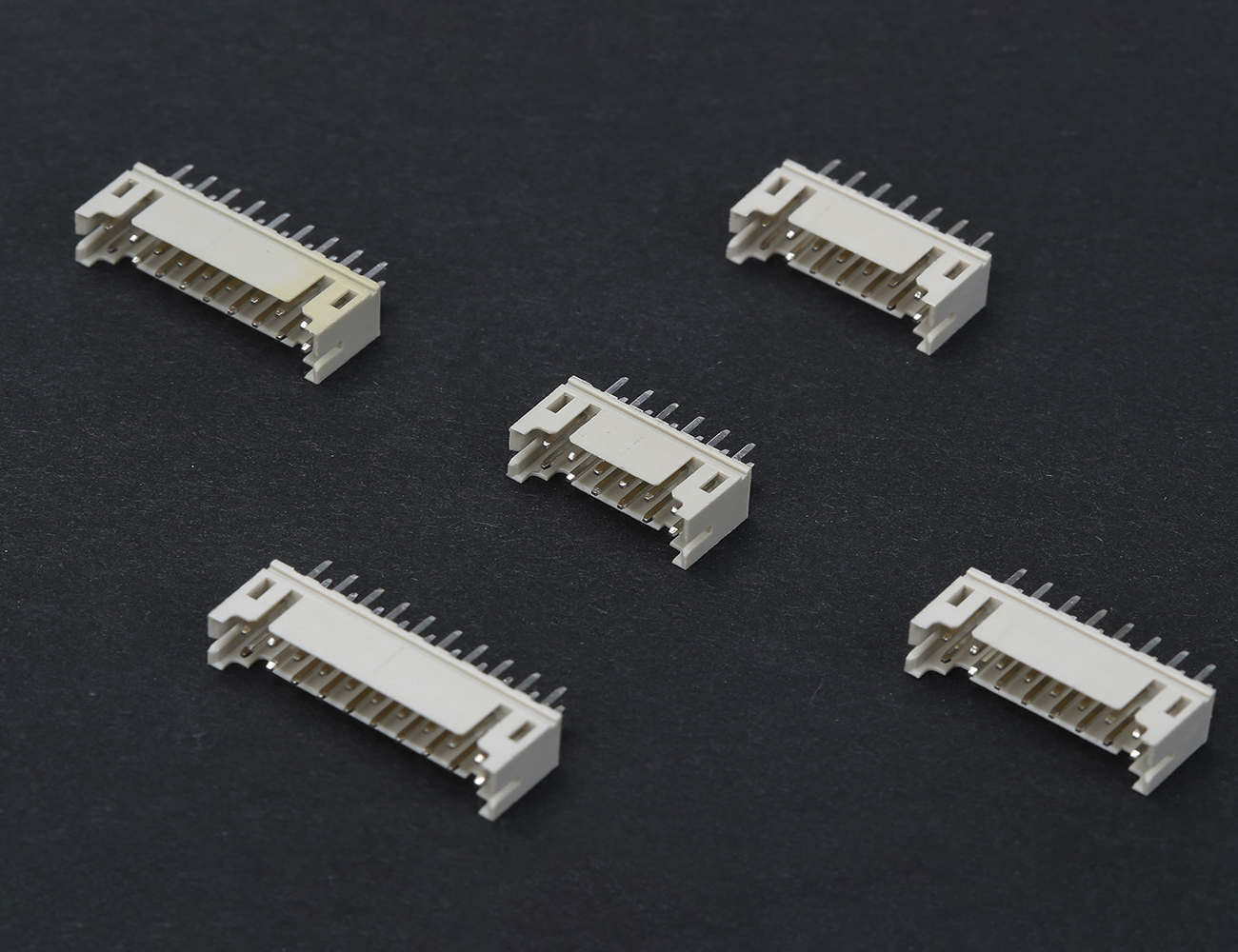

1110D-06S 6 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

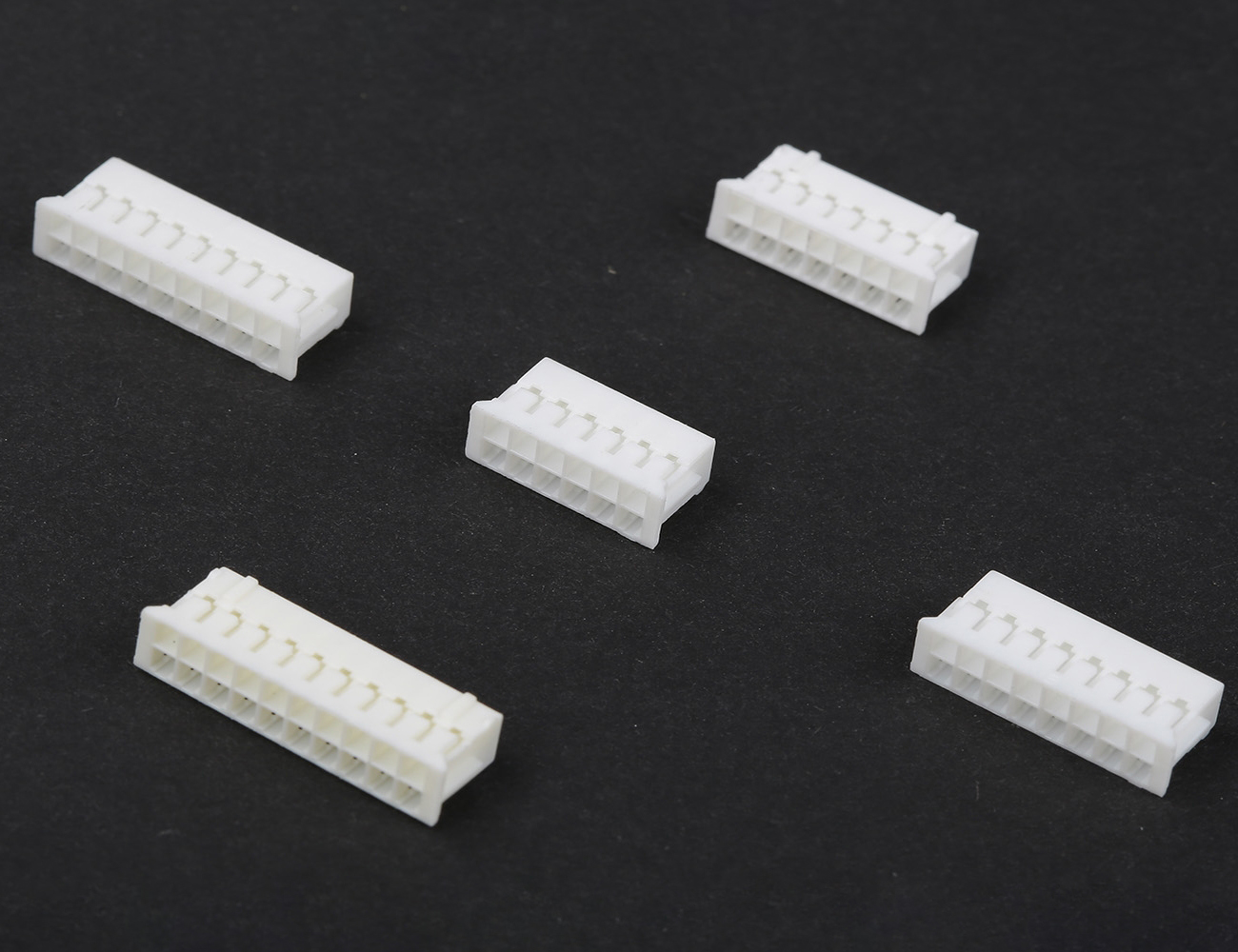

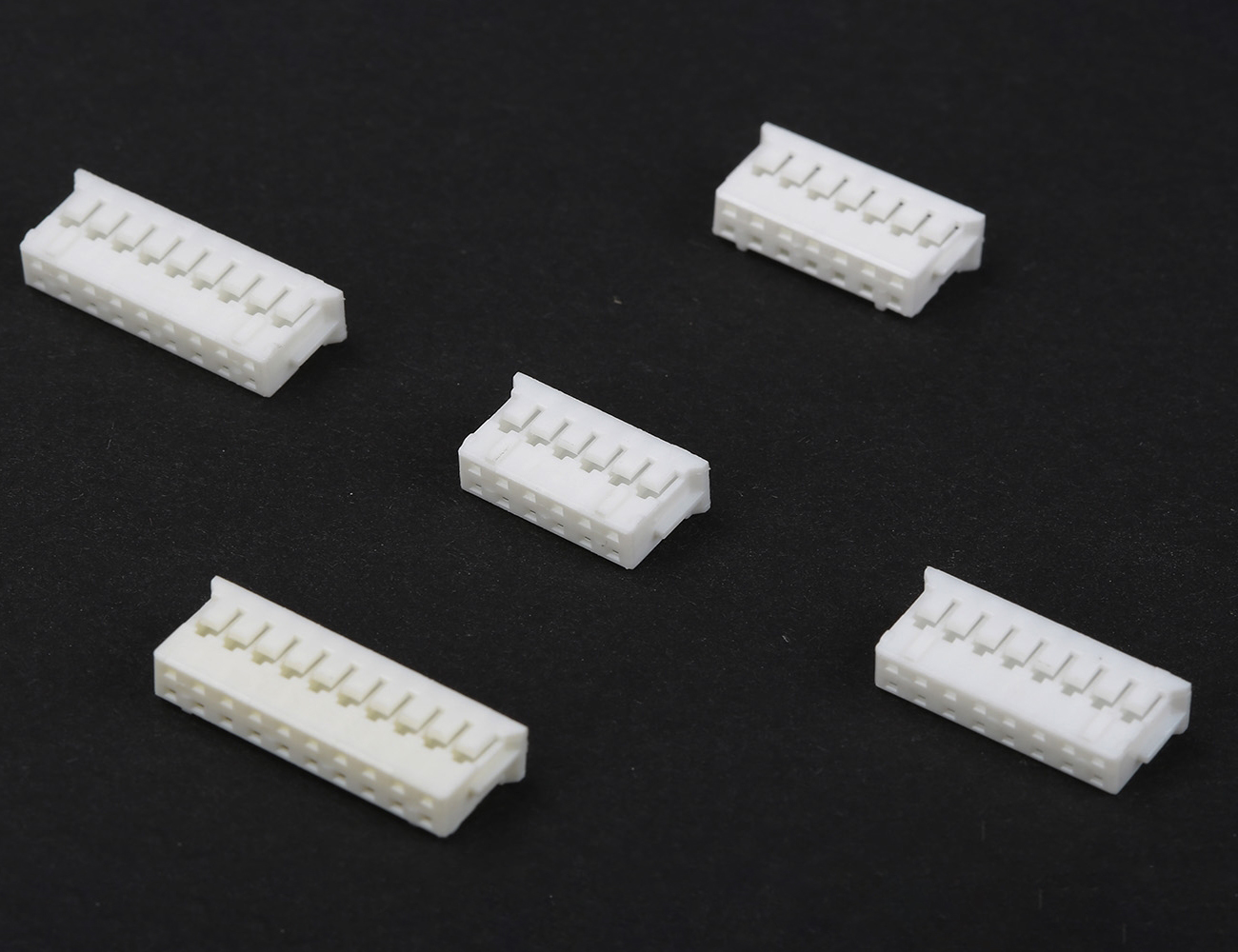

1110D-06H 6 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
1110D-08R 8 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-08S 8 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-08H 8 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
1110D-10R 10 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-10S 10 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-10H 10 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
1110D-12R 12 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-12S 12 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-12H 12 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
1110D-14R 14 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-14S 14 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-14H 14 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
16 Pin
1110D-16R 16 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-16S 16 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-16H 16 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
18 Pin
1110D-18R 18 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-18S 18 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-18H 18 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
20 Pin
1110D-20R 20 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-20S 20 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-20H 20 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
22 Pin
1110D-22R 22 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-22S 22 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-22H 22 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
24 Pin
1110D-24R 24 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-24S 24 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-24H 24 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
26 Pin
1110D-26R 26 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-26S 26 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-26H 26 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
28 Pin
1110D-28R 28 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 250V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-28S 28 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-28H 28 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
30 Pin
1110D-30R 30 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-30S 30 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-30H 30 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
32 Pin
1110D-32R 32 Pin 2.00mm Double Row DIP Pcb Type Male 90º 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-32S 32 Pin 2.00mm Double Row DIP Pcb Type Male Upright 3A 150V 500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
1110D-32H 32 Pin 2.00mm Double Row Female 3A 250V 1000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

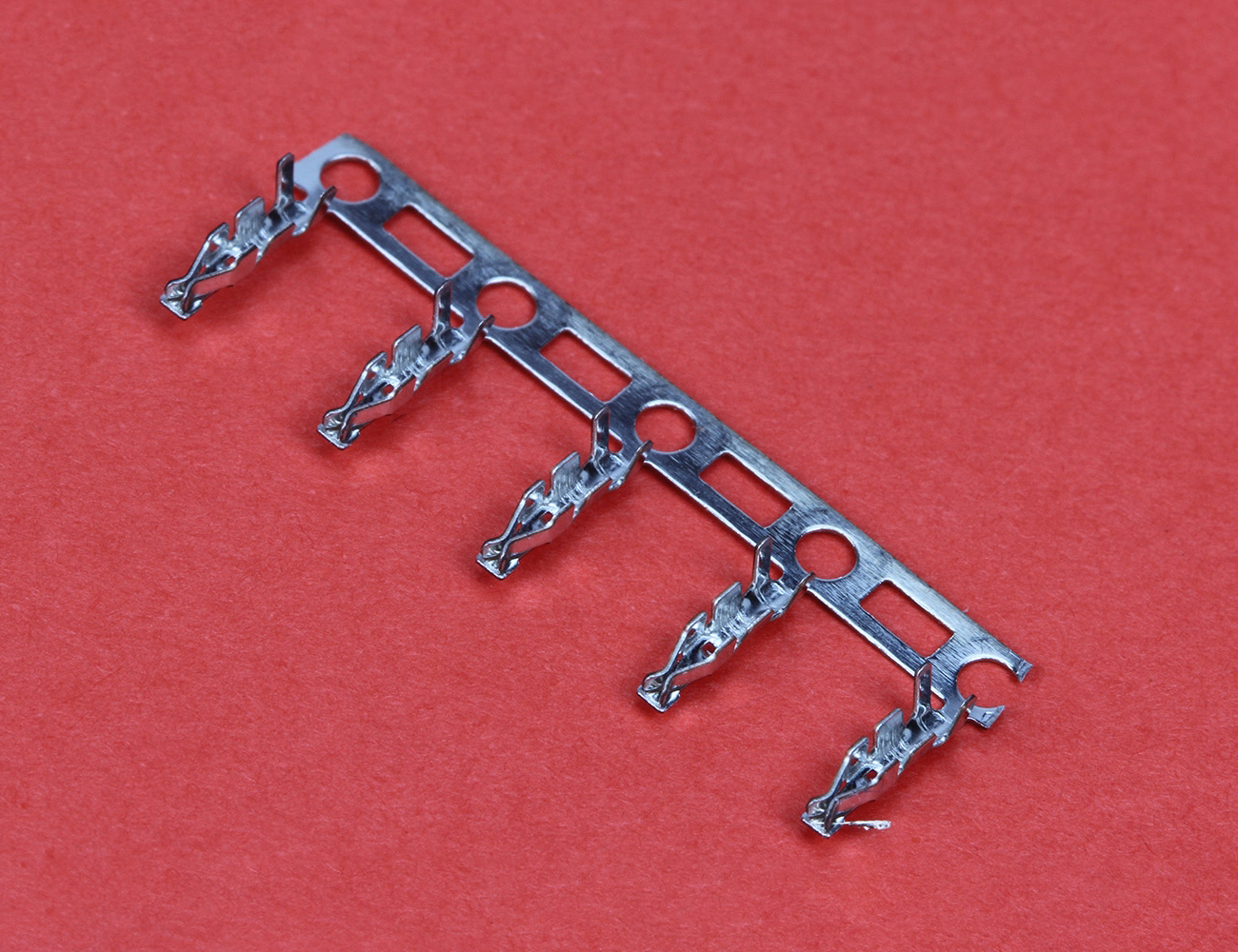

1110D-TP Crimp Terminal Female - - - - -
