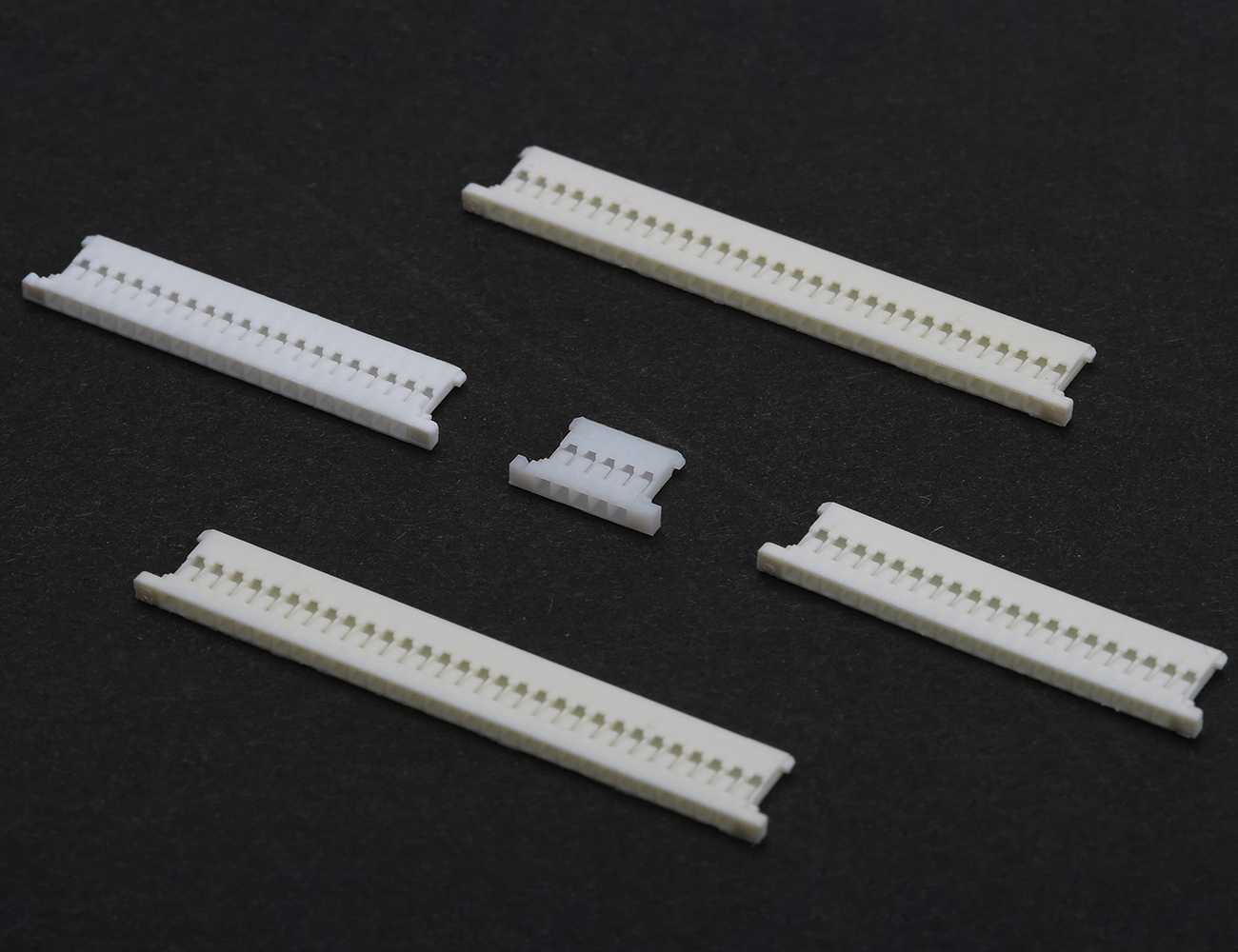

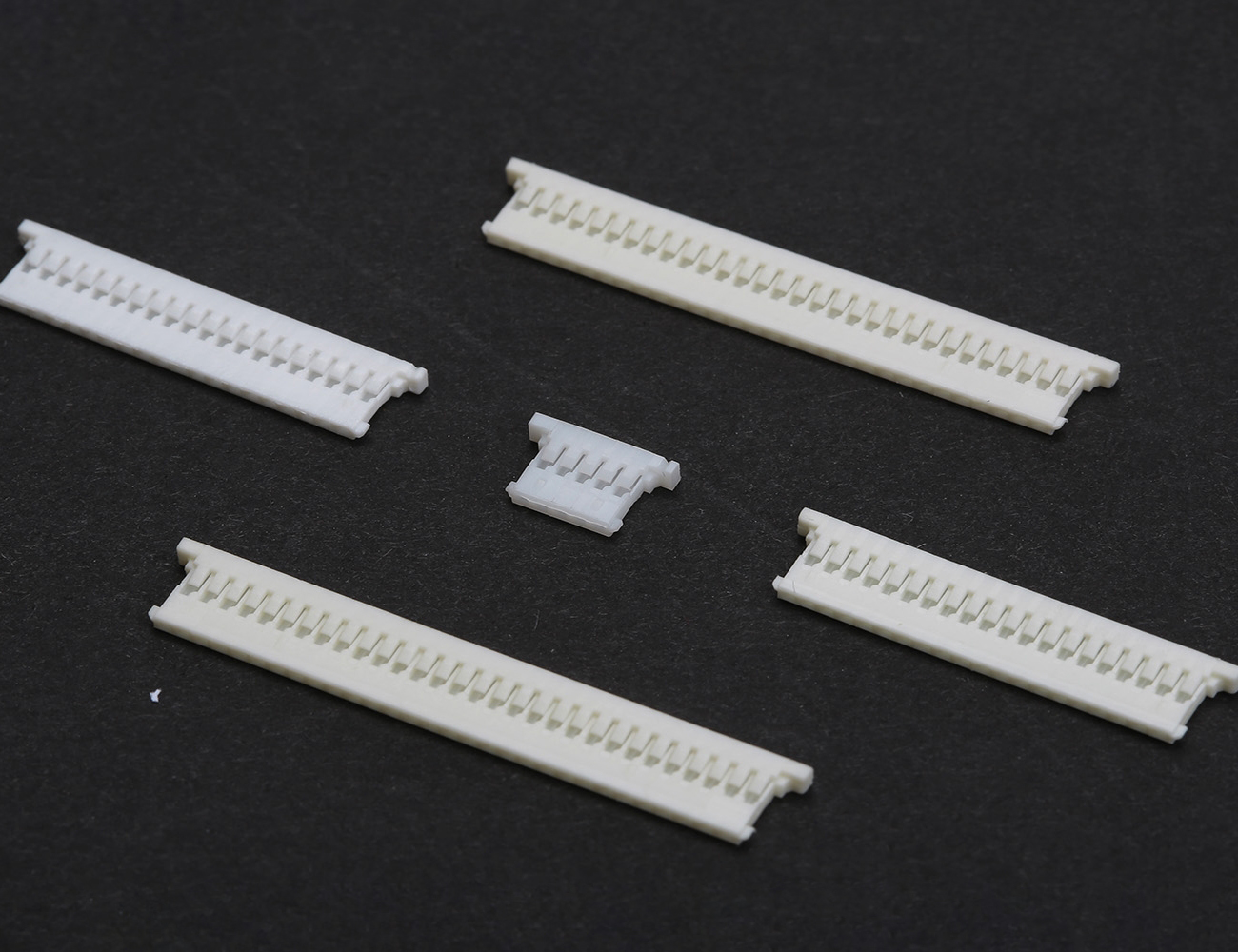

Signal 1200 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 5 Pin | |||||||
| 1200-05HB | 5 Pin 1.25mm Female | 1A | 125V / AC / DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 20 Pin | |||||||
| 1200-20HB | 20 Pin 1.25mm Female | 1A | 125V / AC / DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| 30 Pin | |||||||
| 1200-30HB | 30 Pin 1.25mm Female | 1A | 125V / AC / DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
|
| Terminal | |||||||

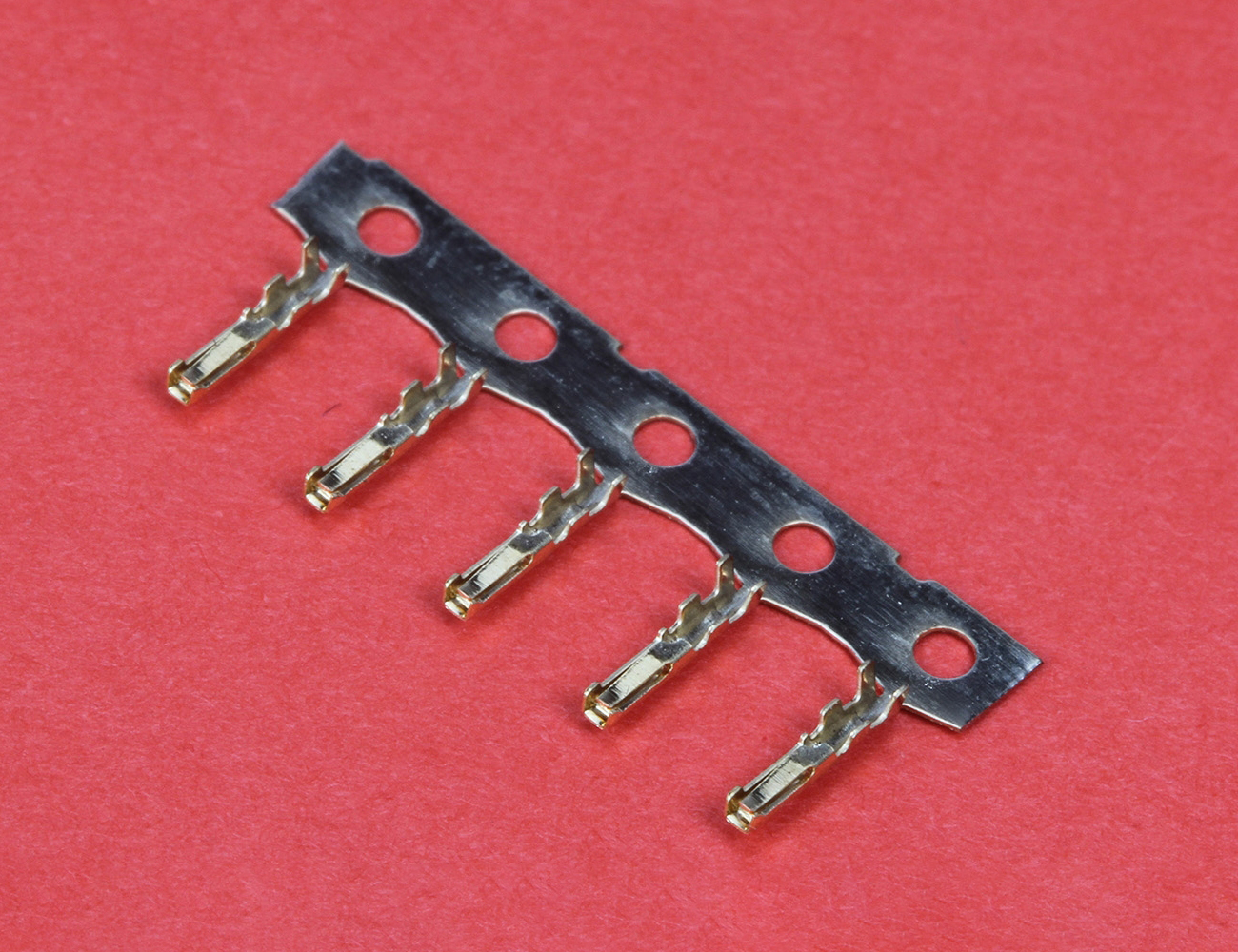

| 1200-TP | Crimp Terminal Female | - | - | - | - | - |
|
