Power 9500 Series

Power 9500 Series

Power 9500 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin

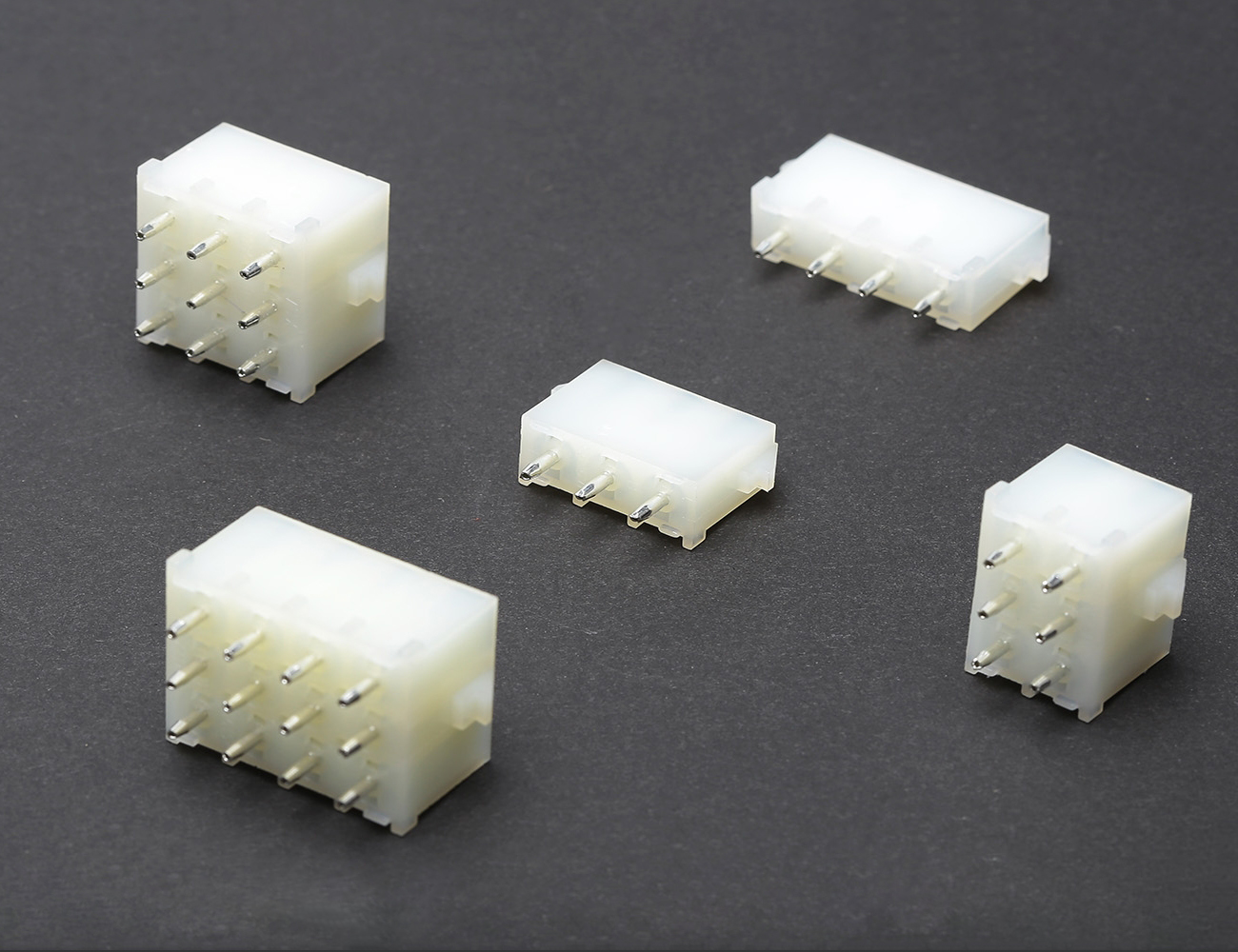

9500-02S 2 Pin 6.35mm DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C

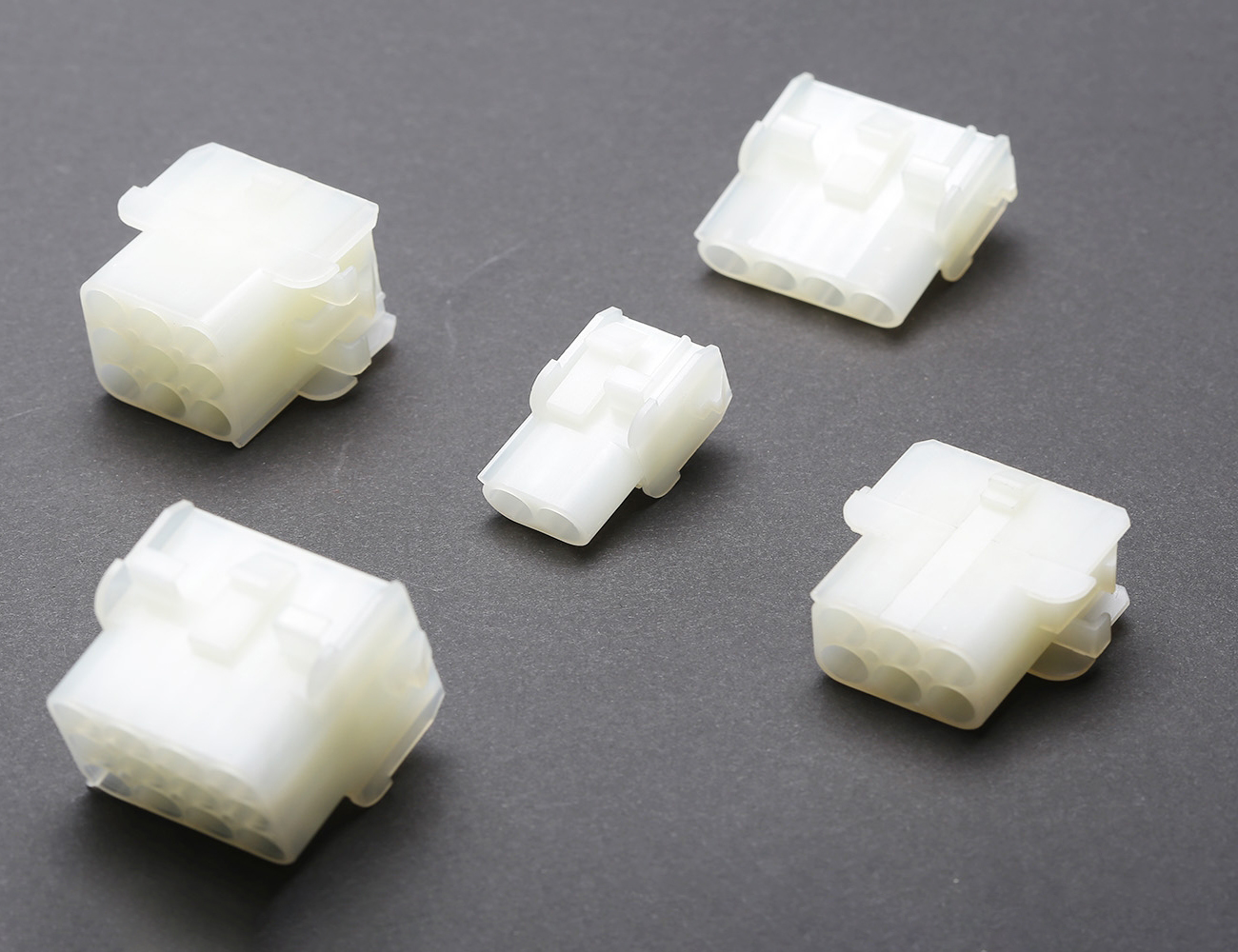

9500-02F 2 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
9500-03S 3 Pin 6.35mm Center Diameter DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-03F 3 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
9500-04S 4 Pin 6.35mm Center Diameter DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-04F 4 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
9500-05S 5 Pin 6.35mm Center Diameter DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-05F 5 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
9500-06S 6 Pin 6.35mm Center Diameter DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-06F 6 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
9500-09S 9 Pin 6.35mm Center Diameter DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-09F 9 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
9500-12S 12 Pin 6.35mm Center Diameter DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-12F 12 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
9500-15S 15 Pin 6.35mm Center Diameter DIP Pcb Type Male Upright 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9500-15F 15 Pin 6.35mm Center Diameter Female 15A 600V 5000VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

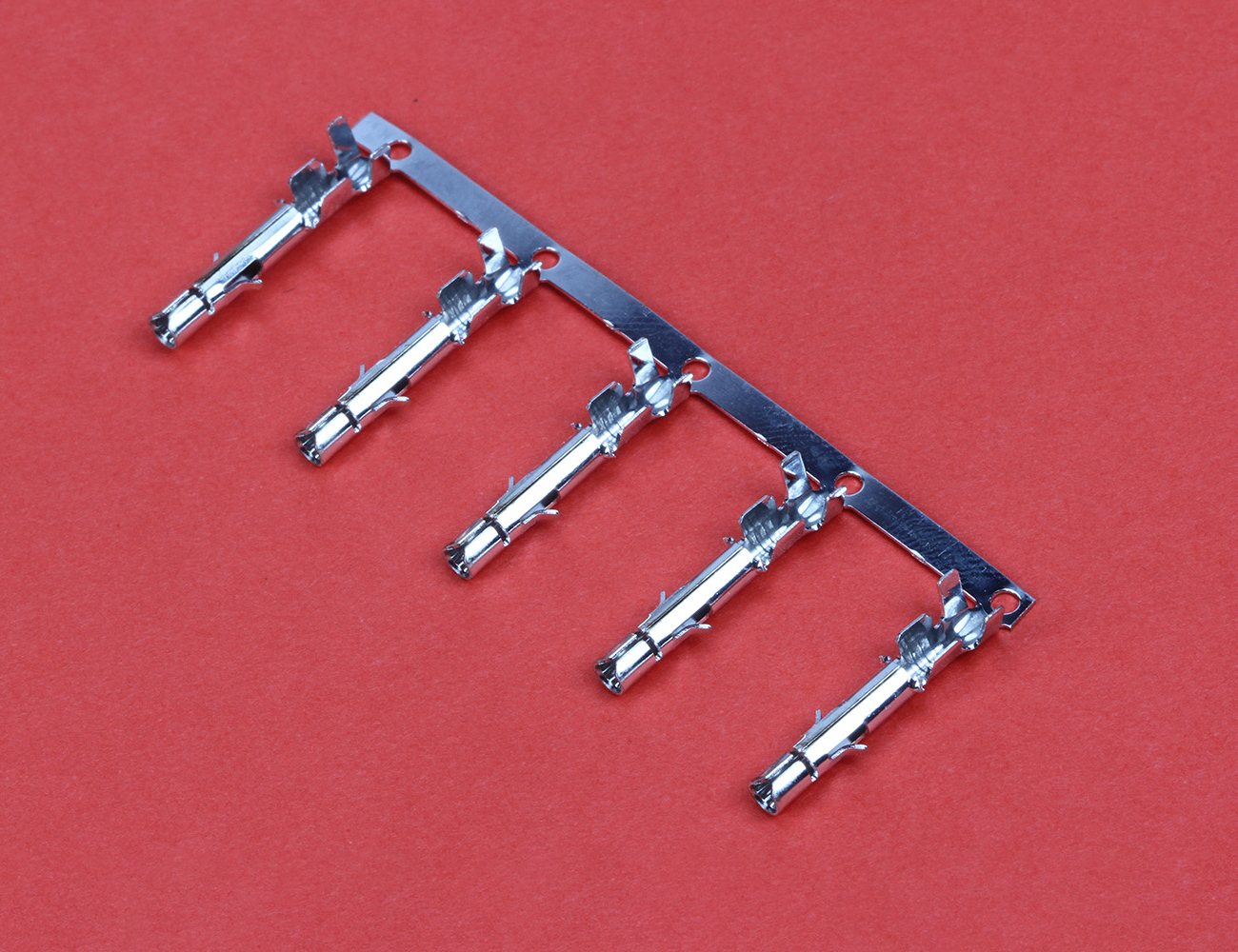

9500-FT Crimp Terminal Female - - - - -
