Power 2220 B Series

Power 2220 B Series

Power 2220 B Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin
2220-02SB 2 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-02RB 2 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-02HB 2 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
3 Pin
2220-03SB 3 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-03RB 3 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-03HB 3 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
2220-04SB 4 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-04RB 4 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-04HB 4 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5 Pin
2220-05SB 5 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-05RB 5 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-05HB 5 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
2220-06SB 6 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-06RB 6 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-06HB 6 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
7 Pin
2220-07SB 7 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-07RB 7 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-07HB 7 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
2220-08SB 8 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-08RB 8 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-08HB 8 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
9 Pin
2220-09SB 9 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-09RB 9 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-09HB 9 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
2220-10SB 10 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-10RB 10 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-10HB 10 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
11 Pin
2220-11SB 11 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-11RB 11 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-11HB 11 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
2220-12SB 12 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-12RB 12 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-12HB 12 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
13 Pin
2220-13SB 13 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-13RB 13 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-13HB 13 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
2220-14SB 14 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-14RB 14 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-14HB 14 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
15 Pin
2220-15SB 15 Pin 5.08mm DIP Pcb Type Male Upright 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-15RB 15 Pin 5.08mm DIP Pcb Type Male 90º 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
2220-15HB 15 Pin 5.08mm Female 7A 250V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

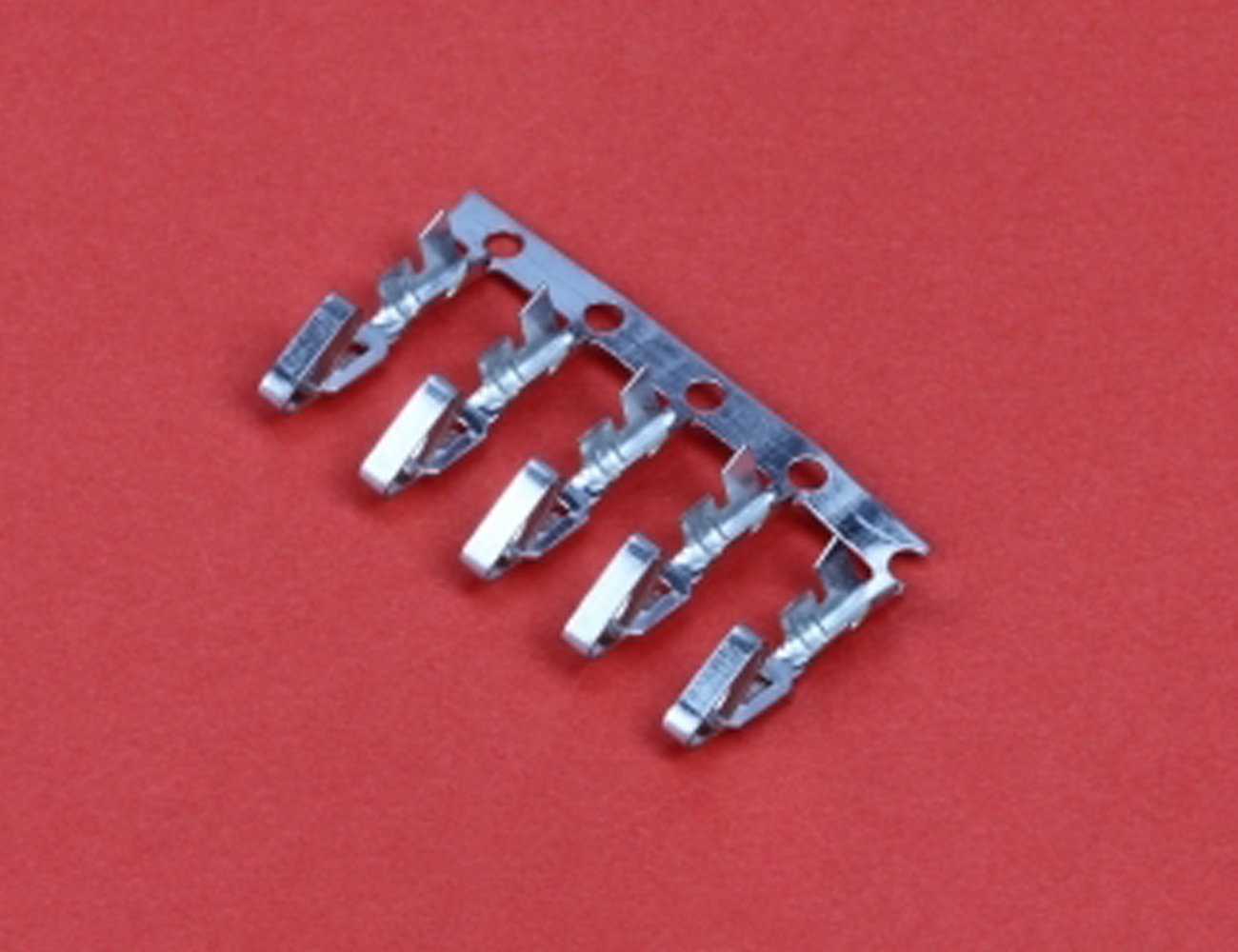

2220-TN Crimp Terminal Female - - - - -
