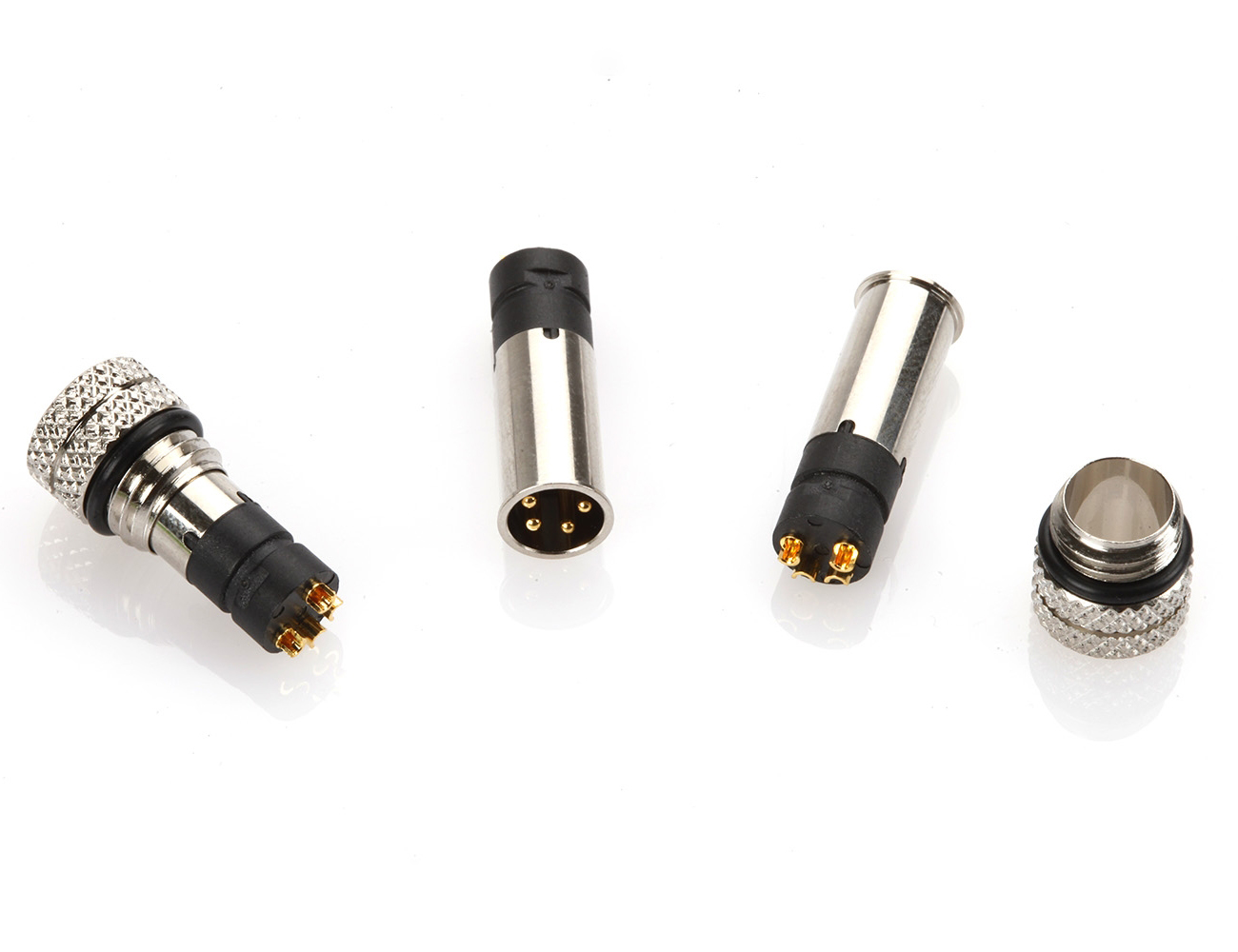

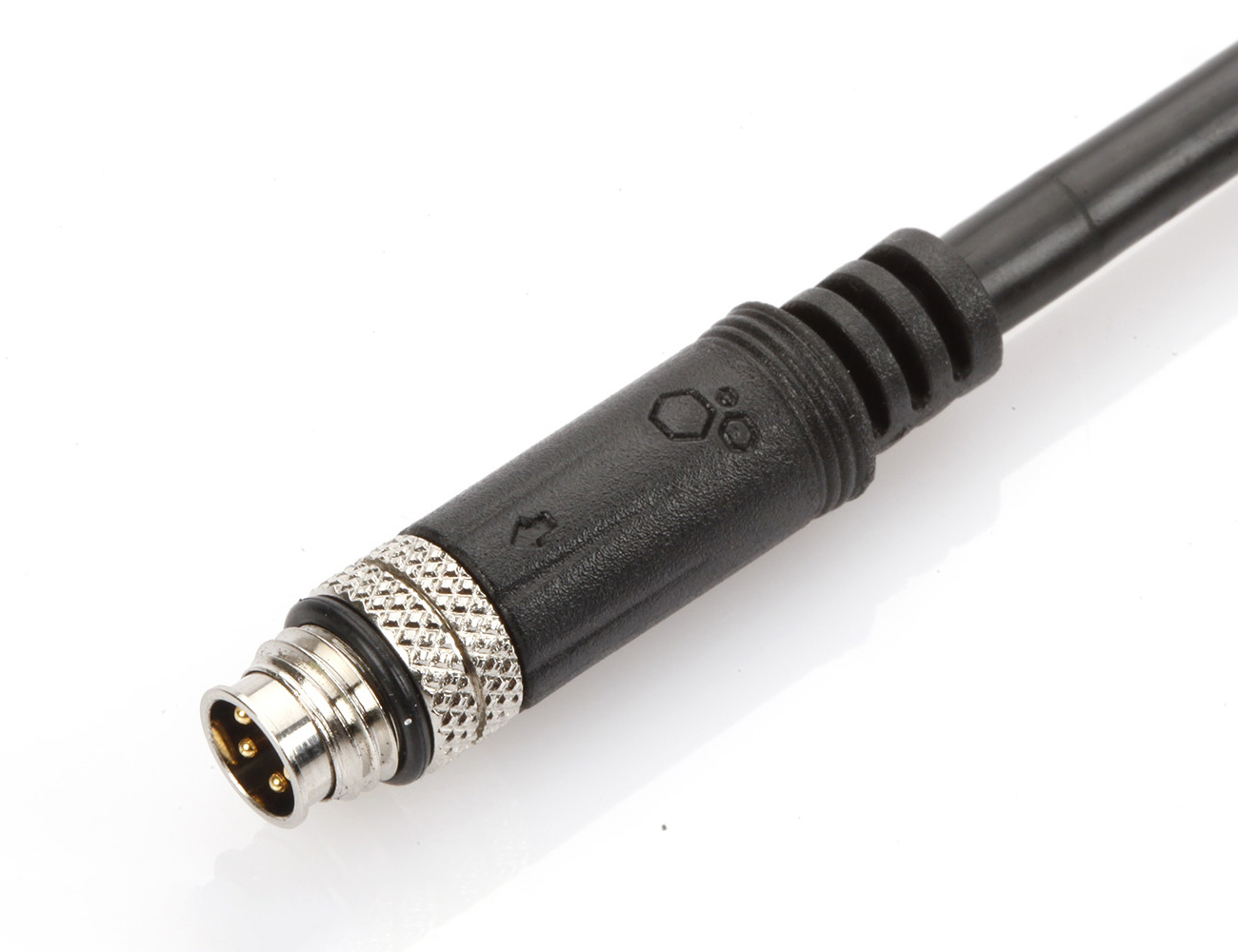

M8 3 Pin Circular Male Connector

M8 3 Pin Circular Male Connector

Material

Housing               PBT UL94V-0; Color:Black.
Contact Phosphor Bronze
Nut Brass.
O-Ring NBR ; Color:Black

Finish

Contact          10 Micro Inches Min. Gold Plating.
Solder Area Gold Flash.
Under Plate Nickel
Nut Nickel Plated 60u''~100u'' Over All.

Technicial Specifications

Circuits 3 Pin
Current Rating 5A
Voltage Rating 125V
Type Male
IP Rating IP67
Temperature Range -25°C # +85°C
