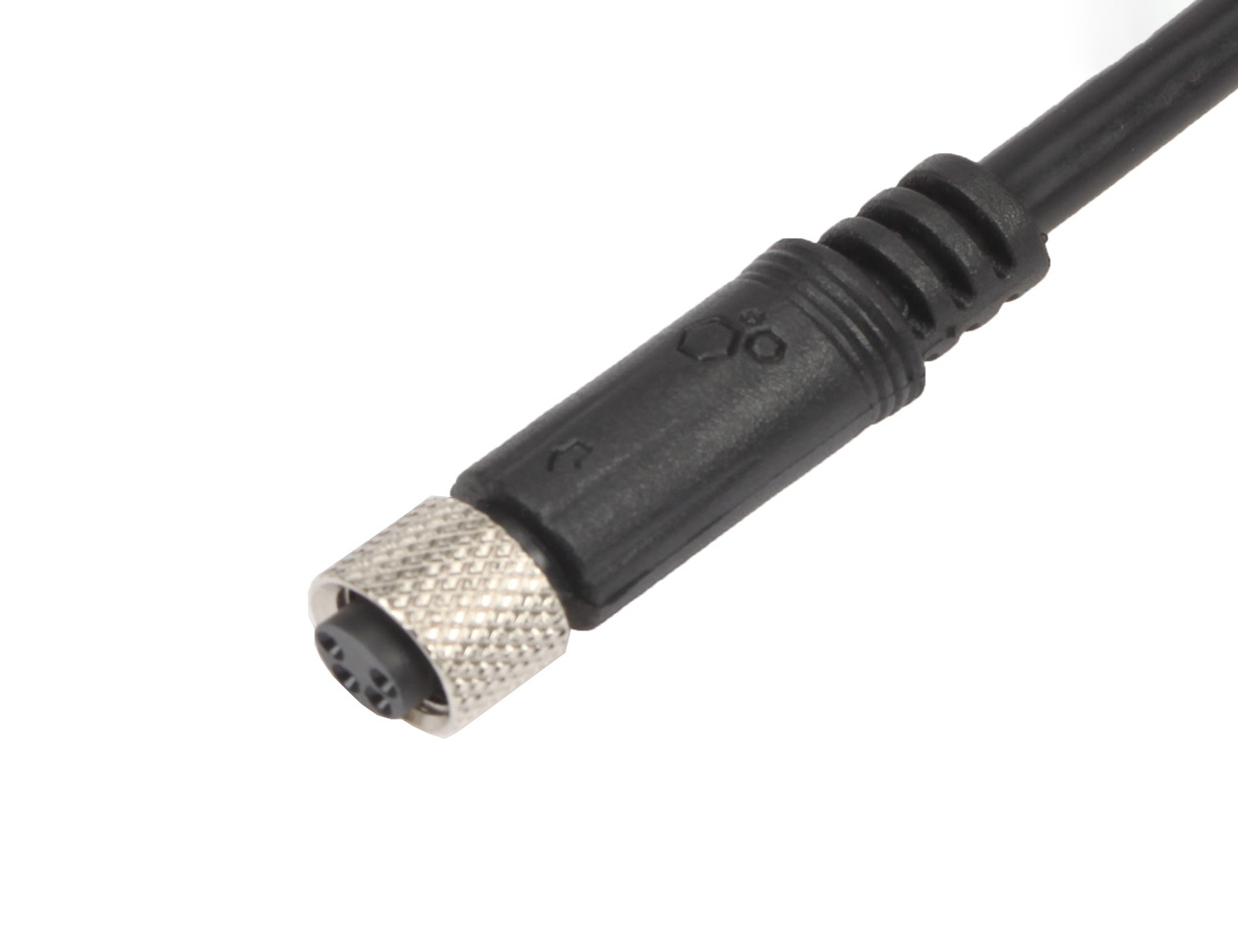

M8 - 2, 3, 4 Pin Female

M8 - 2, 3, 4 Pin Female

Material

Housing                PBT UL94V-0; Color:Black.
Contact Phosphor Bronze
Nut Brass.
O-Ring NBR ; Color:Black





Finish

Contact          10 Micro Inches Min. Gold Plating.
Solder Area Gold Flash.
Under Plate Nickel
Nut Nickel Plated 60u''~100u'' Over All.





Electrical Specification

Rated Current 5A
Voltage 125V
IP Rating  IP67





Environmental Conditions

Protecttion class IP67 (IEC 60529)
Temperature range -20°C to +85°C
