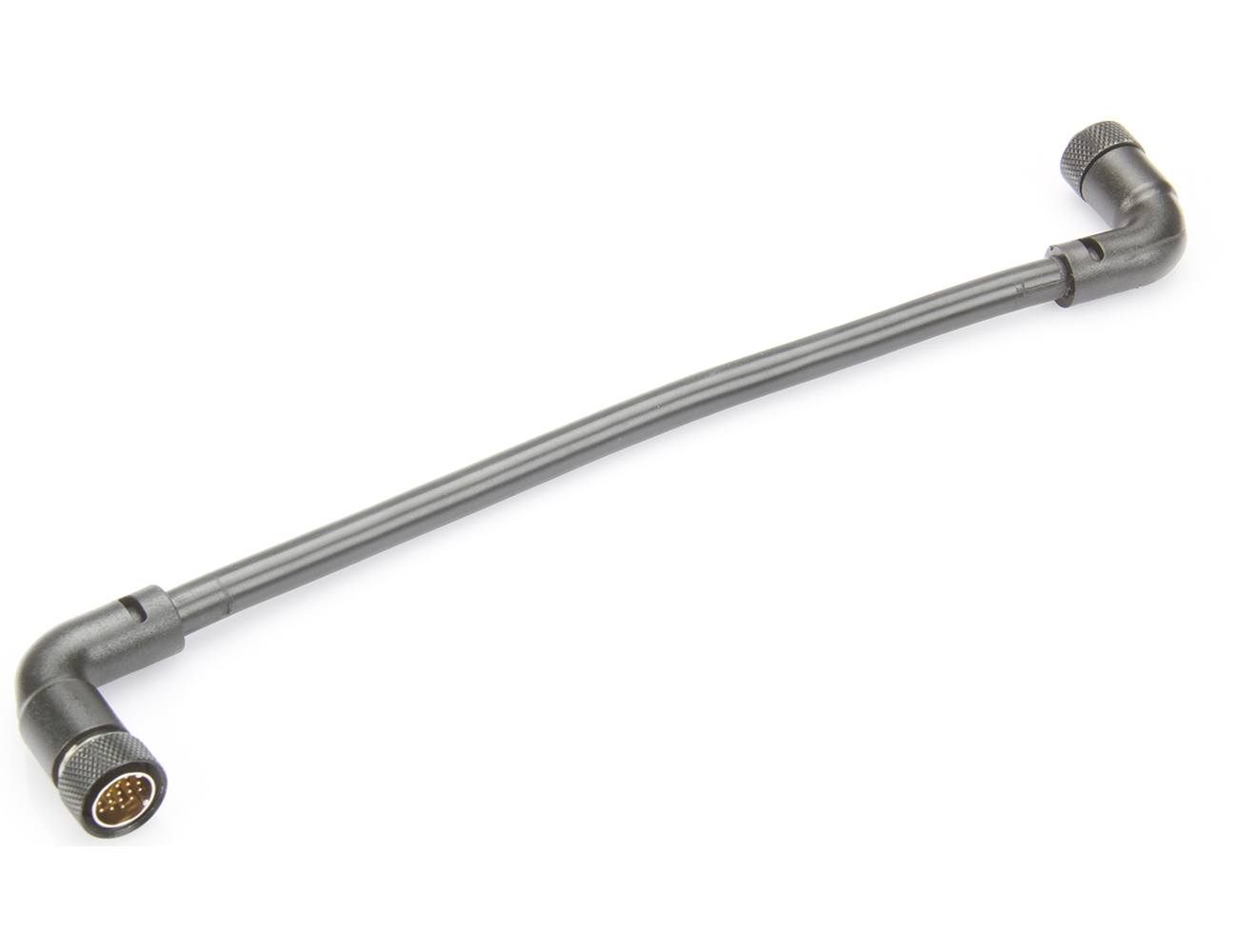

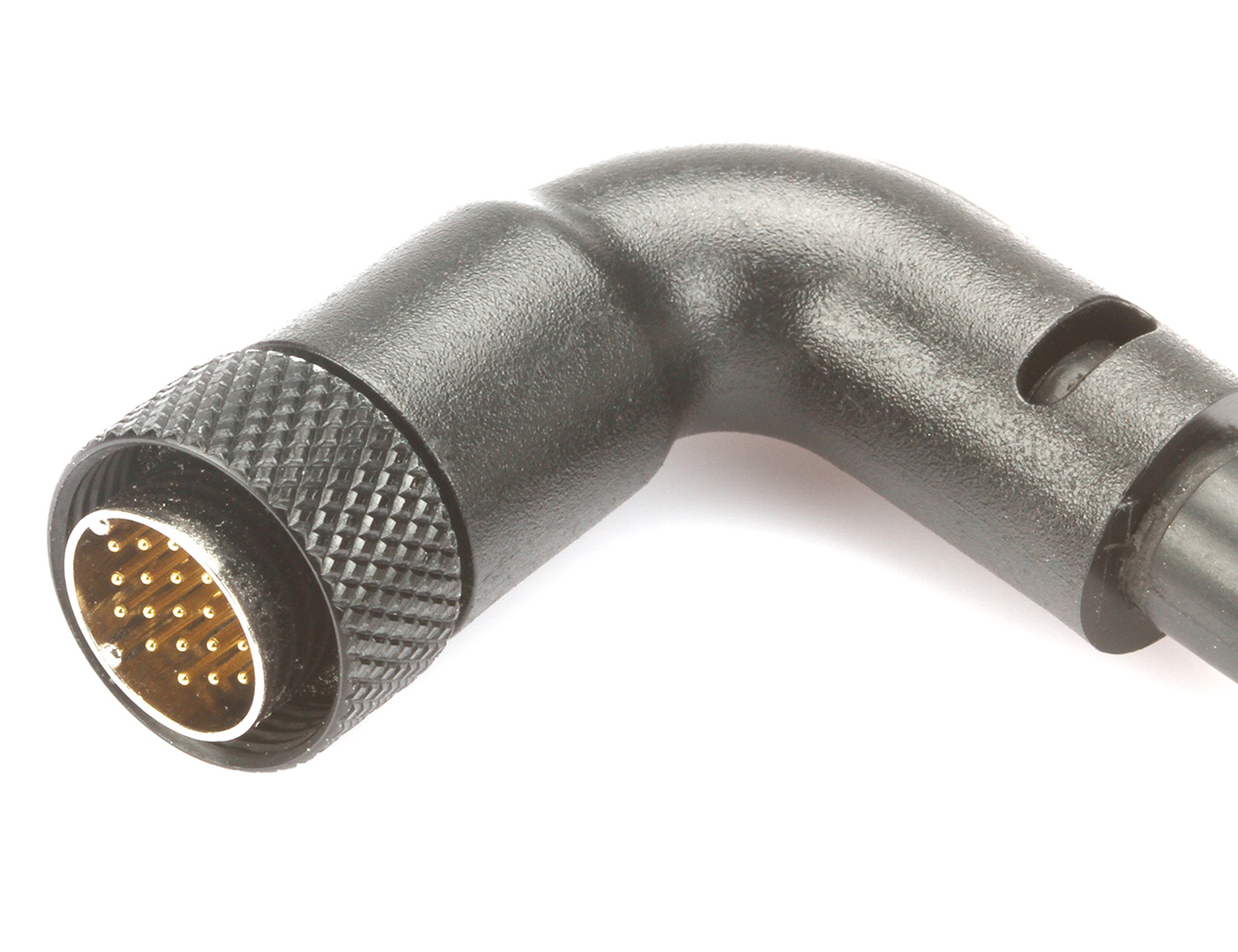

Product Description
| Standard | IEC 61076-2-101/IEC 60947-5-2 |
| Number of contacts | 19 |
Material
| Housing | PBT UL94V-0 Color:Black |
| Contact | Phosphor Bronze |
| Nut | Aluminum |
| O-Ring | NBR ; Color:Black |
Finish
| Contact | 10 Micro Inches Min. Gold Plating |
| Solder Area | Gold Flash |
| Nut | Nickel Plated 60u''~100u'' Over All |
Electrical Specification
| Rated Current | 1A |
| Voltage Rating | 30V |
| IP Rating | IP67 |
Environmental Conditions
| Protecttion class | IP67 (IEC 60529) |
| Temperature range | -20°C to +85°C |
