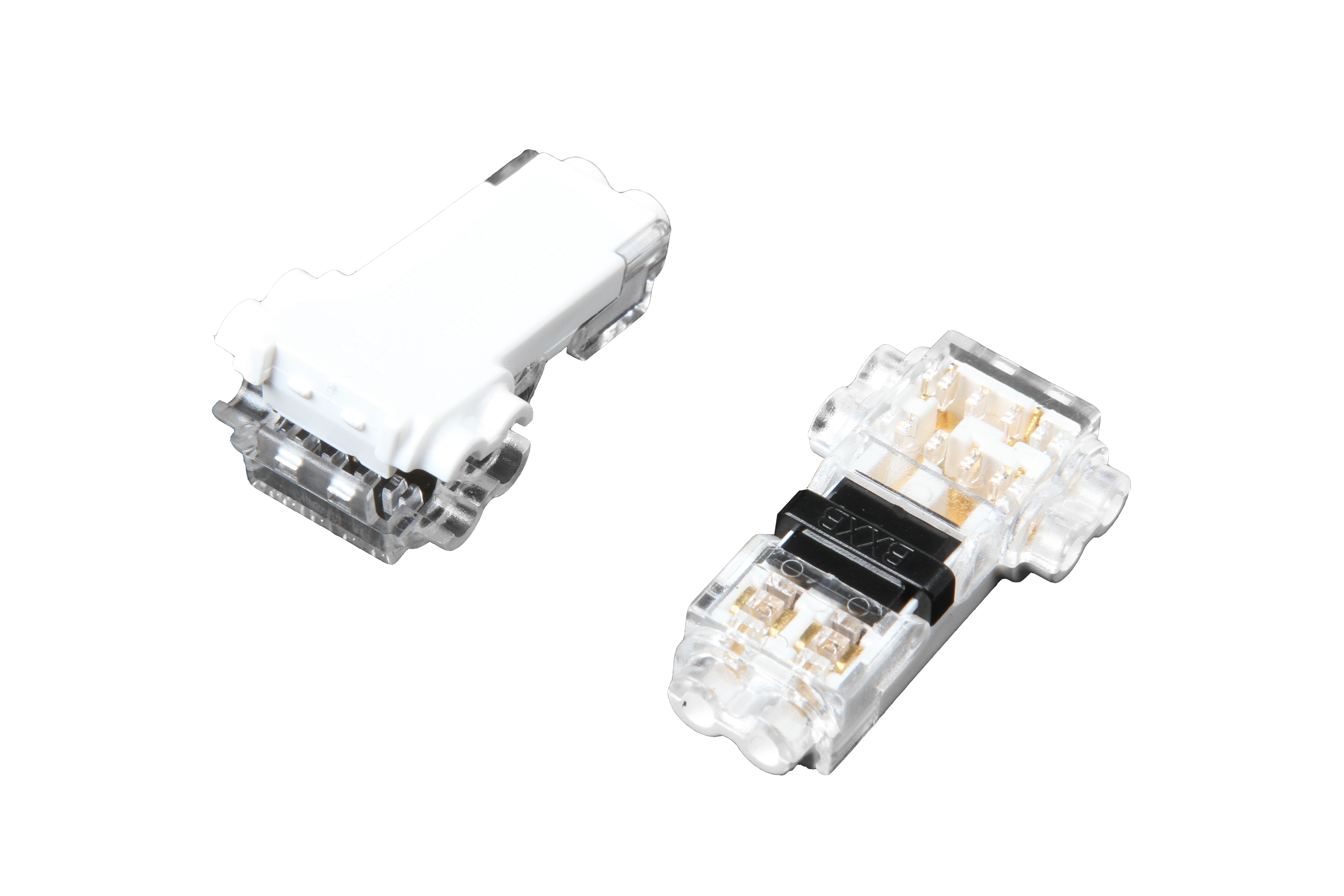

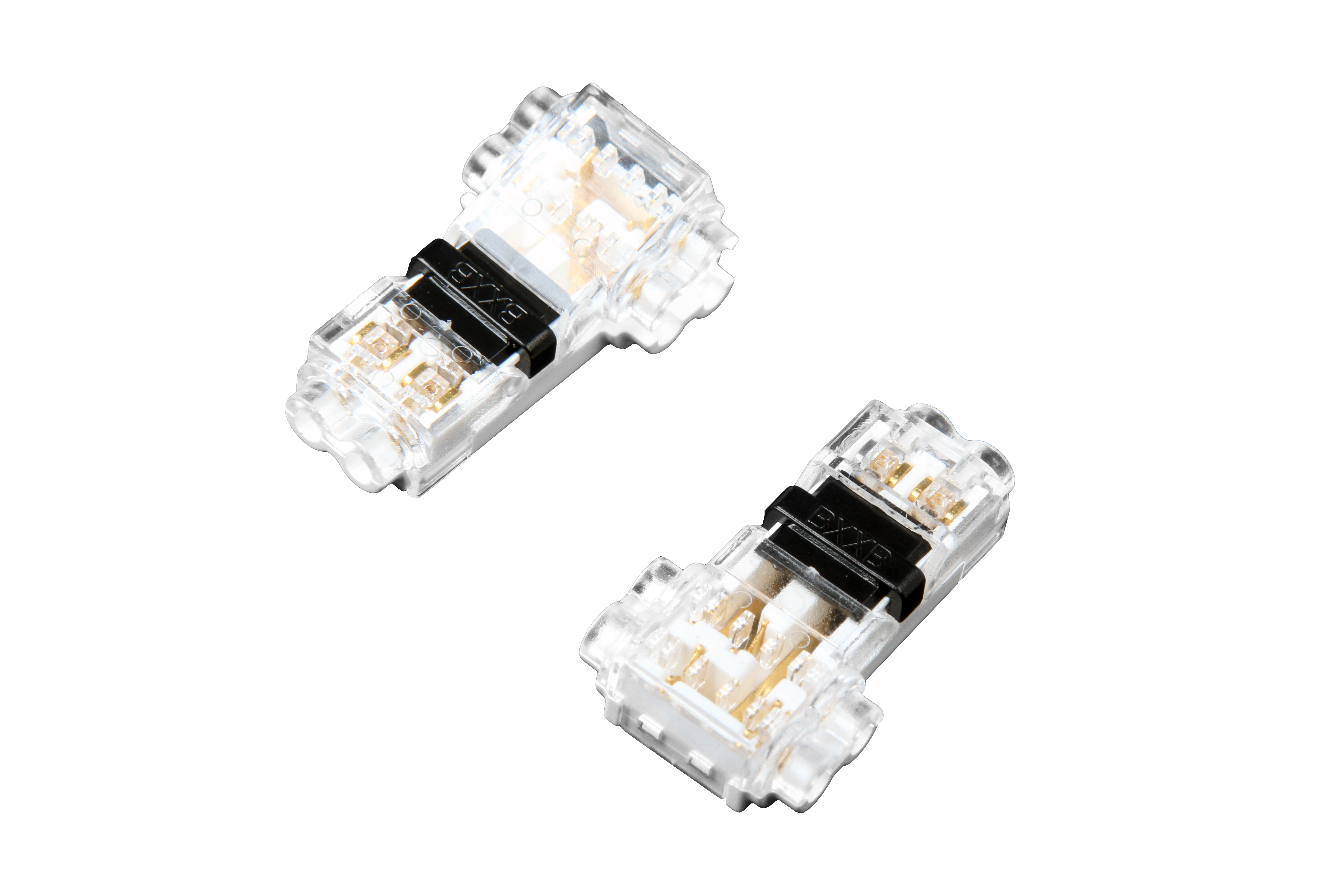

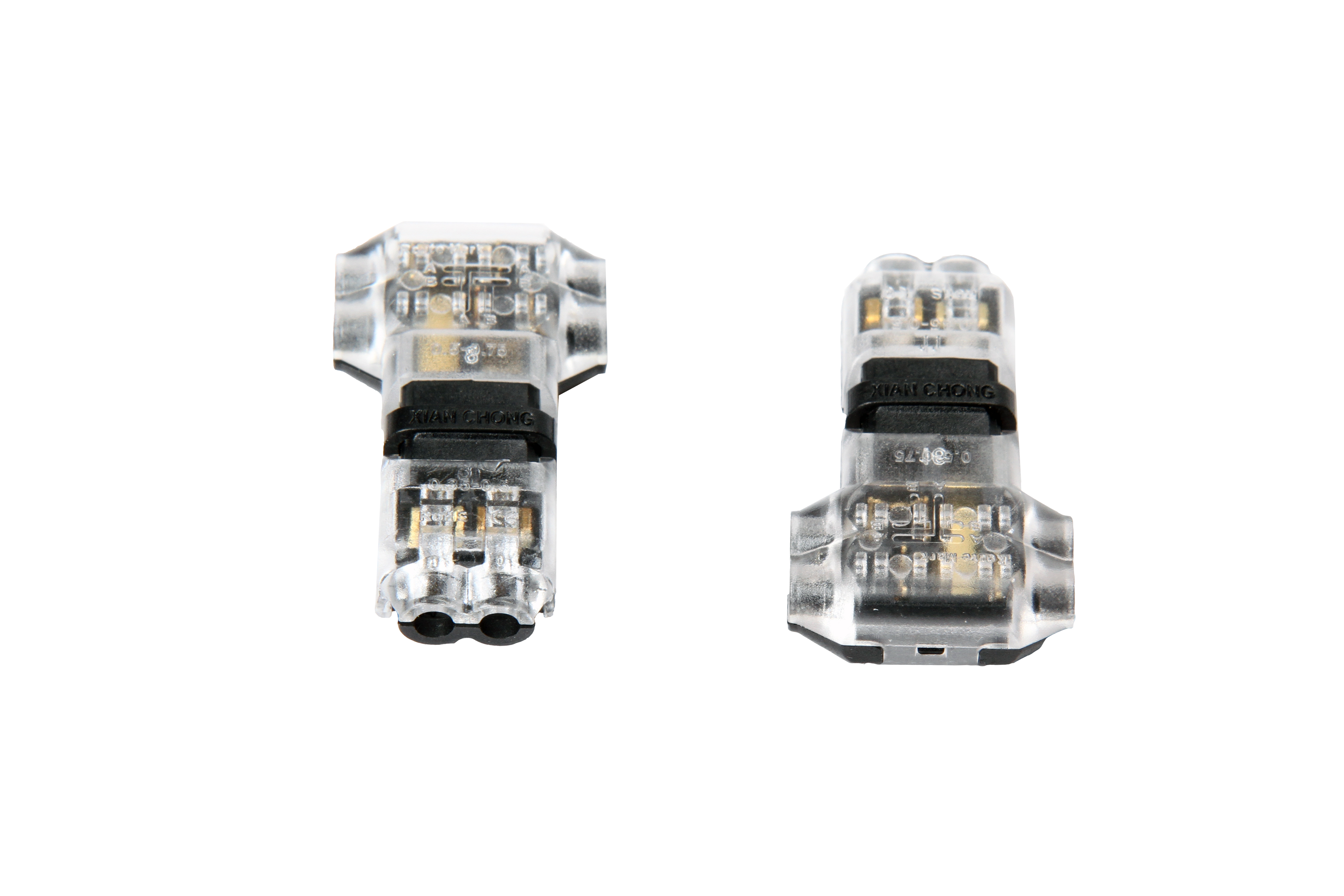

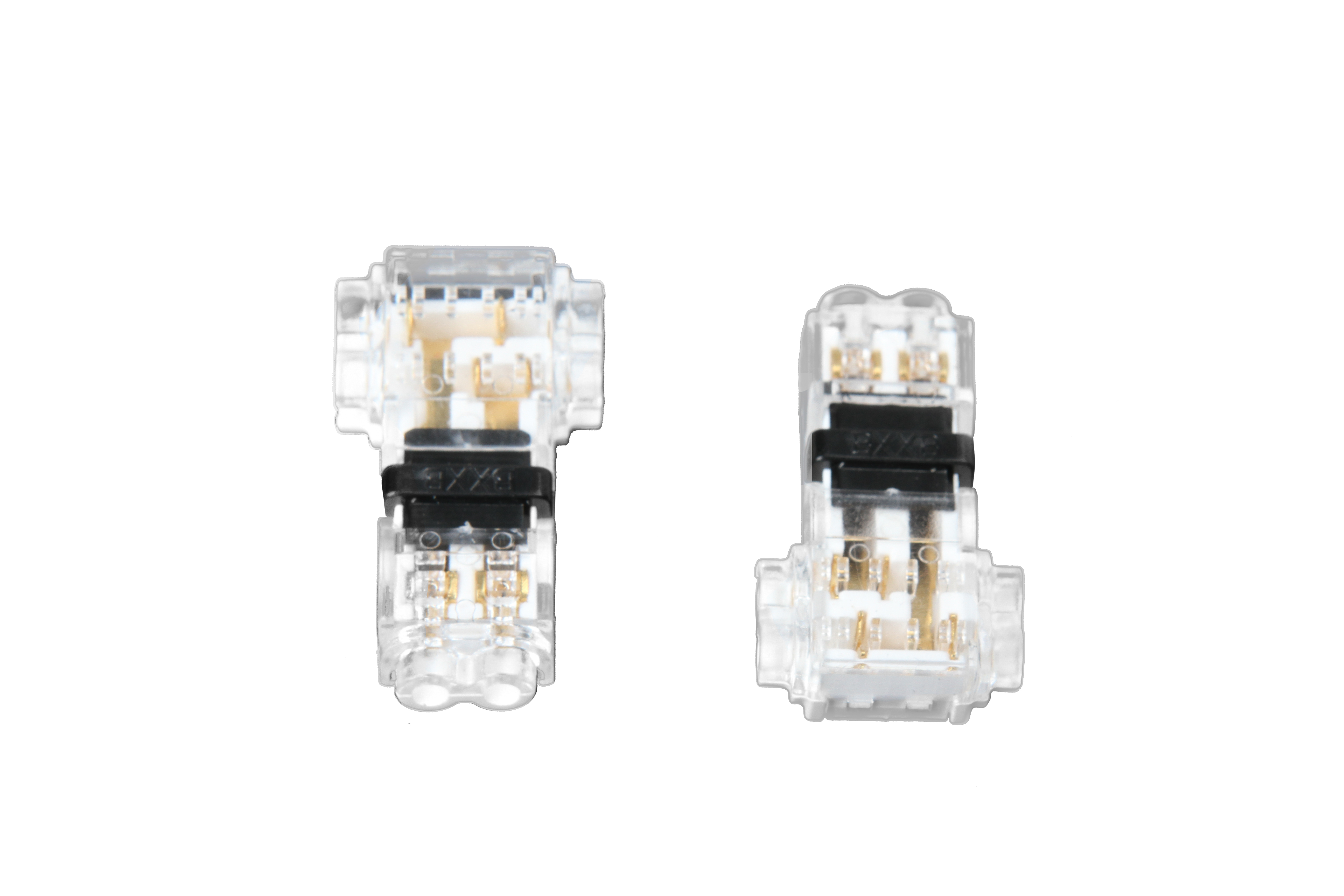

IP40 2 PIN T SPLICE CONNECTOR

IP40 2 PIN T SPLICE CONNECTOR

Technicial Specifications

Ingress Protection IP40
Environment Temperature -35~+60℃
Normal Working TEMP. -35~+80℃
Workable Sectional Area 0.75mm2 ~0.32mm2
Workable Wire Gauge 22-18 AWG
Wire Type Supportable Solid / Strand
Workable Conductor Diameter 0,6 - 1,2 mm
Rated Current ≦9A
Max Current 10A
Rated Voltage 300 V
