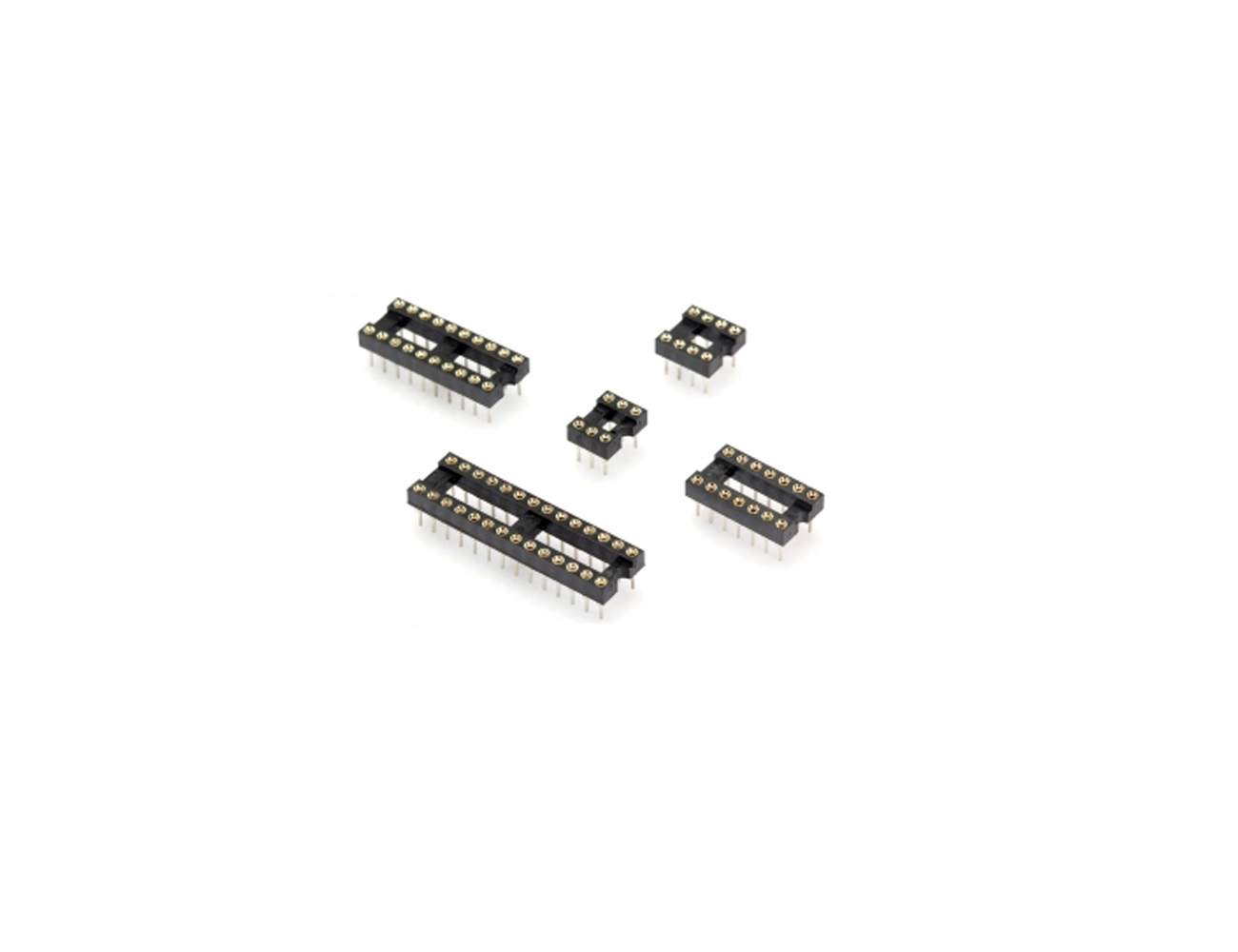

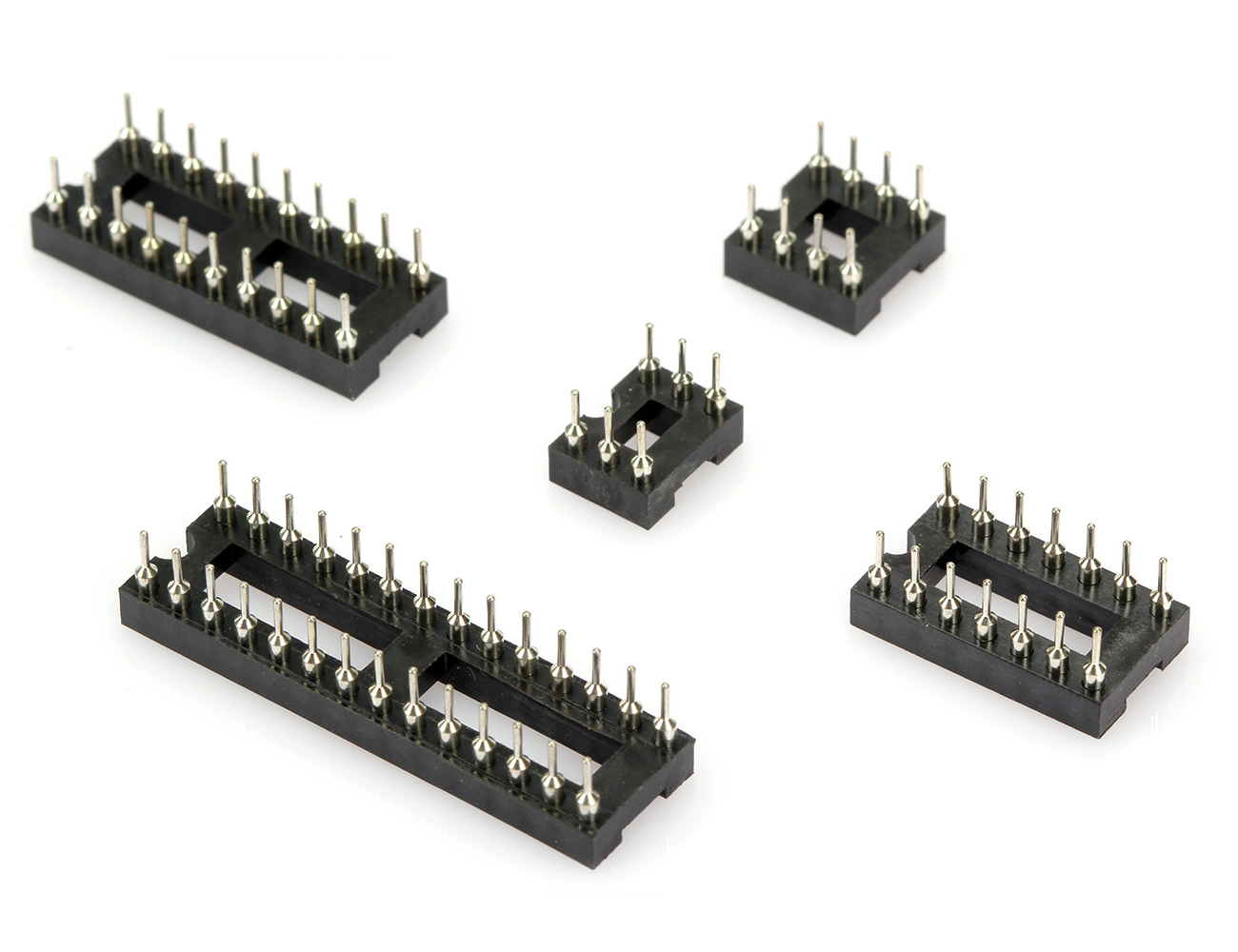

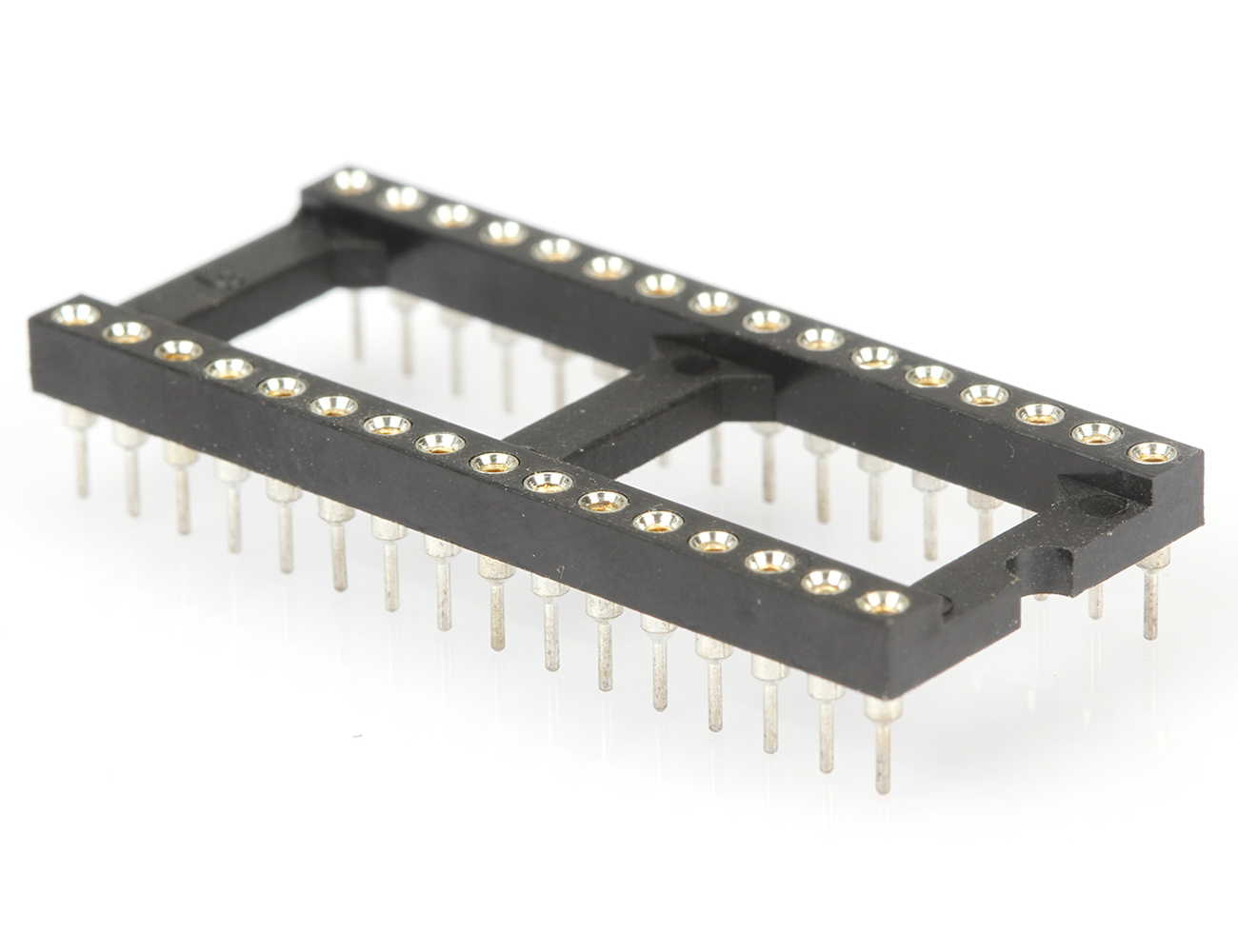

DIP Pcb Type Precision Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 8 Pin | |||||||
| 1400-06P | 8 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 8 Pin | |||||||
| 1400-08P | 8 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 14 Pin | |||||||
| 1400-14P | 14 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 16 Pin | |||||||
| 1400-16P | 16 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 18 Pin | |||||||
| 1400-18P | 18 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 20 Pin | |||||||
| 1400-20P | 20 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 24 Pin | |||||||
| 1400-24P | 24 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 28 Pin | |||||||
| 1400-28P | 28 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 32 Pin | |||||||
| 1400-40P | 32 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
| 40 Pin | |||||||
| 1400-40P | 40 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi | 1A | 500V / AC / DC | 500V / AC / munite | P.B.T UL94V-0 | -55°C # +105°C |
|
