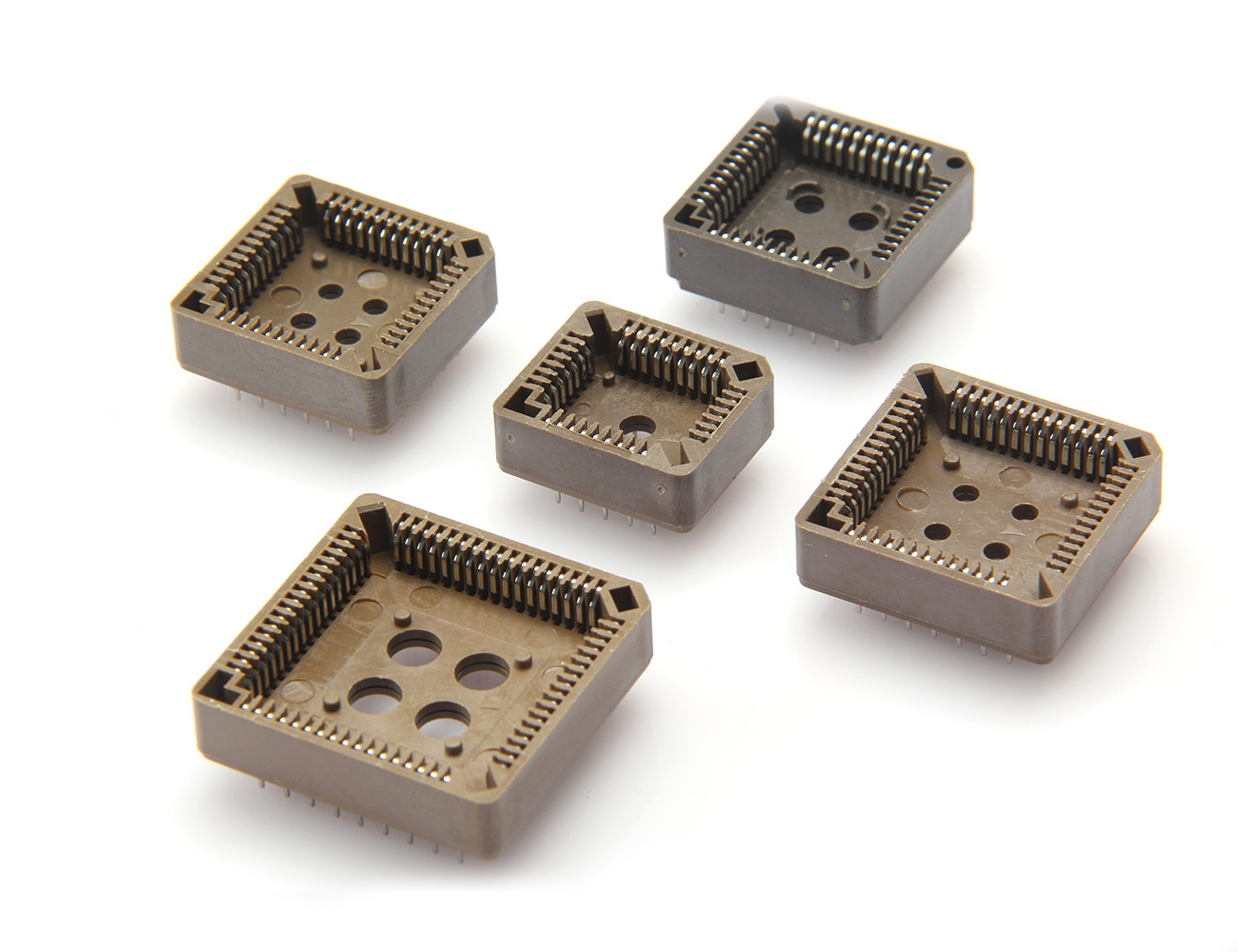

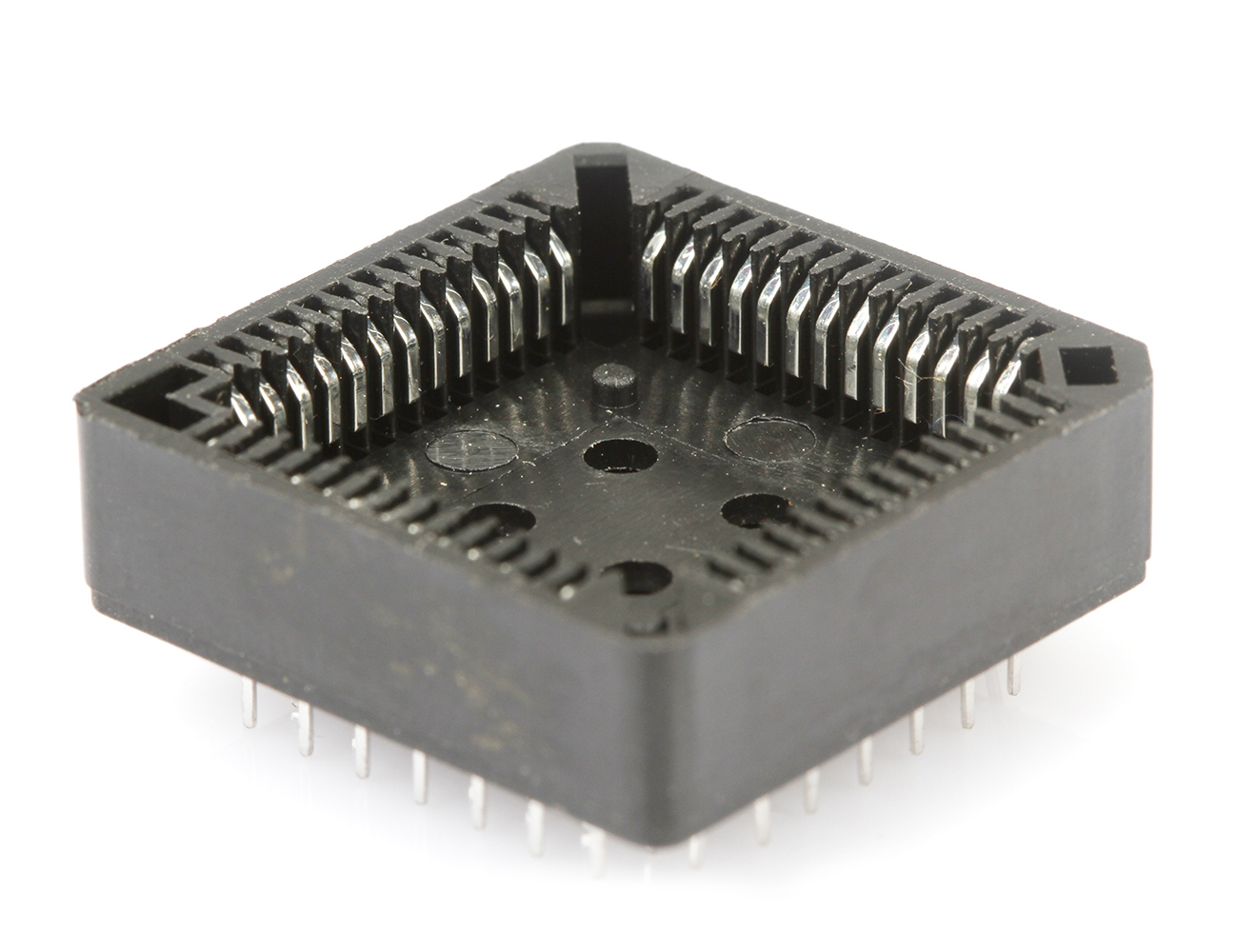

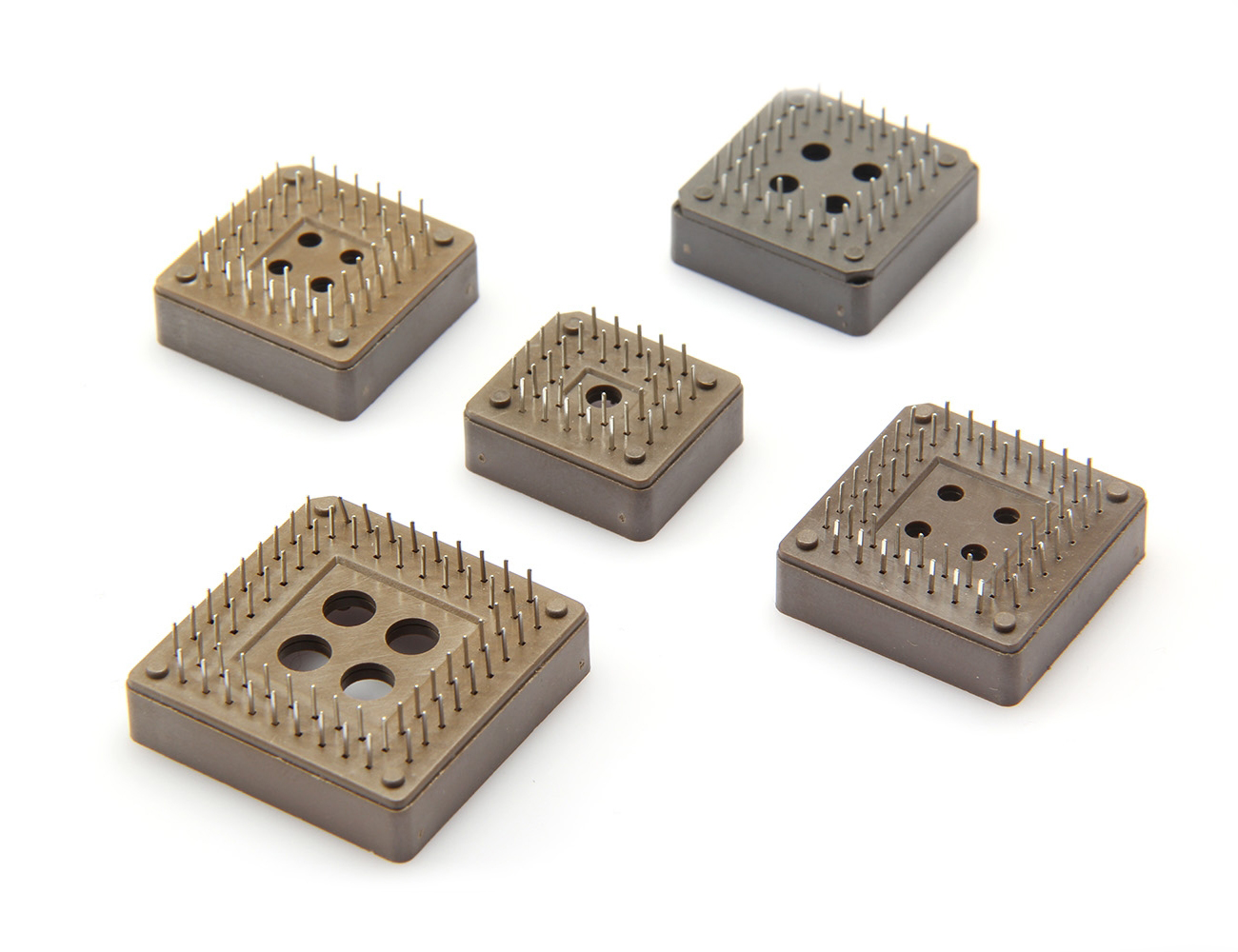

DIP Pcb Type PLCC Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 20 Pin | |||||||
| 1402-20P | 20 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi | 1A | 500V / AC / DC | 600V / AC /minute | P.B.T 66 UL94V-0 | -40°C # +85°C |
|
| 28 Pin | |||||||
| 1402-28P | 28 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi | 1A | 500V / AC / DC | 600V / AC /minute | P.B.T 66 UL94V-0 | -40°C # +85°C |
|
| 32 Pin | |||||||
| 1402-32P | 32 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi | 1A | 500V / AC / DC | 600V / AC /minute | P.B.T UL94V-0 | -40°C # +85°C |
|
| 44 Pin | |||||||
| 1402-44P | 44 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi | 1A | 500V / AC / DC | 600V / AC /minute | P.B.T UL94V-0 | -40°C # +85°C |
|
| 52 Pin | |||||||
| 1402-52P | 52 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi | 1A | 500V / AC / DC | 600V / AC /minute | P.B.T UL94V-0 | -40°C # +85°C |
|
| 68 Pin | |||||||
| 1402-68P | 68 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi | 1A | 500V / AC / DC | 600V / AC /minute | P.B.T UL94V-0 | 40°C # +85°C |
|
| 84 Pin | |||||||
| 1402-84P | 84 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi | 1A | 500V / AC / DC | 600V / AC /minute | P.B.T UL94V-0 | -40°C # +85°C |
|
