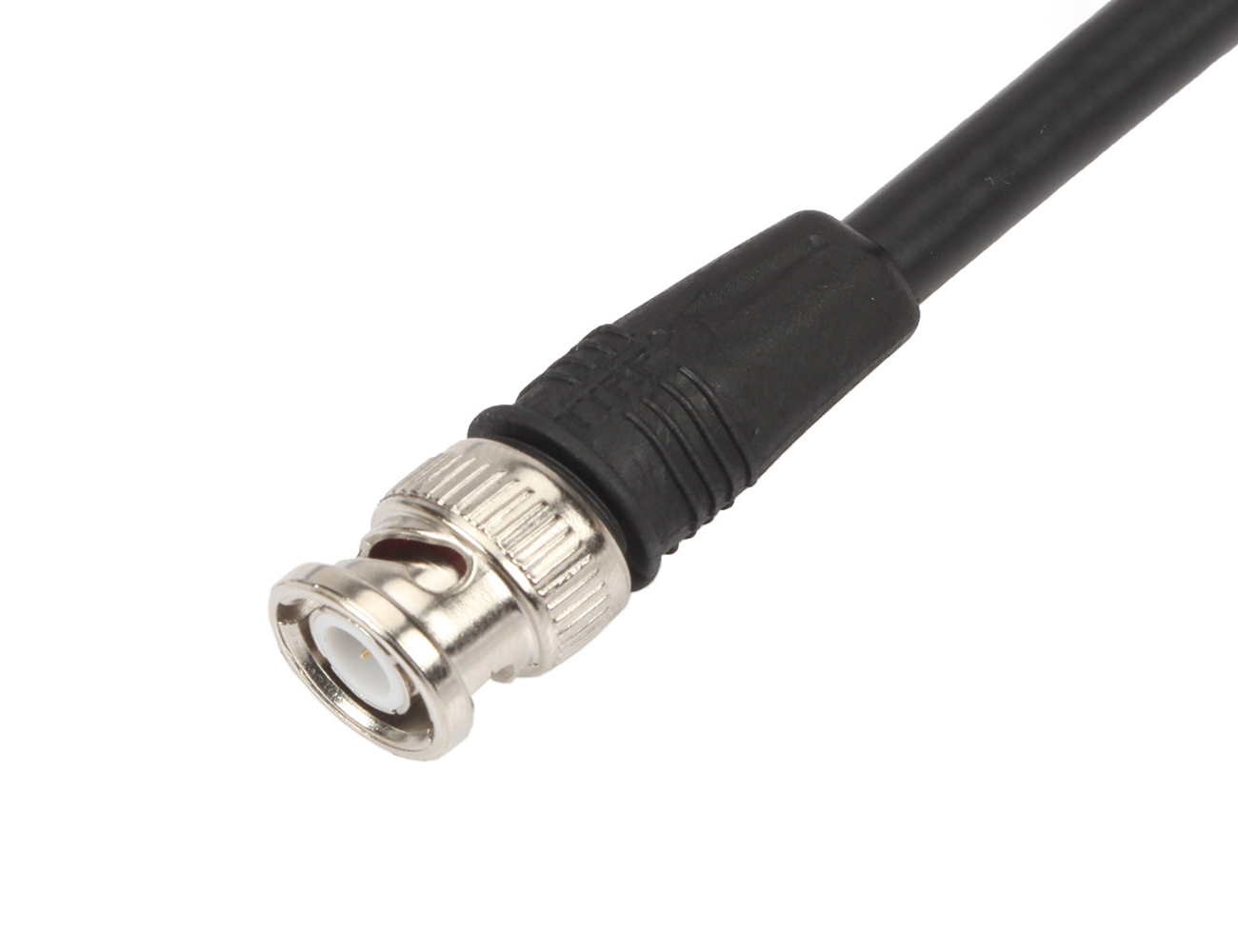

Electrical Specifications
- Impedance: 50 Ω nominal Or 75 Ω nominal
- Frequency Range: 0-4 GHz with low reflection
- Voltage Rating: 500 volts peak
- Dielectric Withstanding Voltage: 1,500 volts rms
- VSWR :Straight connectors: 1.3 max 0-4 GHz
- Right angle connectors: 1.35 max 0-4 GHz
- Contact Resistance
- Center contact: 1.5 mΩ;
- Outer contact: 0.2 mΩ
- Insulation Resistance: 5,000 MΩ
- Braid to Body: 0.1 milliohm
- RF Leakage: -55 dB min at 3 GHz
- Insertion Loss: 0.2 dB min at 3 Ghz
Material
Male Contact: Brass
Female Contact: Beryllium copper or phosphorous bronze,silver or gold-plated
Other Metal Parts: Brass, nickel finish
Insulator: TFE
Crimp Ferrule: Copper/brass
