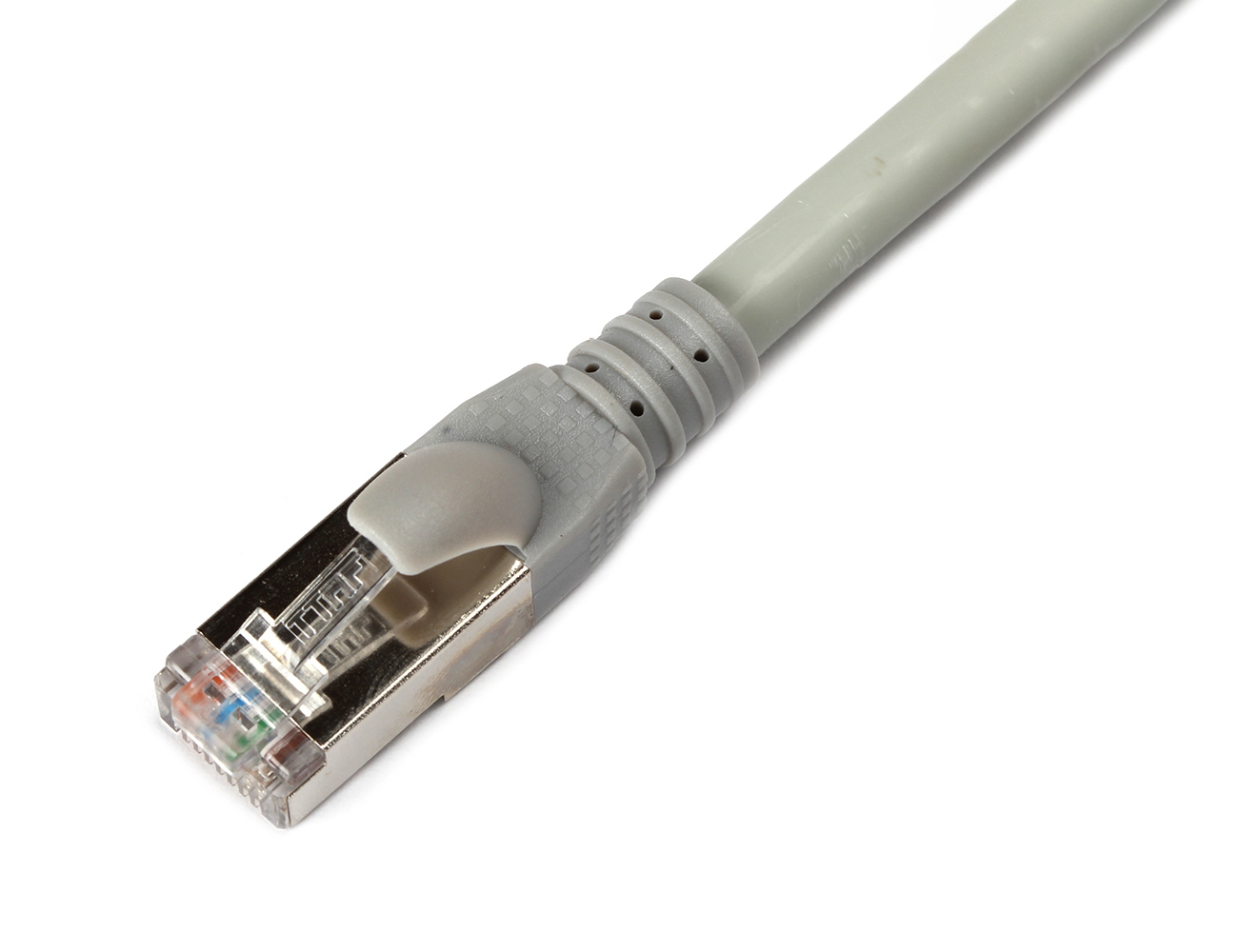

SFTP Cat7 Patchcord L: X Meter

SFTP Cat7 Patchcord L: X Meter



TECHNICAL SPECIFICATIONS



  • Outer Diameter : 6.5 mm(nom) ± 0.5
  • Durability : 1000 Loop
  • Impedance : 100 ohm
  • Contact Resistance : 20m Ohm max.
  • Imbalance Resistance : %2 Max
  • Dielectric Strength : 1000 Volt/1 minute min.
  • Isolation Resistance : 500MOhm min.@500 Vdc
  • Storage Temperature : -40°C……+80°C
  • Operating Temperature : -20°C……+60°C
  • Outer jacket : PVC / LSZH
  • Retention : 50 N ( 11 IBF ) for 60 ± 5 s
  • Mating cycle life : Min. 1000 cycles
  • Tensile strength : ≥ 90 N per wire
  • Type : Unshielded RJ45 8P8C modular plug.
  • Housing : UL listed 94V-0 flame retardant polycarbonate
  • IDC blades : Phosphor bronze, gold plating over 100 μ in of nickel in contact area.
  • Conductor : Stranded bare copper.
  • AWG : 24/26 AWG
  • Drain Wire : Solid tinned copper.
  • Transmission Performance : 1-750 Mhz specifications
