8981
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 4 Pin | |||||||

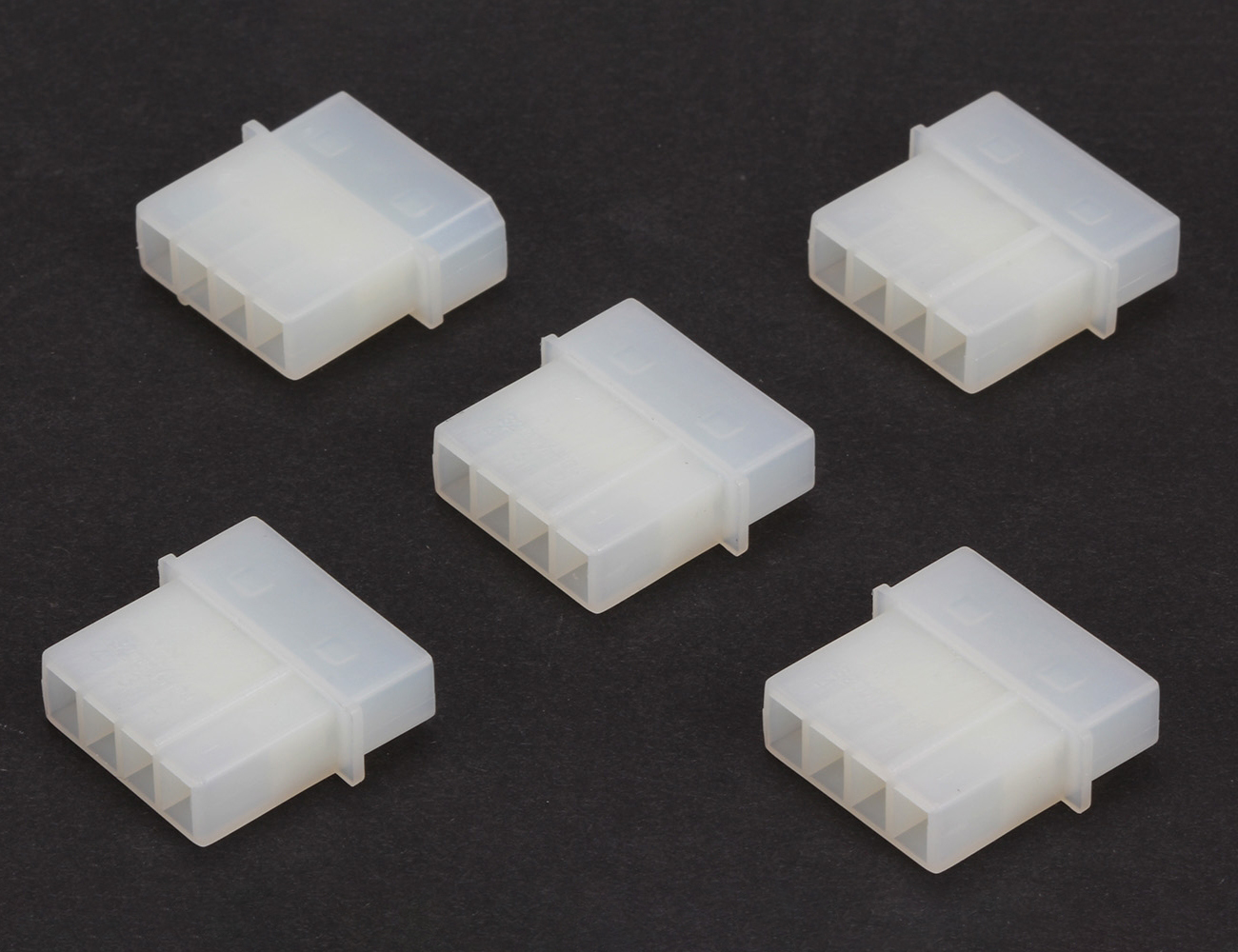

| 8981-04H | 4 Pin 5.08mm Female Hard Disk Connector | 7A | 250V | 1500VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |

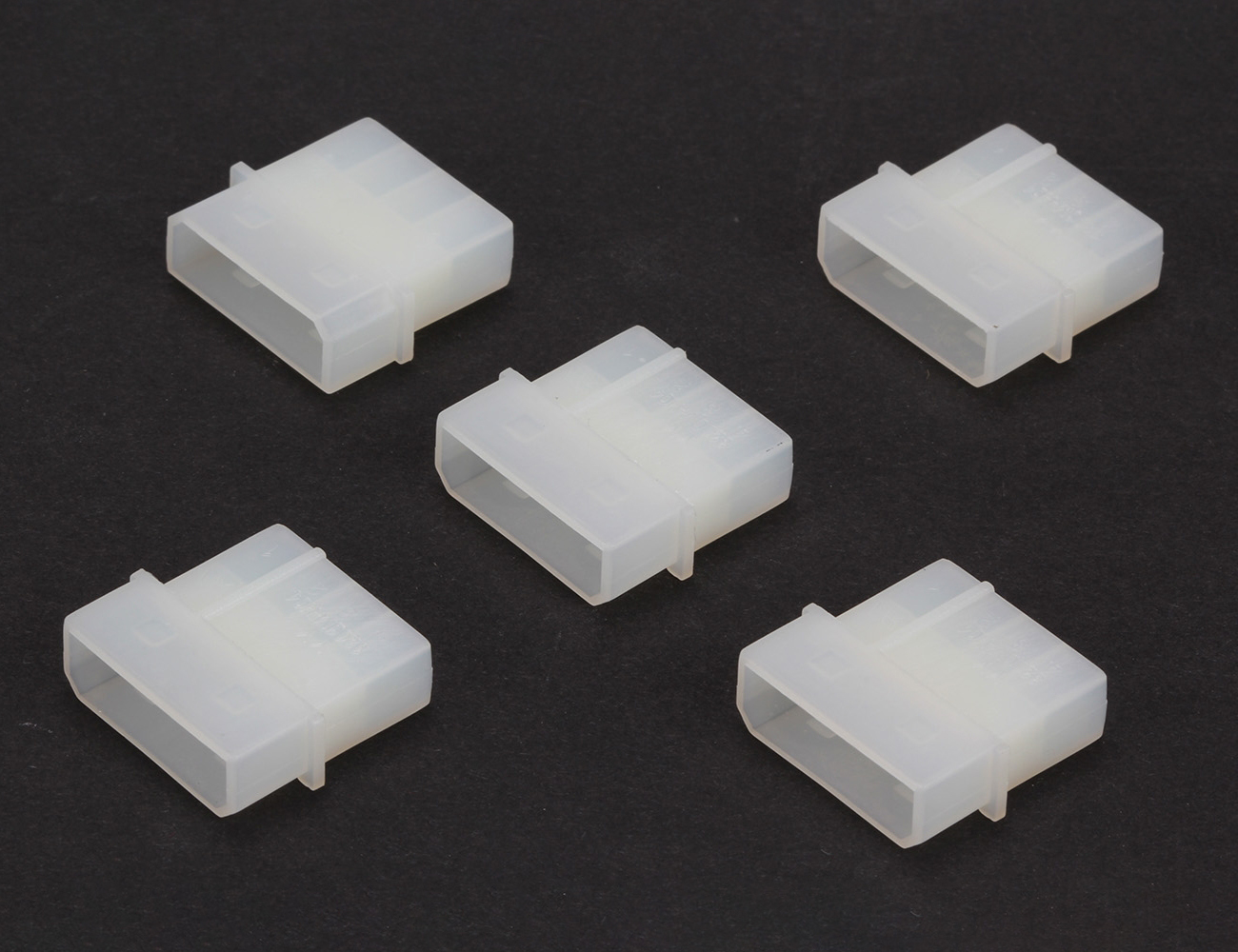

| 8981-04W | 4 Pin 5.08mm Male Housing | 7A | 250V | 1500VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| Terminal | |||||||

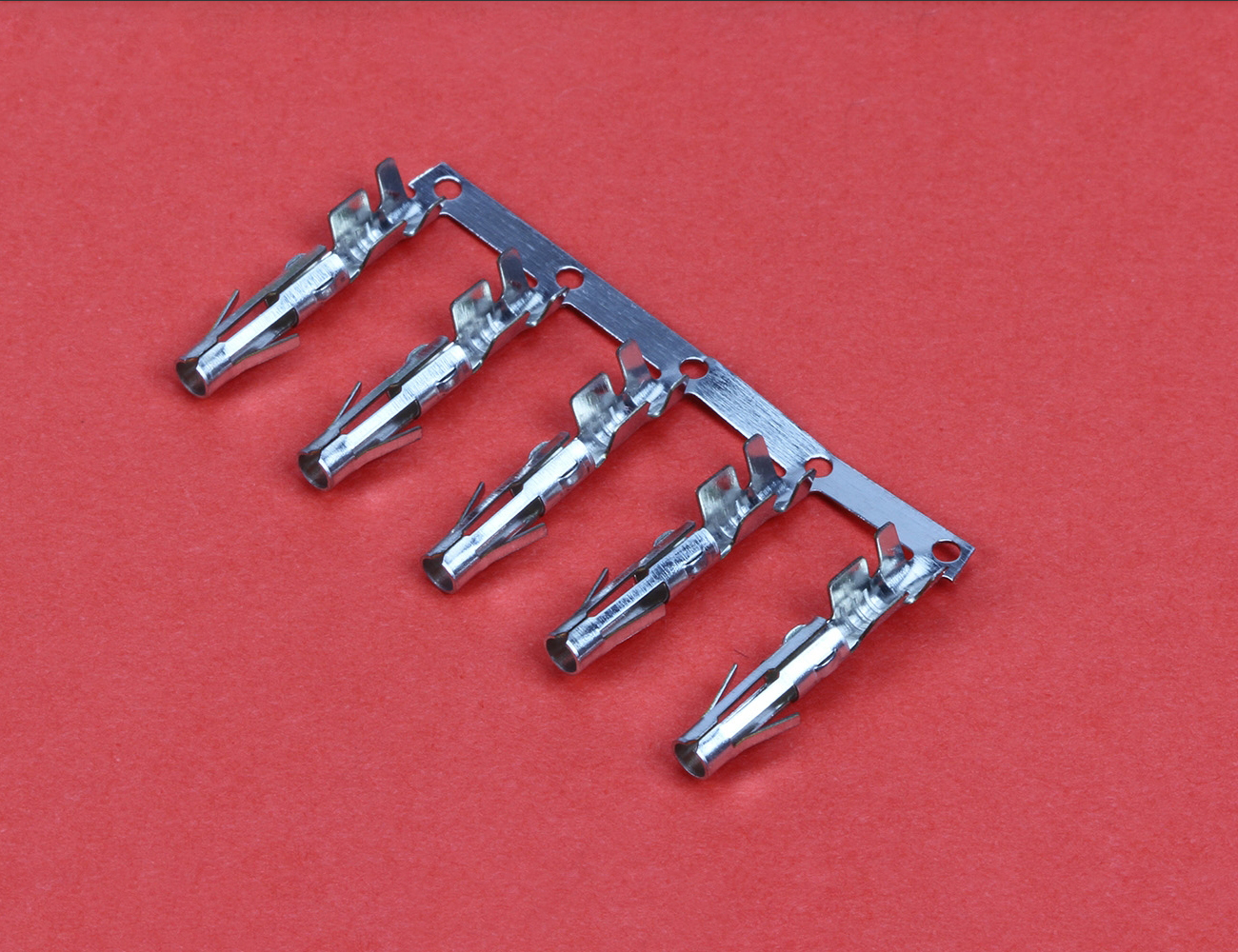

| 8981-FT | Crimp Terminal Female 8981 Series Connector | - | - | - | Brass (Tin Plated) | - |
|

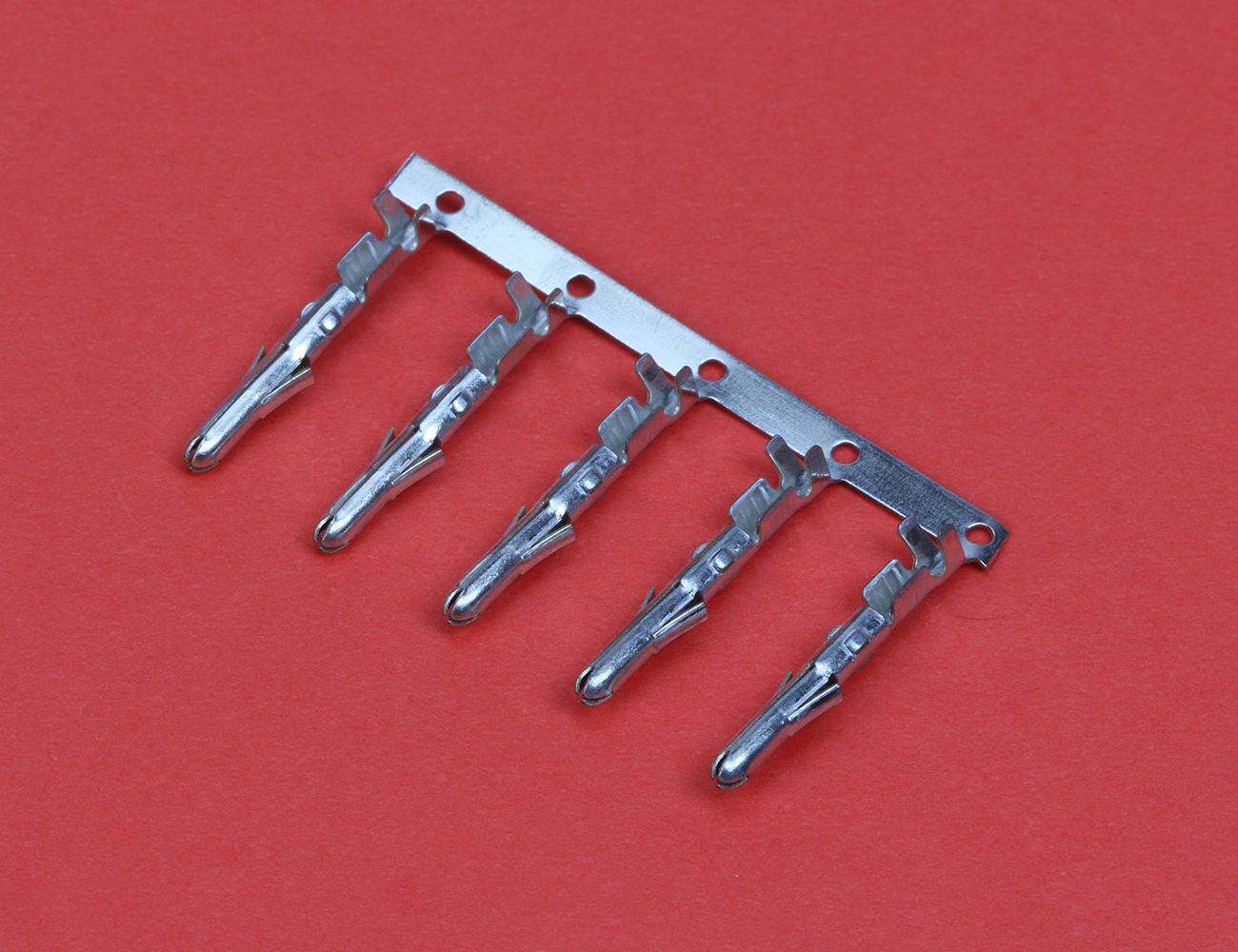

| 8981-MT | Crimp Terminal Male 8981 Series Connector | - | - | - | Brass (Tin Plated) | - |
|
