Product Code:WPFM-0500M25
5 Pin Field Assembly Pluggable Connector
Technicial Specifications
| Durability Voltage | 3000VAC @ 60 s. |
|---|---|
| Voltage Rating | 450VAC max |
| Current Rating | 16A max |
| IP Class | IP68 (20m/150hours) |
| Operating Temperature | -40°C ~ +85°C |
| Insulation Structure | 500 mΩ at 500VDC |
| Contact Resistance | 30 mΩ max |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |

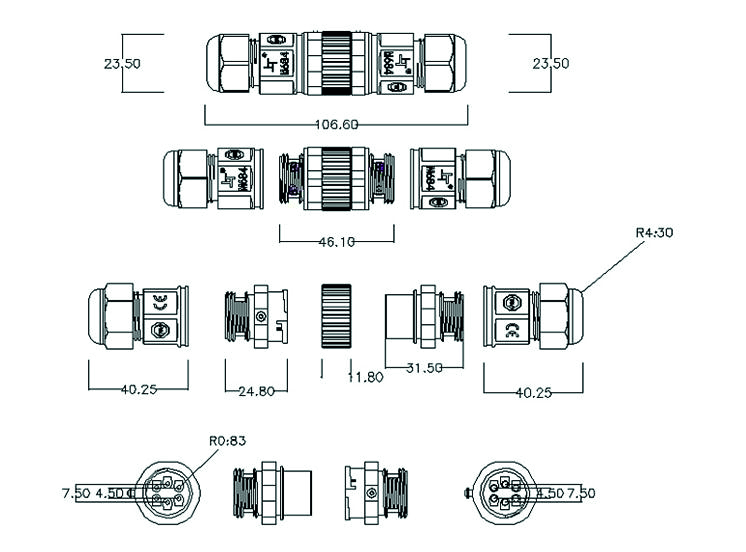

| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 5 | |||||||
| WPFM-0500M25 | 5 Pin Connector | 16A max | 450VAC max | 3000VAC @ 60 s. | - | -40°C ~ +85°C |
|
