| 2 Pin |
|
|
|
|
|
|
|
| 5558-02H |

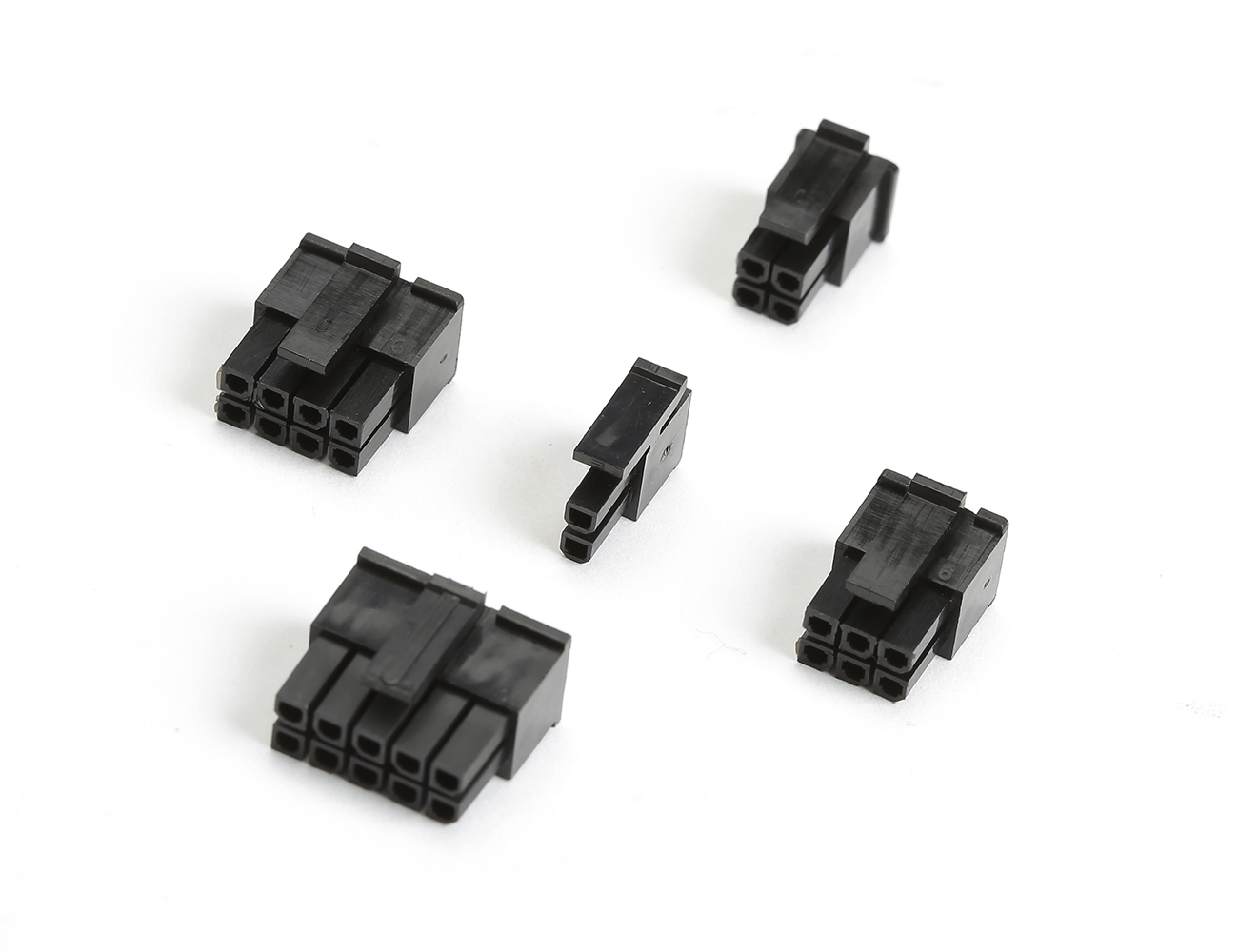

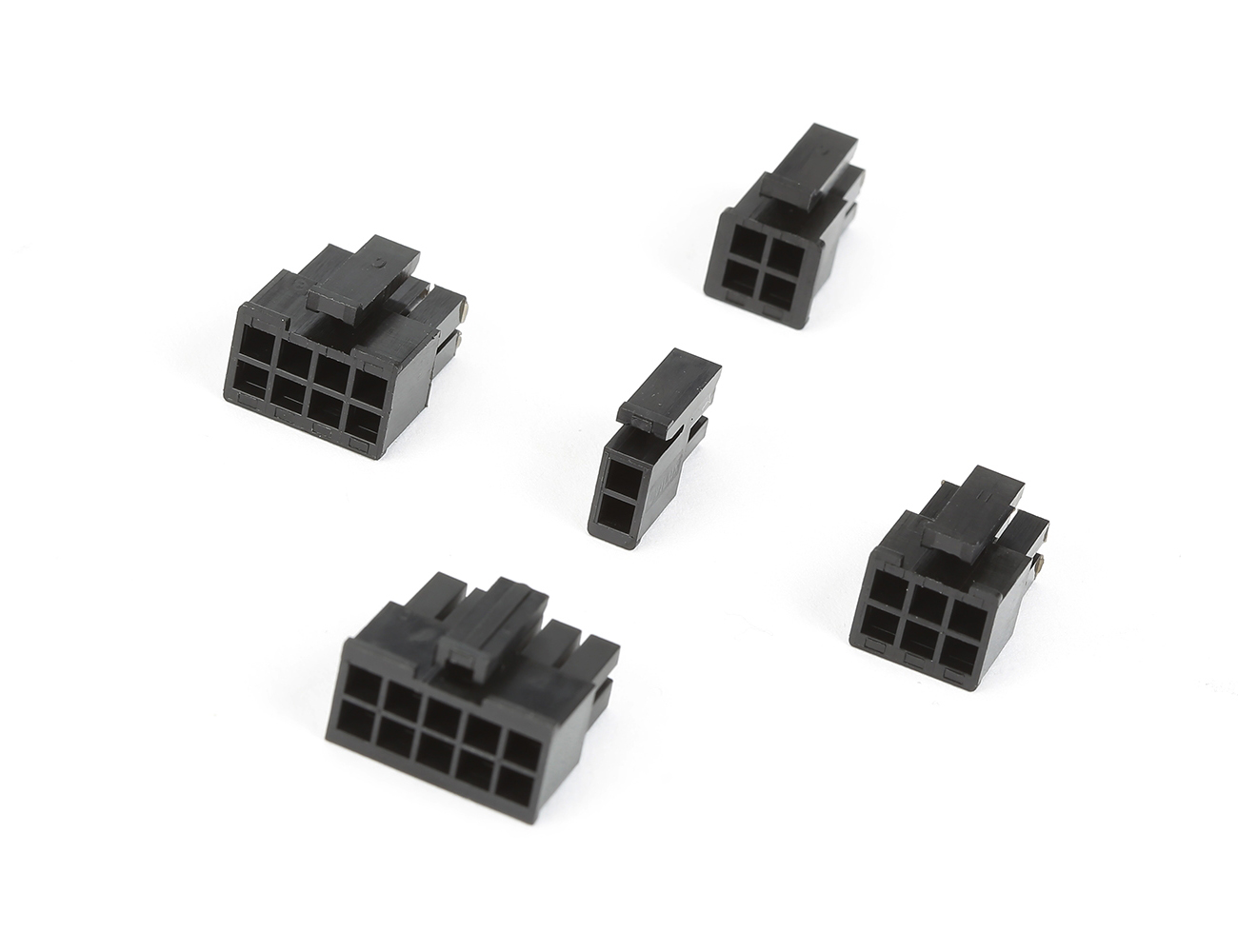

2 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-02W |

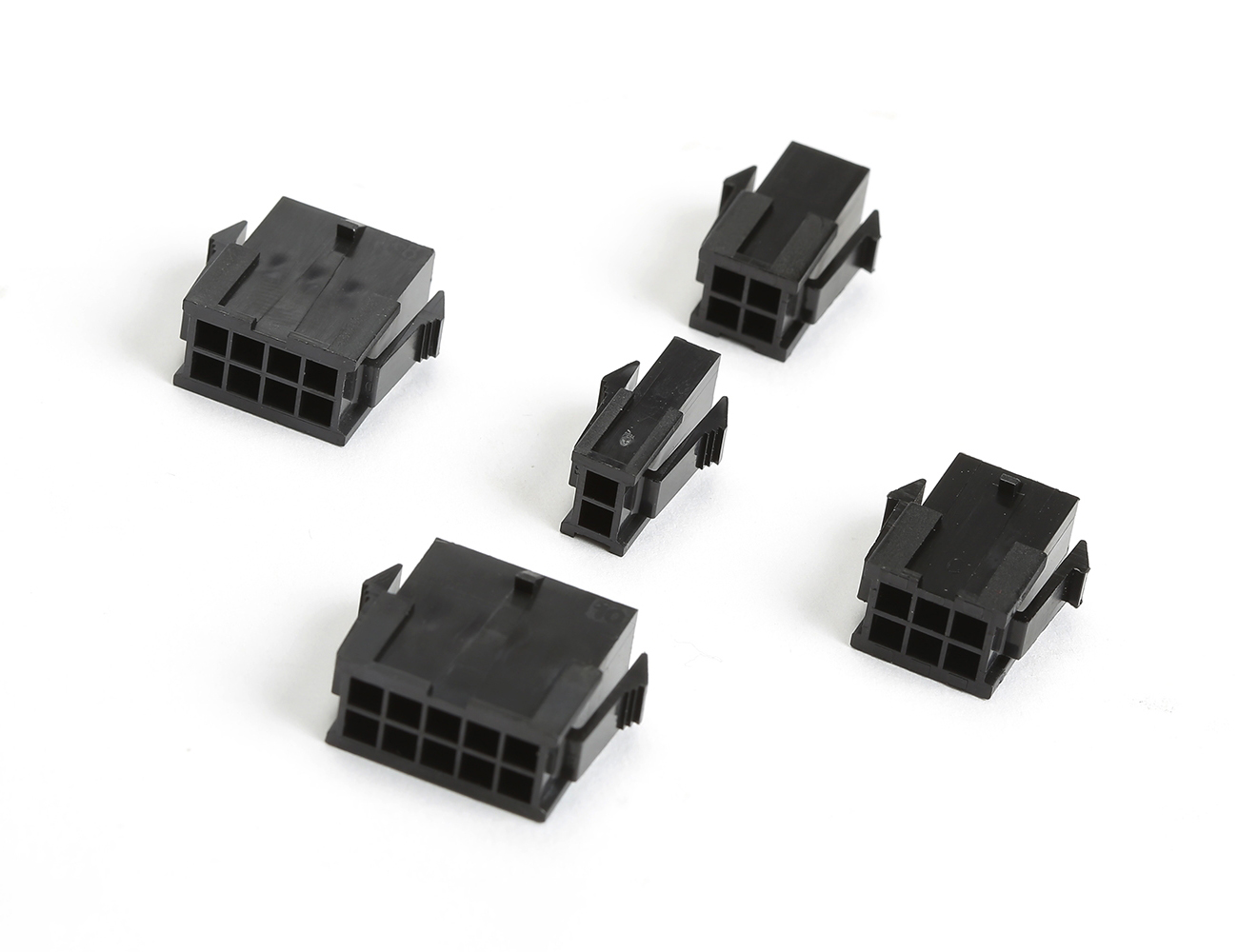

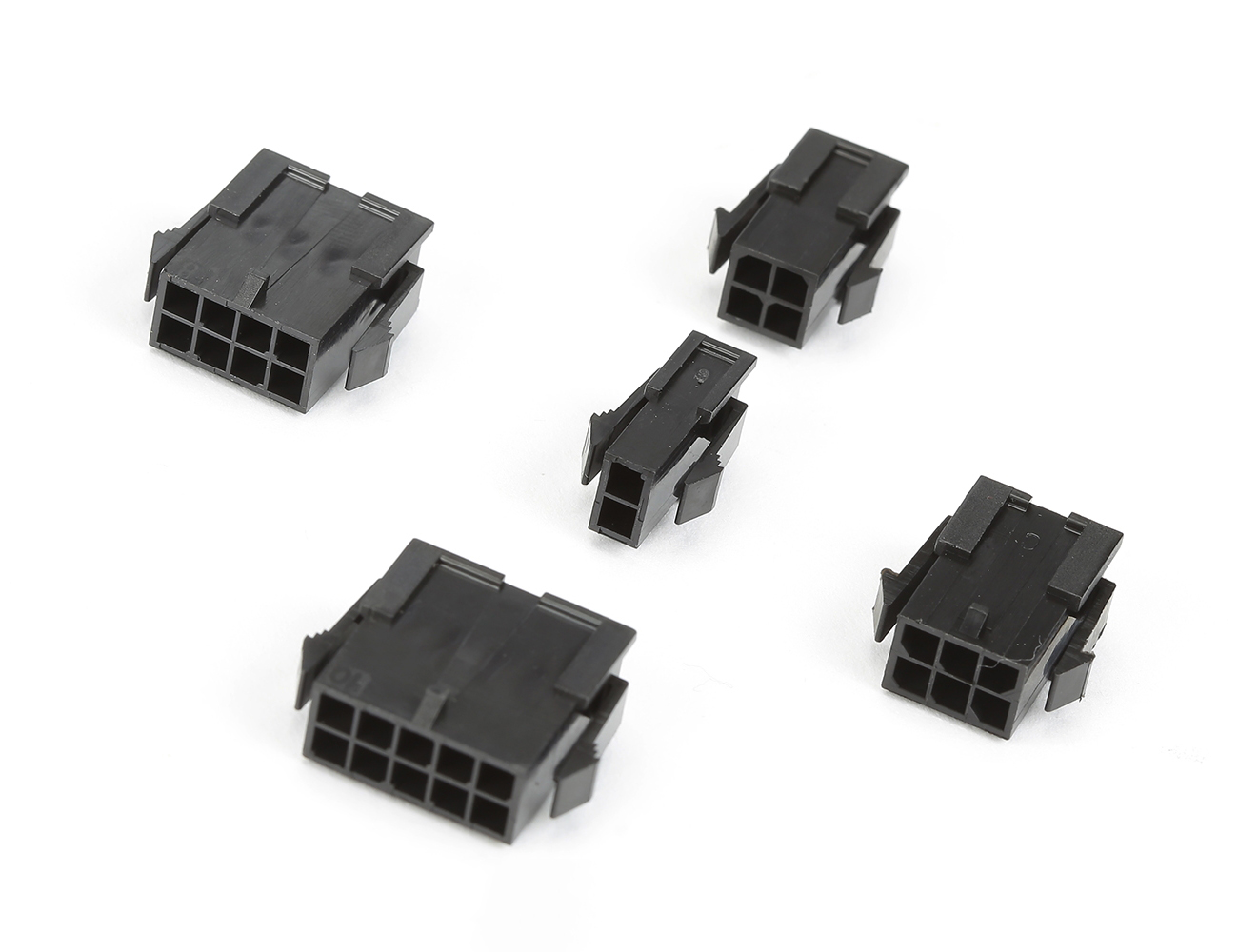

2 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 4 Pin |
|
|
|
|
|
|
|
| 5558-04H |
4 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-04W |
4 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 6 Pin |
|
|
|
|
|
|
|
| 5558-06H |
6 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-06W |
6 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 8 Pin |
|
|
|
|
|
|
|
| 5558-08H |
8 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-08W |
8 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 10 Pin |
|
|
|
|
|
|
|
| 5558-10H |
10 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-10W |
10 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 12 Pin |
|
|
|
|
|
|
|
| 5558-12H |
12 Pin 3.00mm Çift Sıra Dişi Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-12W |
12 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 14 Pin |
|
|
|
|
|
|
|
| 5558-14H |
14 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-14W |
14 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 16 Pin |
|
|
|
|
|
|
|
| 5558-16H |
16 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-16W |
16 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 18 Pin |
|
|
|
|
|
|
|
| 5558-18H |
18 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-18W |
18 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 20 Pin |
|
|
|
|
|
|
|
| 5558-20H |
20 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-20W |
20 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 22 Pin |
|
|
|
|
|
|
|
| 5558-22H |
22 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-22W |
22 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 24 Pin |
|
|
|
|
|
|
|
| 5558-24H |
24 Pin 3.00mm Double Row Female Micro Fit |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 5558-24W |
24 Pin 3.00mm Double Row Male Housing |
5A |
250V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| Terminal |
|
|
|
|
|
|
|
| 5558-FT |

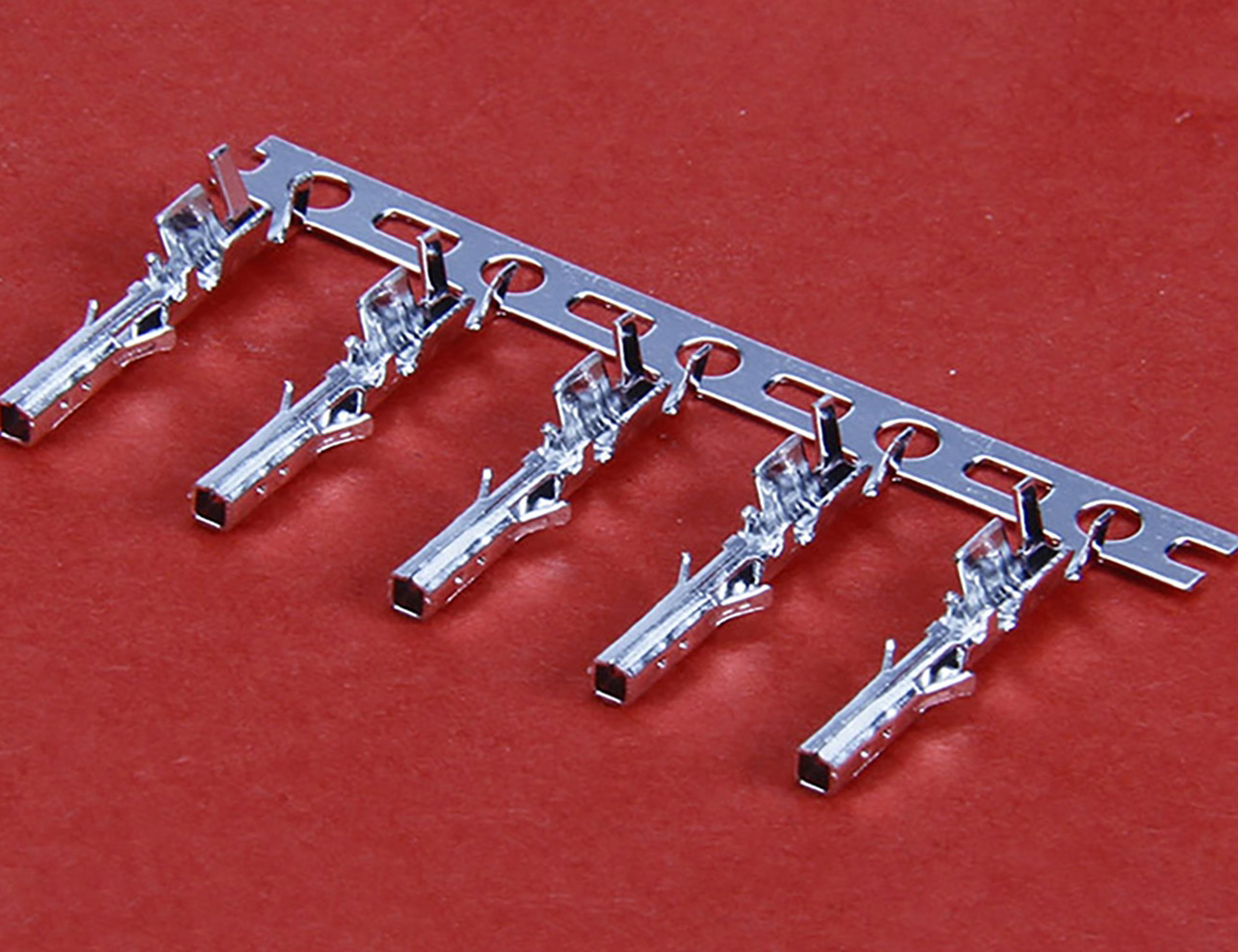

Crimp Terminal Female 5558 Series Connector |
- |
- |
- |
Brass (Tin Plated) |
- |
|
| 5558-MT |

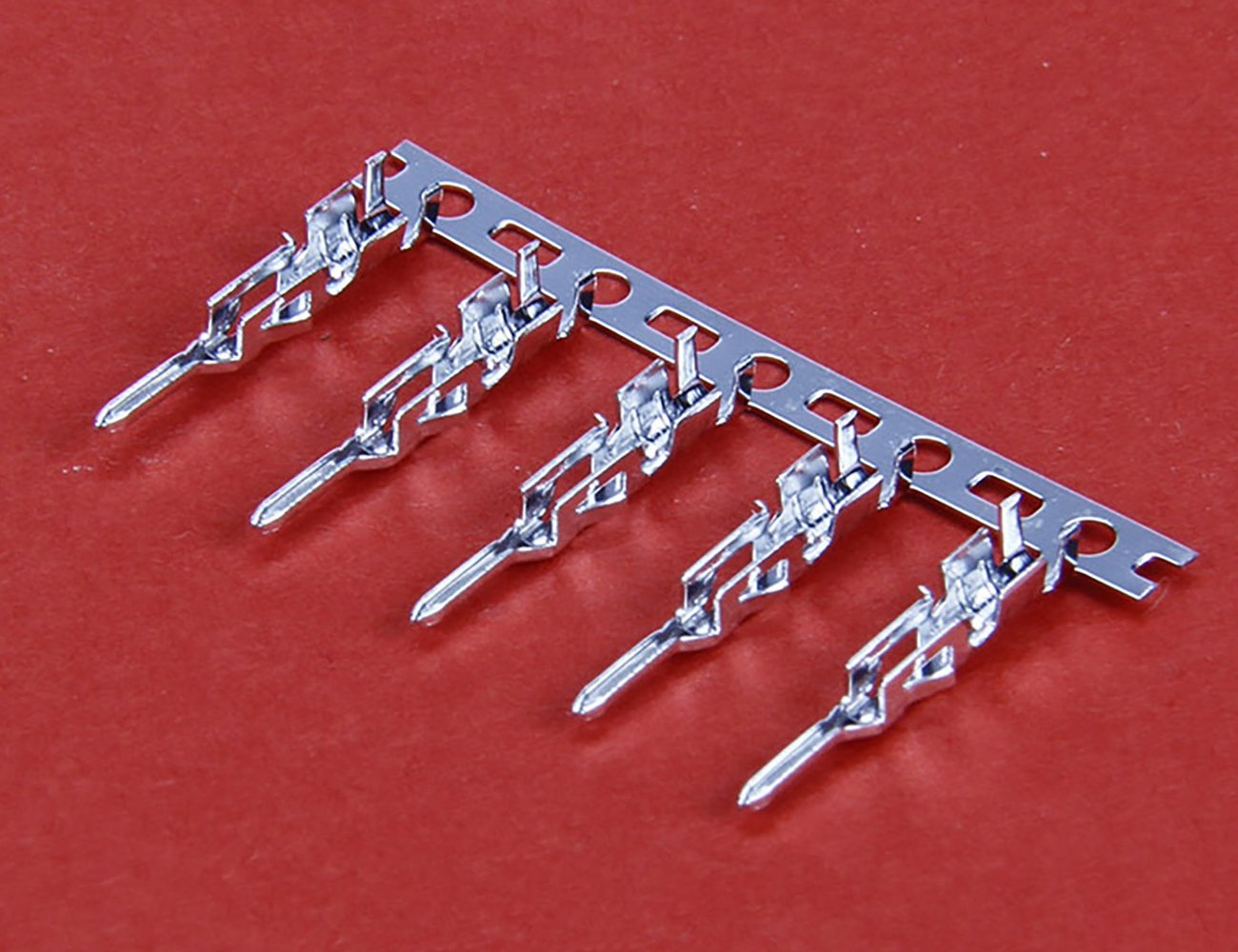

Crimp Terminal Male 5558 Series Connector |
- |
- |
- |
Brass (Tin Plated) |
- |
|
