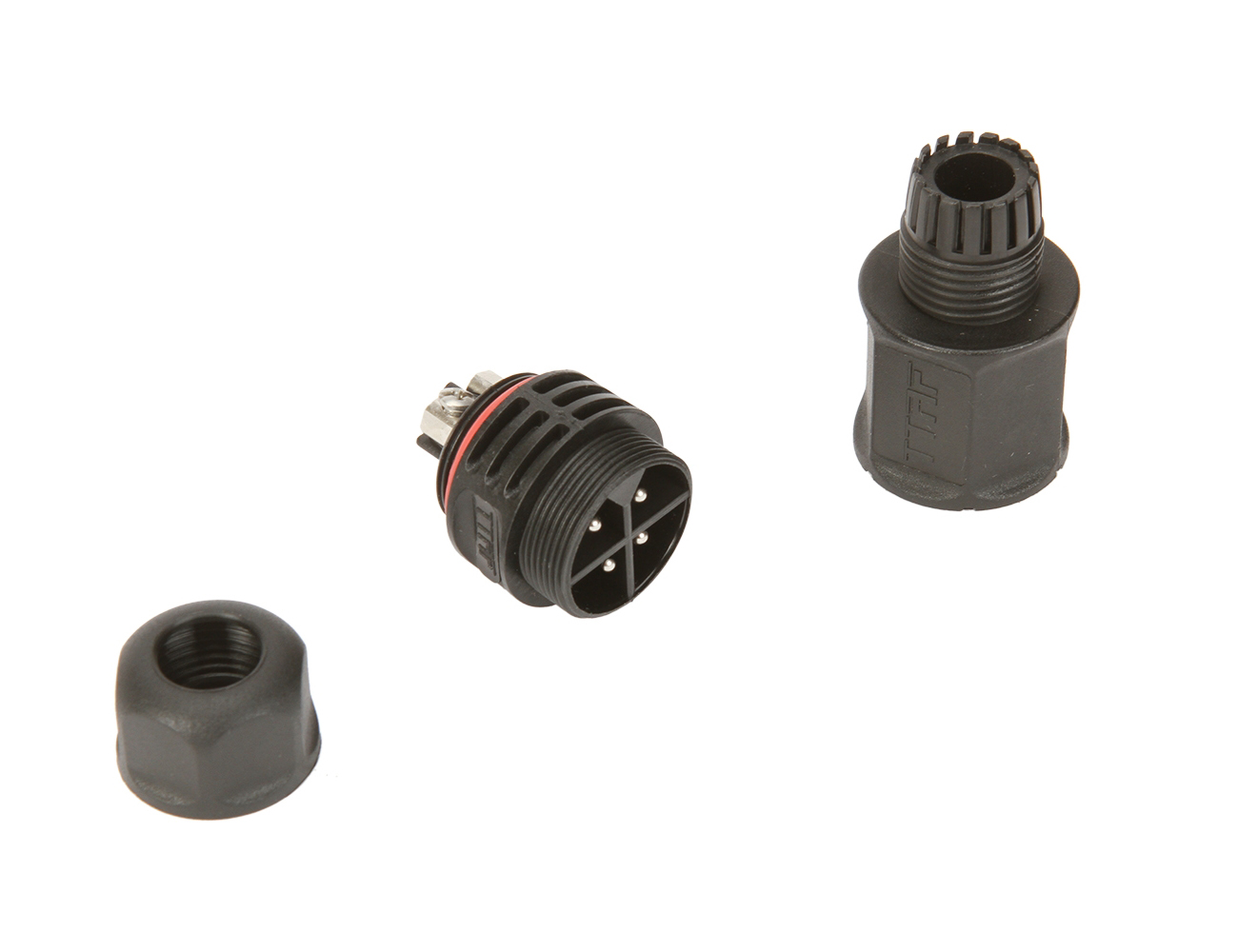

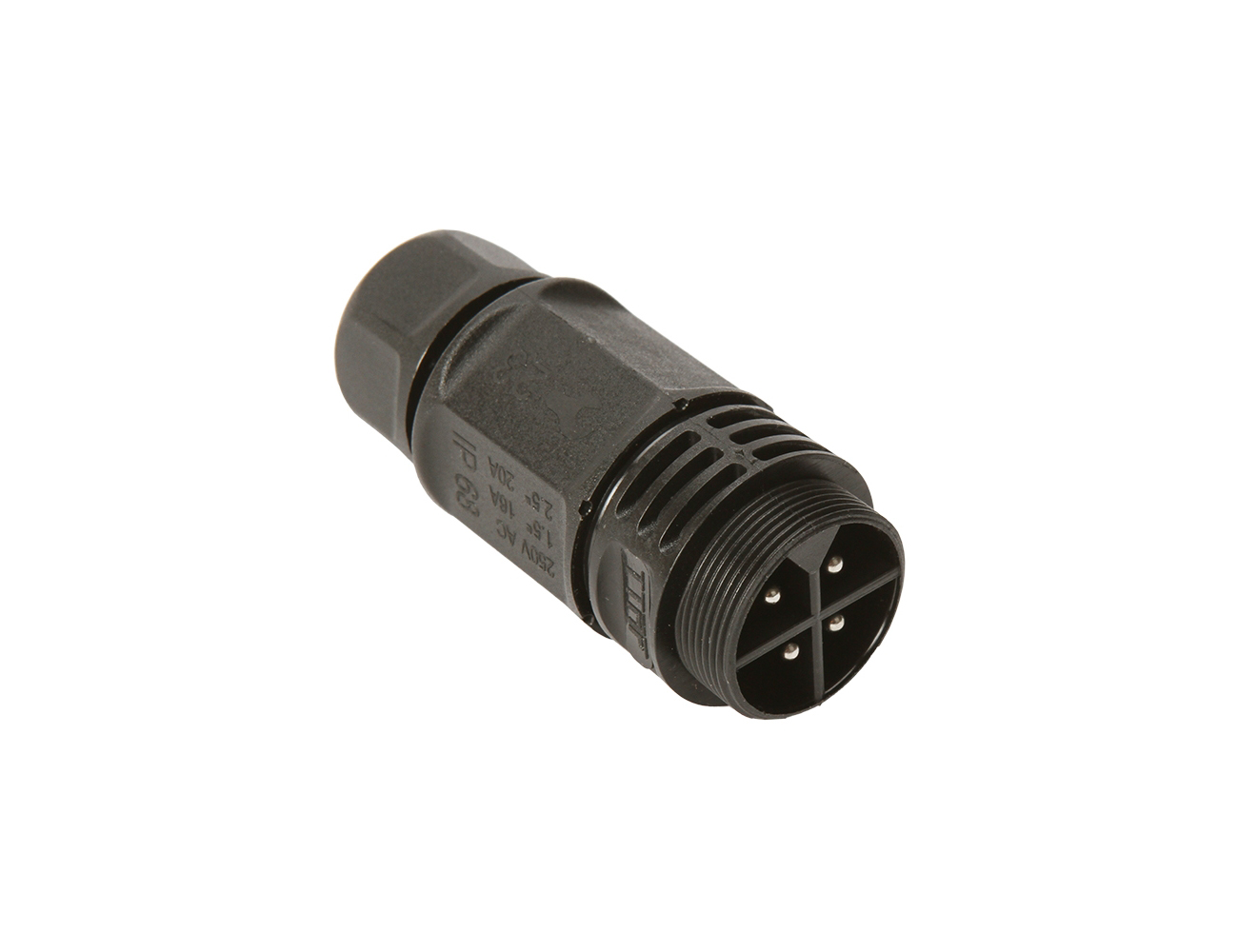

4 Pin Male Field Assembly Detachable - Pluggable Connector

4 Pin Male Field Assembly Detachable - Pluggable Connector

Technicial Specifications

Voltage Rating 250VAC max
Current Rating 20A max
Min Wire Size OD 6mm
Max Wire Size OD 10mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2
Contact Resistance 30 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +85°C
IP Class IP68 (10m /60min)
Mold Material PA6
Contact/Terminal Material Nickel-Plated Brass
Seal Material Silicone
Number of Poles 4
Current Rating 20A max
Voltage Rating 250VAC max
Durability Voltage 3000VAC @ 60 s.
