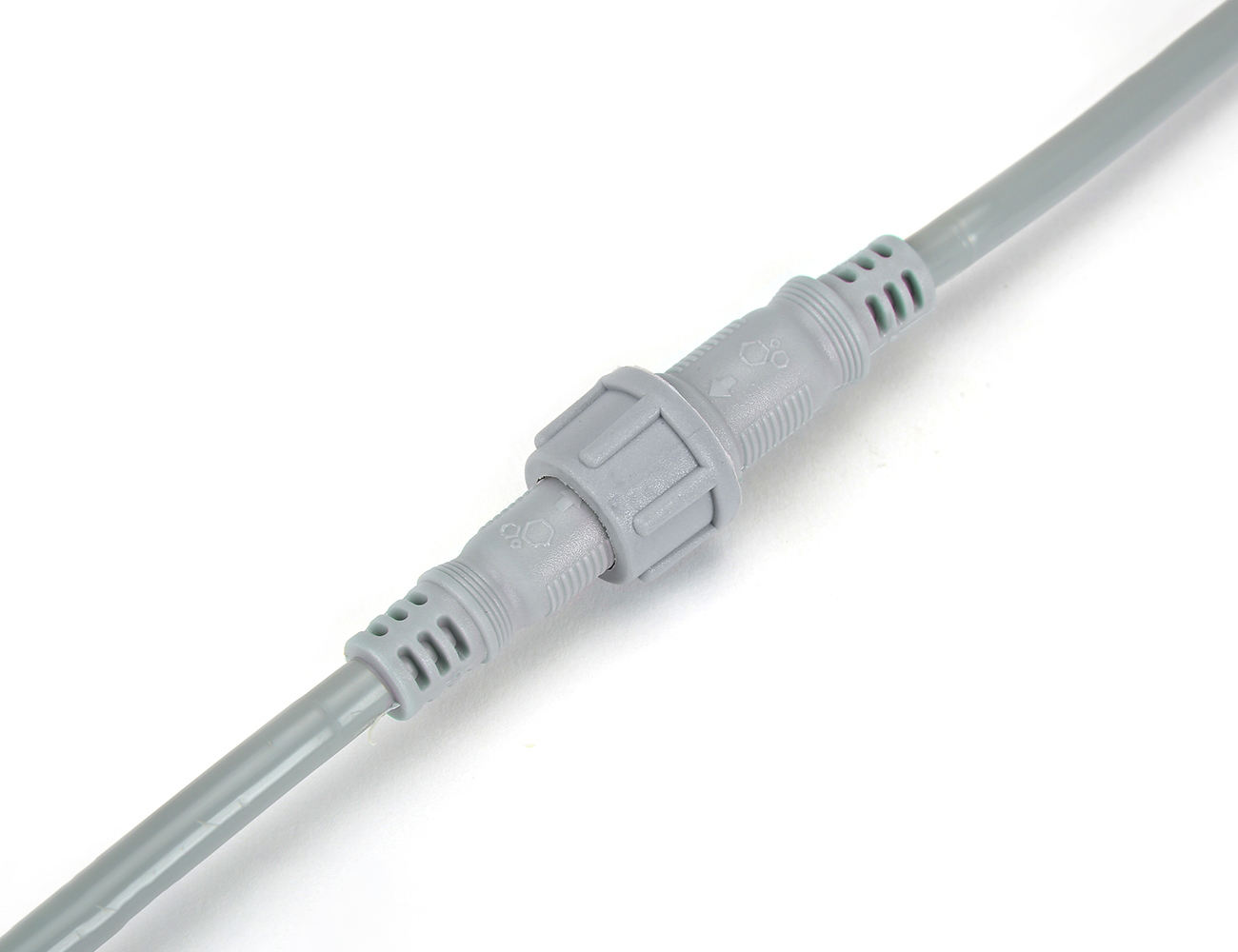

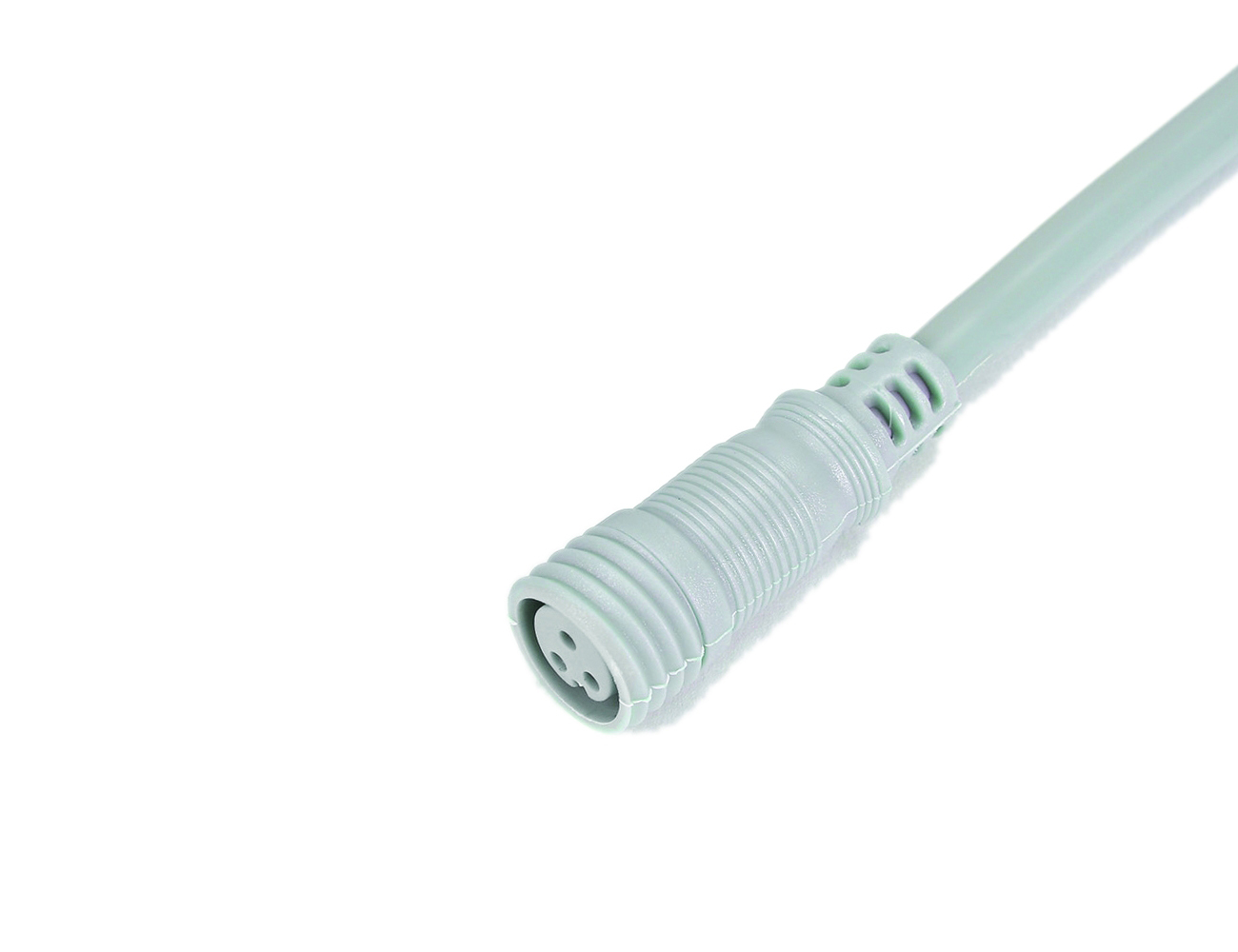

3 Pin Female Circular

3 Pin Female Circular



Technicial Specifications



Contact Brass Nickel Plated
Current Rating 3 Pin:2,5A
Voltage Rating 250V AC
Contact Resistance <10M Ω
Insulation Resistance 1000M Ω  at DC 500V.
Breakdown Voltage 1,5KV / 1 minute
Temperature Rating -30 - 85°
Durability (Plug/Unplug) 3000 times
Waterproof Rating IP67
Cable Max. Diameter 3 Pin Ø 6mm.
Pins Range 3 Pin
Certificate CE ; ROSH
