| 2 Pin |
|
|
|
|
|
|
|
| 3920-02F |
2 Pin 1.30mm Female Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3920-02M |
2 Pin 1.30mm Male Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3 Pin |
|
|
|
|
|
|
|
| 3920-03F |
3 Pin 1.30mm Female Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3920-03M |
3 Pin 1.30mm Male Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 4 Pin |
|
|
|
|
|
|
|
| 3920-04F |
4 Pin 1.30mm Female Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3920-04M |
4 Pin 1.30mm Male Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 6 Pin |
|
|
|
|
|
|
|
| 3920-06F |
6 Pin 1.30mm Dişi Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3920-06M |
6 Pin 1.30mm Male Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 9 Pin |
|
|
|
|
|
|
|
| 3920-09F |
9 Pin 1.30mm Female Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3920-09M |
9 Pin 1.30mm Male Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 12 Pin |
|
|
|
|
|
|
|
| 3920-12F |
12 Pin 1.30mm Female Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3920-12M |
12 Pin 1.30mm Male Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 15 Pin |
|
|
|
|
|
|
|
| 3920-15F |
15 Pin 1.30mm Female Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| 3920-15M |
15 Pin 1.30mm Male Housing |
10A |
300V |
1500VAC @ 60 s. |
Nylon 66 UL94V-0 |
-25°C ~ +85°C |
|
| Terminal |
|
|
|
|
|
|
|

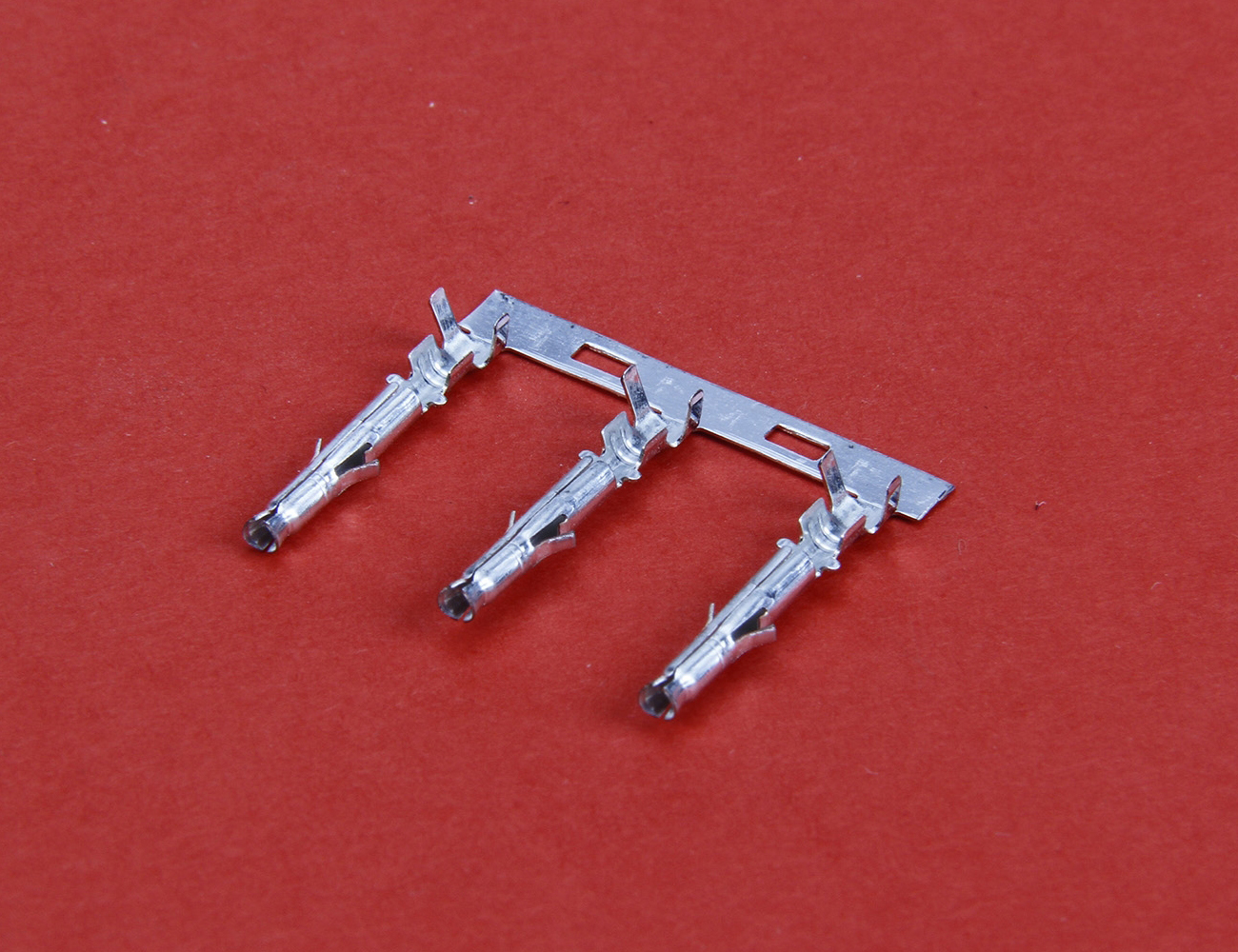

| 3920-FT |
Crimp Terminal Female 3920 Series Connector |
- |
- |
- |
Brass (Tin Plated) |
- |
|

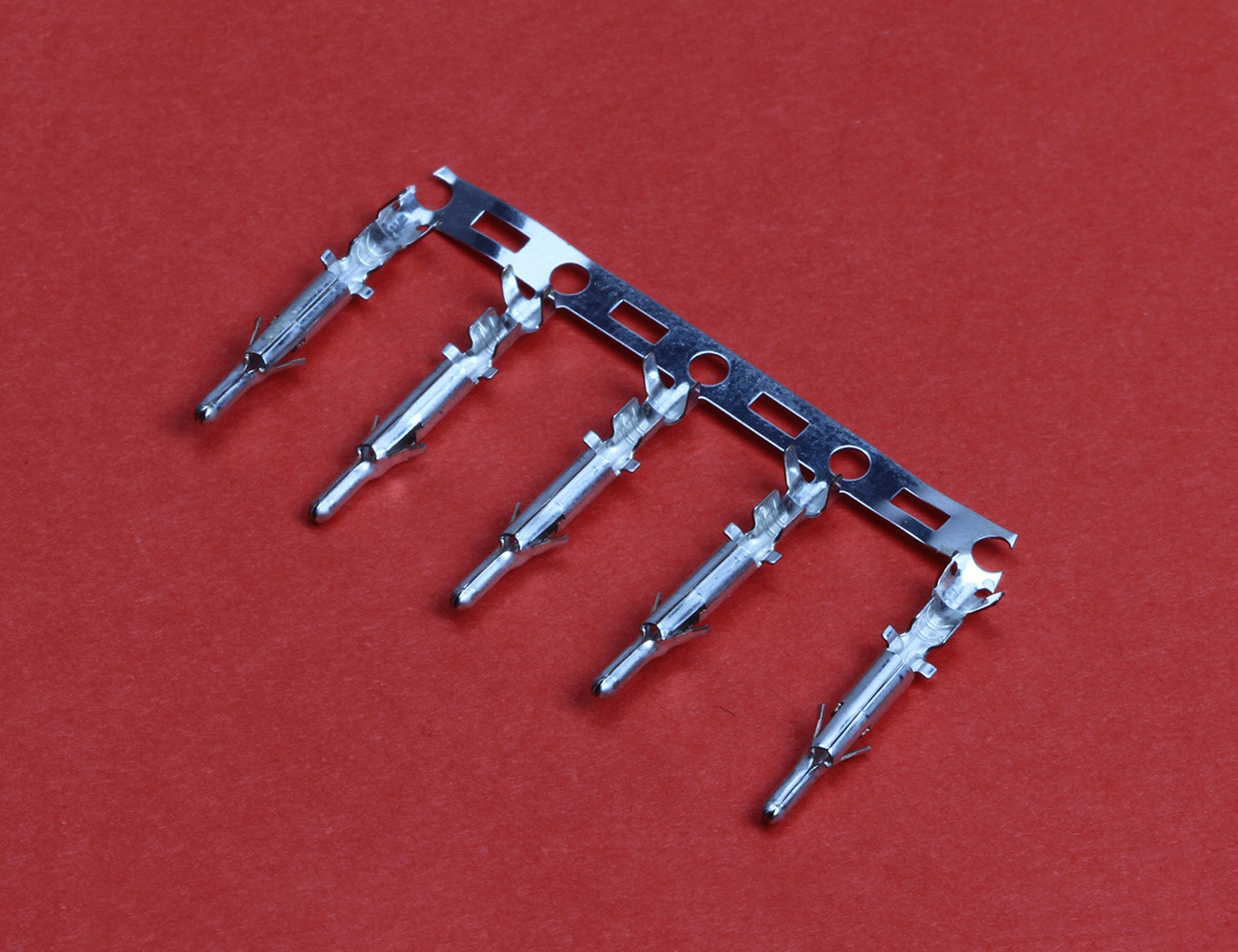

| 3920-MT |
Crimp Terminal Male 3920 Series Connector |
- |
- |
- |
Brass (Tin Plated) |
- |
|
